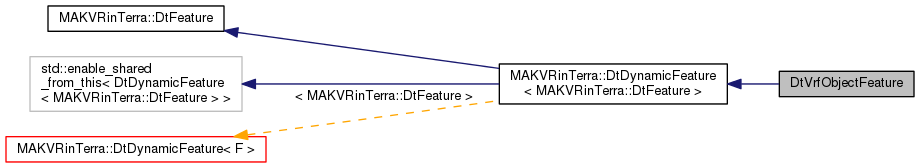

Inheritance diagram for DtVrfObjectFeature:

Public Member Functions
	DtVrfObjectFeature (DtSimObjectReference object)

virtual MAKVRinTerra::DtFeature *	clone () const override

virtual void	forEachAttribute (ForEachFunction) const override

virtual unsigned	numberOfAttributes (const Key::String &) const override

virtual bool	hasAttribute (const Key &) const override

virtual boost::optional < Attribute >	attribute (const Key &) const override

virtual DtEntityType	objectType () const

virtual std::string	objectName () const

virtual std::string	objectUuid () const

virtual DtVector	position () const

virtual boost::optional< double >	percentComplete () const

virtual boost::optional< bool >	isBreached () const

Public Member Functions inherited from MAKVRinTerra::DtDynamicFeature< MAKVRinTerra::DtFeature >
	DtDynamicFeature (DtFeatureGeometry geom=DtFeatureGeometry())

	~DtDynamicFeature ()

DtFeature *	clone () const

DtFeatureGeometry	geometry () const

void	forEachAttribute (ForEachFunction func) const

unsigned	numberOfAttributes (const typename Key::String &name) const

bool	hasAttribute (const Key &k) const

boost::optional< Attribute >	attribute (const Key &k) const

DetachCallback	addDeleteCallback (const DeleteCallback &callback) const

bool	isDeleted () const

void	setDeleted ()

Public Member Functions inherited from MAKVRinTerra::DtFeature
	DtFeature ()

virtual	~DtFeature ()

template<typename T >
boost::optional< T >	attributeAs (const Key &k) const

	DtFeature (const DtFeature &)

Protected Attributes
DtSimObjectReference	myObject

DtEntityType	myObjectType

std::string	myObjectTypeString

DtVector	myLastPosition

Protected Attributes inherited from MAKVRinTerra::DtDynamicFeature< MAKVRinTerra::DtFeature >
Mutex	myMutex

bool	myDeletedFlag

DeleteSignal	myDeleteSignal

DtFeatureGeometry	myGeometry

AttributeMap	myAttributes

Private Types
typedef MAKVRinTerra::DtDynamicFeature < MAKVRinTerra::DtFeature >	Base

Additional Inherited Members
Public Types inherited from MAKVRinTerra::DtDynamicFeature< MAKVRinTerra::DtFeature >
typedef MAKVRinTerra::DtFeature::ForEachFunction	ForEachFunction

typedef MAKVRinTerra::DtFeature::Key	Key

typedef MAKVRinTerra::DtFeature::Attribute	Attribute

typedef MAKVRinTerra::DtFeature::DeleteCallback	DeleteCallback

typedef MAKVRinTerra::DtFeature::DetachCallback	DetachCallback

typedef std::shared_ptr < DtDynamicFeature >	Ptr

typedef std::shared_ptr< const DtDynamicFeature >	CPtr

Public Types inherited from MAKVRinTerra::DtFeature
typedef std::shared_ptr < DtFeature >	Ptr

typedef std::shared_ptr< const DtFeature >	CPtr

typedef boost::variant < std::string, long long, bool, double >	Attribute

typedef boost::function< void(const Key &, const Attribute &)>	ForEachFunction

typedef boost::function< void()>	DetachCallback

typedef boost::function< void()>	DeleteCallback

Static Public Member Functions inherited from MAKVRinTerra::DtFeature
template<typename T >
static boost::optional< T >	ConvertAttribute (const Attribute &attr)

static std::string	TypeOfAttribute (const Attribute &)

static std::unique_ptr< DtFeature >	CreateEmptyFeature ()

static std::unique_ptr< DtFeature >	CreateGeometryFeature (const DtFeatureGeometry &)

static std::unique_ptr< DtFeature >	CreateGeometryFeature (const DtFeatureGeometry &, unsigned char red, unsigned char green, unsigned char blue)

static std::unique_ptr< DtFeature >	CreateCopy (const DtFeature &feature)

static bool	Equal (const Attribute &, const Attribute &)

static bool	NotEqual (const Attribute &, const Attribute &)

static bool	Less (const Attribute &, const Attribute &)

static bool	LessOrEqual (const Attribute &, const Attribute &)

static bool	Greater (const Attribute &, const Attribute &)

static bool	GreaterOrEqual (const Attribute &, const Attribute &)

static bool	Regex (const Attribute &text, const Attribute &pattern)

Static Public Attributes inherited from MAKVRinTerra::DtFeature
static const char *	TypeName

Protected Types inherited from MAKVRinTerra::DtDynamicFeature< MAKVRinTerra::DtFeature >
typedef tbb::spin_rw_mutex	Mutex

typedef boost::signals2::signal< void()>	DeleteSignal

typedef std::map< Key, Attribute >	AttributeMap

Member Typedef Documentation

typedef MAKVRinTerra::DtDynamicFeature<MAKVRinTerra::DtFeature> DtVrfObjectFeature::Base

private

Constructor & Destructor Documentation

DtVrfObjectFeature::DtVrfObjectFeature ( DtSimObjectReference object )

explicit

Member Function Documentation

virtual MAKVRinTerra::DtFeature* DtVrfObjectFeature::clone ( ) const

overridevirtual

Return a pointer to an object which represents the current feature. In order to enable paging and efficient representation of features, this method should return a pointer to feature which contains all the same data as the current feature but may be a different object. This allows DtFeature objects to be created on the stack and to not create the actual heap allocated and page tracked object until the point at which it is needed.

Reimplemented from MAKVRinTerra::DtFeature.

virtual void DtVrfObjectFeature::forEachAttribute ( ForEachFunction f ) const

overridevirtual

Calls the provided callback on each attribute.

Reimplemented from MAKVRinTerra::DtFeature.

virtual unsigned DtVrfObjectFeature::numberOfAttributes ( const Key::String & ) const

overridevirtual

Number of attributes with a given key.

Reimplemented from MAKVRinTerra::DtFeature.

virtual bool DtVrfObjectFeature::hasAttribute ( const Key & k ) const

overridevirtual

Check to see if this feature has an attribute of a specific type.

Reimplemented from MAKVRinTerra::DtFeature.

virtual boost::optional<Attribute> DtVrfObjectFeature::attribute ( const Key & ) const

overridevirtual

Get attribute at a certain key.

Reimplemented from MAKVRinTerra::DtFeature.

virtual DtEntityType DtVrfObjectFeature::objectType ( ) const

virtual

virtual std::string DtVrfObjectFeature::objectName ( ) const

virtual

virtual std::string DtVrfObjectFeature::objectUuid ( ) const

virtual

virtual DtVector DtVrfObjectFeature::position ( ) const

virtual

virtual boost::optional<double> DtVrfObjectFeature::percentComplete ( ) const

virtual

virtual boost::optional<bool> DtVrfObjectFeature::isBreached ( ) const

virtual

Member Data Documentation

DtSimObjectReference DtVrfObjectFeature::myObject

protected

DtEntityType DtVrfObjectFeature::myObjectType

protected

std::string DtVrfObjectFeature::myObjectTypeString

protected

DtVector DtVrfObjectFeature::myLastPosition

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrfobjcore/vrfObjectFeature.h
