A widget class for managing different camera views the currently selected observer can be placed in.

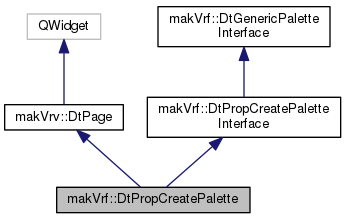

Inheritance diagram for makVrf::DtPropCreatePalette:

Public Member Functions
	DtPropCreatePalette (makVrv::DtDe &de, QWidget *parent=0, Qt::WindowFlags flags=0)

virtual	~DtPropCreatePalette () override

void	setupUi (QWidget *p)

virtual void	clear () override

virtual void	clearProps () override

virtual void	update () override

virtual void	setEnabled (bool) override

virtual void	addItem (const std::string &name, const std::string &type, const std::string &modelDef, const std::string &group, const std::string &imageName) override

virtual QIcon	icon () override

virtual makVrv::DtQIconConfigurations	qIconConfigurations () const override

virtual QString	title () override

virtual const std::string &	pageClassName () const override

virtual bool	initiallyVisible () const override

virtual void	activate () override

virtual void	deactivate () override

Public Member Functions inherited from makVrv::DtPage
	DtPage (DtDe &de, QWidget *parent=0, Qt::WindowFlags f=0)

virtual	~DtPage ()

virtual PageAction	pageAction ()

virtual void	setPageAction (PageAction action)

virtual void	setActionFlag (int flag)

virtual int	actionFlag ()

virtual void	setParentDialog (QWidget *paraentDialog)

virtual QWidget *	parentDialog ()

virtual bool	shouldAskBeforeAction (PageAction action)

virtual void	askBeforeAction ()

virtual void	executeAfterAsk (bool revert)

virtual void	resumeLastAction ()

virtual void	onCloseEvent ()

virtual void	onSwitchEvent ()

Public Member Functions inherited from makVrf::DtPropCreatePaletteInterface
virtual	~DtPropCreatePaletteInterface () override

Public Member Functions inherited from makVrf::DtGenericPaletteInterface
virtual	~DtGenericPaletteInterface ()

Static Public Member Functions
static const std::string &	thePageClassName ()

Protected Slots
virtual void	slot_onItemClicked (QTreeWidgetItem *, int)

virtual void	showInformationForItem (const QModelIndex &)

Protected Member Functions
virtual void	aboutToShow () override

Protected Member Functions inherited from makVrv::DtPage
virtual QWidget *	wrapPageWithScrollArea (QWidget *scrollableWidget, bool isHorizontalScrollingEnabled=false, bool isVerticalScrollingEnabled=true)

virtual DtPageScrollArea *	createScrollArea (QWidget scrollableWidget, QWidget parent, bool isHorizontalScrollingEnabled=false, bool isVerticalScrollingEnabled=true)

Protected Attributes
DtPropCreatePaletteLogic *	myLogic

QVBoxLayout *	myMainLayout

QTreeWidget *	myPropTree

QLabel *	myPropCreationPicture

QLabel *	myGuiLabel

Protected Attributes inherited from makVrv::DtPage
DtDe &	myDe

QWidget *	myParentDialog

PageAction	myCurrentPageAction

int	myActionFlag

Additional Inherited Members
Public Types inherited from makVrv::DtPage
enum	PageAction { None = 0x0000, Switching = 0x0001, Closing = 0x0010 }

Public Attributes inherited from makVrf::DtPropCreatePaletteInterface
boost::signals2::signal< void(const std::string &, const std::string &)>	signal_itemSelected

boost::signals2::signal< void(DtPropCreatePaletteInterface *)>	signal_Updated

Constructor & Destructor Documentation

makVrf::DtPropCreatePalette::DtPropCreatePalette	(	makVrv::DtDe &	de,
		QWidget *	parent = `0`,
		Qt::WindowFlags	flags = `0`
	)

CTOR.

virtual makVrf::DtPropCreatePalette::~DtPropCreatePalette ( )

overridevirtual

DTOR.

Member Function Documentation

void makVrf::DtPropCreatePalette::setupUi ( QWidget * p )

Sets up the contents of the widget onto the supplied parent.

virtual void makVrf::DtPropCreatePalette::clear ( )

inlineoverridevirtual

Clears contents of widget (from DtGenericPaletteInterface)

Implements makVrf::DtGenericPaletteInterface.

virtual void makVrf::DtPropCreatePalette::clearProps ( )

overridevirtual

Clears out props tree.

Implements makVrf::DtPropCreatePaletteInterface.

virtual void makVrf::DtPropCreatePalette::update ( )

inlineoverridevirtual

Tells widget to update (redraw) (from DtGenericPaletteInterface)

Implements makVrf::DtGenericPaletteInterface.

virtual void makVrf::DtPropCreatePalette::setEnabled ( bool )

overridevirtual

Enables/Disables Gui (from DtGenericPaletteInterface)

Implements makVrf::DtGenericPaletteInterface.

virtual void makVrf::DtPropCreatePalette::addItem	(	const std::string &	name,
		const std::string &	type,
		const std::string &	modelDef,
		const std::string &	group,
		const std::string &	imageName
	)

overridevirtual

Implements makVrf::DtPropCreatePaletteInterface.

virtual QIcon makVrf::DtPropCreatePalette::icon ( )

overridevirtual

Icon to be used in small display.

Implements makVrv::DtPage.

virtual makVrv::DtQIconConfigurations makVrf::DtPropCreatePalette::qIconConfigurations ( ) const

overridevirtual

Get the icon configurations for the page. This is used to style the page's icon based on application settings.

Implements makVrv::DtPage.

virtual QString makVrf::DtPropCreatePalette::title ( )

overridevirtual

Name to put next to the icon.

Implements makVrv::DtPage.

virtual const std::string& makVrf::DtPropCreatePalette::pageClassName ( ) const

overridevirtual

Get the class name of the page.

Implements makVrv::DtPage.

static const std::string& makVrf::DtPropCreatePalette::thePageClassName ( )

static

Static accessor for the class name.

virtual bool makVrf::DtPropCreatePalette::initiallyVisible ( ) const

inlineoverridevirtual

Implements makVrf::DtGenericPaletteInterface.

virtual void makVrf::DtPropCreatePalette::activate ( )

inlineoverridevirtual

Called when the page is displayed.

Implements makVrv::DtPage.

virtual void makVrf::DtPropCreatePalette::deactivate ( )

inlineoverridevirtual

Called when the page is hidden.

Implements makVrv::DtPage.

virtual void makVrf::DtPropCreatePalette::aboutToShow ( )

overrideprotectedvirtual

Called when this palette is about to be shown.

Implements makVrf::DtGenericPaletteInterface.

virtual void makVrf::DtPropCreatePalette::slot_onItemClicked	(	QTreeWidgetItem *	,
		int
	)

protectedvirtualslot

virtual void makVrf::DtPropCreatePalette::showInformationForItem ( const QModelIndex & )

protectedvirtualslot

Member Data Documentation

DtPropCreatePaletteLogic* makVrf::DtPropCreatePalette::myLogic

protected

QVBoxLayout* makVrf::DtPropCreatePalette::myMainLayout

protected

QTreeWidget* makVrf::DtPropCreatePalette::myPropTree

protected

QLabel* makVrf::DtPropCreatePalette::myPropCreationPicture

protected

QLabel* makVrf::DtPropCreatePalette::myGuiLabel

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrfGuiCoreQt/propCreatePalette.h
