1) Define the interface class that will be used to represent the next and curent frames. The UNDEFINED_ macros are convenience macros that will define methods that throw exceptions (until they are implemented)

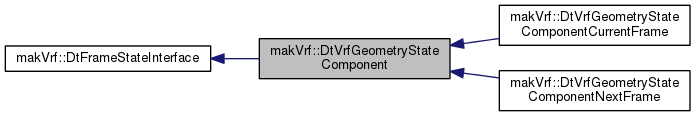

Inheritance diagram for makVrf::DtVrfGeometryStateComponent:

[legend]

Public Member Functions
	DtVrfGeometryStateComponent (DtStateData *storage)

virtual const DtSimBoundingGeometry &	localBoundingGeometry () const

virtual const DtSimBoundingGeometry &	worldBoundingGeometry () const

virtual void	setToObjectGeometry (DtVrfObjectGeometry &) const

virtual double	distSquaredTo (const DtVector &testPoint) const

virtual bool	localGetClosestVertex (const DtVector &point, DtVector &vertex) const

virtual bool	localGetClosestLine (const DtVector &point, DtVector &linePt1, DtVector &linePt2) const

virtual double	worldDistSquaredTo (const DtVector &testPoint) const

virtual bool	worldGetClosestVertex (const DtVector &point, DtVector &vertex) const

virtual bool	worldGetClosestLine (const DtVector &point, DtVector &linePt1, DtVector &linePt2) const

virtual void	setLocalVertices (const DtList &vertices, DtVector &newGeometricCenter)

virtual void	setLocalVertices (const std::vector< DtVector > &vertices, DtVector &newGeometricCenter)

virtual void	setLocalVertices (const DtLocalVertexList &vertices, DtVector &newGeometricCenter)

virtual void	setWorldVertices (const std::vector< DtVector > &vertices, DtVector &newGeometricCenter)

virtual void	setWorldVertices (const DtVertexList &vertices, DtVector &newGeometricCenter)

virtual void	setWorldVertices (const DtList &vertices, DtVector &newGeometricCenter)

virtual void	setObjectVertices (const std::vector< DtVector > &vertices)

virtual void	setObjectVertices (const DtList &vertices)

virtual void	addLocalVertex (const DtVector &vertex)

virtual void	addLocalVertex (const DtVector &vertex, DtVector &newGeometricCenter)

virtual void	addWorldVertex (const DtVector &vertex, DtVector &newGeometricCenter)

Public Member Functions inherited from makVrf::DtFrameStateInterface
	DtFrameStateInterface (DtStateData *)

virtual	~DtFrameStateInterface ()

void	setIsWritable (bool b)

bool	isWritable () const

UInt64	stateId () const

UInt64	legionGlobalId () const

void	setLegionGlobalId (UInt64 d)

virtual bool	isModified () const

virtual void	clearModified ()

virtual void	markModified ()

virtual DtStateComponent::StateComponentType	type () const

virtual DtStateComponent::StateComponentType	componentType () const =0

virtual const char *	stringType () const =0

void	setId (UInt64 id)

virtual UInt64	id () const

virtual void	updateStateData (DtStateData *sd)

virtual Legion::ReadStateInstance	readStateInstance () const

virtual Legion::WriteStateInstance	writeStateInstance ()

void	emitComponentUpdated ()

bool	cleared () const

bool	advancedFrame () const

virtual void	frameAdvanced ()

virtual void	convertToRemote ()

virtual void	convertToLocal ()

virtual void	aboutToBeDeleted ()

Public Attributes
boost::signals2::signal< void(const DtFrameStateInterface *)>	signal_objectVerticesChanged {}

Public Attributes inherited from makVrf::DtFrameStateInterface
boost::signals2::signal< void(DtFrameStateInterface *)>	signal_stateComponentAboutToBeDeleted

boost::signals2::signal< void(const DtFrameStateInterface *)>	signal_componentModified

Additional Inherited Members
Protected Member Functions inherited from makVrf::DtFrameStateInterface
virtual void	makeWritable ()

virtual void	makeReadOnly ()

Protected Attributes inherited from makVrf::DtFrameStateInterface
bool	myIsModified

UInt64	myId

UInt64	myStateId

UInt64	myLegionId

bool	myIsWritable

bool	myCleared

bool	myAdvancedFrame

DtStateData *	myStateData

Constructor & Destructor Documentation

makVrf::DtVrfGeometryStateComponent::DtVrfGeometryStateComponent ( DtStateData * storage )

inline

Member Function Documentation

virtual const DtSimBoundingGeometry& makVrf::DtVrfGeometryStateComponent::localBoundingGeometry ( ) const

inlinevirtual

virtual const DtSimBoundingGeometry& makVrf::DtVrfGeometryStateComponent::worldBoundingGeometry ( ) const

inlinevirtual

virtual void makVrf::DtVrfGeometryStateComponent::setToObjectGeometry ( DtVrfObjectGeometry & ) const

inlinevirtual

Reimplemented in makVrf::DtVrfGeometryStateComponentCurrentFrame, and makVrf::DtVrfGeometryStateComponentNextFrame.

virtual double makVrf::DtVrfGeometryStateComponent::distSquaredTo ( const DtVector & testPoint ) const

inlinevirtual

Returns the squared distance from a given point in local coordinates, to the object. If the object has more than two vertices (that is, more than one line segment), it acts on the closest line segment.

Reimplemented in makVrf::DtVrfGeometryStateComponentCurrentFrame, and makVrf::DtVrfGeometryStateComponentNextFrame.

virtual bool makVrf::DtVrfGeometryStateComponent::localGetClosestVertex	(	const DtVector &	point,
		DtVector &	vertex
	)		const

inlinevirtual

Determines the closest vertex in the object�s geometry to a given point, in local coordinates.

Reimplemented in makVrf::DtVrfGeometryStateComponentCurrentFrame, and makVrf::DtVrfGeometryStateComponentNextFrame.

virtual bool makVrf::DtVrfGeometryStateComponent::localGetClosestLine	(	const DtVector &	point,
		DtVector &	linePt1,
		DtVector &	linePt2
	)		const

inlinevirtual

Determines the closest line segment in the object�s geometry to a given

point, in local coordinates. Sets linePt1 and linePt2 to be the vertices of the line closest to the point in this object's geometry.

Reimplemented in makVrf::DtVrfGeometryStateComponentCurrentFrame, and makVrf::DtVrfGeometryStateComponentNextFrame.

virtual double makVrf::DtVrfGeometryStateComponent::worldDistSquaredTo ( const DtVector & testPoint ) const

inlinevirtual

Returns the squared distance from a given point in world coordinates, to the object. If the object has more than two vertices (that is, more than one line segment), it acts on the closest line segment.

Reimplemented in makVrf::DtVrfGeometryStateComponentCurrentFrame, and makVrf::DtVrfGeometryStateComponentNextFrame.

virtual bool makVrf::DtVrfGeometryStateComponent::worldGetClosestVertex	(	const DtVector &	point,
		DtVector &	vertex
	)		const

inlinevirtual

Determines the closest vertex in the object�s geometry to a given point, in world coordinates.

Reimplemented in makVrf::DtVrfGeometryStateComponentCurrentFrame, and makVrf::DtVrfGeometryStateComponentNextFrame.

virtual bool makVrf::DtVrfGeometryStateComponent::worldGetClosestLine	(	const DtVector &	point,
		DtVector &	linePt1,
		DtVector &	linePt2
	)		const

inlinevirtual

Determines the closest line segment in the object�s geometry to a given

point, in world coordinates. Sets linePt1 and linePt2 to be the vertices of the line closest to the point in this object's geometry.

Reimplemented in makVrf::DtVrfGeometryStateComponentCurrentFrame, and makVrf::DtVrfGeometryStateComponentNextFrame.

virtual void makVrf::DtVrfGeometryStateComponent::setLocalVertices	(	const DtList &	vertices,
		DtVector &	newGeometricCenter
	)

inlinevirtual

Reimplemented in makVrf::DtVrfGeometryStateComponentNextFrame.

virtual void makVrf::DtVrfGeometryStateComponent::setLocalVertices	(	const std::vector< DtVector > &	vertices,
		DtVector &	newGeometricCenter
	)

inlinevirtual

Reimplemented in makVrf::DtVrfGeometryStateComponentNextFrame.

virtual void makVrf::DtVrfGeometryStateComponent::setLocalVertices	(	const DtLocalVertexList &	vertices,
		DtVector &	newGeometricCenter
	)

inlinevirtual

Reimplemented in makVrf::DtVrfGeometryStateComponentNextFrame.

virtual void makVrf::DtVrfGeometryStateComponent::setWorldVertices	(	const std::vector< DtVector > &	vertices,
		DtVector &	newGeometricCenter
	)

inlinevirtual

Reimplemented in makVrf::DtVrfGeometryStateComponentNextFrame.

virtual void makVrf::DtVrfGeometryStateComponent::setWorldVertices	(	const DtVertexList &	vertices,
		DtVector &	newGeometricCenter
	)

inlinevirtual

Reimplemented in makVrf::DtVrfGeometryStateComponentNextFrame.

virtual void makVrf::DtVrfGeometryStateComponent::setWorldVertices	(	const DtList &	vertices,
		DtVector &	newGeometricCenter
	)

inlinevirtual

Reimplemented in makVrf::DtVrfGeometryStateComponentNextFrame.

virtual void makVrf::DtVrfGeometryStateComponent::setObjectVertices ( const std::vector< DtVector > & vertices )

inlinevirtual

Reimplemented in makVrf::DtVrfGeometryStateComponentNextFrame.

virtual void makVrf::DtVrfGeometryStateComponent::setObjectVertices ( const DtList & vertices )

inlinevirtual

Reimplemented in makVrf::DtVrfGeometryStateComponentNextFrame.

virtual void makVrf::DtVrfGeometryStateComponent::addLocalVertex ( const DtVector & vertex )

inlinevirtual

Reimplemented in makVrf::DtVrfGeometryStateComponentNextFrame.

virtual void makVrf::DtVrfGeometryStateComponent::addLocalVertex	(	const DtVector &	vertex,
		DtVector &	newGeometricCenter
	)

inlinevirtual

Reimplemented in makVrf::DtVrfGeometryStateComponentNextFrame.

virtual void makVrf::DtVrfGeometryStateComponent::addWorldVertex	(	const DtVector &	vertex,
		DtVector &	newGeometricCenter
	)

inlinevirtual

Reimplemented in makVrf::DtVrfGeometryStateComponentNextFrame.

Member Data Documentation

boost::signals2::signal<void (const DtFrameStateInterface*)> makVrf::DtVrfGeometryStateComponent::signal_objectVerticesChanged {}

mutable

Signal sent when object vertices have changed for this component.

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrfStateData/vrfGeometryStateComponent.h
