makVrv::DtEffect Class Reference

The base class for a programmable pipeline render effect.

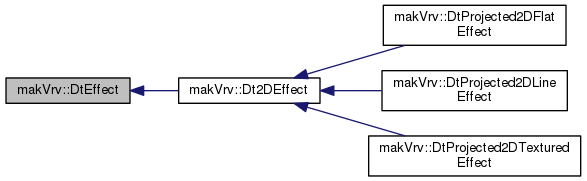

Inheritance diagram for makVrv::DtEffect:

Classes
struct	VertexAttribPtrInfo

Public Member Functions
	DtEffect (const std::string &dataPath, const std::string &strDefines)
virtual	~DtEffect ()
virtual void	releaseResources ()
virtual void	reloadShaders ()
bool	enabled () const
bool	enable ()
void	disable ()

Static Public Member Functions
static std::string	loadShaderSource (const std::string &strFileFolder, const std::string &strFileName, const std::string &strDefines)

Protected Member Functions
virtual void	initializeShaderSource ()=0
virtual void	updateUniformLocations ()=0
virtual void	updateUniforms ()=0
bool	compileShaders ()

Static Protected Member Functions
static std::string	preprocessShaderIncludes (const std::string &source, const boost::filesystem::path &filename, int level, const std::string &shaderFolderPath)
static std::string	loadShaderFile (const std::string &strFileName)

Protected Attributes
std::string	myName
bool	myEnabledFlag
unsigned int	myProgram
unsigned int	myVertexShader
unsigned int	myFragmentShader
std::string	myVertexShaderSource
std::string	myVertexShaderName
std::string	myFragmentShaderSource
std::string	myFragmentShaderName
std::string	myGeometryShaderSource
std::string	myDataPath
const std::string	myDefines

Constructor & Destructor Documentation

makVrv::DtEffect::DtEffect	(	const std::string &	dataPath,
		const std::string &	strDefines
	)

CTOR.

virtual makVrv::DtEffect::~DtEffect ( )

virtual

DTORs.

Member Function Documentation

virtual void makVrv::DtEffect::releaseResources ( )

virtual

Release and HW resources of the effect.

Reimplemented in makVrv::DtProjected2DFlatEffect.

virtual void makVrv::DtEffect::reloadShaders ( )

virtual

Reloads any shaders associated with the effect.

bool makVrv::DtEffect::enabled

(

)

const

Is the effect enabled.

Referenced by makVrv::DtEffectRenderer::~DtEffectRenderer().

bool makVrv::DtEffect::enable

(

)

Referenced by makVrv::DtEffectRenderer::DtEffectRenderer().

void makVrv::DtEffect::disable

(

)

Referenced by makVrv::DtEffectRenderer::~DtEffectRenderer().

static std::string makVrv::DtEffect::loadShaderSource ( const std::string &  strFileFolder, const std::string &  strFileName, const std::string &  strDefines  )

static

virtual void makVrv::DtEffect::initializeShaderSource ( )

protectedpure virtual

Virtual abstract Interface.

Implemented in makVrv::DtProjected2DFlatEffect, makVrv::DtProjected2DLineEffect, and makVrv::DtProjected2DTexturedEffect.

virtual void makVrv::DtEffect::updateUniformLocations ( )

protectedpure virtual

Implemented in makVrv::DtProjected2DFlatEffect, makVrv::DtProjected2DLineEffect, and makVrv::DtProjected2DTexturedEffect.

virtual void makVrv::DtEffect::updateUniforms ( )

protectedpure virtual

Implemented in makVrv::DtProjected2DFlatEffect, makVrv::DtProjected2DLineEffect, and makVrv::DtProjected2DTexturedEffect.

bool makVrv::DtEffect::compileShaders ( )

protected

Compile the shaders.

static std::string makVrv::DtEffect::preprocessShaderIncludes ( const std::string &  source, const boost::filesystem::path &  filename, int  level, const std::string &  shaderFolderPath  )

staticprotected

Preprocess shader includes (recursive).

static std::string makVrv::DtEffect::loadShaderFile ( const std::string &  strFileName )

staticprotected

Used by loadShaderSource() and preprocessIncludes() to load a shader file.

Member Data Documentation

std::string makVrv::DtEffect::myName

protected

bool makVrv::DtEffect::myEnabledFlag

protected

unsigned int makVrv::DtEffect::myProgram

protected

unsigned int makVrv::DtEffect::myVertexShader

protected

unsigned int makVrv::DtEffect::myFragmentShader

protected

std::string makVrv::DtEffect::myVertexShaderSource

protected

std::string makVrv::DtEffect::myVertexShaderName

protected

std::string makVrv::DtEffect::myFragmentShaderSource

protected

std::string makVrv::DtEffect::myFragmentShaderName

protected

std::string makVrv::DtEffect::myGeometryShaderSource

protected

std::string makVrv::DtEffect::myDataPath

protected

const std::string makVrv::DtEffect::myDefines

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrvGraphics/DtEffect.h
