makVrv::DtLocationEntryWidget Class Reference

DtLocationEntryWidget declaration. Abstact base class for widgets that manage location input to the Goto Panel. All DtLocationEntryWidgets are responsible for validation of entuered data. They will raise a hasValidValue Qt signal with a value of true when there is valid input,.

may be retrieved using the getValue() method. Note that location entry widgets do not support an altitude (see DtGotoLogic for more details).

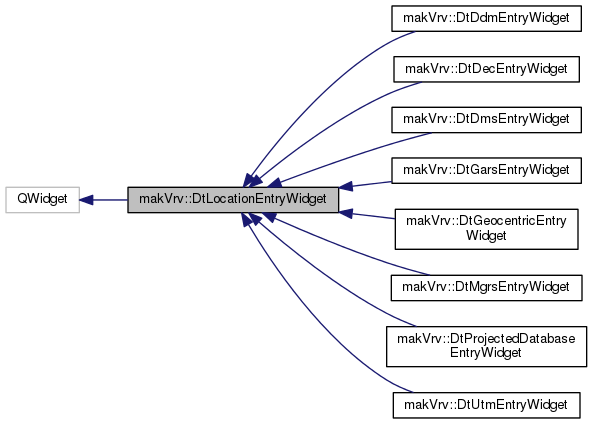

Inheritance diagram for makVrv::DtLocationEntryWidget:

Signals
void	hasValidValue (bool valid)

Public Member Functions
	DtLocationEntryWidget (DtDe &de, QWidget *parent=0)
virtual	~DtLocationEntryWidget ()
	DtLocationEntryWidget (const DtLocationEntryWidget &orig)=delete
DtLocationEntryWidget &	operator= (const DtLocationEntryWidget &orig)=delete
virtual void	initialize ()
virtual void	getValue (double &lat, double &lon) const
virtual bool	valueValid () const

Protected Member Functions
virtual void	setupUi ()=0
virtual void	connectSignals ()=0
virtual void	onPositionEdited ()=0

Protected Attributes
DtDe &	myDe
bool	myEnabled
double	myLat
double	myLon
bool	myHasValidValue

Constructor & Destructor Documentation

makVrv::DtLocationEntryWidget::DtLocationEntryWidget	(	DtDe &	de,
		QWidget *	parent = 0
	)

Constructor.

virtual makVrv::DtLocationEntryWidget::~DtLocationEntryWidget ( )

virtual

Destructor.

makVrv::DtLocationEntryWidget::DtLocationEntryWidget ( const DtLocationEntryWidget &  orig )

delete

Copy CTOR ( Not implemented )

Member Function Documentation

DtLocationEntryWidget& makVrv::DtLocationEntryWidget::operator= ( const DtLocationEntryWidget &  orig )

delete

Assignment operator ( Not implemented )

virtual void makVrv::DtLocationEntryWidget::initialize ( )

virtual

Set up the widgets and connect our Qt slots to Qt signals.

virtual void makVrv::DtLocationEntryWidget::getValue ( double &  lat, double &  lon  ) const

virtual

Return the current latitude and longitude stored by the widget, in radians.

virtual bool makVrv::DtLocationEntryWidget::valueValid ( ) const

virtual

Determine if the widget currently has a valid value. This is true if the last completed entry could be converted to a valid latitude and longitude.

void makVrv::DtLocationEntryWidget::hasValidValue ( bool  valid )

signal

Signal that the widget has a valid value or not.

virtual void makVrv::DtLocationEntryWidget::setupUi ( )

protectedpure virtual

Create the widgets and layouts.

Implemented in makVrv::DtProjectedDatabaseEntryWidget, makVrv::DtUtmEntryWidget, makVrv::DtGarsEntryWidget, makVrv::DtGeocentricEntryWidget, makVrv::DtDdmEntryWidget, makVrv::DtDmsEntryWidget, makVrv::DtDecEntryWidget, and makVrv::DtMgrsEntryWidget.

virtual void makVrv::DtLocationEntryWidget::connectSignals ( )

protectedpure virtual

Connect our Qt slots to the Qt signals from widgets we created.

Implemented in makVrv::DtProjectedDatabaseEntryWidget, makVrv::DtUtmEntryWidget, makVrv::DtGarsEntryWidget, makVrv::DtGeocentricEntryWidget, makVrv::DtDdmEntryWidget, makVrv::DtDmsEntryWidget, makVrv::DtDecEntryWidget, and makVrv::DtMgrsEntryWidget.

virtual void makVrv::DtLocationEntryWidget::onPositionEdited ( )

protectedpure virtual

This Qt slot is connected to all edit boxes created.

Member Data Documentation

DtDe& makVrv::DtLocationEntryWidget::myDe

protected

bool makVrv::DtLocationEntryWidget::myEnabled

protected

double makVrv::DtLocationEntryWidget::myLat

protected

double makVrv::DtLocationEntryWidget::myLon

protected

bool makVrv::DtLocationEntryWidget::myHasValidValue

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrvCoreQt/DtLocationEntryWidget.h
