makVrv::DtPickableWidget Class Reference

A non-visible interactive widget.

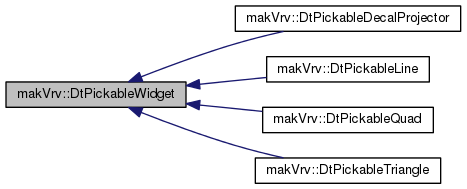

Inheritance diagram for makVrv::DtPickableWidget:

Public Member Functions
virtual	~DtPickableWidget ()=0
	DtPickableWidget ()=delete
	DtPickableWidget (const DtPickableWidget &other)=delete
DtPickableWidget &	operator= (const DtPickableWidget &other)=delete
virtual void	setUserData (unsigned long long data)
virtual unsigned long long	userData () const
unsigned int	id () const

Static Public Member Functions
static unsigned int	idFromColor (unsigned int)

Public Attributes
boost::signalslib::signal < void(int x, int y)>	signal_mouseEnter
boost::signalslib::signal< void()>	signal_mouseLeave
boost::signalslib::signal < void(int x, int y)>	signal_mouseMove
boost::signalslib::signal < void(int x, int y, int button)>	signal_mousePress
boost::signalslib::signal < void(int x, int y, int button)>	signal_mouseRelease
boost::signalslib::signal < void(int x, int y, int button)>	signal_mouseDoubleClick
boost::signalslib::signal < void(int x, int y, int wheel)>	signal_mouseWheel

Protected Member Functions
	DtPickableWidget (DtDe &de, DtWidgetPicker &picker)

Protected Attributes
DtDe &	myDe
DtWidgetPicker &	myPicker
unsigned int	myId
unsigned long long	myUserData

Private Attributes
friend	DtPickableWidgetCreator

Constructor & Destructor Documentation

virtual makVrv::DtPickableWidget::~DtPickableWidget ( )

pure virtual

DTOR.

makVrv::DtPickableWidget::DtPickableWidget ( )

delete

Default Constructor not implemented.

makVrv::DtPickableWidget::DtPickableWidget ( const DtPickableWidget &  other )

delete

Copy Constructor not implemented - Copy not allowed.

makVrv::DtPickableWidget::DtPickableWidget ( DtDe &  de, DtWidgetPicker &  picker  )

protected

Protected CTOR (Instantiated by DtWidgetPicker)

Member Function Documentation

DtPickableWidget& makVrv::DtPickableWidget::operator= ( const DtPickableWidget &  other )

delete

Assignment Operator not implemented - Assignment not allowed.

static unsigned int makVrv::DtPickableWidget::idFromColor ( unsigned  int )

static

Get the id from a color.

virtual void makVrv::DtPickableWidget::setUserData ( unsigned long long  data )

virtual

Set the element id of the widget.

virtual unsigned long long makVrv::DtPickableWidget::userData ( ) const

virtual

Get the element id of the widget.

unsigned int makVrv::DtPickableWidget::id ( ) const

inline

Get the id for this pickable widget. Assigned on construction of the pickable widget by the widget picker.

See Also

DtWidgetPicker::widgetCreated(DtPickableWidget* widget)

Member Data Documentation

friend makVrv::DtPickableWidget::DtPickableWidgetCreator

private

boost::signalslib::signal<void (int x, int y)> makVrv::DtPickableWidget::signal_mouseEnter

Emitted whenever a mouse enters over a widget for the first time.

boost::signalslib::signal<void ()> makVrv::DtPickableWidget::signal_mouseLeave

Emitted whenever a mouse leaves over a widget, called before it enters another widget.

boost::signalslib::signal<void (int x, int y)> makVrv::DtPickableWidget::signal_mouseMove

Emitted whenever a mouse moves over a widget, including when it enters.

boost::signalslib::signal<void (int x, int y, int button)> makVrv::DtPickableWidget::signal_mousePress

Emitted whenever a mouse button is pressed over a widget. If a press.

boost::signalslib::signal<void (int x, int y, int button)> makVrv::DtPickableWidget::signal_mouseRelease

Emitted whenever a mouse button is released over a widget.

boost::signalslib::signal<void (int x, int y, int button)> makVrv::DtPickableWidget::signal_mouseDoubleClick

Emitted when a mouse button is doubled clicked over a widget.

boost::signalslib::signal<void (int x, int y, int wheel)> makVrv::DtPickableWidget::signal_mouseWheel

Emitted when a mouse wheel is scrolled over a widget.

DtDe& makVrv::DtPickableWidget::myDe

protected

DtWidgetPicker& makVrv::DtPickableWidget::myPicker

protected

unsigned int makVrv::DtPickableWidget::myId

protected

unsigned long long makVrv::DtPickableWidget::myUserData

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrvGraphics/DtPickableWidget.h
