makVrv::DtToolbar Class Reference

The base class for VR-Vantage toolbars.

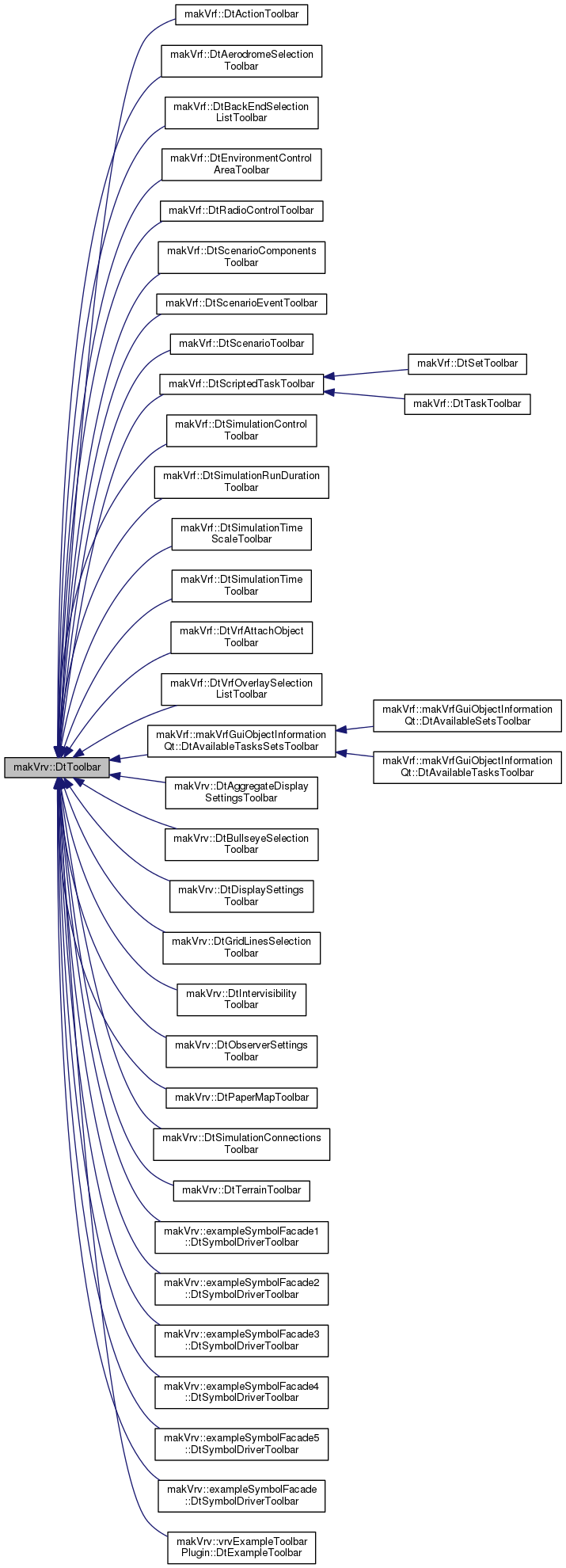

Inheritance diagram for makVrv::DtToolbar:

Public Member Functions
	DtToolbar (DtDe &de, const std::string &toolbarIdName)
virtual	~DtToolbar ()
virtual const std::string &	toolbarClassName () const
virtual QToolBar *	createToolbar (DtDe &, QWidget *parent)=0
virtual void	dock (QToolBar *, QMainWindow *)
QToolBar *	toolbar () const
virtual bool	initiallyVisible () const
void	setToolbarVisible (bool visible)
virtual QToolBar *	toolbar ()
virtual bool	isToolbarHidden ()
virtual void	showToolbar ()
virtual void	hideToolbar ()
virtual void	slot_toolbarOrientationChanged (Qt::Orientation orientation)

Public Attributes
boost::signalslib::signal< void()>	signal_toolbarSet

Protected Attributes
std::string	myClassName
DtDe &	myDe
QToolBar *	myToolbar

Constructor & Destructor Documentation

makVrv::DtToolbar::DtToolbar	(	DtDe &	de,
		const std::string &	toolbarIdName
	)

CTOR.

virtual makVrv::DtToolbar::~DtToolbar ( )

virtual

DTOR.

Member Function Documentation

virtual const std::string& makVrv::DtToolbar::toolbarClassName ( ) const

virtual

Get the toolbar id name, the toolbar id name is not the same thing as the visible toolbar text.

virtual QToolBar* makVrv::DtToolbar::createToolbar ( DtDe &  , QWidget *  parent  )

pure virtual

Build a toolbar.

Implemented in makVrf::makVrfGuiObjectInformationQt::DtAvailableTasksSetsToolbar, makVrv::DtBullseyeSelectionToolbar, makVrv::DtPaperMapToolbar, makVrv::DtIntervisibilityToolbar, makVrv::DtSimulationConnectionsToolbar, makVrv::DtAggregateDisplaySettingsToolbar, makVrf::DtTaskToolbar, makVrv::DtDisplaySettingsToolbar, makVrf::DtScenarioComponentsToolbar, makVrf::DtSetToolbar, makVrf::DtRadioControlToolbar, makVrv::DtObserverSettingsToolbar, makVrf::DtVrfAttachObjectToolbar, makVrf::DtEnvironmentControlAreaToolbar, makVrf::DtScenarioToolbar, makVrf::DtSimulationTimeScaleToolbar, makVrf::DtVrfOverlaySelectionListToolbar, makVrf::DtScenarioEventToolbar, makVrf::DtSimulationTimeToolbar, makVrv::exampleSymbolFacade::DtSymbolDriverToolbar, makVrv::DtGridLinesSelectionToolbar, makVrv::exampleSymbolFacade3::DtSymbolDriverToolbar, makVrv::exampleSymbolFacade4::DtSymbolDriverToolbar, makVrv::exampleSymbolFacade5::DtSymbolDriverToolbar, makVrf::DtBackEndSelectionListToolbar, makVrv::exampleSymbolFacade1::DtSymbolDriverToolbar, makVrv::exampleSymbolFacade2::DtSymbolDriverToolbar, makVrf::DtActionToolbar, makVrf::DtSimulationControlToolbar, makVrv::DtTerrainToolbar, makVrf::DtAerodromeSelectionToolbar, makVrf::DtSimulationRunDurationToolbar, and makVrv::vrvExampleToolbarPlugin::DtExampleToolbar.

virtual void makVrv::DtToolbar::dock ( QToolBar *  , QMainWindow *    )

virtual

Using the DE, looks at the configuration to see where this should be docked and whether or not it is initially visible. Docking a toolbar also sets the myToolbar member to point to the toolbar being docked.

QToolBar* makVrv::DtToolbar::toolbar

(

)

const

Brief returns the toolbar this object wraps.

virtual bool makVrv::DtToolbar::initiallyVisible ( ) const

virtual

Whether or not (according to configuration) toolbar is initially visible.

void makVrv::DtToolbar::setToolbarVisible

(

bool

visible

)

call either show or hide toolbar base upon the input.

virtual QToolBar* makVrv::DtToolbar::toolbar ( )

virtual

Returns the toolbar that was docked as part of this item.

virtual bool makVrv::DtToolbar::isToolbarHidden ( )

virtual

Returns true if toolbar is hidden.

virtual void makVrv::DtToolbar::showToolbar ( )

virtual

Show the toolbar.

virtual void makVrv::DtToolbar::hideToolbar ( )

virtual

Hide the toolbar.

virtual void makVrv::DtToolbar::slot_toolbarOrientationChanged ( Qt::Orientation  orientation )

virtual

Slot called when myToolbar sends out QToolBar::orientationChanged.

Member Data Documentation

boost::signalslib::signal<void ()> makVrv::DtToolbar::signal_toolbarSet

std::string makVrv::DtToolbar::myClassName

protected

DtDe& makVrv::DtToolbar::myDe

protected

QToolBar* makVrv::DtToolbar::myToolbar

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrvCoreQt/DtToolbar.h
