A wrapper class for toolbar widgets.

A DtToolbarWidget is a widget that is a child to a QToolBar. A DtToolbarWidget is composed of a QHBoxLayout (myWidgetLayout).

The class is responsible for ensuring the toolbar widget appearance is consistent with the current tool button style of the parent toolbar. In order for this to work properly, inheriting tool button widget classes need to: 1) During setup of GUI, A) Use utility method configureToolButton(...) OR configure myToolButton directly. B) Use myWidgetLayout as the main layout, e.g. to add custom child widgets 2) Call setToolButtonChecked(bool checked) to update state when needed 3) Define abstract methods: on_toolButtonClicked 4) Define setWidgetsVisible to toggle the visibility of custom child widgets

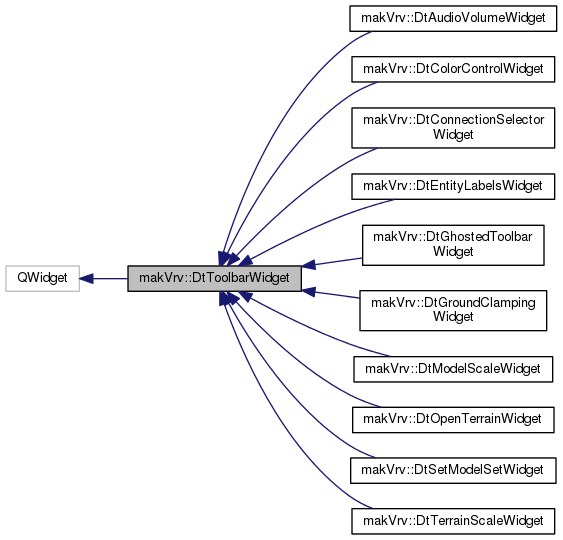

Inheritance diagram for makVrv::DtToolbarWidget:

[legend]

Public Member Functions
	DtToolbarWidget (DtDe &de, QWidget *p=0, Qt::WindowFlags f=0)

virtual	~DtToolbarWidget ()


void	setToolButtonChecked (bool checked)

bool	isToolButtonChecked () const


void	setToolButtonStyle (Qt::ToolButtonStyle style)

Qt::ToolButtonStyle	toolButtonStyle () const

Protected Slots
virtual void	on_toolButtonStyleChanged (Qt::ToolButtonStyle val)

virtual void	on_toolButtonClicked (bool checked)=0

virtual void	on_aboutToShow ()

Protected Member Functions
virtual void	configureToolButton (const QString &text, const QString &tooltip, const QString &iconFilename, bool checkable=false, bool hasMenu=false, QToolButton::ToolButtonPopupMode menuMode=QToolButton::DelayedPopup, const QString &checkedIconFilePath=QString(""))

virtual void	configureThemedToolButton (const QString &text, const QString &tooltip, const QString &iconFilename, bool checkable=false, bool hasMenu=false, QToolButton::ToolButtonPopupMode menuMode=QToolButton::DelayedPopup, const QString &checkedIconFileName=QString(""))

virtual void	setWidgetsVisible (bool visible)

Protected Attributes
DtDe &	myDe

QToolButton *	myToolButton

QHBoxLayout *	myWidgetLayout

Constructor & Destructor Documentation

makVrv::DtToolbarWidget::DtToolbarWidget	(	DtDe &	de,
		QWidget *	p = `0`,
		Qt::WindowFlags	f = `0`
	)

CTOR The parent widget should be a QToolBar so that we can connect to its toolButtonStyleChanged(Qt::ToolButtonStyle) signal.

virtual makVrv::DtToolbarWidget::~DtToolbarWidget ( )

virtual

DTOR.

Member Function Documentation

void makVrv::DtToolbarWidget::setToolButtonChecked ( bool checked )

Set/Get whether or not the tool button is checked.

bool makVrv::DtToolbarWidget::isToolButtonChecked ( ) const

Set/Get whether or not the tool button is checked.

void makVrv::DtToolbarWidget::setToolButtonStyle ( Qt::ToolButtonStyle style )

Set/Get the current toolbutton style If myToolButton is uninitialized, the getter defaults to returning Qt::ToolButtonFollowStyle.

Qt::ToolButtonStyle makVrv::DtToolbarWidget::toolButtonStyle ( ) const

Set/Get the current toolbutton style If myToolButton is uninitialized, the getter defaults to returning Qt::ToolButtonFollowStyle.

virtual void makVrv::DtToolbarWidget::configureToolButton	(	const QString &	text,
		const QString &	tooltip,
		const QString &	iconFilename,
		bool	checkable = `false`,
		bool	hasMenu = `false`,
		QToolButton::ToolButtonPopupMode	menuMode = `QToolButton::DelayedPopup`,
		const QString &	checkedIconFilePath = `QString("")`
	)

protectedvirtual

Configure the QToolButton for this toolbar widget.

Parameters

text	The text the QToolButton will display
tooltip	The tooltip of the QToolButton
iconFilename	The absolute path to use for the icon for the tool button - if checkable, used when unchecked
checkable	Whether or not the created QToolButton is checkable
hasMenu	Whether or not the created QToolButton has a menu
menuMode	The mode that controls how the menu is shown (ignored if hasMenu is false)
checkedIconFilePath	The absolute path to use for the icon for the tool button when its checked - only used if checkable

virtual void makVrv::DtToolbarWidget::configureThemedToolButton	(	const QString &	text,
		const QString &	tooltip,
		const QString &	iconFilename,
		bool	checkable = `false`,
		bool	hasMenu = `false`,
		QToolButton::ToolButtonPopupMode	menuMode = `QToolButton::DelayedPopup`,
		const QString &	checkedIconFileName = `QString("")`
	)

protectedvirtual

Configure the QToolButton for this toolbar widget.

Parameters

text	The text the QToolButton will display
tooltip	The tooltip of the QToolButton
iconFilename	The filename of the icon to use for the tool button's QIcon - if checkable, used when unchecked
checkable	Whether or not the created QToolButton is checkable
hasMenu	Whether or not the created QToolButton has a menu
menuMode	The mode that controls how the menu is shown (ignored if hasMenu is false)
checkedIconFileName	The filename of the icon to use when the tool button is checked - only used if checkable and non-empty This function differs from configureToolbutton in that it uses the DtWidgetIconStyleManager to ensure the icon gets updated whenever the light mode and dark mode application setting changes.

virtual void makVrv::DtToolbarWidget::setWidgetsVisible ( bool visible )

protectedvirtual

Called whenever the ToolButtonStyle has changed.

Parameters

visible Whether or not any custom widgets are visible This function should update the visibility of all widgets that are specific to the inheriting child class.

Reimplemented in makVrv::DtAudioVolumeWidget, makVrv::DtColorControlWidget, makVrv::DtModelScaleWidget, makVrv::DtGhostedToolbarWidget, and makVrv::DtEntityLabelsWidget.

virtual void makVrv::DtToolbarWidget::on_toolButtonStyleChanged ( Qt::ToolButtonStyle val )

protectedvirtualslot

Updates widget to match the new ToolButtonStyle.

Parameters

val	The current ToolButtonStyle of the parent QToolBar This function calls setWidgetsVisible(val != Qt::ToolButtonTextOnly) and does nothing when val is Qt::ToolButtonFollowStyle.

virtual void makVrv::DtToolbarWidget::on_toolButtonClicked ( bool checked )

protectedpure virtualslot

Slot when this widget's toolbutton has been clicked.

Parameters

checked Whether or not the QToolButton is checked or not

Implemented in makVrv::DtGhostedToolbarWidget.

virtual void makVrv::DtToolbarWidget::on_aboutToShow ( )

protectedvirtualslot

Slot for when the menu for this widget is about to be shown The slot is only used if this toolbar widget is configured to have a menu. If so, the child class should override this definition to populate myToolButton->menu().

Member Data Documentation

DtDe& makVrv::DtToolbarWidget::myDe

protected

QToolButton* makVrv::DtToolbarWidget::myToolButton

protected

QHBoxLayout* makVrv::DtToolbarWidget::myWidgetLayout

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrvCoreQt/DtToolbarWidget.h
