makVrv::DtVrlinkDriver Class Referenceabstract
vrvVrl

The base class for VR-Link based drivers.

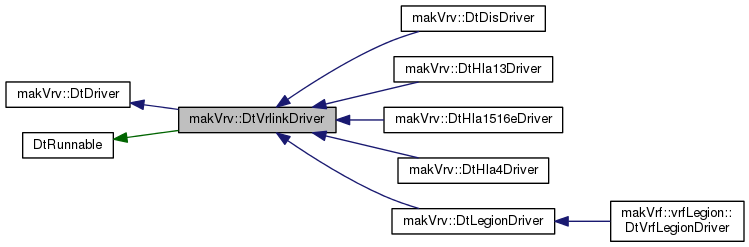

Inheritance diagram for makVrv::DtVrlinkDriver:
Inheritance graph
[legend]

Public Member Functions

 DtVrlinkDriver (DtAgentManager &agentManager, const std::string &uniqueName, const std::string &className)

virtual ~DtVrlinkDriver ()

virtual const std::string & className () const

virtual bool observersPublished () const

virtual void setObserversPublished (bool isPublished)

virtual bool overrideGlobalViewControl () const

virtual void setOverrideGlobalViewControl (bool enabled)

virtual bool viewControlEnabled () const

virtual void setLocalViewControlEnabled (bool enabled)

virtual bool localViewControlEnabled () const

virtual void setConnectionFrameTime (double frameTime)

virtual double connectionFrameTime () const

void setUseTopoForFlatEarthVectorConversion (bool flag)

bool useTopoForFlatEarthVectorConversion () const

virtual void queueDriverFunction (const std::function< void()> &function)

virtual void queueConnectionFunction (const std::function< void()> &function)

bool useThreadFlag () const

DtVrlinkBaseConnection * connection ()

- Public Member Functions inherited from makVrv::DtDriver
 DtDriver (DtAgentManager &agentManager, const std::string &instanceName)

virtual ~DtDriver ()

virtual void realizeConfiguration (const DtConfiguration &configuration)

virtual DtConfiguration createConfiguration (bool saveAllParameters=false) const

DtAgentManager & agentManager ()

virtual DtAgentManagerInterface & sceneInterface ()

bool started () const

virtual const std::string & instanceName () const

virtual bool autoStart () const

virtual void setAutoStart (bool autoStart)

virtual bool isWindowDependent () const

virtual void setIsWindowDependent (bool dep)

virtual void setIsUserControllable (bool)

virtual bool isUserControllable () const

virtual void setIsPersistent (bool per)

virtual bool isPersistent () const

virtual bool isOnDriverSelectionList () const

virtual void setOnDriverSelectionList (bool)

bool objectFromAgentManager (const DtUniqueID &id) const


Public Attributes

boost::signalslib::signal
< void(DtVrlinkBaseConnection *)> 		signal_connectionCreated

boost::signalslib::signal
< void(DtVrlinkBaseConnection *)> 		signal_connectionAboutToBeDestroyed


Static Public Attributes

static const std::string theExConnConfigFileCount

static const std::string theExConnConfigFile


Protected Types

enum  FunctionType { Create, Update, Destroy }

typedef DtLockedBufferedQueue
< std::function< void()> > 		FunctionCallQueue

typedef std::vector
< std::function< void()> > 		FunctionCallList


Protected Member Functions

virtual DtVrlinkBaseConnection * createConnection ()=0

virtual bool onStart ()

virtual bool onStop ()

virtual void run ()

void startPublishingObservers ()

void stopPublishingObservers ()

virtual bool onTick ()

void startThread ()

void stopThread ()

void setConnectionState (bool state)

virtual void slot_displayEngineAdded (const DtDeRecord &igRecord)

virtual void slot_globalViewControlEnabledSet (bool)

virtual void slot_onObserverDestroyed (DtObserver *observer)

virtual void slot_onObserverCreated (DtObserver *observer)

virtual void startPublishingObserver (DtObserver *observer)

virtual void stopPublishingObserver (DtObserver *observer)

virtual void updateObservers ()

virtual void slot_pause ()

virtual void slot_resume ()

virtual void runFunctionQueue (FunctionCallQueue &queue)

virtual void connectToDynamicSignals ()

virtual void disconnectFromDynamicSignals ()

virtual void slot_onViewChanged (DtViewStateProcessor::ObserverAction &action)

virtual void slot_onCurrentSelectionChanged (const DtSelectionManager::IdSet &selected, const DtSelectionManager::IdSet &deselected)

virtual void slot_onElementHasHoveredWidget (const DtElementID &elementId, bool hasMouseCursor)

virtual void slot_onVertexElementHasHoveredWidget (const DtElementID &parentId, const DtElementID &vertexElementId, bool hasMouseCursor)

virtual void slot_onVertexSelected (const DtUniqueID &selected, const DtUniqueID &parentOfSelected)

virtual void slot_onVertexDeselected (const DtUniqueID &deselected, const DtUniqueID &parentOfDeselected)

virtual void slot_infoLabelsArePinned (const DtSelectionManager::IdSet &elementIds, bool arePinned)

virtual void slot_entityTrackHistoryColorOverride (const DtElementID &entityId, const DtColorValue &color, bool overrideColor)

virtual void slot_switchEntitySymbolDecorationQuadrant (const DtElementID &entityId)

virtual void slot_onCoordinateSystemChanged (const std::string &coordinateSystem, const std::string &coordinateParameters)

virtual void toggleEntitySelected (const DtUniqueID &id)

virtual void performObserverAction (const DtViewStateProcessor::ObserverAction &action)

- Protected Member Functions inherited from makVrv::DtDriver
void applyChangesAndDelete (DtElementChanges *changes)

void reportElementCreated (DtElementID id, DtElementID parentId, DtElementEntry::ElementType type)

void reportElementAttribute (DtElementID id, DtElementAttribute *attribute)

void reportElementDestroyed (DtElementID id)

void start ()

void stop ()

bool tick ()

virtual void setInstanceName (const std::string &name)

virtual void installAccessories ()

virtual void uninstallAccessories ()


Protected Attributes

std::string myClassName

DtVrlinkBaseConnection * myConnection

DtAsynchronousEventQueue * myAsynchronousEventQueue

bool myConnectionState

DtSignalConnectionManager myDynamicSignals

double myObserverUpdateTimeInterval

double myLastObserverUpdateTime

double myLastSimTime

bool myObserversPublished

bool myLocalViewControlEnabled

bool myGlobalViewControlEnabled

bool myOverrideGlobalViewControlEnabled

bool myUseTopoForFlatEarthVectorConversion

double myConnectionFrameTime

DtSelectionManager & mySelectionManager

std::string myAppName

std::string myAppVersion

std::string myDefaultConfigFile

std::vector< std::string > myConfigFiles

bool myUseThreadFlag

DtThreadStartSP myStart

DtThread * myThread

FunctionCallQueue myConnectionThreadFunctions

FunctionCallQueue myDriverThreadFunctions

DtAsynchronousAgentManager * myAsynchronousInterface

- Protected Attributes inherited from makVrv::DtDriver
DtAgentManager & myAgentManager

bool myStartedFlag

std::string myName

DtConfiguration myConfiguration

bool myPersistentFlag

bool myUserControllableFlag

bool myRequestStateDiffPendingFlag

DtElementChanges myChanges


Additional Inherited Members

- Static Protected Attributes inherited from makVrv::DtDriver
static const std::string theOnDriverSelectionList


Member Typedef Documentation

typedef DtLockedBufferedQueue<std::function<void ()> > makVrv::DtVrlinkDriver::FunctionCallQueue
protected
typedef std::vector<std::function<void ()> > makVrv::DtVrlinkDriver::FunctionCallList
protected

Member Enumeration Documentation

enum makVrv::DtVrlinkDriver::FunctionType
protected
Enumerator
Create
Update
Destroy

Constructor & Destructor Documentation

makVrv::DtVrlinkDriver::DtVrlinkDriver ( DtAgentManager &  agentManager,
const std::string &  uniqueName,
const std::string &  className
)

CTOR.

virtual makVrv::DtVrlinkDriver::~DtVrlinkDriver ( )
virtual

DTOR.

Member Function Documentation

virtual const std::string& makVrv::DtVrlinkDriver::className ( ) const
virtual

Get this instance's class name.

Implements makVrv::DtDriver.

virtual bool makVrv::DtVrlinkDriver::observersPublished ( ) const
virtual

Get observer publishing status for this driver.

virtual void makVrv::DtVrlinkDriver::setObserversPublished ( bool  isPublished)
virtual

Turn on or off observer publishing for this driver.

virtual bool makVrv::DtVrlinkDriver::overrideGlobalViewControl ( ) const
virtual

Get whether this driver uses its own local view control enabled flag or the global value.

virtual void makVrv::DtVrlinkDriver::setOverrideGlobalViewControl ( bool  enabled)
virtual

SGet whether this driver uses its own local view control enabled flag or the global value.

virtual bool makVrv::DtVrlinkDriver::viewControlEnabled ( ) const
virtual

Get view control status for this driver; returns either the local or the global setting, depending on the value of overrideGlobalViewControl.

virtual void makVrv::DtVrlinkDriver::setLocalViewControlEnabled ( bool  enabled)
virtual

Turn on or off acceptance of view controls for this driver; used if override global view control is true.

virtual bool makVrv::DtVrlinkDriver::localViewControlEnabled ( ) const
virtual

Get acceptance of view controls for this driver; used if override global view control is true.

virtual void makVrv::DtVrlinkDriver::setConnectionFrameTime ( double  frameTime)
virtual

Set the connection frame time. This is 1/frequency for the connection tick. Default is 1/60.

virtual double makVrv::DtVrlinkDriver::connectionFrameTime ( ) const
virtual

Get the connection frame time. This is 1/frequency for the connection tick. Default is 1/60.

void makVrv::DtVrlinkDriver::setUseTopoForFlatEarthVectorConversion ( bool  flag)

We used to use a topo system to convert flat earth vectors. Now we find the point at the end of the vector, convert start and end points, and subtract for a more accurate result. However, when receiving data from a connection using the old method (including older versions of VR-Forces and DI-Guy) user's may want to revert to the old scheme.

bool makVrv::DtVrlinkDriver::useTopoForFlatEarthVectorConversion ( ) const
virtual void makVrv::DtVrlinkDriver::queueDriverFunction ( const std::function< void()> &  function)
virtual

Put a function in the driver-thread function queue, for threadsafe calling.

virtual void makVrv::DtVrlinkDriver::queueConnectionFunction ( const std::function< void()> &  function)
virtual

Put a function in the connection-thread function queue, for threadsafe calling.

Referenced by DtExConnInterface::sendCommentInteraction().

bool makVrv::DtVrlinkDriver::useThreadFlag ( ) const
inline

Returns value of thread flag.

DtVrlinkBaseConnection* makVrv::DtVrlinkDriver::connection ( )
inline

Referenced by DtExConnInterface::DtExConnInterface().

virtual DtVrlinkBaseConnection* makVrv::DtVrlinkDriver::createConnection ( )
protectedpure virtual

Abstract create connection function called onStart.

Implemented in makVrv::DtDisDriver, makVrv::DtHla1516eDriver, makVrv::DtHla4Driver, makVrv::DtLegionDriver, makVrf::vrfLegion::DtVrfLegionDriver, and makVrv::DtHla13Driver.

virtual bool makVrv::DtVrlinkDriver::onStart ( )
protectedvirtual

Start the host output. Create all object for an existing host connection.

Implements makVrv::DtDriver.

Reimplemented in makVrf::vrfLegion::DtVrfLegionDriver, and makVrv::DtLegionDriver.

virtual bool makVrv::DtVrlinkDriver::onStop ( )
protectedvirtual

Stop the host output. All scene object created by the host should be destroyed.

Implements makVrv::DtDriver.

Reimplemented in makVrv::DtLegionDriver.

virtual void makVrv::DtVrlinkDriver::run ( )
protectedvirtual

Function that will be called when the thread is started.

void makVrv::DtVrlinkDriver::startPublishingObservers ( )
protected

Start publishing observers.

void makVrv::DtVrlinkDriver::stopPublishingObservers ( )
protected

Stop publishing observers.

virtual bool makVrv::DtVrlinkDriver::onTick ( )
protectedvirtual

Tick, this calls threadTick if the driver is not configured to use a separate thread.

Implements makVrv::DtDriver.

Reimplemented in makVrf::vrfLegion::DtVrfLegionDriver, and makVrv::DtLegionDriver.

void makVrv::DtVrlinkDriver::startThread ( )
protected

Attempt to start the thread.

Exceptions
DtCorruptedStateif the thread does not start.
void makVrv::DtVrlinkDriver::stopThread ( )
protected

Attempt to stop the thread, blocking until the thread stops.

void makVrv::DtVrlinkDriver::setConnectionState ( bool  state)
protected

Set the connection state of the driver.

virtual void makVrv::DtVrlinkDriver::slot_displayEngineAdded ( const DtDeRecord &  igRecord)
protectedvirtual

Respond when a display engine is added.

Reimplemented from makVrv::DtDriver.

virtual void makVrv::DtVrlinkDriver::slot_globalViewControlEnabledSet ( bool  )
protectedvirtual

Respond when the global view control setting changes.

virtual void makVrv::DtVrlinkDriver::connectToDynamicSignals ( )
protectedvirtual

Connect to signals.

virtual void makVrv::DtVrlinkDriver::disconnectFromDynamicSignals ( )
protectedvirtual

Disconnect to any signals connected to in connectToDynamicSignals()

virtual void makVrv::DtVrlinkDriver::slot_onViewChanged ( DtViewStateProcessor::ObserverAction &  action)
protectedvirtual

Connect to signals.

virtual void makVrv::DtVrlinkDriver::slot_onCurrentSelectionChanged ( const DtSelectionManager::IdSet &  selected,
const DtSelectionManager::IdSet &  deselected
)
protectedvirtual

Connect to signals.

virtual void makVrv::DtVrlinkDriver::slot_onElementHasHoveredWidget ( const DtElementID &  elementId,
bool  hasMouseCursor
)
protectedvirtual

Connect to signals.

virtual void makVrv::DtVrlinkDriver::slot_onVertexElementHasHoveredWidget ( const DtElementID &  parentId,
const DtElementID &  vertexElementId,
bool  hasMouseCursor
)
protectedvirtual

Connect to signals.

virtual void makVrv::DtVrlinkDriver::slot_onVertexSelected ( const DtUniqueID &  selected,
const DtUniqueID &  parentOfSelected
)
protectedvirtual

Connect to signals.

virtual void makVrv::DtVrlinkDriver::slot_onVertexDeselected ( const DtUniqueID &  deselected,
const DtUniqueID &  parentOfDeselected
)
protectedvirtual

Connect to signals.

virtual void makVrv::DtVrlinkDriver::slot_infoLabelsArePinned ( const DtSelectionManager::IdSet &  elementIds,
bool  arePinned
)
protectedvirtual

Slot that updates the pinned state of informative labels for all elements whose element id is present in the provided list. This slot is connected to: DtSelectionManager::signal_infoLabelsArePinned This driver notifies network-side state listeners via the following signal: DtSharedEntityDisplaySettingsSignaler::signal_infoLabelsArePinned.

See Also
DtSelectionManager
DtSharedEntityDisplaySettingsSignaler
virtual void makVrv::DtVrlinkDriver::slot_entityTrackHistoryColorOverride ( const DtElementID &  entityId,
const DtColorValue &  color,
bool  overrideColor
)
protectedvirtual

slot for handling the selecion manager event when a track history is set to change color

virtual void makVrv::DtVrlinkDriver::slot_switchEntitySymbolDecorationQuadrant ( const DtElementID &  entityId)
protectedvirtual

slot for handling the switching of which quadrant symbol decorations are rendered in (for the specified entity)

virtual void makVrv::DtVrlinkDriver::slot_onCoordinateSystemChanged ( const std::string &  coordinateSystem,
const std::string &  coordinateParameters
)
protectedvirtual

Slot for handling coordinate system changes.

virtual void makVrv::DtVrlinkDriver::toggleEntitySelected ( const DtUniqueID &  id)
protectedvirtual

Toggle selection of an entity.

virtual void makVrv::DtVrlinkDriver::performObserverAction ( const DtViewStateProcessor::ObserverAction &  action)
protectedvirtual

Connect to signals.

virtual void makVrv::DtVrlinkDriver::slot_onObserverDestroyed ( DtObserver *  observer)
protectedvirtual

Reimplemented in makVrv::DtHla1516eDriver, makVrv::DtHla4Driver, and makVrv::DtHla13Driver.

virtual void makVrv::DtVrlinkDriver::slot_onObserverCreated ( DtObserver *  observer)
protectedvirtual

Reimplemented in makVrv::DtHla1516eDriver, makVrv::DtHla4Driver, and makVrv::DtHla13Driver.

virtual void makVrv::DtVrlinkDriver::startPublishingObserver ( DtObserver *  observer)
protectedvirtual

Start publishing an observer on the current connection.

virtual void makVrv::DtVrlinkDriver::stopPublishingObserver ( DtObserver *  observer)
protectedvirtual

Stop publishing an observer on the current connection.

virtual void makVrv::DtVrlinkDriver::updateObservers ( )
protectedvirtual

Update the observer position/orientations on the connection.

Reimplemented in makVrv::DtLegionDriver.

virtual void makVrv::DtVrlinkDriver::slot_pause ( )
protectedvirtual

Slot called when the DtDe's pause signal is emitted. If a connection exists, this will be communicated to it.

virtual void makVrv::DtVrlinkDriver::slot_resume ( )
protectedvirtual

Slot called when the DtDe's resume signal is emitted/ If a connection exists, this will be communicated to it.

virtual void makVrv::DtVrlinkDriver::runFunctionQueue ( FunctionCallQueue &  queue)
protectedvirtual

Execute a function queue.

Member Data Documentation

const std::string makVrv::DtVrlinkDriver::theExConnConfigFileCount
static
const std::string makVrv::DtVrlinkDriver::theExConnConfigFile
static
boost::signalslib::signal<void (DtVrlinkBaseConnection*)> makVrv::DtVrlinkDriver::signal_connectionCreated

This signal is emitted when the connection is created.

boost::signalslib::signal<void (DtVrlinkBaseConnection*)> makVrv::DtVrlinkDriver::signal_connectionAboutToBeDestroyed

This signal is emitted when the connection is about to be destroyed.

std::string makVrv::DtVrlinkDriver::myClassName
protected
bool makVrv::DtVrlinkDriver::myUseThreadFlag
protected
DtThreadStartSP makVrv::DtVrlinkDriver::myStart
protected
DtThread* makVrv::DtVrlinkDriver::myThread
protected
FunctionCallQueue makVrv::DtVrlinkDriver::myConnectionThreadFunctions
protected
FunctionCallQueue makVrv::DtVrlinkDriver::myDriverThreadFunctions
protected
DtAsynchronousAgentManager* makVrv::DtVrlinkDriver::myAsynchronousInterface
protected
DtVrlinkBaseConnection* makVrv::DtVrlinkDriver::myConnection
protected
DtAsynchronousEventQueue* makVrv::DtVrlinkDriver::myAsynchronousEventQueue
protected
bool makVrv::DtVrlinkDriver::myConnectionState
protected
DtSignalConnectionManager makVrv::DtVrlinkDriver::myDynamicSignals
protected
double makVrv::DtVrlinkDriver::myObserverUpdateTimeInterval
protected
double makVrv::DtVrlinkDriver::myLastObserverUpdateTime
protected
double makVrv::DtVrlinkDriver::myLastSimTime
protected
bool makVrv::DtVrlinkDriver::myObserversPublished
protected
bool makVrv::DtVrlinkDriver::myLocalViewControlEnabled
protected
bool makVrv::DtVrlinkDriver::myGlobalViewControlEnabled
protected
bool makVrv::DtVrlinkDriver::myOverrideGlobalViewControlEnabled
protected
bool makVrv::DtVrlinkDriver::myUseTopoForFlatEarthVectorConversion
protected
double makVrv::DtVrlinkDriver::myConnectionFrameTime
protected
DtSelectionManager& makVrv::DtVrlinkDriver::mySelectionManager
protected
std::string makVrv::DtVrlinkDriver::myAppName
protected
std::string makVrv::DtVrlinkDriver::myAppVersion
protected
std::string makVrv::DtVrlinkDriver::myDefaultConfigFile
protected
std::vector<std::string> makVrv::DtVrlinkDriver::myConfigFiles
protected
The documentation for this class was generated from the following file:
Document ID: Generated on Thu Oct 23 22:29:17 EDT 2025 from SVN revision 280951
Copyright © 2005-2024 MAK Technologies. All Rights Reserved (www.mak.com)
