DtAggregatePublisher Class Reference

Instances of DtAggregatePublisher are used to take care of the details associated with publishing the state of an aggregate. More...

Inheritance diagram for DtAggregatePublisher:

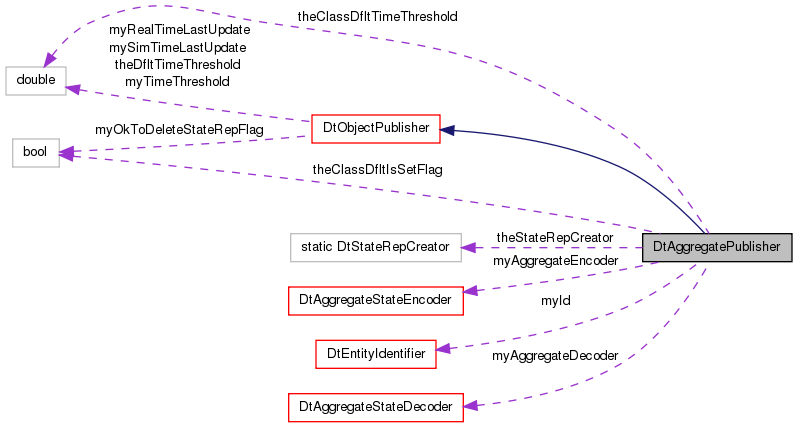

Collaboration diagram for DtAggregatePublisher:

List of all members.

Public Member Functions
	DtAggregatePublisher (DtAggregateStateRepository *stateRepToUse, DtExerciseConn *conn, const DtObjectId &id=DtObjectId::nullId())
	constructor
	DtAggregatePublisher (DtExerciseConn *conn, const DtObjectId &id=DtObjectId::nullId())
	constructor
	DtAggregatePublisher (const DtEntityType &type, DtExerciseConn *conn, const DtObjectId &id=DtObjectId::defaultId())
	constructor The default is = (-1,-1,-1)
	DtAggregatePublisher (const DtEntityType &type, DtExerciseConn *conn, DtDeadReckonTypes algorithm, DtForceType forceId, const DtObjectId &id=DtObjectId::defaultId())
	constructor The default is = (-1,-1,-1)
virtual	~DtAggregatePublisher ()
	destructor
virtual void	tick ()
	Tick the publisher.
virtual void	forceUpdate ()
	Cause the next tick call to send out the PDU even if its not needed.
virtual DtAggregateStateRepository *	aggregateStateRep ()
	Get the aggregate state repository for this aggregate publisher.
virtual DtAggregateStateRepository *	asr ()
	Get the aggregate state repository for this aggregate publisher.
virtual const DtObjectId &	id () const
	Get the entity's identifier.
virtual const DtObjectId &	localId () const
	Get the entity's localId - same as id for DIS.
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the global object designator - same as id for DIS.
Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	setStateRepCreator (void)
static void	setClassDfltTimeThreshold (DtTime threshold)
Protected Member Functions
void	init (const DtEntityIdentifier &vehId)
	Not virtual since called from constructor.
	DtAggregatePublisher (const DtAggregatePublisher &orig)
	copy constructor -- Not Implemented
DtAggregatePublisher &	operator= (const DtAggregatePublisher &orig)
	assignment operator -- Not Implemented
Protected Attributes
DtObjectId	myId
DtAggregateStateDecoder *	myAggregateDecoder
DtAggregateStateEncoder *	myAggregateEncoder
Static Protected Attributes
static DtStateRepCreator	theStateRepCreator
static DtTime	theClassDfltTimeThreshold
static bool	theClassDfltIsSetFlag
Private Types
typedef DtAggregateStateRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtAggregateStateRepositories.

---

Detailed Description

Instances of DtAggregatePublisher are used to take care of the details associated with publishing the state of an aggregate.

---

Member Typedef Documentation

typedef DtAggregateStateRepository*(* DtAggregatePublisher::DtStateRepCreator)() [private]

Function prototype for functions that create DtAggregateStateRepositories.

---

Constructor & Destructor Documentation

DtAggregatePublisher::DtAggregatePublisher	(	DtAggregateStateRepository *	stateRepToUse,
		DtExerciseConn *	conn,
		const DtObjectId &	id = DtObjectId::nullId()
	)

constructor

DtAggregatePublisher::DtAggregatePublisher	(	DtExerciseConn *	conn,
		const DtObjectId &	id = DtObjectId::nullId()
	)

constructor

DtAggregatePublisher::DtAggregatePublisher	(	const DtEntityType &	type,
		DtExerciseConn *	conn,
		const DtObjectId &	id = DtObjectId::defaultId()
	)

constructor The default is = (-1,-1,-1)

DtAggregatePublisher::DtAggregatePublisher	(	const DtEntityType &	type,
		DtExerciseConn *	conn,
		DtDeadReckonTypes	algorithm,
		DtForceType	forceId,
		const DtObjectId &	id = DtObjectId::defaultId()
	)

constructor The default is = (-1,-1,-1)

virtual DtAggregatePublisher::~DtAggregatePublisher

(

)

[virtual]

destructor

DtAggregatePublisher::DtAggregatePublisher

(

const DtAggregatePublisher &

orig

)

[protected]

copy constructor -- Not Implemented

---

Member Function Documentation

virtual DtAggregateStateRepository* DtAggregatePublisher::aggregateStateRep

(

)

[virtual]

Get the aggregate state repository for this aggregate publisher.

DtAggregateStateRepository * DtAggregatePublisher::asr

(

)

[inline, virtual]

Get the aggregate state repository for this aggregate publisher.

References DtObjectPublisher::myStateRep.

virtual void DtAggregatePublisher::forceUpdate

(

)

[virtual]

Cause the next tick call to send out the PDU even if its not needed.

Implements DtObjectPublisher.

virtual const DtGlobalObjectDesignator& DtAggregatePublisher::globalId

(

)

const [virtual]

Get the global object designator - same as id for DIS.

Implements DtObjectPublisher.

virtual const DtObjectId& DtAggregatePublisher::id

(

)

const [virtual]

Get the entity's identifier.

Implements DtObjectPublisher.

Referenced by localId().

void DtAggregatePublisher::init

(

const DtEntityIdentifier &

vehId

)

[protected]

Not virtual since called from constructor.

const DtObjectId & DtAggregatePublisher::localId

(

)

const [inline, virtual]

Get the entity's localId - same as id for DIS.

Implements DtObjectPublisher.

References id().

DtAggregatePublisher& DtAggregatePublisher::operator=

(

const DtAggregatePublisher &

orig

)

[protected]

assignment operator -- Not Implemented

static void DtAggregatePublisher::setClassDfltTimeThreshold

(

DtTime

threshold

)

[static]

static void DtAggregatePublisher::setStateRepCreator

(

DtStateRepCreator

creator

)

[static]

Give us a function to be used for creating SRs.

static DtStateRepCreator DtAggregatePublisher::setStateRepCreator

(

void

)

[static]

virtual void DtAggregatePublisher::tick

(

)

[virtual]

Tick the publisher.

Implements DtObjectPublisher.

---

Member Data Documentation

DtAggregateStateDecoder* DtAggregatePublisher::myAggregateDecoder [protected]

DtAggregateStateEncoder* DtAggregatePublisher::myAggregateEncoder [protected]

DtObjectId DtAggregatePublisher::myId [protected]

bool DtAggregatePublisher::theClassDfltIsSetFlag [static, protected]

DtTime DtAggregatePublisher::theClassDfltTimeThreshold [static, protected]

DtStateRepCreator DtAggregatePublisher::theStateRepCreator [static, protected]

---

The documentation for this class was generated from the following file:

• dAggPub.h
