DtEmitterSystemStateEncoder Class Reference

Instances of DtEmitterSystemStateEncoder are used to take state information from a DtEmitterSystemRepository and place it into an electromagnetic emissions PDU. More...

Inheritance diagram for DtEmitterSystemStateEncoder:

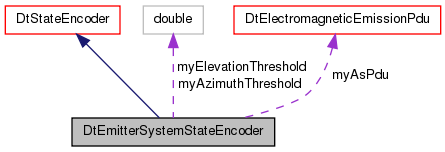

Collaboration diagram for DtEmitterSystemStateEncoder:

List of all members.

Public Member Functions
	DtEmitterSystemStateEncoder ()
	Default constructor.
virtual	~DtEmitterSystemStateEncoder ()
	Destructor.
	DtEmitterSystemStateEncoder (const DtEmitterSystemStateEncoder &orig)
	Copy constructor.
DtEmitterSystemStateEncoder &	operator= (const DtEmitterSystemStateEncoder &orig)
	Assignment operator.
virtual DtElectromagneticEmissionPdu *	stateMsg (const DtEmitterSystemRepository &stateRep, const DtEmitterSystemRepository &asSeenByRemote)
	Constructs a PDU from the state repository.
virtual void	setAzimuthThreshold (double threshold)
	Set the azimuth threshold.
virtual double	azimuthThreshold () const
	Returns the azimuth threshold (in radians).
virtual void	setElevationThreshold (double threshold)
	Set the elevation threshold.
virtual double	elevationThreshold () const
	Returns the elevation threshold (in radians).
Protected Member Functions
virtual bool	sendNeeded (const DtEmitterSystemRepository &stateRep, const DtEmitterSystemRepository &asSeenByRemote)
	Determine if a state message needs to be sent.
virtual void	fillOut (const DtEmitterSystemRepository &stateRep, const DtEmitterSystemRepository &asSeenByRemote, DtElectromagneticEmissionPdu *pdu)
	Fill out a state message which reflects a state repository.
Protected Attributes
DtElectromagneticEmissionPdu	myAsPdu
double	myAzimuthThreshold
double	myElevationThreshold

---

Detailed Description

Instances of DtEmitterSystemStateEncoder are used to take state information from a DtEmitterSystemRepository and place it into an electromagnetic emissions PDU.

---

Constructor & Destructor Documentation

DtEmitterSystemStateEncoder::DtEmitterSystemStateEncoder

(

)

Default constructor.

virtual DtEmitterSystemStateEncoder::~DtEmitterSystemStateEncoder

(

)

[virtual]

Destructor.

DtEmitterSystemStateEncoder::DtEmitterSystemStateEncoder

(

const DtEmitterSystemStateEncoder &

orig

)

Copy constructor.

---

Member Function Documentation

virtual double DtEmitterSystemStateEncoder::azimuthThreshold

(

)

const [virtual]

Returns the azimuth threshold (in radians).

virtual double DtEmitterSystemStateEncoder::elevationThreshold

(

)

const [virtual]

Returns the elevation threshold (in radians).

virtual void DtEmitterSystemStateEncoder::fillOut	(	const DtEmitterSystemRepository &	stateRep,
		const DtEmitterSystemRepository &	asSeenByRemote,
		DtElectromagneticEmissionPdu *	pdu
	)		[protected, virtual]

Fill out a state message which reflects a state repository.

DtEmitterSystemStateEncoder& DtEmitterSystemStateEncoder::operator=

(

const DtEmitterSystemStateEncoder &

orig

)

Assignment operator.

virtual bool DtEmitterSystemStateEncoder::sendNeeded	(	const DtEmitterSystemRepository &	stateRep,
		const DtEmitterSystemRepository &	asSeenByRemote
	)		[protected, virtual]

Determine if a state message needs to be sent.

virtual void DtEmitterSystemStateEncoder::setAzimuthThreshold

(

double

threshold

)

[virtual]

Set the azimuth threshold.

Defaulted to 1 degree. threshold Threshold in radians.

virtual void DtEmitterSystemStateEncoder::setElevationThreshold

(

double

threshold

)

[virtual]

Set the elevation threshold.

Defaulted to 1 degree. threshold Threshold in radians.

virtual DtElectromagneticEmissionPdu* DtEmitterSystemStateEncoder::stateMsg	(	const DtEmitterSystemRepository &	stateRep,
		const DtEmitterSystemRepository &	asSeenByRemote
	)		[virtual]

Constructs a PDU from the state repository.

stateMsg determines whether an Electromagnetic Emission PDU needs to be sent and constructs one of it does.

Returns:

PDU if send is needed, and NULL if not

---

Member Data Documentation

DtElectromagneticEmissionPdu DtEmitterSystemStateEncoder::myAsPdu [protected]

double DtEmitterSystemStateEncoder::myAzimuthThreshold [protected]

double DtEmitterSystemStateEncoder::myElevationThreshold [protected]

---

The documentation for this class was generated from the following file:

• dEmittrSysEnc.h
