DtEnvironmentalDRRectangularVolumeRecord Class Reference

DtEnvironmentalDRRectangularVolumeRecord implements the Environmental geometry record type "Rectangular Volume Record 2." See Enumerated Bit Values document, section 12.3.4.13. More...

Inheritance diagram for DtEnvironmentalDRRectangularVolumeRecord:

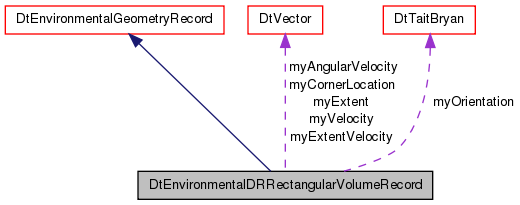

Collaboration diagram for DtEnvironmentalDRRectangularVolumeRecord:

List of all members.

Public Member Functions
	DtEnvironmentalDRRectangularVolumeRecord ()
	Constructor.
	DtEnvironmentalDRRectangularVolumeRecord (const DtEnvironmentalDRRectangularVolumeRecord &orig)
	Copy Constructor.
const DtEnvironmentalDRRectangularVolumeRecord &	operator= (const DtEnvironmentalDRRectangularVolumeRecord &orig)
	Assignment Operator.
virtual	~DtEnvironmentalDRRectangularVolumeRecord ()
	Destructor.
virtual DtEnvironmentalRecord *	clone () const
	Clone.
virtual void	setCornerLocation (const DtVector &cornerLocation)
	Set/get corner location.
virtual const DtVector &	cornerLocation () const
virtual void	setExtent (const DtVector &extent)
	Set/ get extent.
virtual const DtVector &	extent () const
virtual void	setOrientation (const DtTaitBryan &orientation)
	Set/ get orientation.
virtual const DtTaitBryan &	orientation () const
virtual void	setExtentVelocity (const DtVector &extentVelocity)
	Set/ get extent velocity.
virtual const DtVector &	extentVelocity () const
virtual void	setVelocity (const DtVector &velocity)
	Set/ get velocity.
virtual const DtVector &	velocity () const
virtual void	setAngularVelocity (const DtVector &angularVelocity)
	Set/ get angular velocity.
virtual const DtVector &	angularVelocity () const
virtual bool	createNetworkRepresentation ()
	Create this record's network representation.
const DtNetEnvironmentalDRRectangularVolumeRecord *	drRectNetRep () const
	returns the network representation of the environmental record
DtNetEnvironmentalDRRectangularVolumeRecord *	drRectNetRep ()
virtual void	setFromNet (const DtNetEnvironmentalRecord &buffer)
	used by the PDU class to fill in the network representation
virtual int	netRepSize () const
	returns the size of the net representation, in bytes.
Protected Member Functions
DtEnvironmentalDRRectangularVolumeRecord *	self () const
	Casts the 'this' pointer for changing elements in a const function.
Protected Attributes
DtVector	myCornerLocation
DtVector	myExtent
DtTaitBryan	myOrientation
DtVector	myExtentVelocity
DtVector	myVelocity
DtVector	myAngularVelocity

---

Detailed Description

DtEnvironmentalDRRectangularVolumeRecord implements the Environmental geometry record type "Rectangular Volume Record 2." See Enumerated Bit Values document, section 12.3.4.13.

---

Constructor & Destructor Documentation

DtEnvironmentalDRRectangularVolumeRecord::DtEnvironmentalDRRectangularVolumeRecord

(

)

Constructor.

DtEnvironmentalDRRectangularVolumeRecord::DtEnvironmentalDRRectangularVolumeRecord

(

const DtEnvironmentalDRRectangularVolumeRecord &

orig

)

Copy Constructor.

virtual DtEnvironmentalDRRectangularVolumeRecord::~DtEnvironmentalDRRectangularVolumeRecord

(

)

[virtual]

Destructor.

---

Member Function Documentation

virtual const DtVector& DtEnvironmentalDRRectangularVolumeRecord::angularVelocity

(

)

const [virtual]

virtual DtEnvironmentalRecord* DtEnvironmentalDRRectangularVolumeRecord::clone

(

)

const [virtual]

Clone.

Reimplemented from DtEnvironmentalGeometryRecord.

virtual const DtVector& DtEnvironmentalDRRectangularVolumeRecord::cornerLocation

(

)

const [virtual]

virtual bool DtEnvironmentalDRRectangularVolumeRecord::createNetworkRepresentation

(

)

[virtual]

Create this record's network representation.

Reimplemented from DtEnvironmentalRecord.

const DtNetEnvironmentalDRRectangularVolumeRecord* DtEnvironmentalDRRectangularVolumeRecord::drRectNetRep

(

)

const

returns the network representation of the environmental record

DtNetEnvironmentalDRRectangularVolumeRecord* DtEnvironmentalDRRectangularVolumeRecord::drRectNetRep

(

)

virtual const DtVector& DtEnvironmentalDRRectangularVolumeRecord::extent

(

)

const [virtual]

virtual const DtVector& DtEnvironmentalDRRectangularVolumeRecord::extentVelocity

(

)

const [virtual]

virtual int DtEnvironmentalDRRectangularVolumeRecord::netRepSize

(

)

const [virtual]

returns the size of the net representation, in bytes.

Reimplemented from DtEnvironmentalRecord.

const DtEnvironmentalDRRectangularVolumeRecord& DtEnvironmentalDRRectangularVolumeRecord::operator=

(

const DtEnvironmentalDRRectangularVolumeRecord &

orig

)

Assignment Operator.

virtual const DtTaitBryan& DtEnvironmentalDRRectangularVolumeRecord::orientation

(

)

const [virtual]

DtEnvironmentalDRRectangularVolumeRecord* DtEnvironmentalDRRectangularVolumeRecord::self

(

)

const [protected]

Casts the 'this' pointer for changing elements in a const function.

Reimplemented from DtEnvironmentalRecord.

virtual void DtEnvironmentalDRRectangularVolumeRecord::setAngularVelocity

(

const DtVector &

angularVelocity

)

[virtual]

Set/ get angular velocity.

virtual void DtEnvironmentalDRRectangularVolumeRecord::setCornerLocation

(

const DtVector &

cornerLocation

)

[virtual]

Set/get corner location.

virtual void DtEnvironmentalDRRectangularVolumeRecord::setExtent

(

const DtVector &

extent

)

[virtual]

Set/ get extent.

virtual void DtEnvironmentalDRRectangularVolumeRecord::setExtentVelocity

(

const DtVector &

extentVelocity

)

[virtual]

Set/ get extent velocity.

virtual void DtEnvironmentalDRRectangularVolumeRecord::setFromNet

(

const DtNetEnvironmentalRecord &

buffer

)

[virtual]

used by the PDU class to fill in the network representation

Reimplemented from DtEnvironmentalRecord.

virtual void DtEnvironmentalDRRectangularVolumeRecord::setOrientation

(

const DtTaitBryan &

orientation

)

[virtual]

Set/ get orientation.

virtual void DtEnvironmentalDRRectangularVolumeRecord::setVelocity

(

const DtVector &

velocity

)

[virtual]

Set/ get velocity.

virtual const DtVector& DtEnvironmentalDRRectangularVolumeRecord::velocity

(

)

const [virtual]

---

Member Data Documentation

DtVector DtEnvironmentalDRRectangularVolumeRecord::myAngularVelocity [protected]

DtVector DtEnvironmentalDRRectangularVolumeRecord::myCornerLocation [protected]

DtVector DtEnvironmentalDRRectangularVolumeRecord::myExtent [protected]

DtVector DtEnvironmentalDRRectangularVolumeRecord::myExtentVelocity [protected]

DtTaitBryan DtEnvironmentalDRRectangularVolumeRecord::myOrientation [protected]

DtVector DtEnvironmentalDRRectangularVolumeRecord::myVelocity [protected]

---

The documentation for this class was generated from the following file:

• envDRRectVol.h
