DtExerciseConnInitializer Class Reference

Instances of DtExerciseConnInitializer are used to provide the DtExerciseConn with initialization data. More...

Inheritance diagram for DtExerciseConnInitializer:

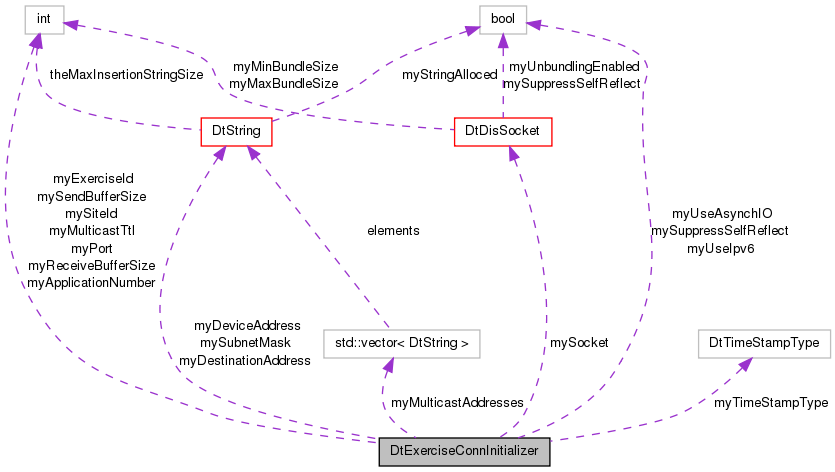

Collaboration diagram for DtExerciseConnInitializer:

List of all members.

Public Member Functions
	DtExerciseConnInitializer ()
	Constructor.
virtual	~DtExerciseConnInitializer ()
	Destructor.
	DtExerciseConnInitializer (const DtExerciseConnInitializer &orig)
	Copy Constructor.
DtExerciseConnInitializer &	operator= (const DtExerciseConnInitializer &orig)
	Assignment Operator.
virtual void	setPort (int port)
	Sets the port.
virtual int	port () const
	Returns the port.
virtual void	setExerciseId (int id)
	Sets the exercise ID.
virtual int	exerciseId () const
	Returns the exercise ID.
virtual void	setSiteId (int id)
	Sets the site ID.
virtual int	siteId () const
	Returns the site ID.
virtual void	setApplicationNumber (int num)
	Sets the application number.
virtual int	applicationNumber () const
	Returns the application number.
virtual void	setUseAsynchIO (bool on)
	Sets the use of asynchronous I/O.
virtual bool	useAsynchIO () const
	Returns the use of asynchronous I/O.
virtual void	setDestinationAddress (const DtString &addr)
	Sets the destination address Same as above but takes address as a string.
virtual DtString	destinationAddress () const
	Returns the destination address.
virtual void	setSocket (DtDisSocket *sock)
	Sets the socket.
virtual DtDisSocket *	socket () const
	Returns the socket.
virtual void	setNotifyLevel (int level)
	Sets the notify level.
virtual void	setDisVersionToSend (int version)
	Sets the DIS version to send.
virtual void	setTimeStampType (DtTimeStampType relOrAbs)
	Set the time stamp type (DtTimeStampAbsolute or DtTimeStampRelative).
virtual DtTimeStampType	timeStampType () const
	Get the time stamp type.
virtual void	setSendBufferSize (int numBytes)
	Set the send buffer size.
virtual int	sendBufferSize () const
	Get the send buffer size.
virtual void	setReceiveBufferSize (int numBytes)
	Set the receive buffer size.
virtual int	receiveBufferSize () const
	Get the receive buffer size.
virtual void	setUseIpv6 (bool val)
virtual bool	useIpv6 () const
virtual void	setMulticastTtl (int ttl)
	Set the mcast TTL.
virtual int	multicastTtl () const
	Returns the multicast TTL.
virtual void	setMulticastAddresses (const std::vector< DtString > &addresses)
virtual const std::vector < DtString > &	multicastAddresses () const
virtual void	setDeviceAddress (const DtString &devAddr)
	Set the device to use for the DIS connection.
virtual DtString	deviceAddress () const
	Returns the device address to use.
virtual void	setSubnetMask (const DtString &mask)
	Set the subnet mask to use for the DIS connection.
virtual DtString	subnetMask () const
	Returns the subnet mask to use.
virtual void	setSuppressSelfReflect (bool yesNo)
	Set the suppression of reflection DIS PDU's. Off by default.
virtual bool	suppressSelfReflect () const
	Returns whether the application should not self reflect.
Private Attributes
int	myPort
int	myExerciseId
int	mySiteId
int	myApplicationNumber
bool	myUseAsynchIO
DtTimeStampType	myTimeStampType
int	mySendBufferSize
int	myReceiveBufferSize
int	myMulticastTtl
std::vector< DtString >	myMulticastAddresses
bool	myUseIpv6
bool	mySuppressSelfReflect
DtString	myDeviceAddress
DtString	myDestinationAddress
DtString	mySubnetMask
DtDisSocket *	mySocket

---

Detailed Description

Instances of DtExerciseConnInitializer are used to provide the DtExerciseConn with initialization data.

---

Constructor & Destructor Documentation

DtExerciseConnInitializer::DtExerciseConnInitializer

(

)

Constructor.

virtual DtExerciseConnInitializer::~DtExerciseConnInitializer

(

)

[virtual]

Destructor.

DtExerciseConnInitializer::DtExerciseConnInitializer

(

const DtExerciseConnInitializer &

orig

)

Copy Constructor.

---

Member Function Documentation

virtual int DtExerciseConnInitializer::applicationNumber

(

)

const [virtual]

Returns the application number.

Reimplemented in DtVrlApplicationInitializer.

virtual DtString DtExerciseConnInitializer::destinationAddress

(

)

const [virtual]

Returns the destination address.

Sets the destination address

Reimplemented in DtVrlApplicationInitializer.

virtual DtString DtExerciseConnInitializer::deviceAddress

(

)

const [virtual]

Returns the device address to use.

Reimplemented in DtVrlApplicationInitializer.

virtual int DtExerciseConnInitializer::exerciseId

(

)

const [virtual]

Returns the exercise ID.

Reimplemented in DtVrlApplicationInitializer.

virtual const std::vector<DtString>& DtExerciseConnInitializer::multicastAddresses

(

)

const [virtual]

Reimplemented in DtVrlApplicationInitializer.

virtual int DtExerciseConnInitializer::multicastTtl

(

)

const [virtual]

Returns the multicast TTL.

Reimplemented in DtVrlApplicationInitializer.

DtExerciseConnInitializer& DtExerciseConnInitializer::operator=

(

const DtExerciseConnInitializer &

orig

)

Assignment Operator.

virtual int DtExerciseConnInitializer::port

(

)

const [virtual]

Returns the port.

Reimplemented in DtVrlApplicationInitializer.

virtual int DtExerciseConnInitializer::receiveBufferSize

(

)

const [virtual]

Get the receive buffer size.

Reimplemented in DtVrlApplicationInitializer.

virtual int DtExerciseConnInitializer::sendBufferSize

(

)

const [virtual]

Get the send buffer size.

Reimplemented in DtVrlApplicationInitializer.

virtual void DtExerciseConnInitializer::setApplicationNumber

(

int

num

)

[virtual]

Sets the application number.

Reimplemented in DtVrlApplicationInitializer.

virtual void DtExerciseConnInitializer::setDestinationAddress

(

const DtString &

addr

)

[virtual]

Sets the destination address Same as above but takes address as a string.

Reimplemented in DtVrlApplicationInitializer.

virtual void DtExerciseConnInitializer::setDeviceAddress

(

const DtString &

devAddr

)

[virtual]

Set the device to use for the DIS connection.

Will use the broadcast address of the device and bind to that device.

Reimplemented in DtVrlApplicationInitializer.

virtual void DtExerciseConnInitializer::setDisVersionToSend

(

int

version

)

[virtual]

Sets the DIS version to send.

virtual void DtExerciseConnInitializer::setExerciseId

(

int

id

)

[virtual]

Sets the exercise ID.

Reimplemented in DtVrlApplicationInitializer.

virtual void DtExerciseConnInitializer::setMulticastAddresses

(

const std::vector< DtString > &

addresses

)

[virtual]

virtual void DtExerciseConnInitializer::setMulticastTtl

(

int

ttl

)

[virtual]

Set the mcast TTL.

If changed from its default (-1), the multicast TTL will be changed from the system default to the specified number of hops

Reimplemented in DtVrlApplicationInitializer.

virtual void DtExerciseConnInitializer::setNotifyLevel

(

int

level

)

[virtual]

Sets the notify level.

Reimplemented in DtVrlApplicationInitializer.

virtual void DtExerciseConnInitializer::setPort

(

int

port

)

[virtual]

Sets the port.

Reimplemented in DtVrlApplicationInitializer.

virtual void DtExerciseConnInitializer::setReceiveBufferSize

(

int

numBytes

)

[virtual]

Set the receive buffer size.

Reimplemented in DtVrlApplicationInitializer.

virtual void DtExerciseConnInitializer::setSendBufferSize

(

int

numBytes

)

[virtual]

Set the send buffer size.

Reimplemented in DtVrlApplicationInitializer.

virtual void DtExerciseConnInitializer::setSiteId

(

int

id

)

[virtual]

Sets the site ID.

Reimplemented in DtVrlApplicationInitializer.

virtual void DtExerciseConnInitializer::setSocket

(

DtDisSocket *

sock

)

[virtual]

Sets the socket.

If this is set from its default (0), the exercise connection will attempt to establish its connection using the specified socket

virtual void DtExerciseConnInitializer::setSubnetMask

(

const DtString &

mask

)

[virtual]

Set the subnet mask to use for the DIS connection.

Reimplemented in DtVrlApplicationInitializer.

virtual void DtExerciseConnInitializer::setSuppressSelfReflect

(

bool

yesNo

)

[virtual]

Set the suppression of reflection DIS PDU's. Off by default.

Reimplemented in DtVrlApplicationInitializer.

virtual void DtExerciseConnInitializer::setTimeStampType

(

DtTimeStampType

relOrAbs

)

[virtual]

Set the time stamp type (DtTimeStampAbsolute or DtTimeStampRelative).

Defaults to DtTimeStampRelative.

Reimplemented in DtVrlApplicationInitializer.

virtual void DtExerciseConnInitializer::setUseAsynchIO

(

bool

on

)

[virtual]

Sets the use of asynchronous I/O.

Reimplemented in DtVrlApplicationInitializer.

virtual void DtExerciseConnInitializer::setUseIpv6

(

bool

val

)

[virtual]

Reimplemented in DtVrlApplicationInitializer.

virtual int DtExerciseConnInitializer::siteId

(

)

const [virtual]

Returns the site ID.

Reimplemented in DtVrlApplicationInitializer.

virtual DtDisSocket* DtExerciseConnInitializer::socket

(

)

const [virtual]

Returns the socket.

virtual DtString DtExerciseConnInitializer::subnetMask

(

)

const [virtual]

Returns the subnet mask to use.

Reimplemented in DtVrlApplicationInitializer.

virtual bool DtExerciseConnInitializer::suppressSelfReflect

(

)

const [virtual]

Returns whether the application should not self reflect.

Reimplemented in DtVrlApplicationInitializer.

virtual DtTimeStampType DtExerciseConnInitializer::timeStampType

(

)

const [virtual]

Get the time stamp type.

Reimplemented in DtVrlApplicationInitializer.

virtual bool DtExerciseConnInitializer::useAsynchIO

(

)

const [virtual]

Returns the use of asynchronous I/O.

Reimplemented in DtVrlApplicationInitializer.

virtual bool DtExerciseConnInitializer::useIpv6

(

)

const [virtual]

Reimplemented in DtVrlApplicationInitializer.

---

Member Data Documentation

int DtExerciseConnInitializer::myApplicationNumber [private]

DtString DtExerciseConnInitializer::myDestinationAddress [private]

DtString DtExerciseConnInitializer::myDeviceAddress [private]

int DtExerciseConnInitializer::myExerciseId [private]

std::vector<DtString> DtExerciseConnInitializer::myMulticastAddresses [private]

int DtExerciseConnInitializer::myMulticastTtl [private]

int DtExerciseConnInitializer::myPort [private]

int DtExerciseConnInitializer::myReceiveBufferSize [private]

int DtExerciseConnInitializer::mySendBufferSize [private]

int DtExerciseConnInitializer::mySiteId [private]

DtDisSocket* DtExerciseConnInitializer::mySocket [private]

DtString DtExerciseConnInitializer::mySubnetMask [private]

bool DtExerciseConnInitializer::mySuppressSelfReflect [private]

DtTimeStampType DtExerciseConnInitializer::myTimeStampType [private]

bool DtExerciseConnInitializer::myUseAsynchIO [private]

bool DtExerciseConnInitializer::myUseIpv6 [private]

---

The documentation for this class was generated from the following file:

• dExConnInit.h
