Defines a protocol independent repository of attributes for IFF objects in DIS, HLA and TENA. More...

Inheritance diagram for DtIffStateRepository:

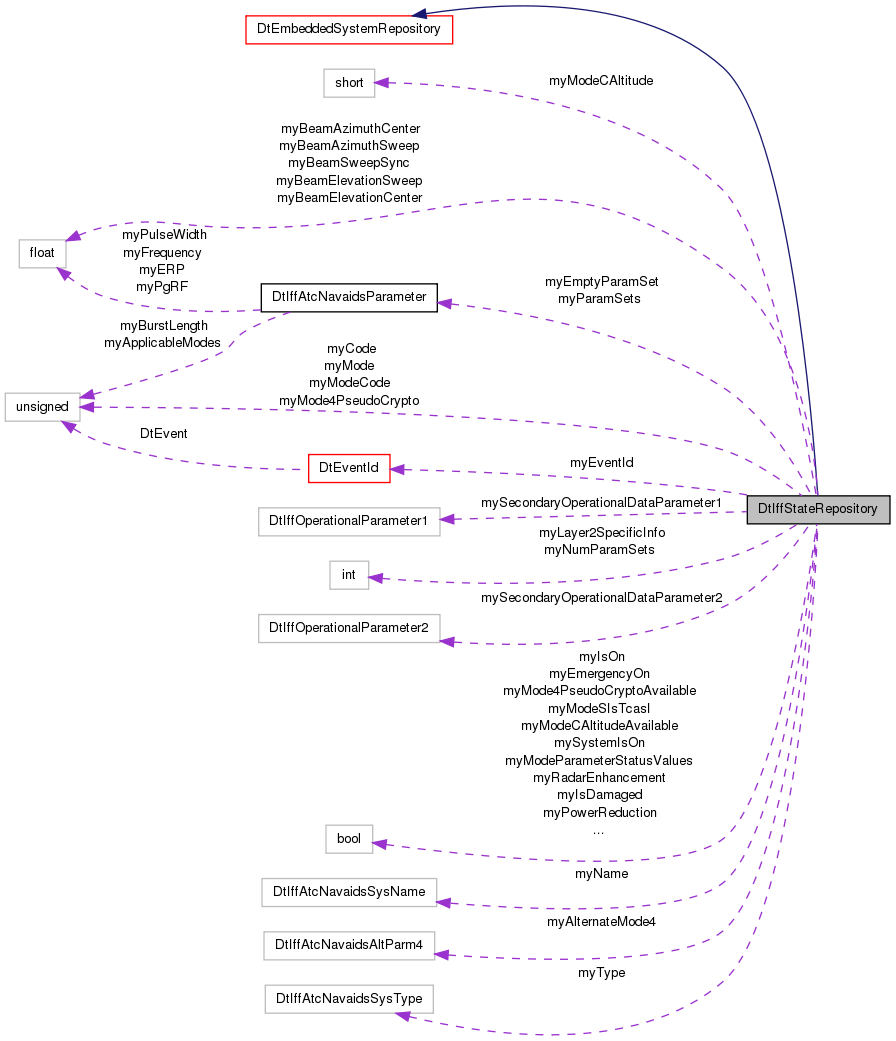

Collaboration diagram for DtIffStateRepository:

Public Types
enum	DtModeOrParameterKind { Enabled = 0, IsDamaged, IsMalfunctioning, IsOn }
Public Member Functions
	DtIffStateRepository ()
	Default constructor.
virtual	~DtIffStateRepository ()
	Destructor.
	DtIffStateRepository (const DtIffStateRepository &orig)
	Copy constructor.
DtIffStateRepository &	operator= (const DtIffStateRepository &orig)
	Assignment operator.
virtual DtStateRepository *	clone (bool copy=false) const
	Return a copy/empty object of the same type as this.
virtual void	printData () const
	prints the data to DtInfo
virtual void	printDataToStream (std::ostream &stream) const
	Prints the data to the specified stream.
virtual void	setSystemType (DtIffAtcNavaidsSysType type)
	Set/Get the attribute named "SystemType".
virtual DtIffAtcNavaidsSysType	systemType () const
virtual void	setSystemName (DtIffAtcNavaidsSysName name)
	Set/Get the attribute named "SystemName".
virtual DtIffAtcNavaidsSysName	systemName () const
virtual void	setSystemMode (DtU8 mode)
	Set/Get the attribute named "SystemMode".
virtual DtU8	systemMode () const
virtual void	setEventId (const DtEventId &eventid)
	Set/Get the attribute named "EventID".
virtual const DtEventId &	eventId () const
virtual void	setAlternateMode4 (DtIffAtcNavaidsAltParm4 useMode4)
	Set/Get the attribute named "AlternateMode4".
virtual DtIffAtcNavaidsAltParm4	alternateMode4 () const
virtual void	setSystemIsOn (bool ison)
	Set/Get the attribute named "SystemIsOn".
virtual bool	systemIsOn () const
virtual void	setSystemIsOperational (bool isoperational)
	Set/Get the attribute named "SystemIsOperational".
virtual bool	systemIsOperational () const
virtual void	setModeOrParameterVal (int type, int status, bool onOff)
	General function calls for setting/getting mode or parameter values for Enabled, IsDamaged, IsMalfunctioning, or IsOn: type should be chosen from {1,2,3,4,5,6} (for NatoIFF modes, C corresponds to 5 and S corr.
virtual bool	getModeOrParameterVal (int type, int status) const
virtual void	setModeOrParameterVal (char type, int status, bool onOff)
	General function calls for setting/getting mode or parameter values for Enabled, IsDamaged, IsMalfunctioning, or IsOn: type should be chosen from {'1','2','3','4','C','S'} status should be chosen from enum DtModeOrParameterKind.
virtual bool	getModeOrParameterVal (char type, int status) const
virtual void	setModeEnabled (char modeType, bool onOff)
	Set/Get values for NatoIFF 'modeXEnabled' attributes modeType should be chosen from {'1','2','3','4','C','S'}.
virtual bool	modeEnabled (char modeType) const
virtual void	setModeIsMalfunctioning (char modeType, bool onOff)
virtual bool	modeIsMalfunctioning (char modeType) const
virtual void	setModeIsDamaged (char modeType, bool onOff)
virtual bool	modeIsDamaged (char modeType) const
virtual void	setModeIsOn (char modeType, bool onOff)
virtual bool	modeIsOn (char modeType) const
virtual void	setModeEnabled (int modeType, bool onOff)
	Set/Get values for NatoIFF 'modeXEnabled' attributes modeType should be chosen from {1,2,3,4,5,6} (C corresponds to 5; S corresponds to 6)
virtual bool	modeEnabled (int modeType) const
virtual void	setModeIsMalfunctioning (int modeType, bool onOff)
virtual bool	modeIsMalfunctioning (int modeType) const
virtual void	setModeIsDamaged (int modeType, bool onOff)
virtual bool	modeIsDamaged (int modeType) const
virtual void	setModeIsOn (int modeType, bool onOff)
virtual bool	modeIsOn (int modeType) const
virtual void	setMode4PseudoCrypto (DtU16 val)
	Set/Get NatoIFF mode4PseudoCrypto.
virtual DtU16	mode4PseudoCrypto () const
virtual void	setMode4PseudoCryptoAvailable (bool onOff)
	Set/Get NatoIFF mode4PseudoCryptoAvailable.
virtual bool	mode4PseudoCryptoAvailable () const
virtual void	setModeSIsTcasI (bool onOff)
	Set/Get NatoIFF modeSIsTcasI.
virtual bool	modeSIsTcasI () const
virtual void	setParameterEnabled (int paramNum, bool onOff)
	Set/Get values for attributes associated with SovietIFF parameters paramType should be chosen from {1,2,3,4,5,6}.
virtual bool	parameterEnabled (int paramNum) const
virtual void	setParameterIsMalfunctioning (int paramNum, bool onOff)
virtual bool	parameterIsMalfunctioning (int paramNum) const
virtual void	setParameterIsDamaged (int paramNum, bool onOff)
virtual bool	parameterIsDamaged (int paramNum) const
virtual void	setParameterIsOn (int paramNum, bool onOff)
virtual bool	parameterIsOn (int paramNum) const
virtual void	setModeCode (int modeCodeNum, DtU16 val)
	This stores the mode code exactly as specified by the DIS 1278.1a and RPR FOM 2.x standard.
virtual DtU16	modeCode (int modeCodeNum) const
virtual void	setEmergencyOn (bool onOff)
	Set/Get Nato TRansponder EmergencyOn.
virtual bool	emergencyOn () const
virtual void	setIdentSquawkFlashOn (bool onOff)
	Set/Get Nato TRansponder IdentSquawkFlashOn.
virtual bool	identSquawkFlashOn () const
virtual void	setModeCAltitudeAvailable (bool val)
	Set/Get Nato TRansponder ModeCAltitudeAvailable.
virtual bool	modeCAltitudeAvailable () const
virtual void	setModeCAltitude (DtInt16 val)
	Set/Get Nato TRansponder ModeCAltitude.
virtual DtInt16	modeCAltitude () const
virtual void	setStiOn (bool onOff)
	Set/get Nato Transponder StiOn.
virtual bool	stiOn () const
virtual void	setCode (DtU8 code)
	Set/Get RRB code.
virtual DtU8	code () const
virtual void	setPowerReduction (bool onOff)
	Set/Get RRB PowerReduction.
virtual bool	powerReduction () const
virtual void	setIsDamaged (bool onOff)
	Set/Get RRB IsDamaged.
virtual bool	isDamaged () const
virtual void	setIsMalfunctioning (bool onOff)
	Set/Get RRB IsMalfunctioning.
virtual bool	isMalfunctioning () const
virtual void	setIsOn (bool onOff)
	Set/Get RRB IsOn.
virtual bool	isOn () const
virtual void	setRadarEnhancement (bool onOff)
	Set/Get RRB RadarEnhancement.
virtual bool	radarEnhancement () const
virtual void	setLayer2DataAvailable (bool b)
	The Following Attributes are only useful to Layer 2 Data.
virtual bool	layer2DataAvailable () const
virtual void	setLayer2SpecificInfo (unsigned int val)
	Set layer2 specific info - this is not well defined but needed by DIS.
virtual unsigned int	layer2SpecificInfo () const
virtual void	setBeamAzimuthCenter (DtFloat32 val)
	Set/Get BeamAzimuthCenter.
virtual DtFloat32	beamAzimuthCenter () const
virtual void	setBeamAzimuthSweep (DtFloat32 val)
	Set/Get BeamAzimuthSweep.
virtual DtFloat32	beamAzimuthSweep () const
virtual void	setBeamElevationCenter (DtFloat32 val)
	Set/Get BeamElevationCenter.
virtual DtFloat32	beamElevationCenter () const
virtual void	setBeamElevationSweep (DtFloat32 val)
	Set/Get beamElevationSweep.
virtual DtFloat32	beamElevationSweep () const
virtual void	setBeamSweepSync (DtFloat32 val)
	Set/Get beamSweepSync.
virtual DtFloat32	beamSweepSync () const
virtual void	setSecondaryOperationalDataParameter1 (DtIffOperationalParameter1 val)
	set/Get SecondaryOperationalDataParameter1
virtual DtIffOperationalParameter1	secondaryOperationalDataParameter1 () const
virtual void	setSecondaryOperationalDataParameter2 (DtIffOperationalParameter2 val)
	set/Get SecondaryOperationalDataParameter2
virtual DtIffOperationalParameter2	secondaryOperationalDataParameter2 () const
virtual int	numParameterSets () const
	Set/Get operational parameters record.
virtual void	setNumParameterSets (int n)
virtual bool	setParamData (int parmIndex, const DtIffAtcNavaidsParameter &init)
	Set/Get the fundamental parameter data records for the second layer.
virtual bool	getParmData (int parmIndex, DtIffAtcNavaidsParameter &record) const
virtual DtIffAtcNavaidsParameter	paramData (int paramIndex, bool *valid=NULL) const
Static Public Member Functions
static DtIffStateRepository *	create ()
	Create and return a new DtIffStateRepository.
Protected Attributes
DtIffAtcNavaidsSysType	myType
DtIffAtcNavaidsSysName	myName
	System Type (enum U16)
DtU8	myMode
	System Name (enum U16)
DtFloat32	myBeamAzimuthCenter
DtFloat32	myBeamAzimuthSweep
DtFloat32	myBeamElevationCenter
DtFloat32	myBeamElevationSweep
DtFloat32	myBeamSweepSync
DtEventId	myEventId
bool	myLayer2DataAvailable
int	myLayer2SpecificInfo
int	myNumParamSets
DtIffAtcNavaidsParameter *	myParamSets
DtIffAtcNavaidsParameter	myEmptyParamSet
DtIffOperationalParameter1	mySecondaryOperationalDataParameter1
DtIffOperationalParameter2	mySecondaryOperationalDataParameter2
bool	mySystemIsOn
bool	mySystemIsOperational
DtIffAtcNavaidsAltParm4	myAlternateMode4
	Used for NatoIFF.
DtU16	myMode4PseudoCrypto
bool	myModeSIsTcasI
bool	myMode4PseudoCryptoAvailable
bool	myEmergencyOn
	Used for NatoIFF Transponder.
bool	myStiOn
bool	myIdentSquawkFlashOn
DtU16	myModeCode [3]
DtInt16	myModeCAltitude
bool	myModeCAltitudeAvailable
DtU8	myCode
	Used for RRB.
bool	myPowerReduction
bool	myIsDamaged
bool	myIsMalfunctioning
bool	myIsOn
bool	myRadarEnhancement
bool	myModeParameterStatusValues [6][4]
	Used for NatoIFF and SovietIFF mode and parameter values.

Detailed Description

Defines a protocol independent repository of attributes for IFF objects in DIS, HLA and TENA.

Member Enumeration Documentation

enum DtIffStateRepository::DtModeOrParameterKind

Enumerator:

Enabled
IsDamaged
IsMalfunctioning
IsOn

Constructor & Destructor Documentation

DtIffStateRepository::DtIffStateRepository ( )

Default constructor.

virtual DtIffStateRepository::~DtIffStateRepository ( ) [virtual]

Destructor.

DtIffStateRepository::DtIffStateRepository ( const DtIffStateRepository & orig )

Copy constructor.

Member Function Documentation

virtual DtIffAtcNavaidsAltParm4 DtIffStateRepository::alternateMode4 ( ) const [virtual]

virtual DtFloat32 DtIffStateRepository::beamAzimuthCenter ( ) const [virtual]

virtual DtFloat32 DtIffStateRepository::beamAzimuthSweep ( ) const [virtual]

virtual DtFloat32 DtIffStateRepository::beamElevationCenter ( ) const [virtual]

virtual DtFloat32 DtIffStateRepository::beamElevationSweep ( ) const [virtual]

virtual DtFloat32 DtIffStateRepository::beamSweepSync ( ) const [virtual]

virtual DtStateRepository* DtIffStateRepository::clone ( bool copy = false ) const [virtual]

Return a copy/empty object of the same type as this.

Reimplemented from DtEmbeddedSystemRepository.

virtual DtU8 DtIffStateRepository::code ( ) const [virtual]

static DtIffStateRepository* DtIffStateRepository::create ( ) [static]

Create and return a new DtIffStateRepository.

Reimplemented from DtEmbeddedSystemRepository.

virtual bool DtIffStateRepository::emergencyOn ( ) const [virtual]

virtual const DtEventId& DtIffStateRepository::eventId ( ) const [virtual]

virtual bool DtIffStateRepository::getModeOrParameterVal	(	int	type,
		int	status
	)		const `[virtual]`

virtual bool DtIffStateRepository::getModeOrParameterVal	(	char	type,
		int	status
	)		const `[virtual]`

virtual bool DtIffStateRepository::getParmData	(	int	parmIndex,
		DtIffAtcNavaidsParameter &	record
	)		const `[virtual]`

virtual bool DtIffStateRepository::identSquawkFlashOn ( ) const [virtual]

virtual bool DtIffStateRepository::isDamaged ( ) const [virtual]

virtual bool DtIffStateRepository::isMalfunctioning ( ) const [virtual]

virtual bool DtIffStateRepository::isOn ( ) const [virtual]

virtual bool DtIffStateRepository::layer2DataAvailable ( ) const [virtual]

virtual unsigned int DtIffStateRepository::layer2SpecificInfo ( ) const [virtual]

virtual DtU16 DtIffStateRepository::mode4PseudoCrypto ( ) const [virtual]

virtual bool DtIffStateRepository::mode4PseudoCryptoAvailable ( ) const [virtual]

virtual DtInt16 DtIffStateRepository::modeCAltitude ( ) const [virtual]

virtual bool DtIffStateRepository::modeCAltitudeAvailable ( ) const [virtual]

virtual DtU16 DtIffStateRepository::modeCode ( int modeCodeNum ) const [virtual]

virtual bool DtIffStateRepository::modeEnabled ( char modeType ) const [virtual]

virtual bool DtIffStateRepository::modeEnabled ( int modeType ) const [virtual]

virtual bool DtIffStateRepository::modeIsDamaged ( char modeType ) const [virtual]

virtual bool DtIffStateRepository::modeIsDamaged ( int modeType ) const [virtual]

virtual bool DtIffStateRepository::modeIsMalfunctioning ( char modeType ) const [virtual]

virtual bool DtIffStateRepository::modeIsMalfunctioning ( int modeType ) const [virtual]

virtual bool DtIffStateRepository::modeIsOn ( char modeType ) const [virtual]

virtual bool DtIffStateRepository::modeIsOn ( int modeType ) const [virtual]

virtual bool DtIffStateRepository::modeSIsTcasI ( ) const [virtual]

virtual int DtIffStateRepository::numParameterSets ( ) const [virtual]

Set/Get operational parameters record.

DtIffStateRepository& DtIffStateRepository::operator= ( const DtIffStateRepository & orig )

Assignment operator.

virtual DtIffAtcNavaidsParameter DtIffStateRepository::paramData	(	int	paramIndex,
		bool *	valid = `NULL`
	)		const `[virtual]`

virtual bool DtIffStateRepository::parameterEnabled ( int paramNum ) const [virtual]

virtual bool DtIffStateRepository::parameterIsDamaged ( int paramNum ) const [virtual]

virtual bool DtIffStateRepository::parameterIsMalfunctioning ( int paramNum ) const [virtual]

virtual bool DtIffStateRepository::parameterIsOn ( int paramNum ) const [virtual]

virtual bool DtIffStateRepository::powerReduction ( ) const [virtual]

virtual void DtIffStateRepository::printData ( ) const [virtual]

prints the data to DtInfo

Reimplemented from DtEmbeddedSystemRepository.

virtual void DtIffStateRepository::printDataToStream ( std::ostream & stream ) const [virtual]

Prints the data to the specified stream.

Reimplemented from DtEmbeddedSystemRepository.

virtual bool DtIffStateRepository::radarEnhancement ( ) const [virtual]

virtual DtIffOperationalParameter1 DtIffStateRepository::secondaryOperationalDataParameter1 ( ) const [virtual]

virtual DtIffOperationalParameter2 DtIffStateRepository::secondaryOperationalDataParameter2 ( ) const [virtual]

virtual void DtIffStateRepository::setAlternateMode4 ( DtIffAtcNavaidsAltParm4 useMode4 ) [virtual]

Set/Get the attribute named "AlternateMode4".

virtual void DtIffStateRepository::setBeamAzimuthCenter ( DtFloat32 val ) [virtual]

Set/Get BeamAzimuthCenter.

virtual void DtIffStateRepository::setBeamAzimuthSweep ( DtFloat32 val ) [virtual]

Set/Get BeamAzimuthSweep.

virtual void DtIffStateRepository::setBeamElevationCenter ( DtFloat32 val ) [virtual]

Set/Get BeamElevationCenter.

virtual void DtIffStateRepository::setBeamElevationSweep ( DtFloat32 val ) [virtual]

Set/Get beamElevationSweep.

virtual void DtIffStateRepository::setBeamSweepSync ( DtFloat32 val ) [virtual]

Set/Get beamSweepSync.

virtual void DtIffStateRepository::setCode ( DtU8 code ) [virtual]

Set/Get RRB code.

virtual void DtIffStateRepository::setEmergencyOn ( bool onOff ) [virtual]

Set/Get Nato TRansponder EmergencyOn.

virtual void DtIffStateRepository::setEventId ( const DtEventId & eventid ) [virtual]

Set/Get the attribute named "EventID".

virtual void DtIffStateRepository::setIdentSquawkFlashOn ( bool onOff ) [virtual]

Set/Get Nato TRansponder IdentSquawkFlashOn.

virtual void DtIffStateRepository::setIsDamaged ( bool onOff ) [virtual]

Set/Get RRB IsDamaged.

virtual void DtIffStateRepository::setIsMalfunctioning ( bool onOff ) [virtual]

Set/Get RRB IsMalfunctioning.

virtual void DtIffStateRepository::setIsOn ( bool onOff ) [virtual]

Set/Get RRB IsOn.

virtual void DtIffStateRepository::setLayer2DataAvailable ( bool b ) [virtual]

The Following Attributes are only useful to Layer 2 Data.

Set/Get Layed2DataAvailable- If set true, then layer2 data will be sent, if false no layer 2 data will be used

virtual void DtIffStateRepository::setLayer2SpecificInfo ( unsigned int val ) [virtual]

Set layer2 specific info - this is not well defined but needed by DIS.

virtual void DtIffStateRepository::setMode4PseudoCrypto ( DtU16 val ) [virtual]

Set/Get NatoIFF mode4PseudoCrypto.

virtual void DtIffStateRepository::setMode4PseudoCryptoAvailable ( bool onOff ) [virtual]

Set/Get NatoIFF mode4PseudoCryptoAvailable.

virtual void DtIffStateRepository::setModeCAltitude ( DtInt16 val ) [virtual]

Set/Get Nato TRansponder ModeCAltitude.

virtual void DtIffStateRepository::setModeCAltitudeAvailable ( bool val ) [virtual]

Set/Get Nato TRansponder ModeCAltitudeAvailable.

virtual void DtIffStateRepository::setModeCode	(	int	modeCodeNum,
		DtU16	val
	)		`[virtual]`

This stores the mode code exactly as specified by the DIS 1278.1a and RPR FOM 2.x standard.

It is a packed octal value. For ModeCode1 there are 2 octal values with the right most value ranging from 0->3. None of these rules are enforced by the state rep. Please consult the correct standard what can be transmitted on the wire.

virtual void DtIffStateRepository::setModeEnabled	(	char	modeType,
		bool	onOff
	)		`[virtual]`

Set/Get values for NatoIFF 'modeXEnabled' attributes modeType should be chosen from {'1','2','3','4','C','S'}.

virtual void DtIffStateRepository::setModeEnabled	(	int	modeType,
		bool	onOff
	)		`[virtual]`

Set/Get values for NatoIFF 'modeXEnabled' attributes modeType should be chosen from {1,2,3,4,5,6} (C corresponds to 5; S corresponds to 6)

virtual void DtIffStateRepository::setModeIsDamaged	(	char	modeType,
		bool	onOff
	)		`[virtual]`

virtual void DtIffStateRepository::setModeIsDamaged	(	int	modeType,
		bool	onOff
	)		`[virtual]`

virtual void DtIffStateRepository::setModeIsMalfunctioning	(	char	modeType,
		bool	onOff
	)		`[virtual]`

virtual void DtIffStateRepository::setModeIsMalfunctioning	(	int	modeType,
		bool	onOff
	)		`[virtual]`

virtual void DtIffStateRepository::setModeIsOn	(	char	modeType,
		bool	onOff
	)		`[virtual]`

virtual void DtIffStateRepository::setModeIsOn	(	int	modeType,
		bool	onOff
	)		`[virtual]`

virtual void DtIffStateRepository::setModeOrParameterVal	(	int	type,
		int	status,
		bool	onOff
	)		`[virtual]`

General function calls for setting/getting mode or parameter values for Enabled, IsDamaged, IsMalfunctioning, or IsOn: type should be chosen from {1,2,3,4,5,6} (for NatoIFF modes, C corresponds to 5 and S corr.

to 6) status should be chosen from enum DtModeOrParameterKind

virtual void DtIffStateRepository::setModeOrParameterVal	(	char	type,
		int	status,
		bool	onOff
	)		`[virtual]`

General function calls for setting/getting mode or parameter values for Enabled, IsDamaged, IsMalfunctioning, or IsOn: type should be chosen from {'1','2','3','4','C','S'} status should be chosen from enum DtModeOrParameterKind.

virtual void DtIffStateRepository::setModeSIsTcasI ( bool onOff ) [virtual]

Set/Get NatoIFF modeSIsTcasI.

virtual void DtIffStateRepository::setNumParameterSets ( int n ) [virtual]

virtual bool DtIffStateRepository::setParamData	(	int	parmIndex,
		const DtIffAtcNavaidsParameter &	init
	)		`[virtual]`

Set/Get the fundamental parameter data records for the second layer.

virtual void DtIffStateRepository::setParameterEnabled	(	int	paramNum,
		bool	onOff
	)		`[virtual]`

Set/Get values for attributes associated with SovietIFF parameters paramType should be chosen from {1,2,3,4,5,6}.

virtual void DtIffStateRepository::setParameterIsDamaged	(	int	paramNum,
		bool	onOff
	)		`[virtual]`

virtual void DtIffStateRepository::setParameterIsMalfunctioning	(	int	paramNum,
		bool	onOff
	)		`[virtual]`

virtual void DtIffStateRepository::setParameterIsOn	(	int	paramNum,
		bool	onOff
	)		`[virtual]`

virtual void DtIffStateRepository::setPowerReduction ( bool onOff ) [virtual]

Set/Get RRB PowerReduction.

virtual void DtIffStateRepository::setRadarEnhancement ( bool onOff ) [virtual]

Set/Get RRB RadarEnhancement.

virtual void DtIffStateRepository::setSecondaryOperationalDataParameter1 ( DtIffOperationalParameter1 val ) [virtual]

set/Get SecondaryOperationalDataParameter1

virtual void DtIffStateRepository::setSecondaryOperationalDataParameter2 ( DtIffOperationalParameter2 val ) [virtual]

set/Get SecondaryOperationalDataParameter2

virtual void DtIffStateRepository::setStiOn ( bool onOff ) [virtual]

Set/get Nato Transponder StiOn.

virtual void DtIffStateRepository::setSystemIsOn ( bool ison ) [virtual]

Set/Get the attribute named "SystemIsOn".

virtual void DtIffStateRepository::setSystemIsOperational ( bool isoperational ) [virtual]

Set/Get the attribute named "SystemIsOperational".

virtual void DtIffStateRepository::setSystemMode ( DtU8 mode ) [virtual]

Set/Get the attribute named "SystemMode".

virtual void DtIffStateRepository::setSystemName ( DtIffAtcNavaidsSysName name ) [virtual]

Set/Get the attribute named "SystemName".

virtual void DtIffStateRepository::setSystemType ( DtIffAtcNavaidsSysType type ) [virtual]

Set/Get the attribute named "SystemType".

virtual bool DtIffStateRepository::stiOn ( ) const [virtual]

virtual bool DtIffStateRepository::systemIsOn ( ) const [virtual]

virtual bool DtIffStateRepository::systemIsOperational ( ) const [virtual]

virtual DtU8 DtIffStateRepository::systemMode ( ) const [virtual]

virtual DtIffAtcNavaidsSysName DtIffStateRepository::systemName ( ) const [virtual]

virtual DtIffAtcNavaidsSysType DtIffStateRepository::systemType ( ) const [virtual]

Member Data Documentation

DtIffAtcNavaidsAltParm4 DtIffStateRepository::myAlternateMode4 [protected]

Used for NatoIFF.

DtFloat32 DtIffStateRepository::myBeamAzimuthCenter [protected]

DtFloat32 DtIffStateRepository::myBeamAzimuthSweep [protected]

DtFloat32 DtIffStateRepository::myBeamElevationCenter [protected]

DtFloat32 DtIffStateRepository::myBeamElevationSweep [protected]

DtFloat32 DtIffStateRepository::myBeamSweepSync [protected]

DtU8 DtIffStateRepository::myCode [protected]

Used for RRB.

bool DtIffStateRepository::myEmergencyOn [protected]

Used for NatoIFF Transponder.

DtIffAtcNavaidsParameter DtIffStateRepository::myEmptyParamSet [protected]

DtEventId DtIffStateRepository::myEventId [protected]

bool DtIffStateRepository::myIdentSquawkFlashOn [protected]

bool DtIffStateRepository::myIsDamaged [protected]

bool DtIffStateRepository::myIsMalfunctioning [protected]

bool DtIffStateRepository::myIsOn [protected]

bool DtIffStateRepository::myLayer2DataAvailable [protected]

int DtIffStateRepository::myLayer2SpecificInfo [protected]

DtU8 DtIffStateRepository::myMode [protected]

System Name (enum U16)

DtU16 DtIffStateRepository::myMode4PseudoCrypto [protected]

bool DtIffStateRepository::myMode4PseudoCryptoAvailable [protected]

DtInt16 DtIffStateRepository::myModeCAltitude [protected]

bool DtIffStateRepository::myModeCAltitudeAvailable [protected]

DtU16 DtIffStateRepository::myModeCode[3] [protected]

bool DtIffStateRepository::myModeParameterStatusValues[6][4] [protected]

Used for NatoIFF and SovietIFF mode and parameter values.

bool DtIffStateRepository::myModeSIsTcasI [protected]

DtIffAtcNavaidsSysName DtIffStateRepository::myName [protected]

System Type (enum U16)

int DtIffStateRepository::myNumParamSets [protected]

DtIffAtcNavaidsParameter* DtIffStateRepository::myParamSets [protected]

bool DtIffStateRepository::myPowerReduction [protected]

bool DtIffStateRepository::myRadarEnhancement [protected]

DtIffOperationalParameter1 DtIffStateRepository::mySecondaryOperationalDataParameter1 [protected]

DtIffOperationalParameter2 DtIffStateRepository::mySecondaryOperationalDataParameter2 [protected]

bool DtIffStateRepository::myStiOn [protected]

bool DtIffStateRepository::mySystemIsOn [protected]

bool DtIffStateRepository::mySystemIsOperational [protected]

DtIffAtcNavaidsSysType DtIffStateRepository::myType [protected]

The documentation for this class was generated from the following file:

iffSR.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
