A DtSocket that implements network sending and receiving function using IP/UDP broadcast, multicast or unicast. More...

Inheritance diagram for DtNetSocket:

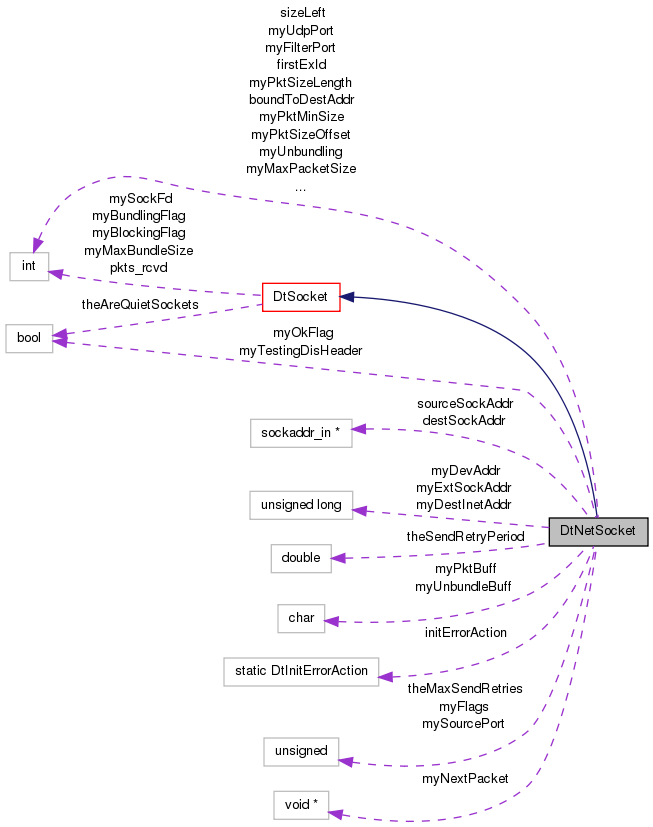

Collaboration diagram for DtNetSocket:

Public Member Functions
	DtNetSocket (int port=DtDEFAULT_PORT, DtU8 flags=DtReadWrite, DtIpv4Addr devAddr=0)
	Constructor.
	DtNetSocket (int port, DtIpv4Addr destAddr, DtU8 flags, DtIpv4Addr devAddr=0)
	Constructor.
	DtNetSocket (char *dummy, int sockfd, DtU8 flags=DtReadWrite)
	Allows you to create a DtNetSocket that uses a pre-existing socket.
virtual	~DtNetSocket ()
	Destructor.
virtual int	sendTo (caddr_t packet, size_t size, DtIpv4Addr addr)
	Virtual function override.
virtual int	DtRecv (caddr_t buffptr, int status=NULL)
	DtNetSocket implements DtRecv by calling a system call to recvfrom on its UDP socket.
virtual int	DtRecv (caddr_t buff, size_t)
	DtNetSocket implements DtRecv by calling a system call to recvfrom on its UDP socket.
virtual DtIpv4Addr	lastSourceInetAddr ()
	Return the IP address of the sender of the last packet we've received.
virtual void	DtBecomeNonBlocking (void)
	Make the socket non-blocking.
virtual int	readFd ()
	Return read/write file descriptor of the UDP socket being used for sending and receiving.
virtual int	writeFd ()
virtual bool	isOk () const
	Returns 1 if the socket's constructor initialization was successful, 0 otherwise.
virtual int	setMcastTtl (int ttl)
	Set the TTL (time to live) value for multicast packets.
virtual void	setFilterPort (const int &port)
virtual void	setSendPort (const int &port)
Bundling Functions.
virtual void	setBundling (int maxBundleSize, bool enableUnbundling, int minPacketSize, int sizeOffset, int sizeLength, bool testDisHeader)
	Set all bundling parameters Disables bundling if max.
virtual void	setBundling (int maxBundleSize)
	Call through to DtSocket::setBundling to prevent compiler warnings.
virtual void	setUnbundling (int onOff)
	Pass 0 to setUnbundling to turn unbundling off, 1 to turn it on.
virtual int	isUnbundling ()
	Set all bundling parameters Disables bundling if max.
Get/Set minimum valid packet size.
If not set manually, the min. size is based on DtNetPduHeader for backwards compatibility. Currently used only when Unbundling is enabled
virtual int	minPacketSize ()
virtual void	setMinPacketSize (int size)
Get/Set the offset to PacketSize within the packet header.
If not set manually, the offset is based on DtNetPduHeader for backwards compatibility. Currently used only when Unbundling is enabled
virtual int	sizeOffset ()
virtual void	setSizeOffset (int offset)
Get/Set the length of the PacketSize field within the packet header.
If not set manually, the length is based on DtNetPduHeader for backwards compatibility. Currently used only when Unbundling is enabled
virtual int	sizeLength ()
virtual void	setSizeLength (int length)
Enable/Disable test of DIS header fields for valid packets within
bundles. Must be disabled for non-DIS network sockets if bundling is desired. If not set manually, the test is enabled for backwards compatibility. Currently used only when Unbundling is enabled
virtual bool	testDisHeader ()
virtual void	enableDisHeaderTest (bool shouldTest)
Add/drop subscription to a particular multicast address on
the specified network interface.
virtual int	listenToMulticastGroup (DtIpv4Addr multicastAddr, DtIpv4Addr netInterface=DtUSE_DEFAULT_IP_ADDR)
virtual int	dropMulticastGroup (DtIpv4Addr multicastAddr, DtIpv4Addr netInterface=DtUSE_DEFAULT_IP_ADDR)
Set/Get device for multicast traffic
virtual void	setMcastDevice (DtIpv4Addr devAddr)
virtual DtIpv4Addr	mcastDevice () const
Static Public Member Functions
static int	isMulticastAddr (DtIpv4Addr addr)
	Returns 1 if addr is a multicast address, 0 otherwise.
static int	enableBroadcast (int sockfd)
	Make sockfd capable of broadcasting.
static void	makeNonBlocking (int sockfd)
	Make sockfd non-blocking.
static int	makeReusable (int sockfd)
	Make port/address reusable by other sockets.
static void	setRetryOnSend (unsigned int numRetries, double waitPeriod)
	Make socket retry numRetries times ( waiting for waitPeriod between ) when sendto fails ( numRetries = 0 means message will be dropped )
static DtIpv4Addr	inetBroadcastOfDevice (const char *device=NULL)
	Obtain information about a device.
static DtIpv4Addr	inetAddrOfDevice (const char *device=NULL)
static DtIpv4Addr	netMaskOfDevice (const char *device=NULL)
static DtIpv4Addr	firstHostInetAddr ()
static void	setInetAddr (sockaddr_in &s, u_long addr, int port)
	Fill out a sockaddr_in structure.
Static Public Attributes
static DtInitErrorAction	initErrorAction
Protected Member Functions
void	init (int port, DtIpv4Addr dest_addr, DtU8 flags, DtIpv4Addr devAddr=0)
	Called from all constructors.
virtual int	dataLeftInCurrentBundle ()
	Is there still data left in the last received packet?
virtual int	retrySendTo (caddr_t packet, size_t size, sockaddr_in &dest)
	If retry is enabled, retry failed packet send theMaxSendRetries times.
virtual int	recvWithStatus (caddr_t buffptr, int status)
	Sets buffptr to point to the next packet (might be next in bundle, might require a read from net) and returns size.
virtual int	recvFromNet (caddr_t *buffptr)
	Grabs the next packet from the network, and puts it into myPktBuff.
virtual int	recvWithUnbundling (caddr_t *buffptr)
	Used by recvWithStatus if unbundling is on.
int	initSocket ()
	Initialize the socket.
int	initWrite (DtIpv4Addr dest)
	Initialize for writing.
int	initRead (DtIpv4Addr dest)
	Initialize for reading, including performing bind.
virtual int	privateListenToMulticastGroup (DtIpv4Addr multicastAddr, int on_init=0, DtIpv4Addr netInterface=DtUSE_DEFAULT_IP_ADDR)
	Helper function for listenToMulticastGroup.
virtual void	findNextPacket ()
	Sets myNextPacket to point to the next packet.
virtual unsigned int	getNextPacketSize ()
	Gets the size of the next packet pointed to by myNextPacket.
virtual unsigned int	currentHeaderMatchesFirstInBundle ()
	DIS-specific function to help decide if unbundling is successful.
	DtNetSocket (const DtNetSocket &)
	Not Implemented.
DtNetSocket &	operator= (const DtNetSocket &)
	Not Implemented.
Static Protected Member Functions
static ifreq *	findIfr (const char device, int sock, ifconf ifc)
	Find a device.
static DtIpv4Addr	netMaskOfIfr (ifreq *ifr, int sock)
	Obtain information about a device. Dummy socket needed for ioctls.
static DtIpv4Addr	inetAddrOfIfr (ifreq *ifr, int sock)
static DtIpv4Addr	inetBroadcastOfIfr (ifreq *ifr, int sock)
static bool	capableOfIpBroadcast (ifreq *ifr, int sock)
Protected Attributes
int	myUdpPort
int	myFilterPort
int	mySendPort
unsigned int	mySourcePort
char *	myPktBuff
char *	myUnbundleBuff
void *	myNextPacket
int	myUsingExternalSocket
DtIpv4Addr	myExtSockAddr
DtIpv4Addr	myDestInetAddr
DtIpv4Addr	myDevAddr
int	myUnbundling
int	sizeLeft
int	myPktMinSize
int	myPktSizeOffset
int	myPktSizeLength
int	myMaxPacketSize
bool	myTestingDisHeader
int	boundToDestAddr
int	firstInBundle
int	firstExId
int	firstProtocol
bool	myOkFlag
sockaddr_in *	destSockAddr
sockaddr_in *	sourceSockAddr
DtU8	myFlags
Static Protected Attributes
static unsigned int	theMaxSendRetries
static double	theSendRetryPeriod

Detailed Description

A DtSocket that implements network sending and receiving function using IP/UDP broadcast, multicast or unicast.

The class provides a platform-independent interface to a network connection capable of sending and receiving arbitrary datagrams.

Deprecated:: This class is replaced by DtInetSocket and other classes as of VR-Link 3.13

Constructor & Destructor Documentation

DtNetSocket::DtNetSocket	(	int	port = `DtDEFAULT_PORT`,
		DtU8	flags = `DtReadWrite`,
		DtIpv4Addr	devAddr = `0`
	)

Constructor.

Takes a UDP port number, and a flags bitfield. All UDP sockets must use the same port number in order to communicate with each other. A default destination address (address to which is to send outgoing packets) is used - the broadcast address of the host's primary network device.

DtNetSocket::DtNetSocket	(	int	port,
		DtIpv4Addr	destAddr,
		DtU8	flags,
		DtIpv4Addr	devAddr = `0`
	)

Constructor.

Similar to above, but allows you to specify a destination address other than the default broadcast address. destAddr can be a unicast, broadcast or multicast address. A value of 0 for destAddr means use the default broadcast address. The flags argument is required to disambiguate from other constructors.

DtNetSocket::DtNetSocket	(	char *	dummy,
		int	sockfd,
		DtU8	flags = `DtReadWrite`
	)

Allows you to create a DtNetSocket that uses a pre-existing socket.

Dummy is currently ignored.

virtual DtNetSocket::~DtNetSocket ( ) [virtual]

Destructor.

DtNetSocket::DtNetSocket ( const DtNetSocket & ) [protected]

Not Implemented.

Member Function Documentation

static bool DtNetSocket::capableOfIpBroadcast	(	ifreq *	ifr,
		int	sock
	)		`[static, protected]`

virtual unsigned int DtNetSocket::currentHeaderMatchesFirstInBundle ( ) [protected, virtual]

DIS-specific function to help decide if unbundling is successful.

virtual int DtNetSocket::dataLeftInCurrentBundle ( ) [protected, virtual]

Is there still data left in the last received packet?

virtual int DtNetSocket::dropMulticastGroup	(	DtIpv4Addr	multicastAddr,
		DtIpv4Addr	netInterface = `DtUSE_DEFAULT_IP_ADDR`
	)		`[virtual]`

Reimplemented from DtSocket.

virtual void DtNetSocket::DtBecomeNonBlocking ( void ) [virtual]

Make the socket non-blocking.

Reimplemented from DtSocket.

virtual int DtNetSocket::DtRecv	(	caddr_t *	buffptr,
		int *	status = `NULL`
	)		`[virtual]`

DtNetSocket implements DtRecv by calling a system call to recvfrom on its UDP socket.

Implements DtSocket.

virtual int DtNetSocket::DtRecv	(	caddr_t	buff,
		size_t
	)		`[virtual]`

DtNetSocket implements DtRecv by calling a system call to recvfrom on its UDP socket.

Implements DtSocket.

static int DtNetSocket::enableBroadcast ( int sockfd ) [static]

Make sockfd capable of broadcasting.

virtual void DtNetSocket::enableDisHeaderTest ( bool shouldTest ) [virtual]

static ifreq* DtNetSocket::findIfr	(	const char *	device,
		int	sock,
		ifconf *	ifc
	)		`[static, protected]`

Find a device.

If device is NULL, returns the ifreq of the first device capable of broadcast. Dummy socket needed for ioctls.

virtual void DtNetSocket::findNextPacket ( ) [protected, virtual]

Sets myNextPacket to point to the next packet.

This may or may not require a recvFromNet. Packets less than myMinPktSize bytes long cause the rest of a packet to be discarded, and the following packet is found. If no packets, myNextPacket is set to NULL.

static DtIpv4Addr DtNetSocket::firstHostInetAddr ( ) [static]

virtual unsigned int DtNetSocket::getNextPacketSize ( ) [protected, virtual]

Gets the size of the next packet pointed to by myNextPacket.

Assumes myNextPacket was set via findNextPacket. Uses sizeLength() and sizeOffset() to determine which bytes represent packet size. Returns 0 if myNextPacket does not point to a valid packet.

static DtIpv4Addr DtNetSocket::inetAddrOfDevice ( const char * device = NULL ) [static]

static DtIpv4Addr DtNetSocket::inetAddrOfIfr	(	ifreq *	ifr,
		int	sock
	)		`[static, protected]`

static DtIpv4Addr DtNetSocket::inetBroadcastOfDevice ( const char * device = NULL ) [static]

Obtain information about a device.

static DtIpv4Addr DtNetSocket::inetBroadcastOfIfr	(	ifreq *	ifr,
		int	sock
	)		`[static, protected]`

void DtNetSocket::init	(	int	port,
		DtIpv4Addr	dest_addr,
		DtU8	flags,
		DtIpv4Addr	devAddr = `0`
	)		`[protected]`

Called from all constructors.

int DtNetSocket::initRead ( DtIpv4Addr dest ) [protected]

Initialize for reading, including performing bind.

int DtNetSocket::initSocket ( ) [protected]

Initialize the socket.

int DtNetSocket::initWrite ( DtIpv4Addr dest ) [protected]

Initialize for writing.

If dest is 0, use default broadcast address. Actual destination address used is stored in myDestInetAddr.

static int DtNetSocket::isMulticastAddr ( DtIpv4Addr addr ) [static]

Returns 1 if addr is a multicast address, 0 otherwise.

virtual bool DtNetSocket::isOk ( ) const [virtual]

Returns 1 if the socket's constructor initialization was successful, 0 otherwise.

Reimplemented from DtSocket.

virtual int DtNetSocket::isUnbundling ( ) [virtual]

Set all bundling parameters Disables bundling if max.

bundle size = 0 (as does base socket setBundling)

virtual DtIpv4Addr DtNetSocket::lastSourceInetAddr ( ) [virtual]

Return the IP address of the sender of the last packet we've received.

Reimplemented from DtSocket.

virtual int DtNetSocket::listenToMulticastGroup	(	DtIpv4Addr	multicastAddr,
		DtIpv4Addr	netInterface = `DtUSE_DEFAULT_IP_ADDR`
	)		`[virtual]`

Reimplemented from DtSocket.

static void DtNetSocket::makeNonBlocking ( int sockfd ) [static]

Make sockfd non-blocking.

static int DtNetSocket::makeReusable ( int sockfd ) [static]

Make port/address reusable by other sockets.

virtual DtIpv4Addr DtNetSocket::mcastDevice ( ) const [virtual]

virtual int DtNetSocket::minPacketSize ( ) [virtual]

static DtIpv4Addr DtNetSocket::netMaskOfDevice ( const char * device = NULL ) [static]

static DtIpv4Addr DtNetSocket::netMaskOfIfr	(	ifreq *	ifr,
		int	sock
	)		`[static, protected]`

Obtain information about a device. Dummy socket needed for ioctls.

DtNetSocket& DtNetSocket::operator= ( const DtNetSocket & ) [protected]

Not Implemented.

virtual int DtNetSocket::privateListenToMulticastGroup	(	DtIpv4Addr	multicastAddr,
		int	on_init = `0`,
		DtIpv4Addr	netInterface = `DtUSE_DEFAULT_IP_ADDR`
	)		`[protected, virtual]`

Helper function for listenToMulticastGroup.

virtual int DtNetSocket::readFd ( ) [virtual]

Return read/write file descriptor of the UDP socket being used for sending and receiving.

Returns -1 if the socket is not readable/writable.

Reimplemented from DtSocket.

virtual int DtNetSocket::recvFromNet ( caddr_t * buffptr ) [protected, virtual]

Grabs the next packet from the network, and puts it into myPktBuff.

If there is a packet, sets buffptr to point to myPktBuff, and returns size of packet. If not, buffptr = 0, and return 0.

Reimplemented in DtAsyncNetSocket.

virtual int DtNetSocket::recvWithStatus	(	caddr_t *	buffptr,
		int *	status
	)		`[protected, virtual]`

Sets buffptr to point to the next packet (might be next in bundle, might require a read from net) and returns size.

If no packet, or if the packet is filtered out, buffptr is NULL, and 0 is returned. Status is DtSOCKET_NO_PACKET, DtSOCKET_PACKET, or DtSOCKET_FILTERED_PACKET.

virtual int DtNetSocket::recvWithUnbundling ( caddr_t * buffptr ) [protected, virtual]

Used by recvWithStatus if unbundling is on.

Finds next packet, and sets buffptr to point to it. If no packet, returns 0 and sets buffptr to NULL. Will never return a size larger than the number of remaining bytes in a packet.

virtual int DtNetSocket::retrySendTo	(	caddr_t	packet,
		size_t	size,
		sockaddr_in &	dest
	)		`[protected, virtual]`

If retry is enabled, retry failed packet send theMaxSendRetries times.

virtual int DtNetSocket::sendTo	(	caddr_t	packet,
		size_t	size,
		DtIpv4Addr	addr
	)		`[virtual]`

Virtual function override.

DtNetSocket implements sendTo by sending the packet to the indicated address through its UDP socket, using the system call sendto.

Implements DtSocket.

Reimplemented in DtAsyncNetSocket.

virtual void DtNetSocket::setBundling	(	int	maxBundleSize,
		bool	enableUnbundling,
		int	minPacketSize,
		int	sizeOffset,
		int	sizeLength,
		bool	testDisHeader
	)		`[virtual]`

Set all bundling parameters Disables bundling if max.

bundle size = 0 (as does base socket setBundling)

void DtNetSocket::setBundling ( int maxBundleSize ) [inline, virtual]

Call through to DtSocket::setBundling to prevent compiler warnings.

Reimplemented from DtSocket.

References DtSocket::setBundling().

virtual void DtNetSocket::setFilterPort ( const int & port ) [virtual]

static void DtNetSocket::setInetAddr	(	sockaddr_in &	s,
		u_long	addr,
		int	port
	)		`[static]`

Fill out a sockaddr_in structure.

virtual void DtNetSocket::setMcastDevice ( DtIpv4Addr devAddr ) [virtual]

Reimplemented from DtSocket.

virtual int DtNetSocket::setMcastTtl ( int ttl ) [virtual]

Set the TTL (time to live) value for multicast packets.

Reimplemented from DtSocket.

virtual void DtNetSocket::setMinPacketSize ( int size ) [virtual]

static void DtNetSocket::setRetryOnSend	(	unsigned int	numRetries,
		double	waitPeriod
	)		`[static]`

Make socket retry numRetries times ( waiting for waitPeriod between ) when sendto fails ( numRetries = 0 means message will be dropped )

virtual void DtNetSocket::setSendPort ( const int & port ) [virtual]

virtual void DtNetSocket::setSizeLength ( int length ) [virtual]

virtual void DtNetSocket::setSizeOffset ( int offset ) [virtual]

virtual void DtNetSocket::setUnbundling ( int onOff ) [virtual]

Pass 0 to setUnbundling to turn unbundling off, 1 to turn it on.

Use isUnbundling to find out the current status of this option. Bundling of outgoing packets is controlled through the base class's (DtSocket's) member functions.

Reimplemented from DtSocket.

virtual int DtNetSocket::sizeLength ( ) [virtual]

virtual int DtNetSocket::sizeOffset ( ) [virtual]

virtual bool DtNetSocket::testDisHeader ( ) [virtual]

virtual int DtNetSocket::writeFd ( ) [virtual]

Reimplemented from DtSocket.
