DtSocket Class Reference

DtSocket provides a low level interface for packet I/O with VR-Link applications. More...

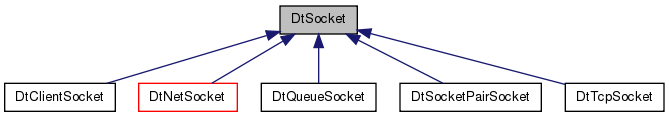

Inheritance diagram for DtSocket:

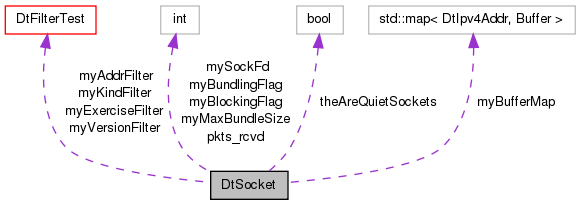

Collaboration diagram for DtSocket:

List of all members.

Public Member Functions
	DtSocket ()
	Default constructor.
virtual	~DtSocket ()
	Default Destructor.
virtual int	DtSend (caddr_t packet, size_t size, DtIpv4Addr addr=DtUSE_DEFAULT_IP_ADDR)
	DtSend is called when someone wants to send a packet to this "Socket", in other words, all outgoing messages are passed to this socket via DtSend().
virtual int	sendTo (caddr_t packet, size_t size, DtIpv4Addr addr=DtUSE_DEFAULT_IP_ADDR)=0
	sendTo is a pure virtual function which subclasses should impliment to take packets and place them on a network interface.
virtual int	DtRecv (caddr_t *buffptr, int *status=0)=0
	DtReceiv is he function which VR-Link uses to read packets from the socket.
virtual int	DtRecv (caddr_t buff, size_t)=0
caddr_t	DtRecv ()
virtual DtFlushStatus	flush ()
	Send buffered messages.
virtual DtFlushStatus	flush (long &byteCount)
	Send buffered messages.
virtual void	setReceiveBufferSize (int newsize)
	Change the socket's receive buffer size that the OS uses to collect incoming data from the network.
virtual void	setSendBufferSize (int newsize)
	Change the socket's send buffer size that the OS uses when writing data to the network.
virtual void	setBundling (int maxSize)
virtual int	isBundling ()
virtual void	setUnbundling (int)
virtual DtIpv4Addr	lastSourceInetAddr ()
virtual int	DtReportPktsRcvd (void)
virtual void	DtBecomeNonBlocking (void)
virtual void	notifyMe ()
virtual int	listenToMulticastGroup (DtIpv4Addr addr, DtIpv4Addr netInterface=DtUSE_DEFAULT_IP_ADDR)
virtual int	dropMulticastGroup (DtIpv4Addr addr, DtIpv4Addr netInterface=DtUSE_DEFAULT_IP_ADDR)
virtual int	setMcastTtl (int)
virtual void	setMcastDevice (DtIpv4Addr)
virtual DtFilterTest *	exerciseId ()
virtual DtFilterTest *	protocolVersion ()
virtual DtFilterTest *	pduKind ()
virtual DtFilterTest *	ipAddr ()
virtual int	readFd ()
	Get the file descriptor for reading and writing to this socket.
virtual int	writeFd ()
virtual bool	isOk () const
Static Public Member Functions
static void	initializeNetwork ()
static void	setQuietSockets (bool quietVal)
	These functions determine whether a socket will print messages, informative or error.
static bool	areQuietSockets ()
Public Attributes
int	myBlockingFlag
int	pkts_rcvd
Protected Types
typedef std::vector< char >	Buffer
typedef std::map< DtIpv4Addr, Buffer >	BufferMap
Protected Member Functions
virtual bool	accept (char *buf, DtIpv4Addr iaddr)
Static Protected Member Functions
static int	getConfig (const char *device, int sock, ifconf *ifc)
	Get ifconfig information by filling in ifc.
Protected Attributes
BufferMap	myBufferMap
int	myBundlingFlag
int	myMaxBundleSize
int	mySockFd
Static Protected Attributes
static bool	theAreQuietSockets
	Should a socket print messages, informative or error.
Private Member Functions
	DtSocket (const DtSocket &)
	Not Implemented.
DtSocket &	operator= (const DtSocket &)
	Not Implemented.
Private Attributes
DtFilterTest	myVersionFilter
DtFilterTest	myExerciseFilter
DtFilterTest	myKindFilter
DtFilterTest	myAddrFilter

---

Detailed Description

DtSocket provides a low level interface for packet I/O with VR-Link applications.

Users should not that this class is poorly named, as no socket is opened or used by DtSocket. Instead DtSocket provides an interface for other "Socket" classes such as DtTcpSocket and DtNetSocket which actualy open Sockets.

Deprecated:

This class is replaced by DtInetSocket as of VR-Link 3.13

---

Member Typedef Documentation

typedef std::vector<char> DtSocket::Buffer [protected]

typedef std::map<DtIpv4Addr, Buffer> DtSocket::BufferMap [protected]

---

Constructor & Destructor Documentation

DtSocket::DtSocket

(

)

Default constructor.

virtual DtSocket::~DtSocket

(

)

[virtual]

Default Destructor.

DtSocket::DtSocket

(

const DtSocket &

)

[private]

Not Implemented.

---

Member Function Documentation

virtual bool DtSocket::accept	(	char *	buf,
		DtIpv4Addr	iaddr
	)		[protected, virtual]

static bool DtSocket::areQuietSockets

(

)

[static]

virtual int DtSocket::dropMulticastGroup	(	DtIpv4Addr	addr,
		DtIpv4Addr	netInterface = DtUSE_DEFAULT_IP_ADDR
	)		[virtual]

Reimplemented in DtNetSocket.

virtual void DtSocket::DtBecomeNonBlocking

(

void

)

[virtual]

Reimplemented in DtNetSocket, DtTcpSocket, DtClientSocket, and DtSocketPairSocket.

virtual int DtSocket::DtRecv	(	caddr_t *	buffptr,
		int *	status = 0
	)		[pure virtual]

DtReceiv is he function which VR-Link uses to read packets from the socket.

Users who wish to provide another mechanisim, such as shared memory, or loopback, will need to impliment or override these functions to return new packets. Depending on the implementation in derived DtSockets, one of the forms of DtRecv may be faster than the other.

DtRecv has an optional status argument that could more elegantly be implemented as different return codes, but this would break older code.

Note:

If a derived class complains "... hides virtual DtRecv() ...", make sure you have BOTH overloads of DtRecv declared and defined in the subclass.

Implemented in DtNetSocket, DtClientSocket, DtTcpSocket, DtQueueSocket, and DtSocketPairSocket.

virtual int DtSocket::DtRecv	(	caddr_t	buff,
		size_t
	)		[pure virtual]

See also:

DtRecv(caddr_t *buffptr, int *status=0)

Implemented in DtNetSocket, DtTcpSocket, DtClientSocket, DtQueueSocket, and DtSocketPairSocket.

caddr_t DtSocket::DtRecv

(

)

See also:

DtRecv(caddr_t *buffptr, int *status=0)

virtual int DtSocket::DtReportPktsRcvd

(

void

)

[virtual]

virtual int DtSocket::DtSend	(	caddr_t	packet,
		size_t	size,
		DtIpv4Addr	addr = DtUSE_DEFAULT_IP_ADDR
	)		[virtual]

DtSend is called when someone wants to send a packet to this "Socket", in other words, all outgoing messages are passed to this socket via DtSend().

The name DtSend does not match the MAK coding standards but is preserved for historical reasions. Users should not override this function. Rather, users wishing to impliment new socket functionaltity should override sendTo(). If bundling is set then packets are bundled in this function.

See also:

sendTo

Reimplemented in DtGroupSocket.

virtual DtFilterTest* DtSocket::exerciseId

(

)

[virtual]

virtual DtFlushStatus DtSocket::flush

(

)

[virtual]

Send buffered messages.

Returns the status indicating error, flush is complete or incomplete.

Reimplemented in DtTcpSocket.

virtual DtFlushStatus DtSocket::flush

(

long &

byteCount

)

[virtual]

Send buffered messages.

Number of flushed bytes returned in provided parameter. Returns the status indicating error, flush is complete or incomplete.

Reimplemented in DtTcpSocket.

static int DtSocket::getConfig	(	const char *	device,
		int	sock,
		ifconf *	ifc
	)		[static, protected]

Get ifconfig information by filling in ifc.

Returns 1/0 for success/failure.

static void DtSocket::initializeNetwork

(

)

[static]

virtual DtFilterTest* DtSocket::ipAddr

(

)

[virtual]

virtual int DtSocket::isBundling

(

)

[virtual]

virtual bool DtSocket::isOk

(

)

const [virtual]

Reimplemented in DtNetSocket, DtTcpSocket, and DtClientSocket.

virtual DtIpv4Addr DtSocket::lastSourceInetAddr

(

)

[virtual]

Reimplemented in DtNetSocket, and DtClientSocket.

virtual int DtSocket::listenToMulticastGroup	(	DtIpv4Addr	addr,
		DtIpv4Addr	netInterface = DtUSE_DEFAULT_IP_ADDR
	)		[virtual]

Reimplemented in DtNetSocket.

virtual void DtSocket::notifyMe

(

)

[virtual]

Reimplemented in DtClientSocket.

DtSocket& DtSocket::operator=

(

const DtSocket &

)

[private]

Not Implemented.

virtual DtFilterTest* DtSocket::pduKind

(

)

[virtual]

virtual DtFilterTest* DtSocket::protocolVersion

(

)

[virtual]

virtual int DtSocket::readFd

(

)

[virtual]

Get the file descriptor for reading and writing to this socket.

NOTE: Not all DtSocket have associated file descriptors. Those that do not will have readFd()/writeFd() return -1.

Reimplemented in DtNetSocket, DtClientSocket, and DtSocketPairSocket.

virtual int DtSocket::sendTo	(	caddr_t	packet,
		size_t	size,
		DtIpv4Addr	addr = DtUSE_DEFAULT_IP_ADDR
	)		[pure virtual]

sendTo is a pure virtual function which subclasses should impliment to take packets and place them on a network interface.

This function is called by DtSend which deals with bundling.

Implemented in DtNetSocket, DtAsyncNetSocket, DtClientSocket, DtTcpSocket, DtQueueSocket, and DtSocketPairSocket.

virtual void DtSocket::setBundling

(

int

maxSize

)

[virtual]

Reimplemented in DtNetSocket.

Referenced by DtNetSocket::setBundling().

virtual void DtSocket::setMcastDevice

(

DtIpv4Addr

)

[virtual]

Reimplemented in DtNetSocket.

virtual int DtSocket::setMcastTtl

(

int

)

[virtual]

Reimplemented in DtNetSocket, and DtClientSocket.

static void DtSocket::setQuietSockets

(

bool

quietVal

)

[static]

These functions determine whether a socket will print messages, informative or error.

virtual void DtSocket::setReceiveBufferSize

(

int

newsize

)

[virtual]

Change the socket's receive buffer size that the OS uses to collect incoming data from the network.

Call this method if you find that you are dropping pkts even when the network load is small.

virtual void DtSocket::setSendBufferSize

(

int

newsize

)

[virtual]

Change the socket's send buffer size that the OS uses when writing data to the network.

Call this method if your application may send very large packets ( generally the default is > 8 kbytes ).

virtual void DtSocket::setUnbundling

(

int

)

[virtual]

Reimplemented in DtNetSocket, and DtClientSocket.

virtual int DtSocket::writeFd

(

)

[virtual]

Reimplemented in DtNetSocket, DtClientSocket, and DtSocketPairSocket.

---

Member Data Documentation

DtFilterTest DtSocket::myAddrFilter [private]

int DtSocket::myBlockingFlag

BufferMap DtSocket::myBufferMap [protected]

int DtSocket::myBundlingFlag [protected]

DtFilterTest DtSocket::myExerciseFilter [private]

DtFilterTest DtSocket::myKindFilter [private]

int DtSocket::myMaxBundleSize [protected]

int DtSocket::mySockFd [protected]

DtFilterTest DtSocket::myVersionFilter [private]

int DtSocket::pkts_rcvd

bool DtSocket::theAreQuietSockets [static, protected]

Should a socket print messages, informative or error.

---

The documentation for this class was generated from the following file:

• vlSocket.h
