VR-Link API Documentation for DIS
|
|
VR-Link API Documentation for DIS
|
class DtPointObjectStatePdu: More...

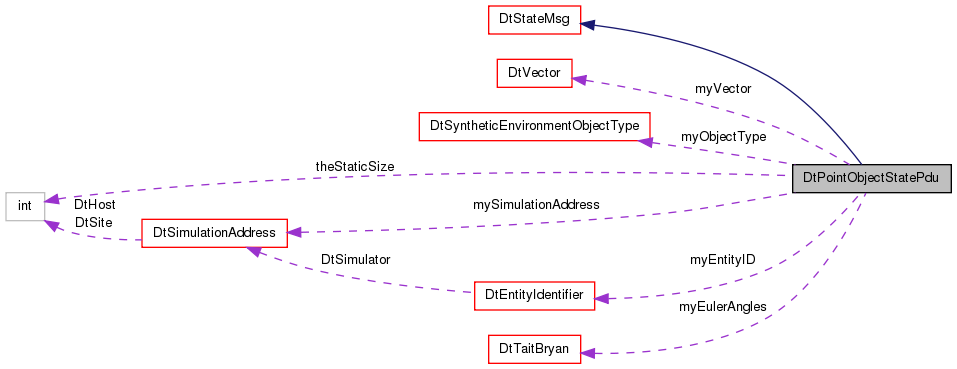

Inheritance diagram for DtPointObjectStatePdu: Collaboration diagram for DtPointObjectStatePdu:Public Member Functions | |
| DtPointObjectStatePdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER) | |
| Constructors. | |
| DtPointObjectStatePdu (const DtNetPointObjectStatePdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER) | |
| DtPointObjectStatePdu (const DtPointObjectStatePdu &orig) | |
| virtual | ~DtPointObjectStatePdu () |
| destructor | |
| DtPointObjectStatePdu & | operator= (const DtPointObjectStatePdu &orig) |
| Assignment operator. | |
| virtual void | setObjectID (const DtEntityIdentifier &id) |
| Set/Get object ID. | |
| virtual const DtEntityIdentifier & | objectID () const |
| virtual void | setReferencedObjectID (const DtEntityIdentifier &id) |
| Set/Get referenced object ID. | |
| virtual const DtEntityIdentifier & | referencedObjectID () const |
| virtual void | setUpdateNumber (DtU16 field) |
| Set/Get update number. | |
| virtual DtU16 | updateNumber () const |
| virtual void | setForceID (DtForceType force) |
| Set/Get the force ID. | |
| virtual DtForceType | forceID () const |
| virtual void | setModifications (DtU8 value) |
| Set/Get the modifications (by 8-bit integer). | |
| virtual DtU8 | modifications () const |
| virtual void | setModificationsField (DtModificationField field, bool value) |
| Set/Get the modifications (by field). | |
| virtual bool | modificationsField (DtModificationField field) const |
| virtual void | setObjectType (const DtSyntheticEnvironmentObjectType &type) |
| Set/Get the object type. | |
| virtual const DtSyntheticEnvironmentObjectType & | objectType () const |
| virtual void | setLocation (const DtVector &coords) |
| Set/Get location. | |
| virtual const DtVector & | location () const |
| virtual void | setOrientation (const DtTaitBryan &orientation) |
| Set/Get orientation. | |
| virtual const DtTaitBryan & | orientation () const |
| virtual void | setAppearance (DtU16 app) |
| Set/Get appearance, the lower 16 bits (as an integer). | |
| virtual DtU16 | appearance () const |
| virtual void | setAppearanceAttribute (DtAppearAttribute attr, DtAppearAttrVal val) |
| Set/Get appearance by attribute for the lower 16 bits. | |
| virtual DtAppearAttrVal | appearanceAttribute (DtAppearAttribute attr) const |
| virtual void | setSpecificAppearance (DtU32 app) |
| Set/Get specific appearance, the upper 32 bits (as a 32 bit integer). | |
| virtual DtU32 | specificAppearance () const |
| virtual void | setSpecificAppearanceAttribute (const DtAppearAttribute attr, const DtAppearAttrVal val) |
| Set/Get specific appearance by attribute, the upper 32 bits. | |
| virtual DtAppearAttrVal | specificAppearanceAttribute (const DtAppearAttribute attr) const |
| virtual void | setRequesterID (const DtSimulationAddress &type) |
| Set/Get the requester ID. | |
| virtual const DtSimulationAddress & | requesterID () const |
| virtual void | setReceivingID (const DtSimulationAddress &type) |
| Set/Get the receiving ID. | |
| virtual const DtSimulationAddress & | receivingID () const |
| virtual void | printData () const |
| Print the data contained by this PDU. | |
| virtual void | printDataToStream (std::ostream &stream) const |
| Print the data to a stream. | |
Static Public Member Functions | |
| static DtPdu * | create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER) |
| Create a DtPointObjectStatePdu. | |
| static void | addCallback (DtExerciseConn *conn, DtPointObjectStatePduCb cb, void *usr) |
| Add (register)/Remove (deregister) function to be called when pdu is received. | |
| static void | removeCallback (DtExerciseConn *conn, DtPointObjectStatePduCb cb, void *usr) |
Protected Member Functions | |
| virtual DtPduKind | internalGetPduKind () const |
| Returns the internal PDU kind. | |
| virtual DtNetPointObjectStatePdu * | netPduStruct () const |
| Casts the netPdu element to our network struct. | |
| DtPointObjectStatePdu * | self () const |
| Casts the 'this' pointer for changing elements in a const function. | |
Protected Attributes | |
| DtEntityIdentifier | myEntityID |
| Temporary objects for reference returns. | |
| DtSyntheticEnvironmentObjectType | myObjectType |
| DtVector | myVector |
| DtTaitBryan | myEulerAngles |
| DtSimulationAddress | mySimulationAddress |
Static Protected Attributes | |
| static const int | theStaticSize |
| Size of PDU with zero parameter records. | |
class DtPointObjectStatePdu:
Instances of DtPointObjectStatePdu are used to state information for synthetic environment objects.
Constructors.
| DtPointObjectStatePdu::DtPointObjectStatePdu | ( | const DtNetPointObjectStatePdu * | initial, |
| DtBufferPtr | buffer = DtUSE_INTERNAL_BUFFER |
||
| ) |
| DtPointObjectStatePdu::DtPointObjectStatePdu | ( | const DtPointObjectStatePdu & | orig | ) |
| virtual DtPointObjectStatePdu::~DtPointObjectStatePdu | ( | ) | [virtual] |
destructor
| static void DtPointObjectStatePdu::addCallback | ( | DtExerciseConn * | conn, |
| DtPointObjectStatePduCb | cb, | ||
| void * | usr | ||
| ) | [static] |
Add (register)/Remove (deregister) function to be called when pdu is received.
| virtual DtU16 DtPointObjectStatePdu::appearance | ( | ) | const [virtual] |
| virtual DtAppearAttrVal DtPointObjectStatePdu::appearanceAttribute | ( | DtAppearAttribute | attr | ) | const [virtual] |
| static DtPdu* DtPointObjectStatePdu::create | ( | const DtNetPacket * | initial, |
| DtBufferPtr | buffer = DtUSE_INTERNAL_BUFFER |
||
| ) | [static] |
Create a DtPointObjectStatePdu.
Caller is responsible for deletion.
| virtual DtForceType DtPointObjectStatePdu::forceID | ( | ) | const [virtual] |
| virtual DtPduKind DtPointObjectStatePdu::internalGetPduKind | ( | ) | const [protected, virtual] |
Returns the internal PDU kind.
Implements DtPdu.
| virtual const DtVector& DtPointObjectStatePdu::location | ( | ) | const [virtual] |
| virtual DtU8 DtPointObjectStatePdu::modifications | ( | ) | const [virtual] |
| virtual bool DtPointObjectStatePdu::modificationsField | ( | DtModificationField | field | ) | const [virtual] |
| virtual DtNetPointObjectStatePdu* DtPointObjectStatePdu::netPduStruct | ( | ) | const [protected, virtual] |
Casts the netPdu element to our network struct.
| virtual const DtEntityIdentifier& DtPointObjectStatePdu::objectID | ( | ) | const [virtual] |
| virtual const DtSyntheticEnvironmentObjectType& DtPointObjectStatePdu::objectType | ( | ) | const [virtual] |
| DtPointObjectStatePdu& DtPointObjectStatePdu::operator= | ( | const DtPointObjectStatePdu & | orig | ) |
Assignment operator.
| virtual const DtTaitBryan& DtPointObjectStatePdu::orientation | ( | ) | const [virtual] |
| virtual void DtPointObjectStatePdu::printData | ( | ) | const [virtual] |
Print the data contained by this PDU.
Reimplemented from DtPdu.
| virtual void DtPointObjectStatePdu::printDataToStream | ( | std::ostream & | stream | ) | const [virtual] |
Print the data to a stream.
Reimplemented from DtPdu.
| virtual const DtSimulationAddress& DtPointObjectStatePdu::receivingID | ( | ) | const [virtual] |
| virtual const DtEntityIdentifier& DtPointObjectStatePdu::referencedObjectID | ( | ) | const [virtual] |
| static void DtPointObjectStatePdu::removeCallback | ( | DtExerciseConn * | conn, |
| DtPointObjectStatePduCb | cb, | ||
| void * | usr | ||
| ) | [static] |
| virtual const DtSimulationAddress& DtPointObjectStatePdu::requesterID | ( | ) | const [virtual] |
| DtPointObjectStatePdu* DtPointObjectStatePdu::self | ( | ) | const [protected] |
Casts the 'this' pointer for changing elements in a const function.
Non-virtual, since you can't override based on return type.
| virtual void DtPointObjectStatePdu::setAppearance | ( | DtU16 | app | ) | [virtual] |
Set/Get appearance, the lower 16 bits (as an integer).
| virtual void DtPointObjectStatePdu::setAppearanceAttribute | ( | DtAppearAttribute | attr, |
| DtAppearAttrVal | val | ||
| ) | [virtual] |
Set/Get appearance by attribute for the lower 16 bits.
| virtual void DtPointObjectStatePdu::setForceID | ( | DtForceType | force | ) | [virtual] |
Set/Get the force ID.
| virtual void DtPointObjectStatePdu::setLocation | ( | const DtVector & | coords | ) | [virtual] |
Set/Get location.
| virtual void DtPointObjectStatePdu::setModifications | ( | DtU8 | value | ) | [virtual] |
Set/Get the modifications (by 8-bit integer).
| virtual void DtPointObjectStatePdu::setModificationsField | ( | DtModificationField | field, |
| bool | value | ||
| ) | [virtual] |
Set/Get the modifications (by field).
| virtual void DtPointObjectStatePdu::setObjectID | ( | const DtEntityIdentifier & | id | ) | [virtual] |
Set/Get object ID.
| virtual void DtPointObjectStatePdu::setObjectType | ( | const DtSyntheticEnvironmentObjectType & | type | ) | [virtual] |
Set/Get the object type.
| virtual void DtPointObjectStatePdu::setOrientation | ( | const DtTaitBryan & | orientation | ) | [virtual] |
Set/Get orientation.
| virtual void DtPointObjectStatePdu::setReceivingID | ( | const DtSimulationAddress & | type | ) | [virtual] |
Set/Get the receiving ID.
| virtual void DtPointObjectStatePdu::setReferencedObjectID | ( | const DtEntityIdentifier & | id | ) | [virtual] |
Set/Get referenced object ID.
| virtual void DtPointObjectStatePdu::setRequesterID | ( | const DtSimulationAddress & | type | ) | [virtual] |
Set/Get the requester ID.
| virtual void DtPointObjectStatePdu::setSpecificAppearance | ( | DtU32 | app | ) | [virtual] |
Set/Get specific appearance, the upper 32 bits (as a 32 bit integer).
| virtual void DtPointObjectStatePdu::setSpecificAppearanceAttribute | ( | const DtAppearAttribute | attr, |
| const DtAppearAttrVal | val | ||
| ) | [virtual] |
Set/Get specific appearance by attribute, the upper 32 bits.
| virtual void DtPointObjectStatePdu::setUpdateNumber | ( | DtU16 | field | ) | [virtual] |
Set/Get update number.
| virtual DtU32 DtPointObjectStatePdu::specificAppearance | ( | ) | const [virtual] |
| virtual DtAppearAttrVal DtPointObjectStatePdu::specificAppearanceAttribute | ( | const DtAppearAttribute | attr | ) | const [virtual] |
| virtual DtU16 DtPointObjectStatePdu::updateNumber | ( | ) | const [virtual] |
DtEntityIdentifier DtPointObjectStatePdu::myEntityID [protected] |
Temporary objects for reference returns.
DtTaitBryan DtPointObjectStatePdu::myEulerAngles [protected] |
DtVector DtPointObjectStatePdu::myVector [protected] |
const int DtPointObjectStatePdu::theStaticSize [static, protected] |
Size of PDU with zero parameter records.
