DtPdu is the base class for all PDU's in VR-Link. More...

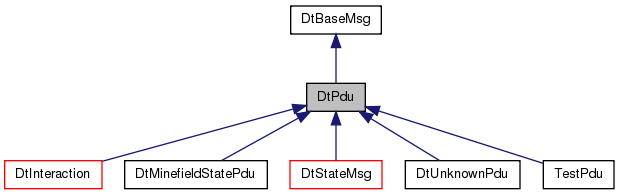

Inheritance diagram for DtPdu:

Collaboration diagram for DtPdu:

Public Member Functions
virtual	~DtPdu ()
	Destructor.
	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator.
virtual void *	packet () const
	Older function that returns a pointer to the network representation.
virtual int	status () const
	Get PDU status.
virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header.
virtual int	protocolVersion () const
virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header.
virtual int	exerciseId () const
virtual DtPduKind	kind () const
	Returns PDU kind from PDU header.
virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header.
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type.
virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp.
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header.
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.
virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header.
virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo).
virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU by calling printHeaderToStream and printDataToStream.
virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo).
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream.
virtual void	printData () const
	Print the PDU's data (not including header).
virtual void	printDataToStream (std::ostream &stream) const
virtual void	printDataToString (DtString &str) const
Protected Member Functions
	DtPdu ()
	Constructor.
virtual void	setStatus (int okStatus)
	Sets the PDU's status to okStatus.
virtual void	initPdu (int size, DtBufferPtr buffer)
	Must be called after default ctor before PDU is completely constructed.
virtual void	initPdu (const void *initial, DtBufferPtr buffer)
	Called by from-net-rep ctor. Initializes DtBaseMsg.
virtual DtPduKind	internalGetPduKind () const =0
	Returns the PDU kind associated with the derived PDU class.
virtual DtProtocolFamily	kindToFamily (DtPduKind kind) const
	Maps PDU kind to ProtocolFamily.
virtual void	sizeChanged (int size)
	Called by changeSize. Sets the size in the header to size.
virtual void	clearData ()
	zeros out all bytes after the PDU header.
virtual void	initHeader (DtPduKind kind, int size)
	Initializes PDU header. Called by initPdu.
Protected Attributes
int	myOKStatus

Detailed Description

DtPdu is the base class for all PDU's in VR-Link.

Constructor & Destructor Documentation

virtual DtPdu::~DtPdu ( ) [virtual]

Destructor.

DtPdu::DtPdu	(	const DtPdu &	pdu,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`
	)

Copy constructor.

DtPdu::DtPdu ( ) [protected]

Constructor.

PDU is not fully constructed until initPdu is called.

Member Function Documentation

virtual void DtPdu::clearData ( ) [protected, virtual]

zeros out all bytes after the PDU header.

int DtPdu::exerciseId ( ) const [inline, virtual]

References DtNetPduHeader::DtExercise, and netHeader().

virtual DtTime DtPdu::guessTimeValid ( DtTime referenceTime ) const [virtual]

Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.

virtual void DtPdu::initHeader	(	DtPduKind	kind,
		int	size
	)		`[protected, virtual]`

Initializes PDU header. Called by initPdu.

virtual void DtPdu::initPdu	(	int	size,
		DtBufferPtr	buffer
	)		`[protected, virtual]`

Must be called after default ctor before PDU is completely constructed.

Fills in PDU header, and initializes DtBaseMsg.

virtual void DtPdu::initPdu	(	const void *	initial,
		DtBufferPtr	buffer
	)		`[protected, virtual]`

Called by from-net-rep ctor. Initializes DtBaseMsg.

virtual DtPduKind DtPdu::internalGetPduKind ( ) const [protected, pure virtual]

Returns the PDU kind associated with the derived PDU class.

Implemented in DtMinefieldDataPdu, DtAggregateStatePdu, DtResupplyReceivedPdu, DtLeDetonationPdu, DtDIGuyCustomPdu, DtEntityStatePdu, DtGriddedDataPdu, DtElectromagneticEmissionPdu, DtIsGroupOfPdu, DtLeFirePdu, DtEnvironmentalProcessPdu, DtLeAppearancePdu, DtMinefieldQueryPdu, DtIntercomControlPdu, DtUnderwaterAcousticPdu, DtSignalPdu, DtLeTspiPdu, DtTransmitterPdu, DtRelativeLocationPdu, DtArealObjectStatePdu, DtPointObjectStatePdu, DtMinefieldStatePdu, DtIffAtcNavaidsPdu, DtResupplyOfferPdu, TestPdu, DtActionResponsePdu, DtDesignatorPdu, DtDetonationPdu, DtCollisionElasticPdu, DtEntityStateUpdatePdu, DtLinearObjectStatePdu, DtFirePdu, DtIntercomSignalPdu, DtRepairCompletePdu, DtLeArticulatedPartsPdu, DtSuppEmisEntStatePdu, DtRecordQueryPdu, DtIsPartOfPdu, DtReceiverPdu, DtTransferControlRequestPdu, DtRecordPdu, DtDataQueryRPdu, DtMinefieldResponseNackPdu, DtSetRecordPdu, DtStopFreezeRPdu, DtServiceRequestPdu, DtDataQueryPdu, DtStartResumePdu, DtStartResumeRPdu, DtAcknowledgePdu, DtStopFreezePdu, DtAcknowledgeRPdu, DtCreateEntityRPdu, DtActionRequestRPdu, DtRemoveEntityRPdu, DtCollisionPdu, DtDataRPdu, DtSetDataRPdu, DtRemoveEntityPdu, DtCreateEntityPdu, DtActionRequestPdu, DtActionResponseRPdu, DtCommentRPdu, DtEventReportPdu, DtEventReptRPdu, DtCommentPdu, DtDataPdu, DtResupplyCancelPdu, DtRepairResponsePdu, DtSetDataPdu, and DtUnknownPdu.

DtPduKind DtPdu::kind ( ) const [inline, virtual]

Returns PDU kind from PDU header.

References netHeader().

virtual DtProtocolFamily DtPdu::kindToFamily ( DtPduKind kind ) const [protected, virtual]

Maps PDU kind to ProtocolFamily.

DtNetPduHeader * DtPdu::netHeader ( ) const [inline, virtual]

Returns a pointer to the PDU's header.

References DtBaseMsg::netRep().

Referenced by exerciseId(), kind(), protocolFamily(), protocolVersion(), setExerciseId(), setTimeStamp(), setVersion(), timeStamp(), and timeStampType().

DtPdu& DtPdu::operator= ( const DtPdu & pdu )

Assignment operator.

Referenced by DtSimanPdu::operator=(), and DtPduWithData::operator=().

void * DtPdu::packet ( ) const [inline, virtual]

Older function that returns a pointer to the network representation.

The newer DtBaseMsg::netRep should generally be used instead.

References DtBaseMsg::netRep().

virtual void DtPdu::print ( ) const [virtual]

Print the contents of the PDU by calling printToStream(DtInfo).

virtual void DtPdu::printData ( ) const [virtual]

Print the PDU's data (not including header).

Base DtPdu version just prints hex. Use the printDataToString to put the data into a DtString instead of simply sending the output to stdout. printData() calls printDataToStream(DtInfo).

Reimplemented in DtMinefieldDataPdu, DtPduWithData, DtResupplyReceivedPdu, DtGriddedDataPdu, DtElectromagneticEmissionPdu, DtAggregateStatePdu, DtLeDetonationPdu, DtEntityStatePdu, DtDIGuyCustomPdu, DtIsGroupOfPdu, DtSignalPdu, DtTransmitterPdu, DtMinefieldQueryPdu, DtIntercomControlPdu, DtLeFirePdu, DtLeAppearancePdu, DtArealObjectStatePdu, DtUnderwaterAcousticPdu, DtIffAtcNavaidsPdu, DtActionResponsePdu, DtDesignatorPdu, DtDetonationPdu, DtResupplyOfferPdu, DtCollisionElasticPdu, DtLeTspiPdu, DtPointObjectStatePdu, DtMinefieldStatePdu, DtEntityStateUpdatePdu, DtRepairCompletePdu, DtFirePdu, DtLinearObjectStatePdu, DtIntercomSignalPdu, DtSuppEmisEntStatePdu, DtEnvironmentalProcessPdu, DtLeArticulatedPartsPdu, DtRecordQueryPdu, DtIsPartOfPdu, DtReceiverPdu, TestPdu, DtServiceRequestPdu, DtTransferControlRequestPdu, DtDataQueryRPdu, DtRecordPdu, DtMinefieldResponseNackPdu, DtStopFreezeRPdu, DtCollisionPdu, DtSetRecordPdu, DtStartResumePdu, DtDataQueryPdu, DtStartResumeRPdu, DtAcknowledgePdu, DtActionRequestPdu, DtCreateEntityPdu, DtStopFreezePdu, DtAcknowledgeRPdu, DtActionRequestRPdu, DtCreateEntityRPdu, DtSetDataPdu, DtRelativeLocationPdu, DtRemoveEntityRPdu, DtDataRPdu, DtSetDataRPdu, DtRemoveEntityPdu, DtActionResponseRPdu, DtDataPdu, DtRepairResponsePdu, DtResupplyCancelPdu, DtSimanPdu, DtEventReportPdu, DtEventReptRPdu, and DtRecordSetPdu.
