DtDetonationPdu is used to represent the impact or detonation of a munition. More...

Inheritance diagram for DtDetonationPdu:

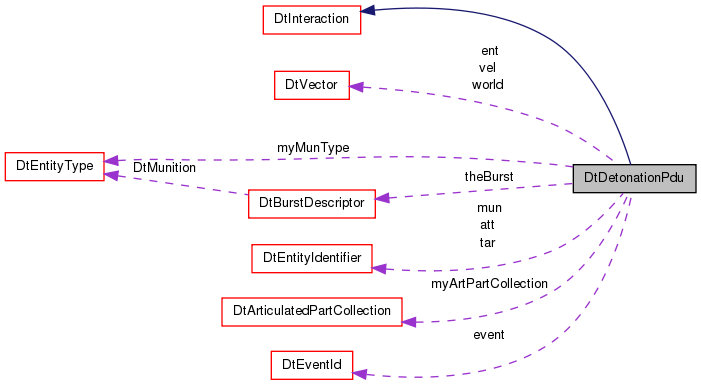

Collaboration diagram for DtDetonationPdu:

Public Types
enum	{ PduStaticSize = 104 }
Public Member Functions
	DtDetonationPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	DtDetonationPdu (const DtNetDetonationPdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	DtDetonationPdu (const DtEntityIdentifier &attacker, const DtEntityIdentifier &target, const DtEntityIdentifier &munition, const DtEventID &eventId, const DtVector &linVelocity, const DtVector &location, const DtBurstDescriptor &burst, const DtVector &entLocation, DtDetonationResult result, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	DtDetonationPdu (const DtFireInteraction &fire, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Fills in common fields with data from Fire Interaction.
const DtObjectId &	attackerId () const
void	setAttackerId (const DtObjectId &id)
const DtObjectId &	targetId () const
void	setTargetId (const DtObjectId &id)
const DtObjectId &	munitionId () const
void	setMunitionId (const DtObjectId &id)
const DtEventID &	eventId () const
void	setEventId (const DtEventID &id)
const DtVector &	velocity () const
void	setVelocity (const DtVector &velocity)
const DtVector &	worldLocation () const
void	setWorldLocation (const DtVector &location)
const DtVector &	entityLocation () const
void	setEntityLocation (const DtVector &location)
DtDetonationResult	result () const
void	setResult (DtDetonationResult result)
DtDetonatorFuze	fuseType () const
void	setFuseType (DtDetonatorFuze fuse)
const DtEntityType &	munitionType () const
void	setMunitionType (const DtEntityType &munType)
int	quantity () const
void	setQuantity (int quant)
int	rate () const
void	setRate (int rate)
DtWarheadType	warheadType () const
void	setWarheadType (DtWarheadType type)
const DtBurstDescriptor &	burst () const
	NOT USED IN HLA.
void	setBurst (const DtBurstDescriptor &burst)
void	setArticulatedParts (const DtArticulatedPartCollection &apList)
const DtArticulatedPartCollection &	articulatedParts () const
virtual void	printData () const
	Print the PDU's data (not including header).
virtual void	printDataToStream (std::ostream &stream) const
virtual void	printDataToString (DtString &str) const
Static Public Member Functions
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
static void	addCallback (DtExerciseConn conn, DtDetonationInteractionCb cb, void usr)
static void	removeCallback (DtExerciseConn conn, DtDetonationInteractionCb cb, void usr)
Protected Member Functions
DtPduKind	internalGetPduKind () const
	Returns the PDU kind associated with the derived PDU class.
Protected Attributes
DtObjectId	att
DtObjectId	tar
DtObjectId	mun
DtEventID	event
DtVector	vel
DtVector	world
DtVector	ent
DtBurstDescriptor	theBurst
DtEntityType	myMunType
DtArticulatedPartCollection	myArtPartCollection

Detailed Description

DtDetonationPdu is used to represent the impact or detonation of a munition.

Member Enumeration Documentation

anonymous enum

Enumerator:

PduStaticSize

Constructor & Destructor Documentation

DtDetonationPdu::DtDetonationPdu ( DtBufferPtr buffer = DtUSE_INTERNAL_BUFFER )

DtDetonationPdu::DtDetonationPdu	(	const DtNetDetonationPdu *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`
	)

DtDetonationPdu::DtDetonationPdu	(	const DtEntityIdentifier &	attacker,
		const DtEntityIdentifier &	target,
		const DtEntityIdentifier &	munition,
		const DtEventID &	eventId,
		const DtVector &	linVelocity,
		const DtVector &	location,
		const DtBurstDescriptor &	burst,
		const DtVector &	entLocation,
		DtDetonationResult	result,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`
	)

DtDetonationPdu::DtDetonationPdu	(	const DtFireInteraction &	fire,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`
	)

Fills in common fields with data from Fire Interaction.

Member Function Documentation

static void DtDetonationPdu::addCallback	(	DtExerciseConn *	conn,
		DtDetonationInteractionCb	cb,
		void *	usr
	)		`[static]`

const DtArticulatedPartCollection& DtDetonationPdu::articulatedParts ( ) const

const DtObjectId& DtDetonationPdu::attackerId ( ) const

const DtBurstDescriptor& DtDetonationPdu::burst ( ) const

NOT USED IN HLA.

static DtPdu* DtDetonationPdu::create	(	const DtNetPacket *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`
	)		`[static]`

const DtVector& DtDetonationPdu::entityLocation ( ) const

const DtEventID& DtDetonationPdu::eventId ( ) const

DtDetonatorFuze DtDetonationPdu::fuseType ( ) const

DtPduKind DtDetonationPdu::internalGetPduKind ( ) const [inline, protected, virtual]

Returns the PDU kind associated with the derived PDU class.

Implements DtPdu.

References DtDetonationPduKind.

const DtObjectId& DtDetonationPdu::munitionId ( ) const

const DtEntityType& DtDetonationPdu::munitionType ( ) const

virtual void DtDetonationPdu::printData ( ) const [virtual]

Print the PDU's data (not including header).

Base DtPdu version just prints hex. Use the printDataToString to put the data into a DtString instead of simply sending the output to stdout. printData() calls printDataToStream(DtInfo).

Reimplemented from DtPdu.

virtual void DtDetonationPdu::printDataToStream ( std::ostream & stream ) const [virtual]

Reimplemented from DtPdu.

virtual void DtDetonationPdu::printDataToString ( DtString & str ) const [virtual]

Reimplemented from DtPdu.

int DtDetonationPdu::quantity ( ) const

int DtDetonationPdu::rate ( ) const
