DtArealObjectStatePdu Class Reference

Instances of DtArealObjectStatePdu are used to communicate information about the addition/modification of a synthetic object which is geometrically anchored to the terrain with multiple points. More...

Inheritance diagram for DtArealObjectStatePdu:

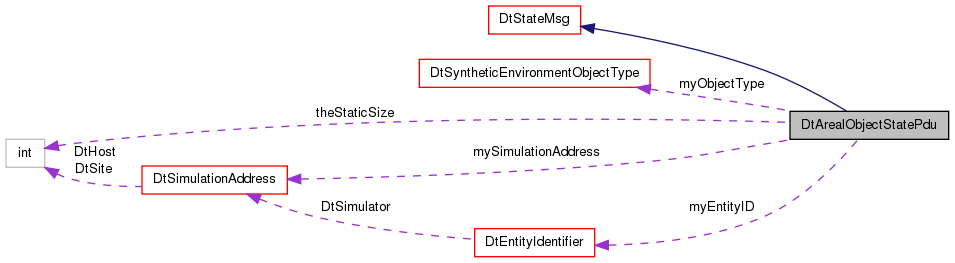

Collaboration diagram for DtArealObjectStatePdu:

List of all members.

Public Member Functions
	DtArealObjectStatePdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Constructors.
	DtArealObjectStatePdu (const DtNetArealObjectStatePdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	DtArealObjectStatePdu (const DtArealObjectStatePdu &orig)
virtual	~DtArealObjectStatePdu ()
	destructor
DtArealObjectStatePdu &	operator= (const DtArealObjectStatePdu &orig)
	Assignment operator.
virtual void	setObjectID (const DtEntityIdentifier &id)
	Set/Get object ID.
virtual const DtEntityIdentifier &	objectID () const
virtual void	setReferencedObjectID (const DtEntityIdentifier &id)
	Set/Get referenced object ID.
virtual const DtEntityIdentifier &	referencedObjectID () const
virtual void	setUpdateNumber (DtU16 field)
	Set/Get update number.
virtual DtU16	updateNumber () const
virtual void	setForceID (DtForceType force)
	Set/Get the force ID.
virtual DtForceType	forceID () const
virtual void	setModifications (DtU8 value)
	Set/Get the modifications (by 8-bit integer).
virtual DtU8	modifications () const
virtual void	setModificationsField (DtModificationField field, bool value)
	Set/Get the modifications (by field).
virtual bool	modificationsField (DtModificationField field) const
virtual void	setObjectType (const DtSyntheticEnvironmentObjectType &type)
	Set/Get the object type.
virtual const DtSyntheticEnvironmentObjectType &	objectType () const
virtual void	setAppearance (DtU16 app)
	Set/Get appearance, the lower 16 bits (as an integer).
virtual DtU16	appearance () const
virtual void	setAppearanceAttribute (DtAppearAttribute attr, DtAppearAttrVal val)
	Set/Get appearance by attribute for the lower 16 bits.
virtual DtAppearAttrVal	appearanceAttribute (DtAppearAttribute attr) const
virtual void	setSpecificAppearance (DtU32 app)
	Set/Get specific appearance, the upper 32 bits (as a 32 bit integer).
virtual DtU32	specificAppearance () const
virtual void	setSpecificAppearanceAttribute (const DtAppearAttribute attr, const DtAppearAttrVal val)
	Set/Get specific appearance by attribute, the upper 32 bits.
virtual DtAppearAttrVal	specificAppearanceAttribute (const DtAppearAttribute attr) const
virtual bool	setNumPoints (DtU16 num)
	Set/Get the number of points.
virtual DtU16	numPoints () const
virtual void	setRequesterID (const DtSimulationAddress &type)
	Set/Get the requester ID.
virtual const DtSimulationAddress &	requesterID () const
virtual void	setReceivingID (const DtSimulationAddress &type)
	Set/Get the receiving ID.
virtual const DtSimulationAddress &	receivingID () const
virtual bool	setPointLocation (int index, const DtVector &init)
	Set/Get a point location. Returns false if the index is out of range.
virtual bool	getPointLocation (int index, DtVector &record) const
virtual void	printData () const
	Print the data contained by this PDU.
virtual void	printDataToStream (std::ostream &stream) const
	Print the data to a stream.
Static Public Member Functions
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Create a DtArealObjectStatePdu.
static void	addCallback (DtExerciseConn *conn, DtArealObjectStatePduCb cb, void *usr)
	Add (register)/Remove (deregister) function to be called when pdu is received.
static void	removeCallback (DtExerciseConn *conn, DtArealObjectStatePduCb cb, void *usr)
Protected Member Functions
virtual DtPduKind	internalGetPduKind () const
	Returns the internal PDU kind.
virtual DtNetArealObjectStatePdu *	netPduStruct () const
	Casts the netPdu element to our network struct.
DtArealObjectStatePdu *	self () const
	Casts the 'this' pointer for changing elements in a const function.
virtual char *	var () const
	Returns a pointer to the first byte of variable length data.
Protected Attributes
DtEntityIdentifier	myEntityID
	Temporary objects for reference returns.
DtSyntheticEnvironmentObjectType	myObjectType
DtSimulationAddress	mySimulationAddress
Static Protected Attributes
static const int	theStaticSize
	Size of PDU with zero parameter records.

---

Detailed Description

Instances of DtArealObjectStatePdu are used to communicate information about the addition/modification of a synthetic object which is geometrically anchored to the terrain with multiple points.

---

Constructor & Destructor Documentation

DtArealObjectStatePdu::DtArealObjectStatePdu

(

DtBufferPtr

buffer = DtUSE_INTERNAL_BUFFER

)

Constructors.

DtArealObjectStatePdu::DtArealObjectStatePdu	(	const DtNetArealObjectStatePdu *	initial,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER
	)

DtArealObjectStatePdu::DtArealObjectStatePdu

(

const DtArealObjectStatePdu &

orig

)

virtual DtArealObjectStatePdu::~DtArealObjectStatePdu

(

)

[virtual]

destructor

---

Member Function Documentation

static void DtArealObjectStatePdu::addCallback	(	DtExerciseConn *	conn,
		DtArealObjectStatePduCb	cb,
		void *	usr
	)		[static]

Add (register)/Remove (deregister) function to be called when pdu is received.

virtual DtU16 DtArealObjectStatePdu::appearance

(

)

const [virtual]

virtual DtAppearAttrVal DtArealObjectStatePdu::appearanceAttribute

(

DtAppearAttribute

attr

)

const [virtual]

static DtPdu* DtArealObjectStatePdu::create	(	const DtNetPacket *	initial,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER
	)		[static]

Create a DtArealObjectStatePdu.

Caller is responsible for deletion.

virtual DtForceType DtArealObjectStatePdu::forceID

(

)

const [virtual]

virtual bool DtArealObjectStatePdu::getPointLocation	(	int	index,
		DtVector &	record
	)		const [virtual]

virtual DtPduKind DtArealObjectStatePdu::internalGetPduKind

(

)

const [protected, virtual]

Returns the internal PDU kind.

Implements DtPdu.

virtual DtU8 DtArealObjectStatePdu::modifications

(

)

const [virtual]

virtual bool DtArealObjectStatePdu::modificationsField

(

DtModificationField

field

)

const [virtual]

virtual DtNetArealObjectStatePdu* DtArealObjectStatePdu::netPduStruct

(

)

const [protected, virtual]

Casts the netPdu element to our network struct.

virtual DtU16 DtArealObjectStatePdu::numPoints

(

)

const [virtual]

virtual const DtEntityIdentifier& DtArealObjectStatePdu::objectID

(

)

const [virtual]

virtual const DtSyntheticEnvironmentObjectType& DtArealObjectStatePdu::objectType

(

)

const [virtual]

DtArealObjectStatePdu& DtArealObjectStatePdu::operator=

(

const DtArealObjectStatePdu &

orig

)

Assignment operator.

virtual void DtArealObjectStatePdu::printData

(

)

const [virtual]

Print the data contained by this PDU.

Reimplemented from DtPdu.

virtual void DtArealObjectStatePdu::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Print the data to a stream.

Reimplemented from DtPdu.

virtual const DtSimulationAddress& DtArealObjectStatePdu::receivingID

(

)

const [virtual]

virtual const DtEntityIdentifier& DtArealObjectStatePdu::referencedObjectID

(

)

const [virtual]

static void DtArealObjectStatePdu::removeCallback	(	DtExerciseConn *	conn,
		DtArealObjectStatePduCb	cb,
		void *	usr
	)		[static]

virtual const DtSimulationAddress& DtArealObjectStatePdu::requesterID

(

)

const [virtual]

DtArealObjectStatePdu* DtArealObjectStatePdu::self

(

)

const [protected]

Casts the 'this' pointer for changing elements in a const function.

Non-virtual since you can't override based on return type.

virtual void DtArealObjectStatePdu::setAppearance

(

DtU16

app

)

[virtual]

Set/Get appearance, the lower 16 bits (as an integer).

virtual void DtArealObjectStatePdu::setAppearanceAttribute	(	DtAppearAttribute	attr,
		DtAppearAttrVal	val
	)		[virtual]

Set/Get appearance by attribute for the lower 16 bits.

virtual void DtArealObjectStatePdu::setForceID

(

DtForceType

force

)

[virtual]

Set/Get the force ID.

virtual void DtArealObjectStatePdu::setModifications

(

DtU8

value

)

[virtual]

Set/Get the modifications (by 8-bit integer).

virtual void DtArealObjectStatePdu::setModificationsField	(	DtModificationField	field,
		bool	value
	)		[virtual]

Set/Get the modifications (by field).

virtual bool DtArealObjectStatePdu::setNumPoints

(

DtU16

num

)

[virtual]

Set/Get the number of points.

virtual void DtArealObjectStatePdu::setObjectID

(

const DtEntityIdentifier &

id

)

[virtual]

Set/Get object ID.

virtual void DtArealObjectStatePdu::setObjectType

(

const DtSyntheticEnvironmentObjectType &

type

)

[virtual]

Set/Get the object type.

virtual bool DtArealObjectStatePdu::setPointLocation	(	int	index,
		const DtVector &	init
	)		[virtual]

Set/Get a point location. Returns false if the index is out of range.

virtual void DtArealObjectStatePdu::setReceivingID

(

const DtSimulationAddress &

type

)

[virtual]

Set/Get the receiving ID.

virtual void DtArealObjectStatePdu::setReferencedObjectID

(

const DtEntityIdentifier &

id

)

[virtual]

Set/Get referenced object ID.

virtual void DtArealObjectStatePdu::setRequesterID

(

const DtSimulationAddress &

type

)

[virtual]

Set/Get the requester ID.

virtual void DtArealObjectStatePdu::setSpecificAppearance

(

DtU32

app

)

[virtual]

Set/Get specific appearance, the upper 32 bits (as a 32 bit integer).

virtual void DtArealObjectStatePdu::setSpecificAppearanceAttribute	(	const DtAppearAttribute	attr,
		const DtAppearAttrVal	val
	)		[virtual]

Set/Get specific appearance by attribute, the upper 32 bits.

virtual void DtArealObjectStatePdu::setUpdateNumber

(

DtU16

field

)

[virtual]

Set/Get update number.

virtual DtU32 DtArealObjectStatePdu::specificAppearance

(

)

const [virtual]

virtual DtAppearAttrVal DtArealObjectStatePdu::specificAppearanceAttribute

(

const DtAppearAttribute

attr

)

const [virtual]

virtual DtU16 DtArealObjectStatePdu::updateNumber

(

)

const [virtual]

virtual char* DtArealObjectStatePdu::var

(

)

const [protected, virtual]

Returns a pointer to the first byte of variable length data.

---

Member Data Documentation

DtEntityIdentifier DtArealObjectStatePdu::myEntityID [protected]

Temporary objects for reference returns.

DtSyntheticEnvironmentObjectType DtArealObjectStatePdu::myObjectType [protected]

DtSimulationAddress DtArealObjectStatePdu::mySimulationAddress [protected]

const int DtArealObjectStatePdu::theStaticSize [static, protected]

Size of PDU with zero parameter records.

---

The documentation for this class was generated from the following file:

• arealObjStPdu.h
