Instances of DtMinefieldDataPdu are used to communicate minefield data information. More...

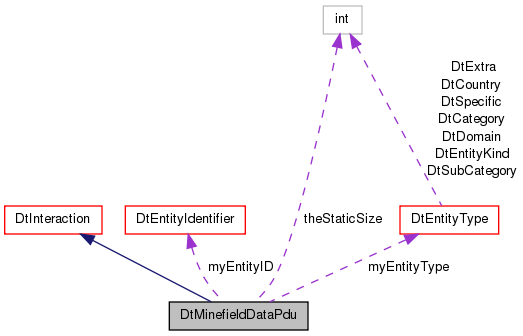

Inheritance diagram for DtMinefieldDataPdu: Collaboration diagram for DtMinefieldDataPdu:Public Member Functions | |
| DtMinefieldDataPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER) | |
| Constructors. | |
| DtMinefieldDataPdu (const DtNetMinefieldDataPdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER) | |
| DtMinefieldDataPdu (const DtMinefieldDataPdu &orig) | |
| virtual | ~DtMinefieldDataPdu () |
| destructor | |
| DtMinefieldDataPdu & | operator= (const DtMinefieldDataPdu &orig) |
| Assignment operator. | |
| virtual void | setMinefieldID (const DtEntityIdentifier &id) |
| Set/Get minefield ID. | |
| virtual const DtEntityIdentifier & | minefieldID () const |
| virtual void | setRequestingEntityID (const DtEntityIdentifier &id) |
| Set/Get requesting entity ID. | |
| virtual const DtEntityIdentifier & | requestingEntityID () const |
| virtual void | setMinefieldSequenceNumber (DtU16 field) |
| Set/Get minefield sequence number. | |
| virtual DtU16 | minefieldSequenceNumber () const |
| virtual void | setRequestID (DtU8 value) |
| Set/Get the request ID. | |
| virtual DtU8 | requestID () const |
| virtual void | setPDU_SequenceNumber (DtU8 value) |
| Set/Get the PDU sequence number. | |
| virtual DtU8 | PDU_SequenceNumber () const |
| virtual void | setNumberOfPdus (DtU8 value) |
| Set/Get the number of PDUs. | |
| virtual DtU8 | numberOfPdus () const |
| virtual bool | setNumberOfMines (DtU8 value) |
| Set/Get the number of mines (this call erases any data which was set in the variable length fields). | |
| virtual DtU8 | numberOfMines () const |
| virtual bool | setNumberOfSensorTypes (DtU8 value) |
| Set/Get the number of sensor types (this call erases any data which was set in the variable length fields). | |
| virtual DtU8 | numberOfSensorTypes () const |
| virtual void | setDataFilter (DtU32 value) |
| Set/Get the data filter as a 32-bit value (this call erases any data which was set in the variable length fields). | |
| virtual DtU32 | dataFilter () const |
| virtual void | setDataFilterBit (DtMinefieldDataFilterField field, bool value) |
| Set/Get a data filter bit (this call erases any data which was set in the variable length fields). | |
| virtual bool | dataFilterBit (DtMinefieldDataFilterField field) const |
| virtual void | setMineType (const DtEntityType &value) |
| Set/Get the mine type record. | |
| virtual const DtEntityType & | mineType () const |
| virtual bool | setSensorTypeCategory (int sensorIndex, DtSensorTypeCategory value) |
| Set/Get a sensor type category. | |
| virtual bool | getSensorTypeCategory (int sensorIndex, DtSensorTypeCategory &value) const |
| virtual bool | setSensorTypeSubcategory (int sensorIndex, DtU16 value) |
| Set/Get a sensor type sub-category. | |
| virtual bool | getSensorTypeSubcategory (int sensorIndex, DtU16 &value) const |
| virtual bool | setMineLocation (int mineIndex, const DtVector &value) |
| Set/Get a mine location. Returns false if the index is out of range. | |
| virtual bool | getMineLocation (int mineIndex, DtVector &value) const |
| virtual bool | setGroundBurialDepthOffset (int mineIndex, DtFloat32 value) |
| Set/Get a ground burial depth offset. | |
| virtual bool | getGroundBurialDepthOffset (int mineIndex, DtFloat32 &value) const |
| virtual bool | setWaterBurialDepthOffset (int mineIndex, DtFloat32 value) |
| Set/Get a water burial depth offset. | |
| virtual bool | getWaterBurialDepthOffset (int mineIndex, DtFloat32 &value) const |
| virtual bool | setSnowBurialDepthOffset (int mineIndex, DtFloat32 value) |
| Set/Get a snow burial depth offset. | |
| virtual bool | getSnowBurialDepthOffset (int mineIndex, DtFloat32 &value) const |
| virtual bool | setMineOrientation (int mineIndex, const DtTaitBryan &value) |
| Set/Get mine orientation. | |
| virtual bool | getMineOrientation (int mineIndex, DtTaitBryan &value) const |
| virtual bool | setThermalContrast (int mineIndex, DtFloat32 value) |
| Set/Get a thermal contrast value. | |
| virtual bool | getThermalContrast (int mineIndex, DtFloat32 &value) const |
| virtual bool | setReflectance (int mineIndex, DtFloat32 value) |
| Set/Get a reflectance value. | |
| virtual bool | getReflectance (int mineIndex, DtFloat32 &value) const |
| virtual bool | setMineEmplacementTime (int mineIndex, DtTime value) |
| Set/Get a mine emplacement time. | |
| virtual bool | getMineEmplacementTime (int mineIndex, DtTime &value) const |
| virtual bool | setMineEntityID (int mineIndex, DtU16 value) |
| Set/Get a mine entity ID. Returns false if the index is out of range. | |
| virtual bool | getMineEntityID (int mineIndex, DtU16 &value) const |
| virtual bool | setPrimaryFusing (int mineIndex, DtMinefieldFusing value) |
| Set/Get primary fusing. | |
| virtual bool | getPrimaryFusing (int mineIndex, DtMinefieldFusing &value) const |
| virtual bool | setSecondaryFusing (int mineIndex, DtMinefieldFusing value) |
| Set/Get secondary fusing. | |
| virtual bool | getSecondaryFusing (int mineIndex, DtMinefieldFusing &value) const |
| virtual bool | setAntiHandlingDevice (int mineIndex, DtMinefieldAntiHandlingDevice value) |
| Set/Get anti-handling device. | |
| virtual bool | getAntiHandlingDevice (int mineIndex, DtMinefieldAntiHandlingDevice &value) const |
| virtual bool | setScalarDetectionCoefficient (int sensorIndex, int mineIndex, DtU8 value) |
| Set/Get scalar detection coefficient. | |
| virtual bool | getScalarDetectionCoefficient (int sensorIndex, int mineIndex, DtU8 &value) const |
| virtual bool | setMinefieldAlgae (int mineIndex, DtMinefieldAlgae value) |
| Set/Get minefield algae. | |
| virtual bool | getMinefieldAlgae (int mineIndex, DtMinefieldAlgae &value) const |
| virtual bool | setPaintScheme (int mineIndex, DtMinefieldPaintScheme value) |
| Set/Get paint scheme. | |
| virtual bool | getPaintScheme (int mineIndex, DtMinefieldPaintScheme &value) const |
| virtual bool | setNumTripWires (int mineIndex, DtU8 num) |
| Set/Get the number of trip/detonation wires. | |
| virtual bool | getNumTripWires (int mineIndex, DtU8 &num) const |
| virtual bool | setNumVertices (int mineIndex, int wireIndex, DtU8 num) |
| Set/Get the number of vertices. | |
| virtual bool | getNumVertices (int mineIndex, int wireIndex, DtU8 &num) const |
| virtual bool | setVertex (int mineIndex, int wireIndex, int vertexIndex, const DtVector &value) |
| Set/Get a vertex. | |
| virtual bool | getVertex (int mineIndex, int wireIndex, int vertexIndex, DtVector &value) const |
| virtual void | printData () const |
| Print the data contained by this PDU. | |
| virtual void | printDataToStream (std::ostream &stream) const |
| Print the data to a stream. | |
Static Public Member Functions | |
| static DtPdu * | create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER) |
| Create a DtMinefieldDataPdu. | |
| static void | addCallback (DtExerciseConn *conn, DtMinefieldDataPduCb cb, void *usr) |
| Add (register)/Remove (deregister) function to be called when pdu is received. | |
| static void | removeCallback (DtExerciseConn *conn, DtMinefieldDataPduCb cb, void *usr) |
Protected Member Functions | |
| virtual DtPduKind | internalGetPduKind () const |
| Returns the internal PDU kind. | |
| virtual DtNetMinefieldDataPdu * | netPduStruct () const |
| Casts the netPdu element to our network struct. | |
| DtMinefieldDataPdu * | self () const |
| Casts the 'this' pointer for changing elements in a const function. | |
| virtual char * | var () const |
| Returns a pointer to the first byte of variable length data. | |
| virtual int | sensorTypeRecordOffset (int sensorIndex) const |
| Returns a buffer offset to the sensor type records. | |
| virtual int | sensorTypePaddingOffset () const |
| Returns a buffer offset to the padding following sensor type information. | |
| virtual int | sensorTypePaddingBytes () const |
| Returns the number of padding bytes following sensor type information. | |
| virtual int | mineLocationRecordOffset (int mineIndex) const |
| Returns a buffer offset to the mine location records. | |
| virtual int | groundBurialDepthRecordOffset (int mineIndex) const |
| Returns a buffer offset to the ground burial depth records. | |
| virtual int | waterBurialDepthRecordOffset (int mineIndex) const |
| Returns a buffer offset to the water burial depth records. | |
| virtual int | snowBurialDepthRecordOffset (int mineIndex) const |
| Returns a buffer offset to the snow burial depth records. | |
| virtual int | mineOrientationRecordOffset (int mineIndex) const |
| Returns a buffer offset to the mine orientation records. | |
| virtual int | thermalContrastRecordOffset (int mineIndex) const |
| Returns a buffer offset to the thermal contrast records. | |
| virtual int | reflectanceRecordOffset (int mineIndex) const |
| Returns a buffer offset to the reflectance records. | |
| virtual int | mineEmplacementTimeRecordOffset (int mineIndex) const |
| Returns a buffer offset to the mine emplacement time records. | |
| virtual int | mineEntityID_RecordOffset (int mineIndex) const |
| Returns a buffer offset to the mine entity ID records. | |
| virtual int | fusingRecordOffset (int mineIndex) const |
| Returns a buffer offset to the fusing records. | |
| virtual int | scalarDetectionCoefficientRecordOffset (int sensorIndex, int mineIndex) const |
| Returns a buffer offset to the scalar detection coefficient records. | |
| virtual int | paintSchemeRecordOffset (int mineIndex) const |
| Returns a buffer offset to the paint scheme records. | |
| virtual int | paintSchemePaddingOffset () const |
| Returns a buffer offset to the padding following paint scheme records. | |
| virtual int | paintSchemePaddingBytes () const |
| Returns the number of padding bytes following paint scheme records. | |
| virtual int | numberOfTripWiresRecordOffset (int mineIndex) const |
| Returns a buffer offset to the number of wires records. | |
| virtual int | numberOfTripWiresPaddingOffset () const |
| Returns a buffer offset to the padding following number of wires records. | |
| virtual int | numberOfTripWiresPaddingBytes () const |
| Returns the number of padding bytes following number of wires records. | |
| virtual int | variableDataLengthAfterReset () const |
| Returns the length of the variable data section in the PDU after the variable data has been reset. | |
| virtual int | numberOfVerticesRecordOffset (int mineIndex, int wireIndex) const |
| Returns a buffer offset to the number of vertices records. | |
| virtual int | numberOfVerticesPaddingOffset () const |
| Returns a buffer offset to the padding following number of vertices records. | |
| virtual int | numberOfVerticesPaddingBytes () const |
| Returns the number of padding bytes following number of vertices records. | |
| virtual int | vertexRecordOffset (int mineIndex, int wireIndex, int vertexIndex) const |
| Returns a buffer offset to the vertex records. | |
| virtual int | variableDataLength () const |
| Returns the length of the variable data section in the PDU. | |
Protected Attributes | |
| DtEntityIdentifier | myEntityID |
| Temporary objects for reference returns. | |
| DtEntityType | myEntityType |
Static Protected Attributes | |
| static const int | theStaticSize |
| Size of PDU with zero parameter records. | |
Instances of DtMinefieldDataPdu are used to communicate minefield data information.
Constructors.
| DtMinefieldDataPdu::DtMinefieldDataPdu | ( | const DtNetMinefieldDataPdu * | initial, |
| DtBufferPtr | buffer = DtUSE_INTERNAL_BUFFER |
||
| ) |
| DtMinefieldDataPdu::DtMinefieldDataPdu | ( | const DtMinefieldDataPdu & | orig | ) |
| virtual DtMinefieldDataPdu::~DtMinefieldDataPdu | ( | ) | [virtual] |
destructor
| static void DtMinefieldDataPdu::addCallback | ( | DtExerciseConn * | conn, |
| DtMinefieldDataPduCb | cb, | ||
| void * | usr | ||
| ) | [static] |
Add (register)/Remove (deregister) function to be called when pdu is received.
| static DtPdu* DtMinefieldDataPdu::create | ( | const DtNetPacket * | initial, |
| DtBufferPtr | buffer = DtUSE_INTERNAL_BUFFER |
||
| ) | [static] |
Create a DtMinefieldDataPdu.
Caller is responsible for deletion.
| virtual DtU32 DtMinefieldDataPdu::dataFilter | ( | ) | const [virtual] |
| virtual bool DtMinefieldDataPdu::dataFilterBit | ( | DtMinefieldDataFilterField | field | ) | const [virtual] |
| virtual int DtMinefieldDataPdu::fusingRecordOffset | ( | int | mineIndex | ) | const [protected, virtual] |
Returns a buffer offset to the fusing records.
| virtual bool DtMinefieldDataPdu::getAntiHandlingDevice | ( | int | mineIndex, |
| DtMinefieldAntiHandlingDevice & | value | ||
| ) | const [virtual] |
| virtual bool DtMinefieldDataPdu::getGroundBurialDepthOffset | ( | int | mineIndex, |
| DtFloat32 & | value | ||
| ) | const [virtual] |
| virtual bool DtMinefieldDataPdu::getMineEmplacementTime | ( | int | mineIndex, |
| DtTime & | value | ||
| ) | const [virtual] |
| virtual bool DtMinefieldDataPdu::getMineEntityID | ( | int | mineIndex, |
| DtU16 & | value | ||
| ) | const [virtual] |
| virtual bool DtMinefieldDataPdu::getMinefieldAlgae | ( | int | mineIndex, |
| DtMinefieldAlgae & | value | ||
| ) | const [virtual] |
| virtual bool DtMinefieldDataPdu::getMineLocation | ( | int | mineIndex, |
| DtVector & | value | ||
| ) | const [virtual] |
| virtual bool DtMinefieldDataPdu::getMineOrientation | ( | int | mineIndex, |
| DtTaitBryan & | value | ||
| ) | const [virtual] |
| virtual bool DtMinefieldDataPdu::getNumTripWires | ( | int | mineIndex, |
| DtU8 & | num | ||
| ) | const [virtual] |
| virtual bool DtMinefieldDataPdu::getNumVertices | ( | int | mineIndex, |
| int | wireIndex, | ||
| DtU8 & | num | ||
| ) | const [virtual] |
| virtual bool DtMinefieldDataPdu::getPaintScheme | ( | int | mineIndex, |
| DtMinefieldPaintScheme & | value | ||
| ) | const [virtual] |
| virtual bool DtMinefieldDataPdu::getPrimaryFusing | ( | int | mineIndex, |
| DtMinefieldFusing & | value | ||
| ) | const [virtual] |
| virtual bool DtMinefieldDataPdu::getReflectance | ( | int | mineIndex, |
| DtFloat32 & | value | ||
| ) | const [virtual] |
| virtual bool DtMinefieldDataPdu::getScalarDetectionCoefficient | ( | int | sensorIndex, |
| int | mineIndex, | ||
| DtU8 & | value | ||
| ) | const [virtual] |
| virtual bool DtMinefieldDataPdu::getSecondaryFusing | ( | int | mineIndex, |
| DtMinefieldFusing & | value | ||
| ) | const [virtual] |
| virtual bool DtMinefieldDataPdu::getSensorTypeCategory | ( | int | sensorIndex, |
| DtSensorTypeCategory & | value | ||
| ) | const [virtual] |
| virtual bool DtMinefieldDataPdu::getSensorTypeSubcategory | ( | int | sensorIndex, |
| DtU16 & | value | ||
| ) | const [virtual] |
| virtual bool DtMinefieldDataPdu::getSnowBurialDepthOffset | ( | int | mineIndex, |
| DtFloat32 & | value | ||
| ) | const [virtual] |
| virtual bool DtMinefieldDataPdu::getThermalContrast | ( | int | mineIndex, |
| DtFloat32 & | value | ||
| ) | const [virtual] |
| virtual bool DtMinefieldDataPdu::getVertex | ( | int | mineIndex, |
| int | wireIndex, | ||
| int | vertexIndex, | ||
| DtVector & | value | ||
| ) | const [virtual] |
| virtual bool DtMinefieldDataPdu::getWaterBurialDepthOffset | ( | int | mineIndex, |
| DtFloat32 & | value | ||
| ) | const [virtual] |
| virtual int DtMinefieldDataPdu::groundBurialDepthRecordOffset | ( | int | mineIndex | ) | const [protected, virtual] |
Returns a buffer offset to the ground burial depth records.
| virtual DtPduKind DtMinefieldDataPdu::internalGetPduKind | ( | ) | const [protected, virtual] |
Returns the internal PDU kind.
Implements DtPdu.
| virtual int DtMinefieldDataPdu::mineEmplacementTimeRecordOffset | ( | int | mineIndex | ) | const [protected, virtual] |
Returns a buffer offset to the mine emplacement time records.
| virtual int DtMinefieldDataPdu::mineEntityID_RecordOffset | ( | int | mineIndex | ) | const [protected, virtual] |
Returns a buffer offset to the mine entity ID records.
| virtual const DtEntityIdentifier& DtMinefieldDataPdu::minefieldID | ( | ) | const [virtual] |
| virtual DtU16 DtMinefieldDataPdu::minefieldSequenceNumber | ( | ) | const [virtual] |
| virtual int DtMinefieldDataPdu::mineLocationRecordOffset | ( | int | mineIndex | ) | const [protected, virtual] |
Returns a buffer offset to the mine location records.
| virtual int DtMinefieldDataPdu::mineOrientationRecordOffset | ( | int | mineIndex | ) | const [protected, virtual] |
Returns a buffer offset to the mine orientation records.
| virtual const DtEntityType& DtMinefieldDataPdu::mineType | ( | ) | const [virtual] |
| virtual DtNetMinefieldDataPdu* DtMinefieldDataPdu::netPduStruct | ( | ) | const [protected, virtual] |
Casts the netPdu element to our network struct.
| virtual DtU8 DtMinefieldDataPdu::numberOfMines | ( | ) | const [virtual] |
| virtual DtU8 DtMinefieldDataPdu::numberOfPdus | ( | ) | const [virtual] |
| virtual DtU8 DtMinefieldDataPdu::numberOfSensorTypes | ( | ) | const [virtual] |
| virtual int DtMinefieldDataPdu::numberOfTripWiresPaddingBytes | ( | ) | const [protected, virtual] |
Returns the number of padding bytes following number of wires records.
| virtual int DtMinefieldDataPdu::numberOfTripWiresPaddingOffset | ( | ) | const [protected, virtual] |
Returns a buffer offset to the padding following number of wires records.
| virtual int DtMinefieldDataPdu::numberOfTripWiresRecordOffset | ( | int | mineIndex | ) | const [protected, virtual] |
Returns a buffer offset to the number of wires records.
| virtual int DtMinefieldDataPdu::numberOfVerticesPaddingBytes | ( | ) | const [protected, virtual] |
Returns the number of padding bytes following number of vertices records.
| virtual int DtMinefieldDataPdu::numberOfVerticesPaddingOffset | ( | ) | const [protected, virtual] |
Returns a buffer offset to the padding following number of vertices records.
| virtual int DtMinefieldDataPdu::numberOfVerticesRecordOffset | ( | int | mineIndex, |
| int | wireIndex | ||
| ) | const [protected, virtual] |
Returns a buffer offset to the number of vertices records.
| DtMinefieldDataPdu& DtMinefieldDataPdu::operator= | ( | const DtMinefieldDataPdu & | orig | ) |
Assignment operator.
| virtual int DtMinefieldDataPdu::paintSchemePaddingBytes | ( | ) | const [protected, virtual] |
Returns the number of padding bytes following paint scheme records.
| virtual int DtMinefieldDataPdu::paintSchemePaddingOffset | ( | ) | const [protected, virtual] |
Returns a buffer offset to the padding following paint scheme records.
| virtual int DtMinefieldDataPdu::paintSchemeRecordOffset | ( | int | mineIndex | ) | const [protected, virtual] |
Returns a buffer offset to the paint scheme records.
| virtual DtU8 DtMinefieldDataPdu::PDU_SequenceNumber | ( | ) | const [virtual] |
| virtual void DtMinefieldDataPdu::printData | ( | ) | const [virtual] |
Print the data contained by this PDU.
Reimplemented from DtPdu.
| virtual void DtMinefieldDataPdu::printDataToStream | ( | std::ostream & | stream | ) | const [virtual] |
Print the data to a stream.
Reimplemented from DtPdu.
| virtual int DtMinefieldDataPdu::reflectanceRecordOffset | ( | int | mineIndex | ) | const [protected, virtual] |
Returns a buffer offset to the reflectance records.
| static void DtMinefieldDataPdu::removeCallback | ( | DtExerciseConn * | conn, |
| DtMinefieldDataPduCb | cb, | ||
| void * | usr | ||
| ) | [static] |
| virtual DtU8 DtMinefieldDataPdu::requestID | ( | ) | const [virtual] |
| virtual const DtEntityIdentifier& DtMinefieldDataPdu::requestingEntityID | ( | ) | const [virtual] |
| virtual int DtMinefieldDataPdu::scalarDetectionCoefficientRecordOffset | ( | int | sensorIndex, |
| int | mineIndex | ||
| ) | const [protected, virtual] |
Returns a buffer offset to the scalar detection coefficient records.
| DtMinefieldDataPdu* DtMinefieldDataPdu::self | ( | ) | const [protected] |
Casts the 'this' pointer for changing elements in a const function.
Non-virtual, since you can't override based on return type.
| virtual int DtMinefieldDataPdu::sensorTypePaddingBytes | ( | ) | const [protected, virtual] |
Returns the number of padding bytes following sensor type information.
| virtual int DtMinefieldDataPdu::sensorTypePaddingOffset | ( | ) | const [protected, virtual] |
Returns a buffer offset to the padding following sensor type information.
| virtual int DtMinefieldDataPdu::sensorTypeRecordOffset | ( | int | sensorIndex | ) | const [protected, virtual] |
Returns a buffer offset to the sensor type records.
| virtual bool DtMinefieldDataPdu::setAntiHandlingDevice | ( | int | mineIndex, |
| DtMinefieldAntiHandlingDevice | value | ||
| ) | [virtual] |
Set/Get anti-handling device.
Returns false if the index is out of range or if the appropriate flag bit is not set.
| virtual void DtMinefieldDataPdu::setDataFilter | ( | DtU32 | value | ) | [virtual] |
Set/Get the data filter as a 32-bit value (this call erases any data which was set in the variable length fields).
| virtual void DtMinefieldDataPdu::setDataFilterBit | ( | DtMinefieldDataFilterField | field, |
| bool | value | ||
| ) | [virtual] |
Set/Get a data filter bit (this call erases any data which was set in the variable length fields).
| virtual bool DtMinefieldDataPdu::setGroundBurialDepthOffset | ( | int | mineIndex, |
| DtFloat32 | value | ||
| ) | [virtual] |
Set/Get a ground burial depth offset.
Returns false if the index is out of range or if an appropriate flag bit is not set.
| virtual bool DtMinefieldDataPdu::setMineEmplacementTime | ( | int | mineIndex, |
| DtTime | value | ||
| ) | [virtual] |
Set/Get a mine emplacement time.
Returns false if the index is out of range or if the appropriate flag bit is not set.
| virtual bool DtMinefieldDataPdu::setMineEntityID | ( | int | mineIndex, |
| DtU16 | value | ||
| ) | [virtual] |
Set/Get a mine entity ID. Returns false if the index is out of range.
| virtual bool DtMinefieldDataPdu::setMinefieldAlgae | ( | int | mineIndex, |
| DtMinefieldAlgae | value | ||
| ) | [virtual] |
Set/Get minefield algae.
Returns false if the index is out of range or if the appropriate flag bit is not set.
| virtual void DtMinefieldDataPdu::setMinefieldID | ( | const DtEntityIdentifier & | id | ) | [virtual] |
Set/Get minefield ID.
| virtual void DtMinefieldDataPdu::setMinefieldSequenceNumber | ( | DtU16 | field | ) | [virtual] |
Set/Get minefield sequence number.
| virtual bool DtMinefieldDataPdu::setMineLocation | ( | int | mineIndex, |
| const DtVector & | value | ||
| ) | [virtual] |
Set/Get a mine location. Returns false if the index is out of range.
| virtual bool DtMinefieldDataPdu::setMineOrientation | ( | int | mineIndex, |
| const DtTaitBryan & | value | ||
| ) | [virtual] |
Set/Get mine orientation.
Returns false if the index is out of range or if the appropriate flag bit is not set.
| virtual void DtMinefieldDataPdu::setMineType | ( | const DtEntityType & | value | ) | [virtual] |
Set/Get the mine type record.
| virtual bool DtMinefieldDataPdu::setNumberOfMines | ( | DtU8 | value | ) | [virtual] |
Set/Get the number of mines (this call erases any data which was set in the variable length fields).
| virtual void DtMinefieldDataPdu::setNumberOfPdus | ( | DtU8 | value | ) | [virtual] |
Set/Get the number of PDUs.
| virtual bool DtMinefieldDataPdu::setNumberOfSensorTypes | ( | DtU8 | value | ) | [virtual] |
Set/Get the number of sensor types (this call erases any data which was set in the variable length fields).
| virtual bool DtMinefieldDataPdu::setNumTripWires | ( | int | mineIndex, |
| DtU8 | num | ||
| ) | [virtual] |
Set/Get the number of trip/detonation wires.
Returns false if the index is out of range or if the appropriate flag bit is not set.
| virtual bool DtMinefieldDataPdu::setNumVertices | ( | int | mineIndex, |
| int | wireIndex, | ||
| DtU8 | num | ||
| ) | [virtual] |
Set/Get the number of vertices.
Returns false if the index is out of range or if the appropriate flag bit is not set.
| virtual bool DtMinefieldDataPdu::setPaintScheme | ( | int | mineIndex, |
| DtMinefieldPaintScheme | value | ||
| ) | [virtual] |
Set/Get paint scheme.
Returns false if the index is out of range or if the appropriate flag bit is not set.
| virtual void DtMinefieldDataPdu::setPDU_SequenceNumber | ( | DtU8 | value | ) | [virtual] |
Set/Get the PDU sequence number.
| virtual bool DtMinefieldDataPdu::setPrimaryFusing | ( | int | mineIndex, |
| DtMinefieldFusing | value | ||
| ) | [virtual] |
Set/Get primary fusing.
Returns false if the index is out of range or if the appropriate flag bit is not set.
| virtual bool DtMinefieldDataPdu::setReflectance | ( | int | mineIndex, |
| DtFloat32 | value | ||
| ) | [virtual] |
Set/Get a reflectance value.
Returns false if the index is out of range or if the appropriate flag bit is not set.
| virtual void DtMinefieldDataPdu::setRequestID | ( | DtU8 | value | ) | [virtual] |
Set/Get the request ID.
| virtual void DtMinefieldDataPdu::setRequestingEntityID | ( | const DtEntityIdentifier & | id | ) | [virtual] |
Set/Get requesting entity ID.
| virtual bool DtMinefieldDataPdu::setScalarDetectionCoefficient | ( | int | sensorIndex, |
| int | mineIndex, | ||
| DtU8 | value | ||
| ) | [virtual] |
Set/Get scalar detection coefficient.
Returns false if the index is out of range or if the appropriate flag bit is not set.
| virtual bool DtMinefieldDataPdu::setSecondaryFusing | ( | int | mineIndex, |
| DtMinefieldFusing | value | ||
| ) | [virtual] |
Set/Get secondary fusing.
Returns false if the index is out of range or if the appropriate flag bit is not set.
| virtual bool DtMinefieldDataPdu::setSensorTypeCategory | ( | int | sensorIndex, |
| DtSensorTypeCategory | value | ||
| ) | [virtual] |
Set/Get a sensor type category.
Returns false if the index is out of range.
| virtual bool DtMinefieldDataPdu::setSensorTypeSubcategory | ( | int | sensorIndex, |
| DtU16 | value | ||
| ) | [virtual] |
Set/Get a sensor type sub-category.
Returns false if the index is out of range.
| virtual bool DtMinefieldDataPdu::setSnowBurialDepthOffset | ( | int | mineIndex, |
| DtFloat32 | value | ||
| ) | [virtual] |
Set/Get a snow burial depth offset.
Returns false if the index is out of range or if the appropriate flag bit is not set.
| virtual bool DtMinefieldDataPdu::setThermalContrast | ( | int | mineIndex, |
| DtFloat32 | value | ||
| ) | [virtual] |
Set/Get a thermal contrast value.
Returns false if the index is out of range or if the appropriate flag bit is not set.
| virtual bool DtMinefieldDataPdu::setVertex | ( | int | mineIndex, |
| int | wireIndex, | ||
| int | vertexIndex, | ||
| const DtVector & | value | ||
| ) | [virtual] |
Set/Get a vertex.
Returns false if the index is out of range or if the appropriate flag bit is not set.
| virtual bool DtMinefieldDataPdu::setWaterBurialDepthOffset | ( | int | mineIndex, |
| DtFloat32 | value | ||
| ) | [virtual] |
Set/Get a water burial depth offset.
Returns false if the index is out of range or if the appropriate flag bit is not set.
| virtual int DtMinefieldDataPdu::snowBurialDepthRecordOffset | ( | int | mineIndex | ) | const [protected, virtual] |
Returns a buffer offset to the snow burial depth records.
| virtual int DtMinefieldDataPdu::thermalContrastRecordOffset | ( | int | mineIndex | ) | const [protected, virtual] |
Returns a buffer offset to the thermal contrast records.
| virtual char* DtMinefieldDataPdu::var | ( | ) | const [protected, virtual] |
Returns a pointer to the first byte of variable length data.
| virtual int DtMinefieldDataPdu::variableDataLength | ( | ) | const [protected, virtual] |
Returns the length of the variable data section in the PDU.
| virtual int DtMinefieldDataPdu::variableDataLengthAfterReset | ( | ) | const [protected, virtual] |
Returns the length of the variable data section in the PDU after the variable data has been reset.
For each mine, the number of trip wires has been set to zero so there is no variable length data following.
| virtual int DtMinefieldDataPdu::vertexRecordOffset | ( | int | mineIndex, |
| int | wireIndex, | ||
| int | vertexIndex | ||
| ) | const [protected, virtual] |
Returns a buffer offset to the vertex records.
| virtual int DtMinefieldDataPdu::waterBurialDepthRecordOffset | ( | int | mineIndex | ) | const [protected, virtual] |
Returns a buffer offset to the water burial depth records.
DtEntityIdentifier DtMinefieldDataPdu::myEntityID [protected] |
Temporary objects for reference returns.
DtEntityType DtMinefieldDataPdu::myEntityType [protected] |
const int DtMinefieldDataPdu::theStaticSize [static, protected] |
Size of PDU with zero parameter records.
