DtFirePdu Class Reference

Instances of DtFireInteraction are used to represent the firing of a weapon. More...

Inheritance diagram for DtFirePdu:

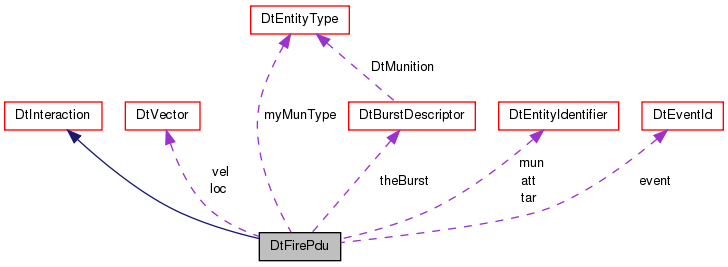

Collaboration diagram for DtFirePdu:

List of all members.

Public Types
enum	{ PduStaticSize = 96 }
Public Member Functions
	DtFirePdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	DtFirePdu (const DtNetFirePdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	DtFirePdu (const DtEntityIdentifier &attacker, const DtEntityIdentifier &target, const DtEntityIdentifier &munition, const DtEventID &eventId, const DtVector &location, const DtBurstDescriptor &burst, const DtVector &linVelocity, const double range, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
virtual const DtObjectId &	attackerId () const
virtual void	setAttackerId (const DtObjectId &id)
virtual const DtObjectId &	targetId () const
virtual void	setTargetId (const DtObjectId &id)
virtual const DtObjectId &	munitionId () const
virtual void	setMunitionId (const DtObjectId &id)
virtual const DtEventID &	eventId () const
virtual void	setEventId (const DtEventID &id)
virtual unsigned long	fireMissionIndex () const
virtual void	setFireMissionIndex (unsigned long i)
virtual const DtVector &	location () const
virtual void	setLocation (const DtVector &location)
virtual const DtVector &	velocity () const
virtual void	setVelocity (const DtVector &velocity)
virtual double	range () const
virtual void	setRange (double range)
virtual DtDetonatorFuze	fuseType () const
virtual void	setFuseType (DtDetonatorFuze f)
virtual const DtEntityType &	munitionType () const
virtual void	setMunitionType (const DtEntityType &t)
virtual int	quantity () const
virtual void	setQuantity (int q)
virtual int	rate () const
virtual void	setRate (int r)
virtual DtWarheadType	warheadType () const
virtual void	setWarheadType (DtWarheadType t)
virtual const DtBurstDescriptor &	burst () const
	NOT USED IN HLA.
virtual void	setBurst (const DtBurstDescriptor &burst)
virtual void	printData () const
	Print the PDU's data (not including header).
virtual void	printDataToStream (std::ostream &stream) const
virtual void	printDataToString (DtString &str) const
Static Public Member Functions
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
static void	addCallback (DtExerciseConn *conn, DtFireInteractionCb cb, void *usr)
static void	removeCallback (DtExerciseConn *conn, DtFireInteractionCb cb, void *usr)
Protected Member Functions
DtPduKind	internalGetPduKind () const
	Returns the PDU kind associated with the derived PDU class.
Protected Attributes
DtObjectId	att
DtObjectId	tar
DtObjectId	mun
DtEventID	event
DtVector	loc
DtVector	vel
DtBurstDescriptor	theBurst
DtEntityType	myMunType

---

Detailed Description

Instances of DtFireInteraction are used to represent the firing of a weapon.

Examples

• Talk
• Listen

---

Member Enumeration Documentation

anonymous enum

Enumerator:

PduStaticSize

---

Constructor & Destructor Documentation

DtFirePdu::DtFirePdu

(

DtBufferPtr

buffer = DtUSE_INTERNAL_BUFFER

)

DtFirePdu::DtFirePdu	(	const DtNetFirePdu *	initial,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER
	)

DtFirePdu::DtFirePdu	(	const DtEntityIdentifier &	attacker,
		const DtEntityIdentifier &	target,
		const DtEntityIdentifier &	munition,
		const DtEventID &	eventId,
		const DtVector &	location,
		const DtBurstDescriptor &	burst,
		const DtVector &	linVelocity,
		const double	range,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER
	)

---

Member Function Documentation

static void DtFirePdu::addCallback	(	DtExerciseConn *	conn,
		DtFireInteractionCb	cb,
		void *	usr
	)		[static]

virtual const DtObjectId& DtFirePdu::attackerId

(

)

const [virtual]

virtual const DtBurstDescriptor& DtFirePdu::burst

(

)

const [virtual]

NOT USED IN HLA.

static DtPdu* DtFirePdu::create	(	const DtNetPacket *	initial,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER
	)		[static]

virtual const DtEventID& DtFirePdu::eventId

(

)

const [virtual]

virtual unsigned long DtFirePdu::fireMissionIndex

(

)

const [virtual]

virtual DtDetonatorFuze DtFirePdu::fuseType

(

)

const [virtual]

DtPduKind DtFirePdu::internalGetPduKind

(

)

const [inline, protected, virtual]

Returns the PDU kind associated with the derived PDU class.

Implements DtPdu.

References DtFirePduKind.

virtual const DtVector& DtFirePdu::location

(

)

const [virtual]

virtual const DtObjectId& DtFirePdu::munitionId

(

)

const [virtual]

virtual const DtEntityType& DtFirePdu::munitionType

(

)

const [virtual]

virtual void DtFirePdu::printData

(

)

const [virtual]

Print the PDU's data (not including header).

Base DtPdu version just prints hex. Use the printDataToString to put the data into a DtString instead of simply sending the output to stdout. printData() calls printDataToStream(DtInfo).

Reimplemented from DtPdu.

virtual void DtFirePdu::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Reimplemented from DtPdu.

virtual void DtFirePdu::printDataToString

(

DtString &

str

)

const [virtual]

Reimplemented from DtPdu.

virtual int DtFirePdu::quantity

(

)

const [virtual]

virtual double DtFirePdu::range

(

)

const [virtual]

virtual int DtFirePdu::rate

(

)

const [virtual]

static void DtFirePdu::removeCallback	(	DtExerciseConn *	conn,
		DtFireInteractionCb	cb,
		void *	usr
	)		[static]

virtual void DtFirePdu::setAttackerId

(

const DtObjectId &

id

)

[virtual]

virtual void DtFirePdu::setBurst

(

const DtBurstDescriptor &

burst

)

[virtual]

virtual void DtFirePdu::setEventId

(

const DtEventID &

id

)

[virtual]

virtual void DtFirePdu::setFireMissionIndex

(

unsigned long

i

)

[virtual]

virtual void DtFirePdu::setFuseType

(

DtDetonatorFuze

f

)

[virtual]

virtual void DtFirePdu::setLocation

(

const DtVector &

location

)

[virtual]

virtual void DtFirePdu::setMunitionId

(

const DtObjectId &

id

)

[virtual]

virtual void DtFirePdu::setMunitionType

(

const DtEntityType &

t

)

[virtual]

virtual void DtFirePdu::setQuantity

(

int

q

)

[virtual]

virtual void DtFirePdu::setRange

(

double

range

)

[virtual]

virtual void DtFirePdu::setRate

(

int

r

)

[virtual]

virtual void DtFirePdu::setTargetId

(

const DtObjectId &

id

)

[virtual]

virtual void DtFirePdu::setVelocity

(

const DtVector &

velocity

)

[virtual]

virtual void DtFirePdu::setWarheadType

(

DtWarheadType

t

)

[virtual]

virtual const DtObjectId& DtFirePdu::targetId

(

)

const [virtual]

virtual const DtVector& DtFirePdu::velocity

(

)

const [virtual]

virtual DtWarheadType DtFirePdu::warheadType

(

)

const [virtual]

---

Member Data Documentation

DtObjectId DtFirePdu::att [protected]

DtEventID DtFirePdu::event [protected]

DtVector DtFirePdu::loc [protected]

DtObjectId DtFirePdu::mun [protected]

DtEntityType DtFirePdu::myMunType [protected]

DtObjectId DtFirePdu::tar [protected]

DtBurstDescriptor DtFirePdu::theBurst [protected]

DtVector DtFirePdu::vel [protected]

---

The documentation for this class was generated from the following file:

• firePdu.h
