DtSetRecordPdu Class Reference

class DtSetRecordPdu: More...

Inheritance diagram for DtSetRecordPdu:

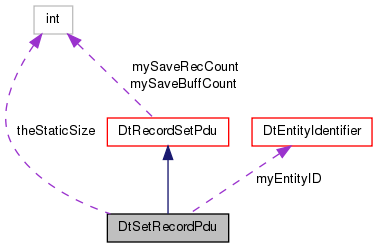

Collaboration diagram for DtSetRecordPdu:

List of all members.

Public Member Functions
	DtSetRecordPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Constructors.
	DtSetRecordPdu (const DtNetSetRecordPdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	DtSetRecordPdu (const DtSetRecordPdu &orig)
virtual	~DtSetRecordPdu ()
	destructor
DtSetRecordPdu &	operator= (const DtSetRecordPdu &orig)
	Assignment operator.
virtual void	setOriginatingEntityID (const DtEntityIdentifier &entity)
	Set/Get originating entity identifier.
virtual const DtEntityIdentifier &	originatingEntityID () const
virtual void	setReceivingEntityID (const DtEntityIdentifier &entity)
	Set/Get receiving entity identifier.
virtual const DtEntityIdentifier &	receivingEntityID () const
virtual void	setRequestID (DtU32 id)
	Set/Get request ID.
virtual DtU32	requestID () const
virtual void	setReqRelService (enum DtRequiredReliabilityService service)
	Set/Get required reliability service.
virtual DtRequiredReliabilityService	reqRelService () const
virtual void	printData () const
	Print the data contained by this PDU.
virtual void	printDataToStream (std::ostream &stream) const
	Print the data to a stream.
Static Public Member Functions
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Create a DtSetRecordPdu.
static void	addCallback (DtExerciseConn *conn, DtSetRecordPduCb cb, void *usr)
	Add (register)/Remove (deregister) function to be called when pdu is received.
static void	removeCallback (DtExerciseConn *conn, DtSetRecordPduCb cb, void *usr)
Protected Member Functions
virtual DtNetRecordSetPdu *	netRecordSetPduStruct () const
	Returns a pointer to the beginning of the record set data struct.
virtual DtPduKind	internalGetPduKind () const
	Returns the internal PDU kind.
virtual DtNetSetRecordPdu *	netPduStruct () const
	Casts the netPdu element to our network struct.
DtSetRecordPdu *	self () const
	Casts the 'this' pointer for changing elements in a const function.
Protected Attributes
DtEntityIdentifier	myEntityID
	Temporary objects for reference returns.
Static Protected Attributes
static const int	theStaticSize
	Size of PDU with zero data bytes.

---

Detailed Description

class DtSetRecordPdu:

Instances of DtSetRecordPdu are used to initialize or change internal parameter values using record sets.

---

Constructor & Destructor Documentation

DtSetRecordPdu::DtSetRecordPdu

(

DtBufferPtr

buffer = DtUSE_INTERNAL_BUFFER

)

Constructors.

DtSetRecordPdu::DtSetRecordPdu	(	const DtNetSetRecordPdu *	initial,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER
	)

DtSetRecordPdu::DtSetRecordPdu

(

const DtSetRecordPdu &

orig

)

virtual DtSetRecordPdu::~DtSetRecordPdu

(

)

[virtual]

destructor

---

Member Function Documentation

static void DtSetRecordPdu::addCallback	(	DtExerciseConn *	conn,
		DtSetRecordPduCb	cb,
		void *	usr
	)		[static]

Add (register)/Remove (deregister) function to be called when pdu is received.

static DtPdu* DtSetRecordPdu::create	(	const DtNetPacket *	initial,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER
	)		[static]

Create a DtSetRecordPdu.

Caller is responsible for deletion.

virtual DtPduKind DtSetRecordPdu::internalGetPduKind

(

)

const [protected, virtual]

Returns the internal PDU kind.

Implements DtPdu.

virtual DtNetSetRecordPdu* DtSetRecordPdu::netPduStruct

(

)

const [protected, virtual]

Casts the netPdu element to our network struct.

Non-virtual, since you can't override based on return type.

virtual DtNetRecordSetPdu* DtSetRecordPdu::netRecordSetPduStruct

(

)

const [protected, virtual]

Returns a pointer to the beginning of the record set data struct.

Implements DtRecordSetPdu.

DtSetRecordPdu& DtSetRecordPdu::operator=

(

const DtSetRecordPdu &

orig

)

Assignment operator.

virtual const DtEntityIdentifier& DtSetRecordPdu::originatingEntityID

(

)

const [virtual]

virtual void DtSetRecordPdu::printData

(

)

const [virtual]

Print the data contained by this PDU.

Reimplemented from DtRecordSetPdu.

virtual void DtSetRecordPdu::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Print the data to a stream.

Reimplemented from DtRecordSetPdu.

virtual const DtEntityIdentifier& DtSetRecordPdu::receivingEntityID

(

)

const [virtual]

static void DtSetRecordPdu::removeCallback	(	DtExerciseConn *	conn,
		DtSetRecordPduCb	cb,
		void *	usr
	)		[static]

virtual DtRequiredReliabilityService DtSetRecordPdu::reqRelService

(

)

const [virtual]

virtual DtU32 DtSetRecordPdu::requestID

(

)

const [virtual]

DtSetRecordPdu* DtSetRecordPdu::self

(

)

const [protected]

Casts the 'this' pointer for changing elements in a const function.

Non-virtual, since you can't override based on return type.

Reimplemented from DtRecordSetPdu.

virtual void DtSetRecordPdu::setOriginatingEntityID

(

const DtEntityIdentifier &

entity

)

[virtual]

Set/Get originating entity identifier.

virtual void DtSetRecordPdu::setReceivingEntityID

(

const DtEntityIdentifier &

entity

)

[virtual]

Set/Get receiving entity identifier.

virtual void DtSetRecordPdu::setReqRelService

(

enum DtRequiredReliabilityService

service

)

[virtual]

Set/Get required reliability service.

virtual void DtSetRecordPdu::setRequestID

(

DtU32

id

)

[virtual]

Set/Get request ID.

---

Member Data Documentation

DtEntityIdentifier DtSetRecordPdu::myEntityID [protected]

Temporary objects for reference returns.

const int DtSetRecordPdu::theStaticSize [static, protected]

Size of PDU with zero data bytes.

---

The documentation for this class was generated from the following file:

• setRecordPdu.h
