DtPduWithData Class Reference

DtPduWithData provides the base class for all of the simulation management PDU's that have fixed/variable data. More...

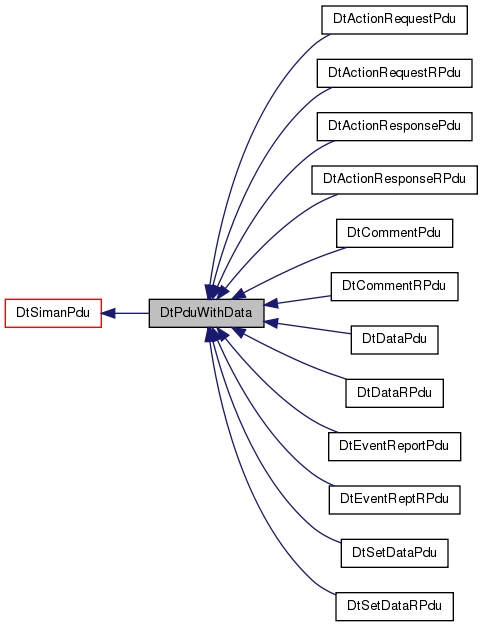

Inheritance diagram for DtPduWithData:

Collaboration diagram for DtPduWithData:

List of all members.

Public Types
enum	{ PduStaticSize = 40 }
Public Member Functions
	DtPduWithData ()
	Constructor.
virtual	~DtPduWithData ()
	Destructor.
	DtPduWithData (const DtPduWithData &orig)
DtPduWithData &	operator= (const DtPduWithData &orig)
	Assignment operator.
virtual int	numFixedFields () const
	Returns number of fixed fields.
virtual int	numVarFields () const
	Returns number of variable length fields.
virtual DtDatumParam	varDatumId (int index) const
	Returns the datum param found in the index'th variable datum record.
virtual DtDatumParam	fixedDatumId (int index) const
	Returns the datum param found in the index'th fixed datum record.
virtual DtDatumParam	datumId (DtDatumRecordType fixedOrVar, int index) const
	Returns the datum param found in the index'th fixed or variable datum record, depending on whether fixedOrVar is DtFIXED or DtVAR.
virtual int	datumSizeBits (DtDatumRecordType fixedOrVar, int index) const
	Returns the number of bits of data contained in the value fields of the index'th fixed or variable datum record, depending on whether fixedOrVar is DtFIXED or DtVAR.
virtual int	datumSizeBytes (DtDatumRecordType fixedOrVar, int index) const
	Returns the number of bytes of data contained in the value fields of the index'th fixed or variable datum record, depending on whether fixedOrVar is DtFIXED or DtVAR.
virtual void	getIndex (DtDatumParam param, DtDatumRecordType *fixedOrVar, int *index, DtDatumRetCode *retcode=NULL) const
	Looks through all fixed and variable records for one containing param as the parameter ID.
virtual DtFloat32	datumValFloat32 (DtDatumRecordType fixedOrVar, int index, DtDatumRetCode *retcode=NULL) const
	******* INSPECTING DATUM VALUES BY INDEX ********* If you know the data type of the value contained in a particular record, use one of the following to return it.
virtual DtFloat64	datumValFloat64 (DtDatumRecordType fixedOrVar, int index, DtDatumRetCode *retcode=NULL) const
virtual unsigned long	datumValUnsigned32 (DtDatumRecordType fixedOrVar, int index, DtDatumRetCode *retcode=NULL) const
virtual long	datumValInt32 (DtDatumRecordType fixedOrVar, int index, DtDatumRetCode *retcode=NULL) const
virtual const char *	datumValByteArray (DtDatumRecordType fixedOrVar, int index) const
virtual DtFloat32	datumValFloat32 (DtDatumParam param, DtDatumRetCode *retcode=NULL) const
	******* INSPECTING DATUM VALUES BY PARAM ID ********* If you know the data type of the value contained in a particular record, use one of the following to return it.
virtual DtFloat64	datumValFloat64 (DtDatumParam param, DtDatumRetCode *retcode=NULL) const
virtual unsigned long	datumValUnsigned32 (DtDatumParam param, DtDatumRetCode *retcode=NULL) const
virtual long	datumValInt32 (DtDatumParam param, DtDatumRetCode *retcode=NULL) const
virtual const char *	datumValByteArray (DtDatumParam param, DtDatumRetCode *retcode=NULL) const
virtual void	initDataSection (const DtDatumParam *fixedParams, const DtVarDatumSpec *specList)
	****************** MUTATOR FUNCTIONS ******************
virtual void	setNumFixedFields (int newNum)
	Sets the number of fixed or variable fields to newNum.
virtual void	setNumVarFields (int newNum)
virtual void	setDatumParam (DtDatumRecordType fixedOrVar, int index, DtDatumParam param, DtDatumRetCode *retcode=NULL)
	Set the datum ID in the index'th fixed or variable datum record to param, depending on whether fixedOrVar is DtFIXED or DtVAR.
virtual void	setVarDataBytes (int index, int length, DtDatumRetCode *retcode=NULL)
	Allocates length bytes for the index'th variable datum record.
virtual void	setDatumValFloat64 (DtDatumRecordType fixedOrVar, int index, DtFloat64 val, DtDatumRetCode *retcode=NULL)
	******* SETTING DATA VALUES BY INDEX ********* Use one of the following to set the data value in a fixed or variable datum record, depending on the data type of your data.
virtual void	setDatumValFloat32 (DtDatumRecordType fixedOrVar, int index, DtFloat32 val, DtDatumRetCode *retcode=NULL)
virtual void	setDatumValInt32 (DtDatumRecordType fixedOrVar, int index, long val, DtDatumRetCode *retcode=NULL)
virtual void	setDatumValUnsigned32 (DtDatumRecordType fixedOrVar, int index, unsigned long val, DtDatumRetCode *retcode=NULL)
virtual void	setDatumValByteArray (DtDatumRecordType fixedOrVar, int index, const char *val, DtDatumRetCode *retcode=NULL)
virtual void	setDatumValFloat64 (DtDatumParam param, DtFloat64 val, DtDatumRetCode *retcode=NULL)
	****** SETTING DATA VALUES BY PARAM ID ********* Use one of the following to set the data value in a fixed or variable datum record, depending on the data type of your data.
virtual void	setDatumValFloat32 (DtDatumParam param, DtFloat32 val, DtDatumRetCode *retcode=NULL)
virtual void	setDatumValInt32 (DtDatumParam param, long val, DtDatumRetCode *retcode=NULL)
virtual void	setDatumValUnsigned32 (DtDatumParam param, unsigned long val, DtDatumRetCode *retcode=NULL)
virtual void	setDatumValByteArray (DtDatumParam param, const char *val, DtDatumRetCode *retcode=NULL)
virtual void	printData () const
	Implements DtPdu's virtual function to print the PDU's data.
virtual void	printDataToStream (std::ostream &stream) const
	Prints the contents of the PDU to the specified stream.
virtual void	printDataSection () const
	Helper function that prints only the contents of the data records.
virtual void	printDataSectionToStream (std::ostream &stream) const
Protected Member Functions
virtual DtDatumRecordSet *	datumRecSet ()
	Returns our datum record set helper object.
virtual const DtDatumRecordSet *	datumRecSet () const
	Const version of above.
virtual DtNetDataPduTail *	dataSection () const =0
	Returns a pointer to the data section of the PDU - the part that starts with the numberOfFixedFields field.
virtual DtNetFixDatum *	nthFixedDataRecord (int index) const
	Return a pointer to the index'th fixed data record in the network representation.
virtual DtNetVarDatum *	nthVarDataRecord (int index) const
	Return a pointer to the index'th variable data record in the network representation.
virtual void *	datumValPtr (DtDatumRecordType fixedOrVar, int index) const
	Returns a pointer to the index'th fixed or variable record in the network representation, depending on whether fixedOrVar is DtFIXED or DtVAR.
Protected Attributes
DtDatumRecordSet *	myRecSet
Friends
class	DtPduDatumRecordSet

---

Detailed Description

DtPduWithData provides the base class for all of the simulation management PDU's that have fixed/variable data.

---

Member Enumeration Documentation

anonymous enum

Enumerator:

PduStaticSize

---

Constructor & Destructor Documentation

DtPduWithData::DtPduWithData

(

)

Constructor.

virtual DtPduWithData::~DtPduWithData

(

)

[virtual]

Destructor.

DtPduWithData::DtPduWithData

(

const DtPduWithData &

orig

)

---

Member Function Documentation

virtual DtNetDataPduTail* DtPduWithData::dataSection

(

)

const [protected, pure virtual]

Returns a pointer to the data section of the PDU - the part that starts with the numberOfFixedFields field.

Implemented in DtActionResponsePdu, DtActionRequestRPdu, DtDataRPdu, DtSetDataRPdu, DtActionRequestPdu, DtActionResponseRPdu, DtCommentRPdu, DtEventReportPdu, DtEventReptRPdu, DtCommentPdu, DtDataPdu, and DtSetDataPdu.

virtual DtDatumParam DtPduWithData::datumId	(	DtDatumRecordType	fixedOrVar,
		int	index
	)		const [virtual]

Returns the datum param found in the index'th fixed or variable datum record, depending on whether fixedOrVar is DtFIXED or DtVAR.

Index is between 1 and numRecords. Returns DtDatumParam(0) if index is out of bounds.

virtual DtDatumRecordSet* DtPduWithData::datumRecSet

(

)

[protected, virtual]

Returns our datum record set helper object.

virtual const DtDatumRecordSet* DtPduWithData::datumRecSet

(

)

const [protected, virtual]

Const version of above.

virtual int DtPduWithData::datumSizeBits	(	DtDatumRecordType	fixedOrVar,
		int	index
	)		const [virtual]

Returns the number of bits of data contained in the value fields of the index'th fixed or variable datum record, depending on whether fixedOrVar is DtFIXED or DtVAR.

If DtFIXED, the answer is always 32.

virtual int DtPduWithData::datumSizeBytes	(	DtDatumRecordType	fixedOrVar,
		int	index
	)		const [virtual]

Returns the number of bytes of data contained in the value fields of the index'th fixed or variable datum record, depending on whether fixedOrVar is DtFIXED or DtVAR.

If DtFIXED, the answer is always 4.

virtual const char* DtPduWithData::datumValByteArray	(	DtDatumRecordType	fixedOrVar,
		int	index
	)		const [virtual]

virtual const char* DtPduWithData::datumValByteArray	(	DtDatumParam	param,
		DtDatumRetCode *	retcode = NULL
	)		const [virtual]

virtual DtFloat32 DtPduWithData::datumValFloat32	(	DtDatumRecordType	fixedOrVar,
		int	index,
		DtDatumRetCode *	retcode = NULL
	)		const [virtual]

******* INSPECTING DATUM VALUES BY INDEX ********* If you know the data type of the value contained in a particular record, use one of the following to return it.

fixedOrVar (either DtFIXED or DtVAR) and index (between 1 and numRecords) indicate which record you are inspecting. datumValBytesArray is used when the data type is a character string, or something other than a long, unsigned long, float or double. It returns a pointer to a character string containing the exact bytes in the PDU's network representation that represent the value being inspected. The supplied retcode pointer will be filled with DtDATUM_VALID if the value was successfully inspected, and DtDATUM_BAD_LENGTH if either the index was invalid, or the size of the data indicated that it could not be interpreted as the chosen data type.

virtual DtFloat32 DtPduWithData::datumValFloat32	(	DtDatumParam	param,
		DtDatumRetCode *	retcode = NULL
	)		const [virtual]

******* INSPECTING DATUM VALUES BY PARAM ID ********* If you know the data type of the value contained in a particular record, use one of the following to return it.

The particular record inspected will be the first one containing param as the datum ID. datumValByteArray is used when the data type is a character string, or something other than a long, unsigned long, float or double. It returns a pointer to a character string containing the exact bytes in the PDU's network representation that represent the value being inspected. The supplied retcode pointer will be filled with DtDATUM_VALID if the value was successfully inspected, and DtDATUM_BAD_LENGTH if either param was not found, or the size of the data indicated that it could not be interpreted as the chosen data type.

virtual DtFloat64 DtPduWithData::datumValFloat64	(	DtDatumRecordType	fixedOrVar,
		int	index,
		DtDatumRetCode *	retcode = NULL
	)		const [virtual]

virtual DtFloat64 DtPduWithData::datumValFloat64	(	DtDatumParam	param,
		DtDatumRetCode *	retcode = NULL
	)		const [virtual]

virtual long DtPduWithData::datumValInt32	(	DtDatumRecordType	fixedOrVar,
		int	index,
		DtDatumRetCode *	retcode = NULL
	)		const [virtual]

virtual long DtPduWithData::datumValInt32	(	DtDatumParam	param,
		DtDatumRetCode *	retcode = NULL
	)		const [virtual]

virtual void* DtPduWithData::datumValPtr	(	DtDatumRecordType	fixedOrVar,
		int	index
	)		const [protected, virtual]

Returns a pointer to the index'th fixed or variable record in the network representation, depending on whether fixedOrVar is DtFIXED or DtVAR.

virtual unsigned long DtPduWithData::datumValUnsigned32	(	DtDatumRecordType	fixedOrVar,
		int	index,
		DtDatumRetCode *	retcode = NULL
	)		const [virtual]

virtual unsigned long DtPduWithData::datumValUnsigned32	(	DtDatumParam	param,
		DtDatumRetCode *	retcode = NULL
	)		const [virtual]

virtual DtDatumParam DtPduWithData::fixedDatumId

(

int

index

)

const [virtual]

Returns the datum param found in the index'th fixed datum record.

Index is between 1 and numRecords. Returns DtDatumParam(0) if index is out of bounds.

virtual void DtPduWithData::getIndex	(	DtDatumParam	param,
		DtDatumRecordType *	fixedOrVar,
		int *	index,
		DtDatumRetCode *	retcode = NULL
	)		const [virtual]

Looks through all fixed and variable records for one containing param as the parameter ID.

If it finds one, fills supplied fixedOrVar pointer with DtFIXED or DtVAR, and index with the index to indicate which record was found, and fills retcode with DtDATUM_VALID. If param was not found, retcode is filled with DtDATUM_BAD_ID, and index and fixedOrVar are invalid.

virtual void DtPduWithData::initDataSection	(	const DtDatumParam *	fixedParams,
		const DtVarDatumSpec *	specList
	)		[virtual]

****************** MUTATOR FUNCTIONS ******************

Initialize the data section of the PDU to reflect the fixed parameters and variable parameters and sizes indicated. fixedParams is a NULL- terminated array of DtDatumParams. specList is an array of DtVarDatumSpecs terminated with the DtNullVarDatumSpec constant. This call can be made instead of calls to setNumVarDatumRecords, setNumFixedDatumRecord, and repeated calls to setDatumParam and setVarDataBytes.

virtual DtNetFixDatum* DtPduWithData::nthFixedDataRecord

(

int

index

)

const [protected, virtual]

Return a pointer to the index'th fixed data record in the network representation.

Index is between 1 and numRecords.

virtual DtNetVarDatum* DtPduWithData::nthVarDataRecord

(

int

index

)

const [protected, virtual]

Return a pointer to the index'th variable data record in the network representation.

Index is between 1 and numRecords.

virtual int DtPduWithData::numFixedFields

(

)

const [virtual]

Returns number of fixed fields.

virtual int DtPduWithData::numVarFields

(

)

const [virtual]

Returns number of variable length fields.

DtPduWithData& DtPduWithData::operator=

(

const DtPduWithData &

orig

)

[inline]

Assignment operator.

References DtPdu::operator=().

virtual void DtPduWithData::printData

(

)

const [virtual]

Implements DtPdu's virtual function to print the PDU's data.

Reimplemented from DtSimanPdu.

Reimplemented in DtActionResponsePdu, DtActionRequestPdu, DtActionRequestRPdu, DtSetDataPdu, DtDataRPdu, DtSetDataRPdu, DtActionResponseRPdu, DtDataPdu, DtEventReportPdu, and DtEventReptRPdu.

virtual void DtPduWithData::printDataSection

(

)

const [virtual]

Helper function that prints only the contents of the data records.

virtual void DtPduWithData::printDataSectionToStream

(

std::ostream &

stream

)

const [virtual]

virtual void DtPduWithData::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Prints the contents of the PDU to the specified stream.

Reimplemented from DtSimanPdu.

Reimplemented in DtActionResponsePdu, DtActionRequestPdu, DtActionRequestRPdu, DtSetDataPdu, DtDataRPdu, DtSetDataRPdu, DtActionResponseRPdu, DtDataPdu, DtEventReportPdu, and DtEventReptRPdu.

virtual void DtPduWithData::setDatumParam	(	DtDatumRecordType	fixedOrVar,
		int	index,
		DtDatumParam	param,
		DtDatumRetCode *	retcode = NULL
	)		[virtual]

Set the datum ID in the index'th fixed or variable datum record to param, depending on whether fixedOrVar is DtFIXED or DtVAR.

Supplied retcode pointer is filled with DtDATUM_VALID if successful, or DtDATUM_ BAD_INDEX if the index is not valid.

virtual void DtPduWithData::setDatumValByteArray	(	DtDatumRecordType	fixedOrVar,
		int	index,
		const char *	val,
		DtDatumRetCode *	retcode = NULL
	)		[virtual]

virtual void DtPduWithData::setDatumValByteArray	(	DtDatumParam	param,
		const char *	val,
		DtDatumRetCode *	retcode = NULL
	)		[virtual]

virtual void DtPduWithData::setDatumValFloat32	(	DtDatumRecordType	fixedOrVar,
		int	index,
		DtFloat32	val,
		DtDatumRetCode *	retcode = NULL
	)		[virtual]

virtual void DtPduWithData::setDatumValFloat32	(	DtDatumParam	param,
		DtFloat32	val,
		DtDatumRetCode *	retcode = NULL
	)		[virtual]

virtual void DtPduWithData::setDatumValFloat64	(	DtDatumRecordType	fixedOrVar,
		int	index,
		DtFloat64	val,
		DtDatumRetCode *	retcode = NULL
	)		[virtual]

******* SETTING DATA VALUES BY INDEX ********* Use one of the following to set the data value in a fixed or variable datum record, depending on the data type of your data.

fixedOrVar (either DtFIXED or DtVAR) and index (between 1 and numRecords) indicate which record you are modifying. setDatumValBytesArray is used when the data type is a character string, or something other than a long, unsigned long, float or double. It takes a pointer to a character string containing the exact bytes that should be used in the PDU's network representation. The supplied retcode pointer will be filled with DtDATUM_VALID if the value was successfully set, DtDATUM_BAD_INDEX if the index is invalid, and DtDATUM_BAD_LENGTH if the size of the data indicated that it could not be set from as the chosen data type.

virtual void DtPduWithData::setDatumValFloat64	(	DtDatumParam	param,
		DtFloat64	val,
		DtDatumRetCode *	retcode = NULL
	)		[virtual]

****** SETTING DATA VALUES BY PARAM ID ********* Use one of the following to set the data value in a fixed or variable datum record, depending on the data type of your data.

The particular record modified will be the first one containing param as its parameter ID. setDatumValBytesArray is used when the data type is a character string, or something other than a long, unsigned long, float or double. It takes a pointer to a character string containing the exact bytes that should be used in the PDU's network representation. The supplied retcode pointer will be filled with DtDATUM_VALID if the value was successfully set, DtDATUM_BAD_ID if param is invalid, and DtDATUM_BAD_LENGTH if the size of the data indicated that it could not be set from the chosen data type.

virtual void DtPduWithData::setDatumValInt32	(	DtDatumRecordType	fixedOrVar,
		int	index,
		long	val,
		DtDatumRetCode *	retcode = NULL
	)		[virtual]

virtual void DtPduWithData::setDatumValInt32	(	DtDatumParam	param,
		long	val,
		DtDatumRetCode *	retcode = NULL
	)		[virtual]

virtual void DtPduWithData::setDatumValUnsigned32	(	DtDatumRecordType	fixedOrVar,
		int	index,
		unsigned long	val,
		DtDatumRetCode *	retcode = NULL
	)		[virtual]

virtual void DtPduWithData::setDatumValUnsigned32	(	DtDatumParam	param,
		unsigned long	val,
		DtDatumRetCode *	retcode = NULL
	)		[virtual]

virtual void DtPduWithData::setNumFixedFields

(

int

newNum

)

[virtual]

Sets the number of fixed or variable fields to newNum.

Previously existing fixed fields with indices greater than newNum are deleted. If newNum exceeds the number of existing fields, trailing new fields are created with zeros as datum params, sizes (for var only) and values.

virtual void DtPduWithData::setNumVarFields

(

int

newNum

)

[virtual]

virtual void DtPduWithData::setVarDataBytes	(	int	index,
		int	length,
		DtDatumRetCode *	retcode = NULL
	)		[virtual]

Allocates length bytes for the index'th variable datum record.

Should be called before using one of the setDatumVal functions to actually set the data. Supplied retcode pointer is set to DtDATUM_VALID if successful, or DtDATUM_BAD_INDEX if the index is not valid.

virtual DtDatumParam DtPduWithData::varDatumId

(

int

index

)

const [virtual]

Returns the datum param found in the index'th variable datum record.

Index is between 1 and numRecords. Returns DtDatumParam(0) if index is out of bounds.

---

Friends And Related Function Documentation

friend class DtPduDatumRecordSet [friend]

---

Member Data Documentation

DtDatumRecordSet* DtPduWithData::myRecSet [protected]

---

The documentation for this class was generated from the following file:

• pduWithData.h
