Instances of DtRecordPdu are used to send responses to the Record Query PDU. More...

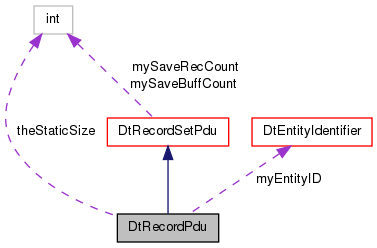

Inheritance diagram for DtRecordPdu: Collaboration diagram for DtRecordPdu:Public Member Functions | |
| DtRecordPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER) | |
| Constructors. | |
| DtRecordPdu (const DtNetRecordPdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER) | |
| DtRecordPdu (const DtRecordPdu &orig) | |
| virtual | ~DtRecordPdu () |
| destructor | |
| DtRecordPdu & | operator= (const DtRecordPdu &orig) |
| Assignment operator. | |
| virtual void | setOriginatingEntityID (const DtEntityIdentifier &entity) |
| Set/Get originating entity identifier. | |
| virtual const DtEntityIdentifier & | originatingEntityID () const |
| virtual void | setReceivingEntityID (const DtEntityIdentifier &entity) |
| Set/Get receiving entity identifier. | |
| virtual const DtEntityIdentifier & | receivingEntityID () const |
| virtual void | setRequestID (DtU32 id) |
| Set/Get request ID. | |
| virtual DtU32 | requestID () const |
| virtual void | setReqRelService (enum DtRequiredReliabilityService service) |
| Set/Get required reliability service. | |
| virtual DtRequiredReliabilityService | reqRelService () const |
| virtual void | setEventType (DtEventType type) |
| Set/Get the event type. | |
| virtual DtEventType | eventType () const |
| virtual void | setResponseSerialNumber (DtU32 num) |
| Set/Get the response serial number. | |
| virtual DtU32 | responseSerialNumber () const |
| virtual void | printData () const |
| Print the data contained by this PDU. | |
| virtual void | printDataToStream (std::ostream &stream) const |
| Print the data to a stream. | |
Static Public Member Functions | |
| static DtPdu * | create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER) |
| Create a DtRecordPdu. | |
| static void | addCallback (DtExerciseConn *conn, DtRecordPduCb cb, void *usr) |
| Add (register)/Remove (deregister) function to be called when pdu is received. | |
| static void | removeCallback (DtExerciseConn *conn, DtRecordPduCb cb, void *usr) |
Protected Member Functions | |
| virtual DtNetRecordSetPdu * | netRecordSetPduStruct () const |
| Returns a pointer to the beginning of the record set data struct. | |
| virtual DtPduKind | internalGetPduKind () const |
| Returns the internal PDU kind. | |
| virtual DtNetRecordPdu * | netPduStruct () const |
| Casts the netPdu element to our network struct. | |
| DtRecordPdu * | self () const |
| Casts the 'this' pointer for changing elements in a const function. | |
Protected Attributes | |
| DtEntityIdentifier | myEntityID |
| Temporary objects for reference returns. | |
Static Protected Attributes | |
| static const int | theStaticSize |
| Size of PDU with zero data bytes. | |
Instances of DtRecordPdu are used to send responses to the Record Query PDU.
| DtRecordPdu::DtRecordPdu | ( | DtBufferPtr | buffer = DtUSE_INTERNAL_BUFFER | ) |
Constructors.
| DtRecordPdu::DtRecordPdu | ( | const DtNetRecordPdu * | initial, |
| DtBufferPtr | buffer = DtUSE_INTERNAL_BUFFER |
||
| ) |
| DtRecordPdu::DtRecordPdu | ( | const DtRecordPdu & | orig | ) |
| virtual DtRecordPdu::~DtRecordPdu | ( | ) | [virtual] |
destructor
| static void DtRecordPdu::addCallback | ( | DtExerciseConn * | conn, |
| DtRecordPduCb | cb, | ||
| void * | usr | ||
| ) | [static] |
Add (register)/Remove (deregister) function to be called when pdu is received.
| static DtPdu* DtRecordPdu::create | ( | const DtNetPacket * | initial, |
| DtBufferPtr | buffer = DtUSE_INTERNAL_BUFFER |
||
| ) | [static] |
Create a DtRecordPdu.
Caller is responsible for deletion.
| virtual DtEventType DtRecordPdu::eventType | ( | ) | const [virtual] |
| virtual DtPduKind DtRecordPdu::internalGetPduKind | ( | ) | const [protected, virtual] |
Returns the internal PDU kind.
Implements DtPdu.
| virtual DtNetRecordPdu* DtRecordPdu::netPduStruct | ( | ) | const [protected, virtual] |
Casts the netPdu element to our network struct.
Non-virtual, since you can't override based on return type.
| virtual DtNetRecordSetPdu* DtRecordPdu::netRecordSetPduStruct | ( | ) | const [protected, virtual] |
Returns a pointer to the beginning of the record set data struct.
Implements DtRecordSetPdu.
| DtRecordPdu& DtRecordPdu::operator= | ( | const DtRecordPdu & | orig | ) |
Assignment operator.
| virtual const DtEntityIdentifier& DtRecordPdu::originatingEntityID | ( | ) | const [virtual] |
| virtual void DtRecordPdu::printData | ( | ) | const [virtual] |
Print the data contained by this PDU.
Reimplemented from DtRecordSetPdu.
| virtual void DtRecordPdu::printDataToStream | ( | std::ostream & | stream | ) | const [virtual] |
Print the data to a stream.
Reimplemented from DtRecordSetPdu.
| virtual const DtEntityIdentifier& DtRecordPdu::receivingEntityID | ( | ) | const [virtual] |
| static void DtRecordPdu::removeCallback | ( | DtExerciseConn * | conn, |
| DtRecordPduCb | cb, | ||
| void * | usr | ||
| ) | [static] |
| virtual DtRequiredReliabilityService DtRecordPdu::reqRelService | ( | ) | const [virtual] |
| virtual DtU32 DtRecordPdu::requestID | ( | ) | const [virtual] |
| virtual DtU32 DtRecordPdu::responseSerialNumber | ( | ) | const [virtual] |
| DtRecordPdu* DtRecordPdu::self | ( | ) | const [protected] |
Casts the 'this' pointer for changing elements in a const function.
Non virtual, since you can't override based on return type.
Reimplemented from DtRecordSetPdu.
| virtual void DtRecordPdu::setEventType | ( | DtEventType | type | ) | [virtual] |
Set/Get the event type.
| virtual void DtRecordPdu::setOriginatingEntityID | ( | const DtEntityIdentifier & | entity | ) | [virtual] |
Set/Get originating entity identifier.
| virtual void DtRecordPdu::setReceivingEntityID | ( | const DtEntityIdentifier & | entity | ) | [virtual] |
Set/Get receiving entity identifier.
| virtual void DtRecordPdu::setReqRelService | ( | enum DtRequiredReliabilityService | service | ) | [virtual] |
Set/Get required reliability service.
| virtual void DtRecordPdu::setRequestID | ( | DtU32 | id | ) | [virtual] |
Set/Get request ID.
| virtual void DtRecordPdu::setResponseSerialNumber | ( | DtU32 | num | ) | [virtual] |
Set/Get the response serial number.
DtEntityIdentifier DtRecordPdu::myEntityID [protected] |
Temporary objects for reference returns.
const int DtRecordPdu::theStaticSize [static, protected] |
Size of PDU with zero data bytes.
