DtRadioReceiverRepository Class Reference

Instances of DtRadioReceiverRepository are used to store state information for radio receiver objects in both HLA and DIS environments. More...

Inheritance diagram for DtRadioReceiverRepository:

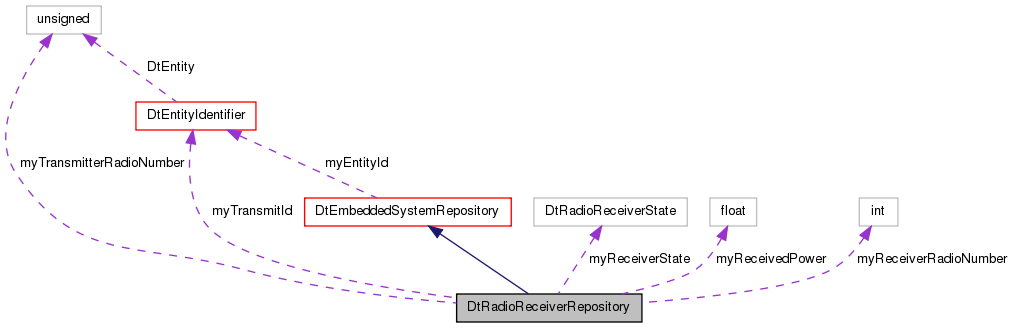

Collaboration diagram for DtRadioReceiverRepository:

List of all members.

Public Member Functions
	DtRadioReceiverRepository ()
	Default constructor.
virtual	~DtRadioReceiverRepository ()
	Destructor.
	DtRadioReceiverRepository (const DtRadioReceiverRepository &orig)
	Copy constructor.
DtRadioReceiverRepository &	operator= (const DtRadioReceiverRepository &orig)
	Assignment operator.
virtual DtStateRepository *	clone (bool copy=false) const
	Return a copy/empty object of the same type as this.
virtual void	printData () const
	Print the state repository's data to the DtInfo stream.
virtual void	printDataToStream (std::ostream &stream) const
	Print the state repository to the specified stream.
virtual void	setRadioId (unsigned int number)
	Set/Get the Receiver radio number.
virtual unsigned int	radioId () const
	Set/Get the Receiver radio number.
virtual void	setReceivedPower (DtFloat32 power)
	Set/Get the received power.
virtual DtFloat32	receivedPower () const
	Set/Get the received power.
virtual void	setTransmitRadioId (const DtGlobalObjectDesignator &id)
	Set/Get the received transmitter.
virtual const DtGlobalObjectDesignator &	transmitRadioId () const
	Set/Get the received transmitter.
virtual void	setTransmitterId (const DtGlobalObjectDesignator &id)
	Set/Get the transmitter ID.
virtual const DtGlobalObjectDesignator &	transmitterId () const
	Set/Get the transmitter ID.
virtual void	setTransmitterRadioId (unsigned int num)
	Set/Get the Transmitter Radio ID - this is only used in DIS.
virtual unsigned int	transmitterRadioId () const
	Set/Get the Transmitter Radio ID - this is only used in DIS.
virtual void	setReceiverState (DtRadioReceiverState state)
	Set/Get the receiver state.
virtual DtRadioReceiverState	receiverState () const
	Set/Get the receiver state.
Static Public Member Functions
static DtRadioReceiverRepository *	create ()
	Create a DtRadioReceiverRepository.
Protected Attributes
int	myReceiverRadioNumber
unsigned int	myTransmitterRadioNumber
DtFloat32	myReceivedPower
DtGlobalObjectDesignator	myTransmitId
DtRadioReceiverState	myReceiverState

---

Detailed Description

Instances of DtRadioReceiverRepository are used to store state information for radio receiver objects in both HLA and DIS environments.

---

Constructor & Destructor Documentation

DtRadioReceiverRepository::DtRadioReceiverRepository

(

)

Default constructor.

virtual DtRadioReceiverRepository::~DtRadioReceiverRepository

(

)

[virtual]

Destructor.

DtRadioReceiverRepository::DtRadioReceiverRepository

(

const DtRadioReceiverRepository &

orig

)

Copy constructor.

---

Member Function Documentation

virtual DtStateRepository* DtRadioReceiverRepository::clone

(

bool

copy = false

)

const [virtual]

Return a copy/empty object of the same type as this.

Parameters:

copy	tells the methods whether to copy the state repository.

Reimplemented from DtEmbeddedSystemRepository.

static DtRadioReceiverRepository* DtRadioReceiverRepository::create

(

)

[static]

Create a DtRadioReceiverRepository.

Reimplemented from DtEmbeddedSystemRepository.

DtRadioReceiverRepository& DtRadioReceiverRepository::operator=

(

const DtRadioReceiverRepository &

orig

)

Assignment operator.

virtual void DtRadioReceiverRepository::printData

(

)

const [virtual]

Print the state repository's data to the DtInfo stream.

Reimplemented from DtEmbeddedSystemRepository.

virtual void DtRadioReceiverRepository::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Print the state repository to the specified stream.

Reimplemented from DtEmbeddedSystemRepository.

virtual unsigned int DtRadioReceiverRepository::radioId

(

)

const [virtual]

Set/Get the Receiver radio number.

Referenced by DtReflectedRadioReceiver::radioId().

virtual DtFloat32 DtRadioReceiverRepository::receivedPower

(

)

const [virtual]

Set/Get the received power.

virtual DtRadioReceiverState DtRadioReceiverRepository::receiverState

(

)

const [virtual]

Set/Get the receiver state.

virtual void DtRadioReceiverRepository::setRadioId

(

unsigned int

number

)

[virtual]

Set/Get the Receiver radio number.

virtual void DtRadioReceiverRepository::setReceivedPower

(

DtFloat32

power

)

[virtual]

Set/Get the received power.

virtual void DtRadioReceiverRepository::setReceiverState

(

DtRadioReceiverState

state

)

[virtual]

Set/Get the receiver state.

virtual void DtRadioReceiverRepository::setTransmitRadioId

(

const DtGlobalObjectDesignator &

id

)

[virtual]

Set/Get the received transmitter.

This function is used for HLA, but DIS calls in the Transmitter Entity so in DIS the identification is the ENtity + the Radio Number.

Deprecated:

The methods, setTransmitterId() and transmitterId() should be used instead.

virtual void DtRadioReceiverRepository::setTransmitterId

(

const DtGlobalObjectDesignator &

id

)

[virtual]

Set/Get the transmitter ID.

virtual void DtRadioReceiverRepository::setTransmitterRadioId

(

unsigned int

num

)

[virtual]

Set/Get the Transmitter Radio ID - this is only used in DIS.

virtual const DtGlobalObjectDesignator& DtRadioReceiverRepository::transmitRadioId

(

)

const [virtual]

Set/Get the received transmitter.

This function is used for HLA, but DIS calls in the Transmitter Entity so in DIS the identification is the ENtity + the Radio Number.

Deprecated:

The methods, setTransmitterId() and transmitterId() should be used instead.

virtual const DtGlobalObjectDesignator& DtRadioReceiverRepository::transmitterId

(

)

const [virtual]

Set/Get the transmitter ID.

virtual unsigned int DtRadioReceiverRepository::transmitterRadioId

(

)

const [virtual]

Set/Get the Transmitter Radio ID - this is only used in DIS.

---

Member Data Documentation

DtFloat32 DtRadioReceiverRepository::myReceivedPower [protected]

int DtRadioReceiverRepository::myReceiverRadioNumber [protected]

DtRadioReceiverState DtRadioReceiverRepository::myReceiverState [protected]

DtGlobalObjectDesignator DtRadioReceiverRepository::myTransmitId [protected]

unsigned int DtRadioReceiverRepository::myTransmitterRadioNumber [protected]

---

The documentation for this class was generated from the following file:

• radioRecvrSR.h
