DtReflectedRadioReceiver Class Reference

Instances of DtReflectedRadioReceiver represent radio receiver objects simulated by remote applications. More...

Inheritance diagram for DtReflectedRadioReceiver:

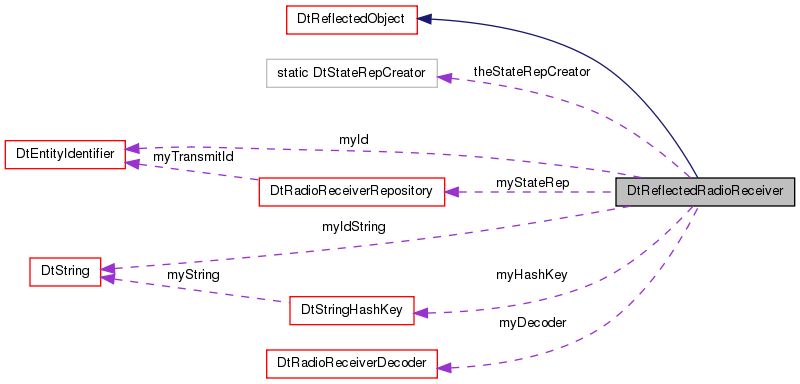

Collaboration diagram for DtReflectedRadioReceiver:

List of all members.

Public Types
typedef DtRadioReceiverRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtRadioReceiverRepositories.
Public Member Functions
	DtReflectedRadioReceiver (DtExerciseConn *conn, const DtEntityIdentifier &id, int radioId)
	Constructor.
virtual	~DtReflectedRadioReceiver ()
	Destructor.
virtual DtRadioReceiverRepository *	receiverRep () const
	Returns ptr to a DtRadioReceiverRepository -- through which you can inspect current state info.
virtual DtRadioReceiverRepository *	rsr () const
	Synonym for receiverRep().
virtual DtStateRepository *	stateRep () const
	Implementation for abstract base class. Calls rsr().
virtual DtRadioReceiverDecoder *	decoder ()
	Returns a pointer to the decoder being used to decode state messages into our DtRadioReceiverRepository.
virtual const DtEntityIdentifier &	entityId () const
	Returns the entity identifier.
virtual const DtObjectId &	id () const
	Get the radio receiver's id. (For DIS, DtObjectId is DtEntityIdentifier).
virtual const DtObjectId &	localId () const
	Get the radio receiver's local id. For DIS - same as id().
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the radio receiver's object's global object designator - for DIS, it's the same as its DtEntityIdentifier.
virtual int	radioId () const
	Get the radio receiver's radio ID.
virtual void	processStateMessage (const DtStateMsg &msg)
	Process a radio receiver PDU.
virtual DtReflectedRadioReceiver *	next () const
	Get the next and previous elements in the reflected radio receiver list.
virtual DtReflectedRadioReceiver *	prev () const
virtual DtReflectedRadioReceiver *	wrapNext () const
	Get the next and previous elements, wrap at the ends of the list.
virtual DtReflectedRadioReceiver *	wrapPrev () const
virtual void	addPostUpdateCallback (DtRadioReceiverCallbackFunction cb, void *userData)
	Radio Receiver callback registration/deregistration.
virtual void	removePostUpdateCallback (DtRadioReceiverCallbackFunction cb, void *userData)
virtual const DtBaseHashKey &	hashKey () const
	Get a hash key for this object.
virtual DtString	idString () const
	Get a string identification of this object.
virtual void	processRadioReceiver (const DtReceiverPdu &pdu)
	Process a receiver PDU.
Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	stateRepCreator (void)
Protected Member Functions
	DtReflectedRadioReceiver (const DtReflectedRadioReceiver &orig)
	Copy constructor -- not implemented.
DtReflectedRadioReceiver &	operator= (const DtReflectedRadioReceiver &orig)
	Assignment operator -- not implemented.
Protected Attributes
DtEntityIdentifier	myId
DtString	myIdString
DtRadioReceiverRepository *	myStateRep
DtRadioReceiverDecoder *	myDecoder
DtStringHashKey	myHashKey
Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

---

Detailed Description

Instances of DtReflectedRadioReceiver represent radio receiver objects simulated by remote applications.

State data can be viewed through its state repository.

---

Member Typedef Documentation

typedef DtRadioReceiverRepository*(* DtReflectedRadioReceiver::DtStateRepCreator)()

Function prototype for functions that create DtRadioReceiverRepositories.

---

Constructor & Destructor Documentation

DtReflectedRadioReceiver::DtReflectedRadioReceiver	(	DtExerciseConn *	conn,
		const DtEntityIdentifier &	id,
		int	radioId
	)

Constructor.

virtual DtReflectedRadioReceiver::~DtReflectedRadioReceiver

(

)

[virtual]

Destructor.

DtReflectedRadioReceiver::DtReflectedRadioReceiver

(

const DtReflectedRadioReceiver &

orig

)

[protected]

Copy constructor -- not implemented.

---

Member Function Documentation

virtual void DtReflectedRadioReceiver::addPostUpdateCallback	(	DtRadioReceiverCallbackFunction	cb,
		void *	userData
	)		[virtual]

Radio Receiver callback registration/deregistration.

virtual DtRadioReceiverDecoder* DtReflectedRadioReceiver::decoder

(

)

[virtual]

Returns a pointer to the decoder being used to decode state messages into our DtRadioReceiverRepository.

virtual const DtEntityIdentifier& DtReflectedRadioReceiver::entityId

(

)

const [virtual]

Returns the entity identifier.

virtual const DtGlobalObjectDesignator& DtReflectedRadioReceiver::globalId

(

)

const [virtual]

Get the radio receiver's object's global object designator - for DIS, it's the same as its DtEntityIdentifier.

Implements DtReflectedObject.

virtual const DtBaseHashKey& DtReflectedRadioReceiver::hashKey

(

)

const [virtual]

Get a hash key for this object.

Implements DtReflectedObject.

virtual const DtObjectId& DtReflectedRadioReceiver::id

(

)

const [virtual]

Get the radio receiver's id. (For DIS, DtObjectId is DtEntityIdentifier).

virtual DtString DtReflectedRadioReceiver::idString

(

)

const [virtual]

Get a string identification of this object.

Implements DtReflectedObject.

virtual const DtObjectId& DtReflectedRadioReceiver::localId

(

)

const [virtual]

Get the radio receiver's local id. For DIS - same as id().

virtual DtReflectedRadioReceiver* DtReflectedRadioReceiver::next

(

)

const [virtual]

Get the next and previous elements in the reflected radio receiver list.

Reimplemented from DtListedObj.

DtReflectedRadioReceiver& DtReflectedRadioReceiver::operator=

(

const DtReflectedRadioReceiver &

orig

)

[protected]

Assignment operator -- not implemented.

virtual DtReflectedRadioReceiver* DtReflectedRadioReceiver::prev

(

)

const [virtual]

Reimplemented from DtListedObj.

virtual void DtReflectedRadioReceiver::processRadioReceiver

(

const DtReceiverPdu &

pdu

)

[virtual]

Process a receiver PDU.

Also calls down to base class processStateMessage().

virtual void DtReflectedRadioReceiver::processStateMessage

(

const DtStateMsg &

msg

)

[virtual]

Process a radio receiver PDU.

Calls processRadioReceiver().

Reimplemented from DtReflectedObject.

int DtReflectedRadioReceiver::radioId

(

)

const [inline, virtual]

Get the radio receiver's radio ID.

References myStateRep, and DtRadioReceiverRepository::radioId().

virtual DtRadioReceiverRepository* DtReflectedRadioReceiver::receiverRep

(

)

const [virtual]

Returns ptr to a DtRadioReceiverRepository -- through which you can inspect current state info.

virtual void DtReflectedRadioReceiver::removePostUpdateCallback	(	DtRadioReceiverCallbackFunction	cb,
		void *	userData
	)		[virtual]

virtual DtRadioReceiverRepository* DtReflectedRadioReceiver::rsr

(

)

const [virtual]

Synonym for receiverRep().

static void DtReflectedRadioReceiver::setStateRepCreator

(

DtStateRepCreator

creator

)

[static]

Give us a function to be used for creating SRs.

virtual DtStateRepository* DtReflectedRadioReceiver::stateRep

(

)

const [virtual]

Implementation for abstract base class. Calls rsr().

Implements DtReflectedObject.

static DtStateRepCreator DtReflectedRadioReceiver::stateRepCreator

(

void

)

[static]

virtual DtReflectedRadioReceiver* DtReflectedRadioReceiver::wrapNext

(

)

const [virtual]

Get the next and previous elements, wrap at the ends of the list.

Reimplemented from DtListedObj.

virtual DtReflectedRadioReceiver* DtReflectedRadioReceiver::wrapPrev

(

)

const [virtual]

Reimplemented from DtListedObj.

---

Member Data Documentation

DtRadioReceiverDecoder* DtReflectedRadioReceiver::myDecoder [protected]

DtStringHashKey DtReflectedRadioReceiver::myHashKey [protected]

DtEntityIdentifier DtReflectedRadioReceiver::myId [protected]

DtString DtReflectedRadioReceiver::myIdString [protected]

DtRadioReceiverRepository* DtReflectedRadioReceiver::myStateRep [protected]

Referenced by radioId().

DtStateRepCreator DtReflectedRadioReceiver::theStateRepCreator [static, protected]

---

The documentation for this class was generated from the following file:

• dRefRadRcvr.h
