Instances of DtRadioTransmitterRepository are used to store state information for objects which are radio transmitters. More...

Inheritance diagram for DtRadioTransmitterRepository:

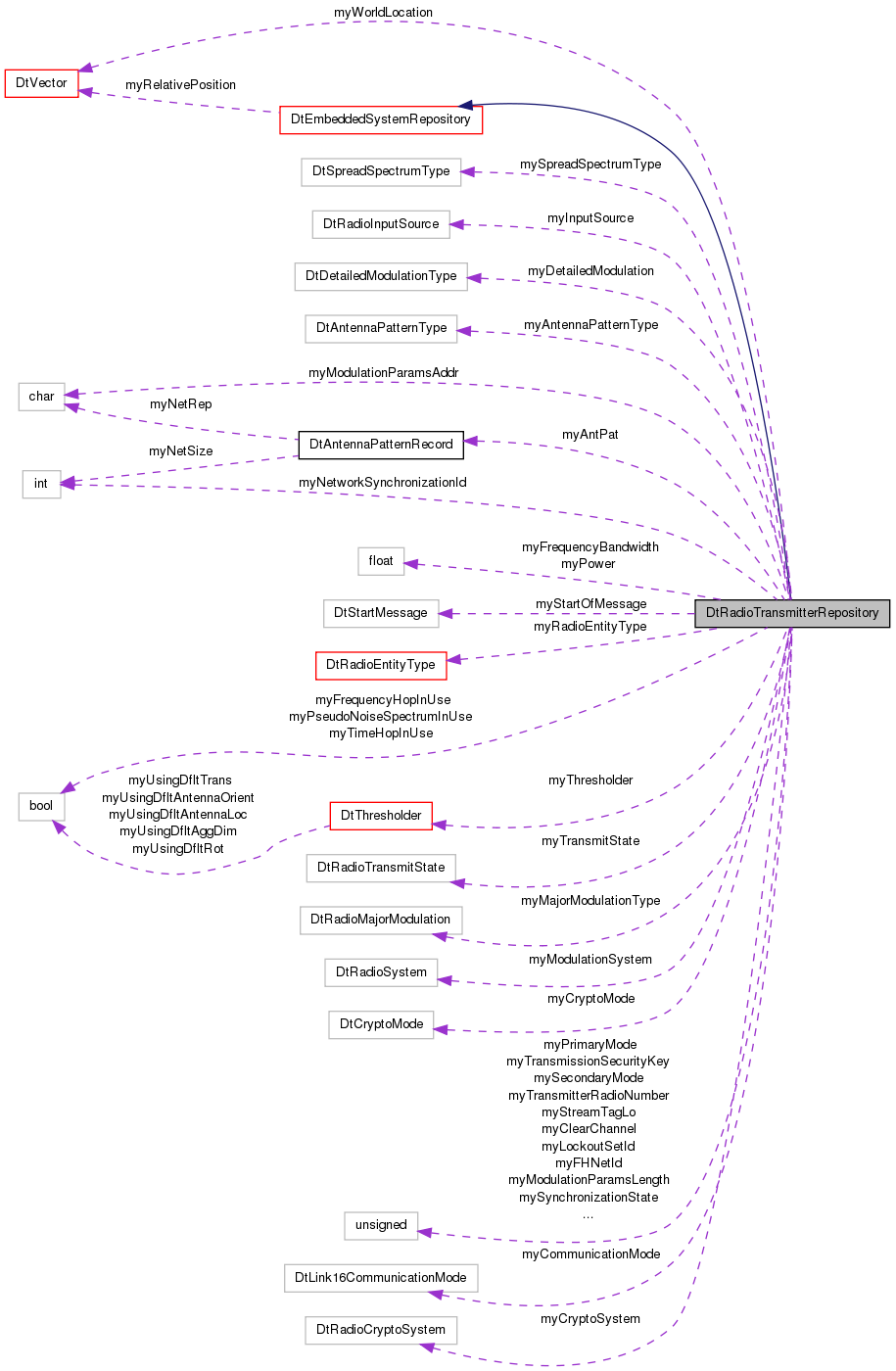

Collaboration diagram for DtRadioTransmitterRepository:

List of all members.

Public Member Functions
	DtRadioTransmitterRepository ()
	default constructor
virtual	~DtRadioTransmitterRepository ()
	destructor
	DtRadioTransmitterRepository (const DtRadioTransmitterRepository &orig)
	copy constructor
DtRadioTransmitterRepository &	operator= (const DtRadioTransmitterRepository &orig)
	assignment operator
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this.
virtual void	setAntennaPattern (const DtAntennaPatternRecord &rec)
	Set the antenna pattern.
virtual const DtAntennaPatternRecord &	antennaPattern () const
	Get the antenna pattern.
virtual void	setAntennaPatternType (DtAntennaPatternType pattern)
	Set the antenna pattern type.
virtual DtAntennaPatternType	antennaPatternType () const
	Get the antenna pattern type.
virtual void	setCryptoKeyId (DtU16 key)
	Set the crypto key id.
virtual DtU16	cryptoKeyId () const
	Get the crypto key id.
virtual void	setCryptoMode (DtCryptoMode mode)
	Set the crypto key mode.
virtual DtCryptoMode	cryptoMode () const
	Get the crypto key mode.
virtual void	setCryptoSystem (DtRadioCryptoSystem system)
	Set/Get the crypto system.
virtual DtRadioCryptoSystem	cryptoSystem () const
virtual void	setDetailedModulationType (DtDetailedModulationType modulation)
	Set the detailed modulation.
virtual DtDetailedModulationType	detailedModulationType () const
	Get the detailed modulation.
virtual void	setFrequency (unsigned long upper, unsigned long lower)
	Set the frequency, either as upper and lower word, or as full 64 bit integer.
virtual void	setFrequency (unsigned long freq)
virtual unsigned long	frequency (DtLongWordPortion upperLower=DtLowerWord) const
	Get either the upper or lower word of the 64 bit frequency.
virtual void	setStreamTag (unsigned long upper, unsigned long lower)
	Set the StreamTag, either as upper and lower word, or as full 64 bit integer.
virtual void	setStreamTag (unsigned long st)
virtual unsigned long	streamTag (DtLongWordPortion upperLower=DtLowerWord) const
	Get either the upper or lower word of the 64 bit frequency.
virtual void	setFrequencyBandwidth (DtFloat32 bandwidth)
	Set the frequency bandwidth.
virtual DtFloat32	frequencyBandwidth () const
	Get the frequency bandwidth.
virtual void	setFrequencyHopInUse (bool hopInUse)
	Set the frequency hop in use.
virtual bool	frequencyHopInUse () const
	Get the frequency hop in use.
virtual void	setInputSource (DtRadioInputSource source)
	Set the input source.
virtual DtRadioInputSource	inputSource () const
	Get the input source.
virtual void	setModulationParams (const void *networkRepresentation, DtU8 size)
	Set/Get the modulation parameters' network representation.
virtual const void *	modulationParamsAddr () const
virtual DtU8	modulationParamsLength () const
virtual void	setMajorModulationType (DtRadioMajorModulation modulation)
	Set the major modulation type.
virtual DtRadioMajorModulation	majorModulationType () const
	Get the major modulation type.
virtual void	setModulationSystemType (DtRadioSystem system)
	Set the modulation system.
virtual DtRadioSystem	modulationSystemType () const
	Get the modulation system.
virtual void	setPower (DtFloat32 power)
	Set the power.
virtual DtFloat32	power () const
	Get the power.
virtual void	setPsuedoNoiseSpectrumInUse (bool inUse)
	Set the Pseudo Noise Spectrum In Use.
virtual bool	psuedoNoiseSpectrumInUse () const
	Get the Pseudo Noise Spectrum In Use.
virtual void	setPseudoNoiseSpectrumInUse (bool inUse)
	Set the Pseudo Noise Spectrum In Use.
virtual bool	pseudoNoiseSpectrumInUse () const
	Get the Pseudo Noise Spectrum In Use.
virtual void	setRadioId (unsigned int number)
	Set the Transmitter radio number.
virtual unsigned int	radioId () const
	Get the Transmitter radio number.
virtual void	setRadioEntityType (const DtRadioEntityType &type)
	Set the radio entity type.
virtual const DtRadioEntityType &	radioEntityType () const
	Get the radio entity type.
virtual void	setTimeHopInUse (bool inUse)
	Set the Time Hop In Use.
virtual bool	timeHopInUse () const
	Get the Time Hop In Use.
virtual void	setTransmitState (DtRadioTransmitState state)
	Set the transmit state.
virtual DtRadioTransmitState	transmitState () const
	Get the transmit state.
virtual void	setWorldAntennaLoc (const DtVector &location)
	Set the world location.
virtual const DtVector &	worldAntennaLoc () const
	Get the world location.
virtual void	setRelativeAntennaLoc (const DtVector &location)
	Set the relative location (wrapper around EmbedSysSR member func, for compatibility with DIS transmitter PDU.)
virtual const DtVector &	relativeAntennaLoc () const
	Get the relative location.
virtual void	printData () const
	Print data to the DtInfo stream.
virtual void	printDataToStream (std::ostream &stream) const
	Print state data to the specified stream.
virtual DtThresholder *	thresholder ()
virtual const DtThresholder &	thresholder () const
ModulationParams and SpreadSpectrum Methods
ModulationParams and SpreadSpectrum Methods These methods deal with the data types in ModulationParams (RPR 1) and SpreadSpectrum (RPR 2), both of which have an attribute called SINCGARSModulationStruct. The SINCGARSModulationStruct used in RPR 2 lack the attributes ClearChannel and StartOfMessage, which were part of the RPR 1 struct, and therefore those methods are not used in RPR 2. SpreadSpectrum also has the attribute SpreadSpectrumType, which does not exist in ModulationParams. If the SpreadSpectrumType is DtSpreadSpectrumTypeNone, none of the SINCGARSModulationStruct values will be set.
virtual void	setSpreadSpectrumType (DtSpreadSpectrumType ty)
	Set the SpreadSpectrumType: DtSpreadSpectrumTypeNone, DtSINCGARSFrequencyHop, or DtJTIDS_MIDS_SpectrumType (the last is used to set the Link16 Transmitter).
virtual DtSpreadSpectrumType	spreadSpectrumType () const
	Get the SpreadSpectrumType.
virtual void	setFHNetId (DtU16 id)
	Set the FhNetId for the SINCGARSModulationStruct.
virtual DtU16	fHNetId () const
	Get the FhNetId for the SINCGARSModulationStruct.
virtual void	setHopSetId (DtU16 id)
	Set/get the HopSetId for the SINCGARSModulationStruct.
virtual DtU16	hopSetId () const
	Set the SpreadSpectrumType: DtSpreadSpectrumTypeNone, DtSINCGARSFrequencyHop, or DtJTIDS_MIDS_SpectrumType (the last is used to set the Link16 Transmitter).
virtual void	setLockoutSetId (DtU16 id)
	Set the LockoutSetId for the SINCGARSModulationStruct.
virtual DtU16	lockoutSetId () const
	Get the LockoutSetId for the SINCGARSModulationStruct.
virtual void	setTransmissionSecurityKey (DtU16 key)
	Set the TransmissionSecurityKey for the SINCGARSModulationStruct.
virtual DtU16	transmissionSecurityKey () const
	Get the TransmissionSecurityKey for the SINCGARSModulationStruct.
virtual void	setFHSynchronizationTimeOffset (DtU32 id)
	Set the FHSSynchronizationTimeOffset for the SINCGARSModulationStruct.
virtual DtU32	fHSynchronizationTimeOffset () const
	Get the FHSSynchronizationTimeOffset for the SINCGARSModulationStruct.
virtual void	setClearChannel (DtU8 chan)
	Set the ClearChannel attribute for the SINCGARSModulationStruct (RPR 1 only)
virtual DtU8	clearChannel () const
	Get the ClearChannel attribute for the SINCGARSModulationStruct (RPR 1 only)
virtual void	setStartOfMessage (DtStartMessage mess)
	Set the StartOfMessage attribute for the SINCGARSModulationStruct (RPR 1 only)
virtual DtStartMessage	startOfMessage () const
	Get the StartOfMessage attribute for the SINCGARSModulationStruct (RPR 1 only)
Link16Transmitter Methods
Link16Transmitter Methods The following functions are used for Link16 compatibility. They supplement the standard DtRadioTransmitter attributes with those required by the Link16 transmitter object as described in the SISO-STD-002-2006 document. If you want to use Link16, set the SpreadSpectrumType to DtJTIDS_MIDS_SpectrumType; this will allow use of the appropriate attributes.
virtual void	setFidelityLevel (DtU16 level)
	Set the Fidelity Level.
virtual DtU16	fidelityLevel () const
	Get the Fidelity Level.
virtual void	setCommunicationMode (DtLink16CommunicationMode mode)
	Set the communications mode.
virtual DtLink16CommunicationMode	communicationMode () const
	Get the communications mode.
virtual void	setPrimaryMode (DtU16 mode)
	Set the primary mode.
virtual DtU16	primaryMode () const
	Get the primary mode.
virtual void	setSecondaryMode (DtU16 mode)
	Set the secondary mode.
virtual DtU16	secondaryMode () const
	Get the secondary mode.
virtual void	setSynchronizationState (DtU16 val)
	Set the synchronization state.
virtual DtU16	synchronizationState () const
	Get the synchronization state.
virtual void	setNetworkSynchronizationId (int val)
	Set the network synchronization ID.
virtual int	networkSynchronizationId () const
	Get the network synchronization ID.
Static Public Member Functions
static DtRadioTransmitterRepository *	create ()
Protected Attributes
DtAntennaPatternType	myAntennaPatternType
DtU16	myCryptoKeyId
DtCryptoMode	myCryptoMode
DtRadioCryptoSystem	myCryptoSystem
DtDetailedModulationType	myDetailedModulation
unsigned long	myFreqHi
unsigned long	myFreqLo
DtU32	myStreamTagHi
DtU32	myStreamTagLo
DtFloat32	myFrequencyBandwidth
bool	myFrequencyHopInUse
DtRadioInputSource	myInputSource
char *	myModulationParamsAddr
DtU8	myModulationParamsLength
DtAntennaPatternRecord *	myAntPat
DtRadioMajorModulation	myMajorModulationType
DtRadioSystem	myModulationSystem
DtFloat32	myPower
bool	myPseudoNoiseSpectrumInUse
DtU16	myTransmitterRadioNumber
DtRadioEntityType	myRadioEntityType
bool	myTimeHopInUse
DtRadioTransmitState	myTransmitState
DtVector	myWorldLocation
DtSpreadSpectrumType	mySpreadSpectrumType
DtThresholder	myThresholder
DtU16	myFHNetId
DtU16	myHopSetId
DtU16	myLockoutSetId
DtU16	myTransmissionSecurityKey
DtU32	myFHSynchronizationTimeOffset
DtU8	myClearChannel
DtStartMessage	myStartOfMessage
DtU16	myFidelityLevel
DtLink16CommunicationMode	myCommunicationMode
DtU16	myPrimaryMode
DtU16	mySecondaryMode
DtU16	mySynchronizationState
int	myNetworkSynchronizationId

Detailed Description

Instances of DtRadioTransmitterRepository are used to store state information for objects which are radio transmitters.

Constructor & Destructor Documentation

DtRadioTransmitterRepository::DtRadioTransmitterRepository ( )

default constructor

virtual DtRadioTransmitterRepository::~DtRadioTransmitterRepository ( ) [virtual]

destructor

DtRadioTransmitterRepository::DtRadioTransmitterRepository ( const DtRadioTransmitterRepository & orig )

copy constructor

Member Function Documentation

virtual const DtAntennaPatternRecord& DtRadioTransmitterRepository::antennaPattern ( ) const [virtual]

Get the antenna pattern.

virtual DtAntennaPatternType DtRadioTransmitterRepository::antennaPatternType ( ) const [virtual]

Get the antenna pattern type.

virtual DtU8 DtRadioTransmitterRepository::clearChannel ( ) const [virtual]

Get the ClearChannel attribute for the SINCGARSModulationStruct (RPR 1 only)

virtual DtStateRepository* DtRadioTransmitterRepository::clone ( bool copy ) const [virtual]

Return a copy/empty object of the same type as this.

Reimplemented from DtEmbeddedSystemRepository.

virtual DtLink16CommunicationMode DtRadioTransmitterRepository::communicationMode ( ) const [virtual]

Get the communications mode.

static DtRadioTransmitterRepository* DtRadioTransmitterRepository::create ( ) [static]

Reimplemented from DtEmbeddedSystemRepository.

virtual DtU16 DtRadioTransmitterRepository::cryptoKeyId ( ) const [virtual]

Get the crypto key id.

virtual DtCryptoMode DtRadioTransmitterRepository::cryptoMode ( ) const [virtual]

Get the crypto key mode.

virtual DtRadioCryptoSystem DtRadioTransmitterRepository::cryptoSystem ( ) const [virtual]

virtual DtDetailedModulationType DtRadioTransmitterRepository::detailedModulationType ( ) const [virtual]

Get the detailed modulation.

virtual DtU16 DtRadioTransmitterRepository::fHNetId ( ) const [virtual]

Get the FhNetId for the SINCGARSModulationStruct.

virtual DtU32 DtRadioTransmitterRepository::fHSynchronizationTimeOffset ( ) const [virtual]

Get the FHSSynchronizationTimeOffset for the SINCGARSModulationStruct.

virtual DtU16 DtRadioTransmitterRepository::fidelityLevel ( ) const [virtual]

Get the Fidelity Level.

virtual unsigned long DtRadioTransmitterRepository::frequency ( DtLongWordPortion upperLower = DtLowerWord ) const [virtual]

Get either the upper or lower word of the 64 bit frequency.

virtual DtFloat32 DtRadioTransmitterRepository::frequencyBandwidth ( ) const [virtual]

Get the frequency bandwidth.

virtual bool DtRadioTransmitterRepository::frequencyHopInUse ( ) const [virtual]

Get the frequency hop in use.

virtual DtU16 DtRadioTransmitterRepository::hopSetId ( ) const [virtual]

Set the SpreadSpectrumType: DtSpreadSpectrumTypeNone, DtSINCGARSFrequencyHop, or DtJTIDS_MIDS_SpectrumType (the last is used to set the Link16 Transmitter).

virtual DtRadioInputSource DtRadioTransmitterRepository::inputSource ( ) const [virtual]

Get the input source.

virtual DtU16 DtRadioTransmitterRepository::lockoutSetId ( ) const [virtual]

Get the LockoutSetId for the SINCGARSModulationStruct.

virtual DtRadioMajorModulation DtRadioTransmitterRepository::majorModulationType ( ) const [virtual]

Get the major modulation type.

virtual const void* DtRadioTransmitterRepository::modulationParamsAddr ( ) const [virtual]

virtual DtU8 DtRadioTransmitterRepository::modulationParamsLength ( ) const [virtual]

virtual DtRadioSystem DtRadioTransmitterRepository::modulationSystemType ( ) const [virtual]

Get the modulation system.

virtual int DtRadioTransmitterRepository::networkSynchronizationId ( ) const [virtual]

Get the network synchronization ID.

DtRadioTransmitterRepository& DtRadioTransmitterRepository::operator= ( const DtRadioTransmitterRepository & orig )

assignment operator

virtual DtFloat32 DtRadioTransmitterRepository::power ( ) const [virtual]

Get the power.

virtual DtU16 DtRadioTransmitterRepository::primaryMode ( ) const [virtual]

Get the primary mode.

virtual void DtRadioTransmitterRepository::printData ( ) const [virtual]

Print data to the DtInfo stream.

Reimplemented from DtEmbeddedSystemRepository.

virtual void DtRadioTransmitterRepository::printDataToStream ( std::ostream & stream ) const [virtual]

Print state data to the specified stream.

Reimplemented from DtEmbeddedSystemRepository.

virtual bool DtRadioTransmitterRepository::pseudoNoiseSpectrumInUse ( ) const [virtual]

Get the Pseudo Noise Spectrum In Use.

virtual bool DtRadioTransmitterRepository::psuedoNoiseSpectrumInUse ( ) const [virtual]

Get the Pseudo Noise Spectrum In Use.

Deprecated to fix spelling.

virtual const DtRadioEntityType& DtRadioTransmitterRepository::radioEntityType ( ) const [virtual]

Get the radio entity type.

virtual unsigned int DtRadioTransmitterRepository::radioId ( ) const [virtual]

Get the Transmitter radio number.

Referenced by DtReflectedRadioTransmitter::radioId().

virtual const DtVector& DtRadioTransmitterRepository::relativeAntennaLoc ( ) const [virtual]

Get the relative location.

virtual DtU16 DtRadioTransmitterRepository::secondaryMode ( ) const [virtual]

Get the secondary mode.

virtual void DtRadioTransmitterRepository::setAntennaPattern ( const DtAntennaPatternRecord & rec ) [virtual]

Set the antenna pattern.

virtual void DtRadioTransmitterRepository::setAntennaPatternType ( DtAntennaPatternType pattern ) [virtual]

Set the antenna pattern type.

virtual void DtRadioTransmitterRepository::setClearChannel ( DtU8 chan ) [virtual]

Set the ClearChannel attribute for the SINCGARSModulationStruct (RPR 1 only)

virtual void DtRadioTransmitterRepository::setCommunicationMode ( DtLink16CommunicationMode mode ) [virtual]

Set the communications mode.

This information is not sent across the network, but is used to set other transmitter parameters, such as frequency, bandwidth, and spread spectrum type.

virtual void DtRadioTransmitterRepository::setCryptoKeyId ( DtU16 key ) [virtual]

Set the crypto key id.

virtual void DtRadioTransmitterRepository::setCryptoMode ( DtCryptoMode mode ) [virtual]

Set the crypto key mode.

virtual void DtRadioTransmitterRepository::setCryptoSystem ( DtRadioCryptoSystem system ) [virtual]

Set/Get the crypto system.

virtual void DtRadioTransmitterRepository::setDetailedModulationType ( DtDetailedModulationType modulation ) [virtual]

Set the detailed modulation.

virtual void DtRadioTransmitterRepository::setFHNetId ( DtU16 id ) [virtual]

Set the FhNetId for the SINCGARSModulationStruct.

virtual void DtRadioTransmitterRepository::setFHSynchronizationTimeOffset ( DtU32 id ) [virtual]

Set the FHSSynchronizationTimeOffset for the SINCGARSModulationStruct.

virtual void DtRadioTransmitterRepository::setFidelityLevel ( DtU16 level ) [virtual]

Set the Fidelity Level.

virtual void DtRadioTransmitterRepository::setFrequency	(	unsigned long	upper,
		unsigned long	lower
	)		`[virtual]`

Set the frequency, either as upper and lower word, or as full 64 bit integer.

virtual void DtRadioTransmitterRepository::setFrequency ( unsigned long freq ) [virtual]

virtual void DtRadioTransmitterRepository::setFrequencyBandwidth ( DtFloat32 bandwidth ) [virtual]

Set the frequency bandwidth.

virtual void DtRadioTransmitterRepository::setFrequencyHopInUse ( bool hopInUse ) [virtual]

Set the frequency hop in use.

virtual void DtRadioTransmitterRepository::setHopSetId ( DtU16 id ) [virtual]

Set/get the HopSetId for the SINCGARSModulationStruct.

virtual void DtRadioTransmitterRepository::setInputSource ( DtRadioInputSource source ) [virtual]

Set the input source.

virtual void DtRadioTransmitterRepository::setLockoutSetId ( DtU16 id ) [virtual]

Set the LockoutSetId for the SINCGARSModulationStruct.

virtual void DtRadioTransmitterRepository::setMajorModulationType ( DtRadioMajorModulation modulation ) [virtual]

Set the major modulation type.

virtual void DtRadioTransmitterRepository::setModulationParams	(	const void *	networkRepresentation,
		DtU8	size
	)		`[virtual]`

Set/Get the modulation parameters' network representation.

virtual void DtRadioTransmitterRepository::setModulationSystemType ( DtRadioSystem system ) [virtual]

Set the modulation system.

virtual void DtRadioTransmitterRepository::setNetworkSynchronizationId ( int val ) [virtual]

Set the network synchronization ID.

virtual void DtRadioTransmitterRepository::setPower ( DtFloat32 power ) [virtual]

Set the power.

virtual void DtRadioTransmitterRepository::setPrimaryMode ( DtU16 mode ) [virtual]

Set the primary mode.

virtual void DtRadioTransmitterRepository::setPseudoNoiseSpectrumInUse ( bool inUse ) [virtual]

Set the Pseudo Noise Spectrum In Use.

virtual void DtRadioTransmitterRepository::setPsuedoNoiseSpectrumInUse ( bool inUse ) [virtual]

Set the Pseudo Noise Spectrum In Use.

Deprecated to fix spelling.

virtual void DtRadioTransmitterRepository::setRadioEntityType ( const DtRadioEntityType & type ) [virtual]

Set the radio entity type.

virtual void DtRadioTransmitterRepository::setRadioId ( unsigned int number ) [virtual]

Set the Transmitter radio number.

virtual void DtRadioTransmitterRepository::setRelativeAntennaLoc ( const DtVector & location ) [virtual]

Set the relative location (wrapper around EmbedSysSR member func, for compatibility with DIS transmitter PDU.)

virtual void DtRadioTransmitterRepository::setSecondaryMode ( DtU16 mode ) [virtual]

Set the secondary mode.

virtual void DtRadioTransmitterRepository::setSpreadSpectrumType ( DtSpreadSpectrumType ty ) [virtual]

Set the SpreadSpectrumType: DtSpreadSpectrumTypeNone, DtSINCGARSFrequencyHop, or DtJTIDS_MIDS_SpectrumType (the last is used to set the Link16 Transmitter).

virtual void DtRadioTransmitterRepository::setStartOfMessage ( DtStartMessage mess ) [virtual]

Set the StartOfMessage attribute for the SINCGARSModulationStruct (RPR 1 only)

virtual void DtRadioTransmitterRepository::setStreamTag	(	unsigned long	upper,
		unsigned long	lower
	)		`[virtual]`

Set the StreamTag, either as upper and lower word, or as full 64 bit integer.

virtual void DtRadioTransmitterRepository::setStreamTag ( unsigned long st ) [virtual]

virtual void DtRadioTransmitterRepository::setSynchronizationState ( DtU16 val ) [virtual]

Set the synchronization state.

virtual void DtRadioTransmitterRepository::setTimeHopInUse ( bool inUse ) [virtual]

Set the Time Hop In Use.

virtual void DtRadioTransmitterRepository::setTransmissionSecurityKey ( DtU16 key ) [virtual]

Set the TransmissionSecurityKey for the SINCGARSModulationStruct.

virtual void DtRadioTransmitterRepository::setTransmitState ( DtRadioTransmitState state ) [virtual]

Set the transmit state.

virtual void DtRadioTransmitterRepository::setWorldAntennaLoc ( const DtVector & location ) [virtual]

Set the world location.

virtual DtSpreadSpectrumType DtRadioTransmitterRepository::spreadSpectrumType ( ) const [virtual]

Get the SpreadSpectrumType.

virtual DtStartMessage DtRadioTransmitterRepository::startOfMessage ( ) const [virtual]

Get the StartOfMessage attribute for the SINCGARSModulationStruct (RPR 1 only)

virtual unsigned long DtRadioTransmitterRepository::streamTag ( DtLongWordPortion upperLower = DtLowerWord ) const [virtual]

Get either the upper or lower word of the 64 bit frequency.

virtual DtU16 DtRadioTransmitterRepository::synchronizationState ( ) const [virtual]

Get the synchronization state.

virtual DtThresholder* DtRadioTransmitterRepository::thresholder ( ) [virtual]

virtual const DtThresholder& DtRadioTransmitterRepository::thresholder ( ) const [virtual]

virtual bool DtRadioTransmitterRepository::timeHopInUse ( ) const [virtual]

Get the Time Hop In Use.

virtual DtU16 DtRadioTransmitterRepository::transmissionSecurityKey ( ) const [virtual]

Get the TransmissionSecurityKey for the SINCGARSModulationStruct.

virtual DtRadioTransmitState DtRadioTransmitterRepository::transmitState ( ) const [virtual]

Get the transmit state.

virtual const DtVector& DtRadioTransmitterRepository::worldAntennaLoc ( ) const [virtual]

Get the world location.

Member Data Documentation

DtAntennaPatternType DtRadioTransmitterRepository::myAntennaPatternType [protected]

DtAntennaPatternRecord* DtRadioTransmitterRepository::myAntPat [protected]

DtU8 DtRadioTransmitterRepository::myClearChannel [protected]

DtLink16CommunicationMode DtRadioTransmitterRepository::myCommunicationMode [protected]

DtU16 DtRadioTransmitterRepository::myCryptoKeyId [protected]

DtCryptoMode DtRadioTransmitterRepository::myCryptoMode [protected]

DtRadioCryptoSystem DtRadioTransmitterRepository::myCryptoSystem [protected]

DtDetailedModulationType DtRadioTransmitterRepository::myDetailedModulation [protected]

DtU16 DtRadioTransmitterRepository::myFHNetId [protected]

DtU32 DtRadioTransmitterRepository::myFHSynchronizationTimeOffset [protected]

DtU16 DtRadioTransmitterRepository::myFidelityLevel [protected]

unsigned long DtRadioTransmitterRepository::myFreqHi [protected]

unsigned long DtRadioTransmitterRepository::myFreqLo [protected]

DtFloat32 DtRadioTransmitterRepository::myFrequencyBandwidth [protected]

bool DtRadioTransmitterRepository::myFrequencyHopInUse [protected]

DtU16 DtRadioTransmitterRepository::myHopSetId [protected]

DtRadioInputSource DtRadioTransmitterRepository::myInputSource [protected]

DtU16 DtRadioTransmitterRepository::myLockoutSetId [protected]

DtRadioMajorModulation DtRadioTransmitterRepository::myMajorModulationType [protected]

char* DtRadioTransmitterRepository::myModulationParamsAddr [protected]

DtU8 DtRadioTransmitterRepository::myModulationParamsLength [protected]

DtRadioSystem DtRadioTransmitterRepository::myModulationSystem [protected]

int DtRadioTransmitterRepository::myNetworkSynchronizationId [protected]

DtFloat32 DtRadioTransmitterRepository::myPower [protected]

DtU16 DtRadioTransmitterRepository::myPrimaryMode [protected]

bool DtRadioTransmitterRepository::myPseudoNoiseSpectrumInUse [protected]

DtRadioEntityType DtRadioTransmitterRepository::myRadioEntityType [protected]

DtU16 DtRadioTransmitterRepository::mySecondaryMode [protected]

DtSpreadSpectrumType DtRadioTransmitterRepository::mySpreadSpectrumType [protected]

DtStartMessage DtRadioTransmitterRepository::myStartOfMessage [protected]

DtU32 DtRadioTransmitterRepository::myStreamTagHi [protected]

DtU32 DtRadioTransmitterRepository::myStreamTagLo [protected]

DtU16 DtRadioTransmitterRepository::mySynchronizationState [protected]

DtThresholder DtRadioTransmitterRepository::myThresholder [protected]

bool DtRadioTransmitterRepository::myTimeHopInUse [protected]

DtU16 DtRadioTransmitterRepository::myTransmissionSecurityKey [protected]

DtRadioTransmitState DtRadioTransmitterRepository::myTransmitState [protected]

DtU16 DtRadioTransmitterRepository::myTransmitterRadioNumber [protected]

DtVector DtRadioTransmitterRepository::myWorldLocation [protected]

The documentation for this class was generated from the following file:

radioXmitSR.h

Public Member Functions

Static Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
