DtReflectedRadioTransmitter Class Reference

The reflected list for Radio Transmitter objects. More...

Inheritance diagram for DtReflectedRadioTransmitter:

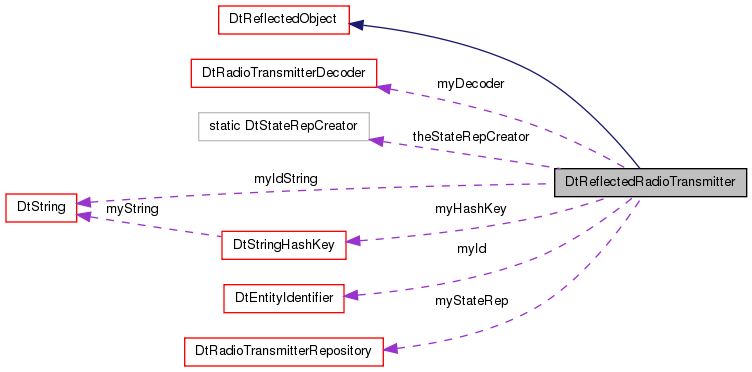

Collaboration diagram for DtReflectedRadioTransmitter:

List of all members.

Public Types
typedef DtRadioTransmitterRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtRadioTransmitterRepositories.
Public Member Functions
	DtReflectedRadioTransmitter (DtExerciseConn *conn, const DtEntityIdentifier &id, int radioId)
	constructor
virtual	~DtReflectedRadioTransmitter ()
	destructor
virtual DtRadioTransmitterRepository *	radioXmitRep () const
	Returns ptr to radioTransmitterRepository -- through which you can inspect current state info.
virtual DtRadioTransmitterRepository *	tsr () const
	Synonym for radioXmitRep.
virtual DtStateRepository *	stateRep () const
	Implementation for abstract base class. Calls tsr().
virtual DtRadioTransmitterDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages into our TSR.
virtual const DtEntityIdentifier &	entityId () const
	Returns the entity identifier.
virtual const DtObjectId &	id () const
	Get the radio transmitter's id. (For DIS, DtObjectId is DtEntityIdentifier).
virtual const DtObjectId &	localId () const
	Get the radio transmitter's local id. For DIS - same as id().
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the radio transmitter's object's global object designator - for DIS, it's the same as its DtEntityIdentifier.
virtual int	radioId () const
	Get the radio transmitter's radio ID.
virtual void	processStateMessage (const DtStateMsg &msg)
	Process a radio transmitter PDU.
virtual DtReflectedRadioTransmitter *	next () const
	Get the next and previous elements in the reflected radio transmitter list.
virtual DtReflectedRadioTransmitter *	prev () const
virtual DtReflectedRadioTransmitter *	wrapNext () const
	Get the next and previous elements, wrap at the ends of the list.
virtual DtReflectedRadioTransmitter *	wrapPrev () const
virtual void	addPostUpdateCallback (DtRadioTransmitterCallbackFunction cb, void *userData)
	Radio Transmitter callback registration/deregistration.
virtual void	removePostUpdateCallback (DtRadioTransmitterCallbackFunction cb, void *userData)
virtual const DtBaseHashKey &	hashKey () const
	Get a hash key for this object.
virtual DtString	idString () const
	Get a string identification of this object.
virtual void	processRadioTransmitter (const DtTransmitterPdu &pdu)
	Process a transmitter PDU.
Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	stateRepCreator ()
Protected Member Functions
	DtReflectedRadioTransmitter (const DtReflectedRadioTransmitter &orig)
	copy constructor -- not implemented
DtReflectedRadioTransmitter &	operator= (const DtReflectedRadioTransmitter &orig)
	assignment operator -- not implemented
Protected Attributes
DtEntityIdentifier	myId
DtRadioTransmitterRepository *	myStateRep
DtRadioTransmitterDecoder *	myDecoder
DtStringHashKey	myHashKey
DtString	myIdString
Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

---

Detailed Description

The reflected list for Radio Transmitter objects.

---

Member Typedef Documentation

typedef DtRadioTransmitterRepository*(* DtReflectedRadioTransmitter::DtStateRepCreator)()

Function prototype for functions that create DtRadioTransmitterRepositories.

---

Constructor & Destructor Documentation

DtReflectedRadioTransmitter::DtReflectedRadioTransmitter	(	DtExerciseConn *	conn,
		const DtEntityIdentifier &	id,
		int	radioId
	)

constructor

virtual DtReflectedRadioTransmitter::~DtReflectedRadioTransmitter

(

)

[virtual]

destructor

DtReflectedRadioTransmitter::DtReflectedRadioTransmitter

(

const DtReflectedRadioTransmitter &

orig

)

[protected]

copy constructor -- not implemented

---

Member Function Documentation

virtual void DtReflectedRadioTransmitter::addPostUpdateCallback	(	DtRadioTransmitterCallbackFunction	cb,
		void *	userData
	)		[virtual]

Radio Transmitter callback registration/deregistration.

virtual DtRadioTransmitterDecoder* DtReflectedRadioTransmitter::decoder

(

)

[virtual]

Returns a pointer to the Decoder being used to decode state messages into our TSR.

virtual const DtEntityIdentifier& DtReflectedRadioTransmitter::entityId

(

)

const [virtual]

Returns the entity identifier.

virtual const DtGlobalObjectDesignator& DtReflectedRadioTransmitter::globalId

(

)

const [virtual]

Get the radio transmitter's object's global object designator - for DIS, it's the same as its DtEntityIdentifier.

Implements DtReflectedObject.

virtual const DtBaseHashKey& DtReflectedRadioTransmitter::hashKey

(

)

const [virtual]

Get a hash key for this object.

Implements DtReflectedObject.

virtual const DtObjectId& DtReflectedRadioTransmitter::id

(

)

const [virtual]

Get the radio transmitter's id. (For DIS, DtObjectId is DtEntityIdentifier).

virtual DtString DtReflectedRadioTransmitter::idString

(

)

const [virtual]

Get a string identification of this object.

Implements DtReflectedObject.

virtual const DtObjectId& DtReflectedRadioTransmitter::localId

(

)

const [virtual]

Get the radio transmitter's local id. For DIS - same as id().

virtual DtReflectedRadioTransmitter* DtReflectedRadioTransmitter::next

(

)

const [virtual]

Get the next and previous elements in the reflected radio transmitter list.

Reimplemented from DtListedObj.

DtReflectedRadioTransmitter& DtReflectedRadioTransmitter::operator=

(

const DtReflectedRadioTransmitter &

orig

)

[protected]

assignment operator -- not implemented

virtual DtReflectedRadioTransmitter* DtReflectedRadioTransmitter::prev

(

)

const [virtual]

Reimplemented from DtListedObj.

virtual void DtReflectedRadioTransmitter::processRadioTransmitter

(

const DtTransmitterPdu &

pdu

)

[virtual]

Process a transmitter PDU.

Also calls down to base class processStateMessage().

virtual void DtReflectedRadioTransmitter::processStateMessage

(

const DtStateMsg &

msg

)

[virtual]

Process a radio transmitter PDU.

Calls processRadioTransmitter().

Reimplemented from DtReflectedObject.

int DtReflectedRadioTransmitter::radioId

(

)

const [inline, virtual]

Get the radio transmitter's radio ID.

References myStateRep, and DtRadioTransmitterRepository::radioId().

virtual DtRadioTransmitterRepository* DtReflectedRadioTransmitter::radioXmitRep

(

)

const [virtual]

Returns ptr to radioTransmitterRepository -- through which you can inspect current state info.

virtual void DtReflectedRadioTransmitter::removePostUpdateCallback	(	DtRadioTransmitterCallbackFunction	cb,
		void *	userData
	)		[virtual]

static void DtReflectedRadioTransmitter::setStateRepCreator

(

DtStateRepCreator

creator

)

[static]

Give us a function to be used for creating SRs.

virtual DtStateRepository* DtReflectedRadioTransmitter::stateRep

(

)

const [virtual]

Implementation for abstract base class. Calls tsr().

Implements DtReflectedObject.

static DtStateRepCreator DtReflectedRadioTransmitter::stateRepCreator

(

)

[static]

virtual DtRadioTransmitterRepository* DtReflectedRadioTransmitter::tsr

(

)

const [virtual]

Synonym for radioXmitRep.

virtual DtReflectedRadioTransmitter* DtReflectedRadioTransmitter::wrapNext

(

)

const [virtual]

Get the next and previous elements, wrap at the ends of the list.

Reimplemented from DtListedObj.

virtual DtReflectedRadioTransmitter* DtReflectedRadioTransmitter::wrapPrev

(

)

const [virtual]

Reimplemented from DtListedObj.

---

Member Data Documentation

DtRadioTransmitterDecoder* DtReflectedRadioTransmitter::myDecoder [protected]

DtStringHashKey DtReflectedRadioTransmitter::myHashKey [protected]

DtEntityIdentifier DtReflectedRadioTransmitter::myId [protected]

DtString DtReflectedRadioTransmitter::myIdString [protected]

DtRadioTransmitterRepository* DtReflectedRadioTransmitter::myStateRep [protected]

Referenced by radioId().

DtStateRepCreator DtReflectedRadioTransmitter::theStateRepCreator [static, protected]

---

The documentation for this class was generated from the following file:

• dRefRadXmit.h
