DtReflectedAggregate Class Reference

Instances of this class provide a protocol independent interface to a reflected aggregate in a DIS environment. More...

Inheritance diagram for DtReflectedAggregate:

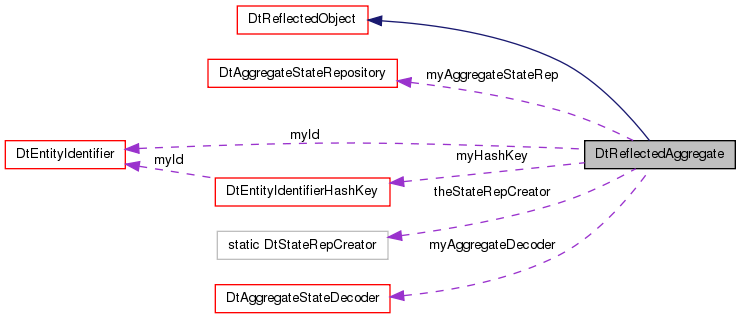

Collaboration diagram for DtReflectedAggregate:

List of all members.

Public Types
typedef DtAggregateStateRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtAggregateStateRepositorys.
Public Member Functions
	DtReflectedAggregate (DtExerciseConn *conn, const DtEntityIdentifier &id, const DtEntityType &type)
	Constructor.
virtual	~DtReflectedAggregate ()
	Destructor.
virtual DtAggregateStateRepository *	aggregateStateRep () const
	Returns a pointer to the AggregateStateRepository - through which you can inspect current state information.
virtual DtAggregateStateRepository *	asr () const
	Synonym for aggregateStateRep().
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository - through which you can inspect current state information.
virtual DtAggregateStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages into our ASR.
virtual const DtEntityIdentifier &	aggregateID () const
	Returns the aggregate identifier.
virtual const DtObjectId &	id () const
	Get the aggregate's id. (For DIS, DtObjectId is DtEntityIdentifier).
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the aggregate's object's global object designator - for DIS, it's the same as its DtEntityIdentifier.
virtual void	processStateMessage (const DtStateMsg &msg)
	Process an aggregate state PDU.
virtual void	processRelativeLocation (const DtRelativeLocationPdu &pdu)
virtual DtReflectedAggregate *	next () const
	Get the next and previous elements in the reflected aggregate list.
virtual DtReflectedAggregate *	prev () const
virtual DtReflectedAggregate *	wrapNext () const
	Get the next and previous elements, wrap at the ends of the list.
virtual DtReflectedAggregate *	wrapPrev () const
virtual void	addPostUpdateCallback (DtAggregateCallbackFunction cb, void *userData)
	Entity state callback registration/deregistration.
virtual void	removePostUpdateCallback (DtAggregateCallbackFunction cb, void *userData)
virtual const DtBaseHashKey &	hashKey () const
	Get a hash key for this object.
virtual DtString	idString () const
	Get a string identification of this object.
virtual void	processAggregateState (const DtAggregateStatePdu &pdu)
	Process an entity state PDU.
Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	stateRepCreator (void)
Protected Member Functions
	DtReflectedAggregate (const DtReflectedAggregate &orig)
	copy constructor -- not implemented
DtReflectedAggregate &	operator= (const DtReflectedAggregate &orig)
	assignment operator -- not implemented
Protected Attributes
DtEntityIdentifier	myId
DtAggregateStateRepository *	myAggregateStateRep
DtAggregateStateDecoder *	myAggregateDecoder
DtEntityIdentifierHashKey	myHashKey
Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

---

Detailed Description

Instances of this class provide a protocol independent interface to a reflected aggregate in a DIS environment.

---

Member Typedef Documentation

typedef DtAggregateStateRepository*(* DtReflectedAggregate::DtStateRepCreator)()

Function prototype for functions that create DtAggregateStateRepositorys.

---

Constructor & Destructor Documentation

DtReflectedAggregate::DtReflectedAggregate	(	DtExerciseConn *	conn,
		const DtEntityIdentifier &	id,
		const DtEntityType &	type
	)

Constructor.

virtual DtReflectedAggregate::~DtReflectedAggregate

(

)

[virtual]

Destructor.

DtReflectedAggregate::DtReflectedAggregate

(

const DtReflectedAggregate &

orig

)

[protected]

copy constructor -- not implemented

---

Member Function Documentation

virtual void DtReflectedAggregate::addPostUpdateCallback	(	DtAggregateCallbackFunction	cb,
		void *	userData
	)		[virtual]

Entity state callback registration/deregistration.

virtual const DtEntityIdentifier& DtReflectedAggregate::aggregateID

(

)

const [virtual]

Returns the aggregate identifier.

virtual DtAggregateStateRepository* DtReflectedAggregate::aggregateStateRep

(

)

const [virtual]

Returns a pointer to the AggregateStateRepository - through which you can inspect current state information.

virtual DtAggregateStateRepository* DtReflectedAggregate::asr

(

)

const [virtual]

Synonym for aggregateStateRep().

virtual DtAggregateStateDecoder* DtReflectedAggregate::decoder

(

)

[virtual]

Returns a pointer to the Decoder being used to decode state messages into our ASR.

virtual const DtGlobalObjectDesignator& DtReflectedAggregate::globalId

(

)

const [virtual]

Get the aggregate's object's global object designator - for DIS, it's the same as its DtEntityIdentifier.

Implements DtReflectedObject.

virtual const DtBaseHashKey& DtReflectedAggregate::hashKey

(

)

const [virtual]

Get a hash key for this object.

Implements DtReflectedObject.

virtual const DtObjectId& DtReflectedAggregate::id

(

)

const [virtual]

Get the aggregate's id. (For DIS, DtObjectId is DtEntityIdentifier).

virtual DtString DtReflectedAggregate::idString

(

)

const [virtual]

Get a string identification of this object.

Implements DtReflectedObject.

virtual DtReflectedAggregate* DtReflectedAggregate::next

(

)

const [virtual]

Get the next and previous elements in the reflected aggregate list.

Reimplemented from DtListedObj.

DtReflectedAggregate& DtReflectedAggregate::operator=

(

const DtReflectedAggregate &

orig

)

[protected]

assignment operator -- not implemented

virtual DtReflectedAggregate* DtReflectedAggregate::prev

(

)

const [virtual]

Reimplemented from DtListedObj.

virtual void DtReflectedAggregate::processAggregateState

(

const DtAggregateStatePdu &

pdu

)

[virtual]

Process an entity state PDU.

Also calls down to base class processStateMessage().

virtual void DtReflectedAggregate::processRelativeLocation

(

const DtRelativeLocationPdu &

pdu

)

[virtual]

virtual void DtReflectedAggregate::processStateMessage

(

const DtStateMsg &

msg

)

[virtual]

Process an aggregate state PDU.

Implementation for abstract base class.

Reimplemented from DtReflectedObject.

virtual void DtReflectedAggregate::removePostUpdateCallback	(	DtAggregateCallbackFunction	cb,
		void *	userData
	)		[virtual]

static void DtReflectedAggregate::setStateRepCreator

(

DtStateRepCreator

creator

)

[static]

Give us a function to be used for creating SRs.

virtual DtStateRepository* DtReflectedAggregate::stateRep

(

)

const [virtual]

Returns a pointer to the StateRepository - through which you can inspect current state information.

Implementation for abstract base class. Calls asr().

Implements DtReflectedObject.

static DtStateRepCreator DtReflectedAggregate::stateRepCreator

(

void

)

[static]

virtual DtReflectedAggregate* DtReflectedAggregate::wrapNext

(

)

const [virtual]

Get the next and previous elements, wrap at the ends of the list.

Reimplemented from DtListedObj.

virtual DtReflectedAggregate* DtReflectedAggregate::wrapPrev

(

)

const [virtual]

Reimplemented from DtListedObj.

---

Member Data Documentation

DtAggregateStateDecoder* DtReflectedAggregate::myAggregateDecoder [protected]

DtAggregateStateRepository* DtReflectedAggregate::myAggregateStateRep [protected]

DtEntityIdentifierHashKey DtReflectedAggregate::myHashKey [protected]

DtEntityIdentifier DtReflectedAggregate::myId [protected]

DtStateRepCreator DtReflectedAggregate::theStateRepCreator [static, protected]

---

The documentation for this class was generated from the following file:

• dReflectedAgg.h
