DtReflectedDesignator Class Reference

Instances of DtReflectedDesignator represent designator object simulated by remote applications. More...

Inheritance diagram for DtReflectedDesignator:

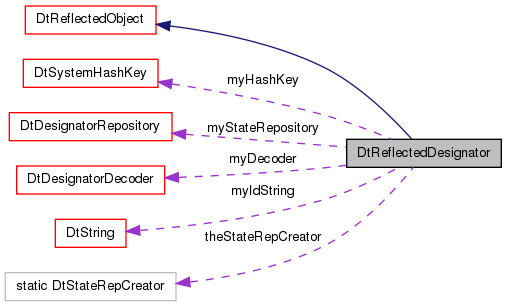

Collaboration diagram for DtReflectedDesignator:

List of all members.

Public Types
typedef DtDesignatorRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtDesignatorRepositories.
Public Member Functions
	DtReflectedDesignator (DtExerciseConn *conn, const DtGlobalObjectDesignator &designatingEntity, int designatorCode)
	Constructor.
virtual	~DtReflectedDesignator ()
	Destructor.
virtual DtDesignatorRepository *	designatorRep () const
	Get the designator's state repository.
virtual DtDesignatorRepository *	dsr () const
	Synonym for designatorRep().
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository through which you can inspect current state information.
virtual DtDesignatorDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages.
virtual void	processStateMessage (const DtStateMsg &msg)
	Overrides the implementation of the base class.
virtual DtReflectedDesignator *	next () const
	Get the next remote designator.
virtual DtReflectedDesignator *	prev () const
	Get the previous remote designator.
virtual DtReflectedDesignator *	wrapNext () const
	Get the next remote designator.
virtual DtReflectedDesignator *	wrapPrev () const
	Get the previous remote designator.
virtual void	addPostUpdateCallback (DtDesignatorCallbackFunction cb, void *userData)
	Designator state callback registration/deregistration.
virtual void	removePostUpdateCallback (DtDesignatorCallbackFunction cb, void *userData)
virtual const DtBaseHashKey &	hashKey () const
	Get a hash key for this object.
virtual DtString	idString () const
	Get a string identification of this object.
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the designator entityId - for DIS, it's the same as its DtEntityIdentifier.
Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	stateRepCreator (void)
Protected Member Functions
	DtReflectedDesignator (const DtReflectedDesignator &)
	Copy constructor - not implemented.
DtReflectedDesignator &	operator= (const DtReflectedDesignator &)
	Assignment operator - not implemented.
Protected Attributes
DtSystemHashKey	myHashKey
DtString	myIdString
DtDesignatorRepository *	myStateRepository
DtDesignatorDecoder	myDecoder
Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

---

Detailed Description

Instances of DtReflectedDesignator represent designator object simulated by remote applications.

State data can be viewed through its state repository.

---

Member Typedef Documentation

typedef DtDesignatorRepository*(* DtReflectedDesignator::DtStateRepCreator)()

Function prototype for functions that create DtDesignatorRepositories.

---

Constructor & Destructor Documentation

DtReflectedDesignator::DtReflectedDesignator	(	DtExerciseConn *	conn,
		const DtGlobalObjectDesignator &	designatingEntity,
		int	designatorCode
	)

Constructor.

virtual DtReflectedDesignator::~DtReflectedDesignator

(

)

[virtual]

Destructor.

DtReflectedDesignator::DtReflectedDesignator

(

const DtReflectedDesignator &

)

[protected]

Copy constructor - not implemented.

---

Member Function Documentation

virtual void DtReflectedDesignator::addPostUpdateCallback	(	DtDesignatorCallbackFunction	cb,
		void *	userData
	)		[virtual]

Designator state callback registration/deregistration.

virtual DtDesignatorDecoder* DtReflectedDesignator::decoder

(

)

[inline, virtual]

Returns a pointer to the Decoder being used to decode state messages.

virtual DtDesignatorRepository* DtReflectedDesignator::designatorRep

(

)

const [inline, virtual]

Get the designator's state repository.

virtual DtDesignatorRepository* DtReflectedDesignator::dsr

(

)

const [inline, virtual]

Synonym for designatorRep().

virtual const DtGlobalObjectDesignator& DtReflectedDesignator::globalId

(

)

const [virtual]

Get the designator entityId - for DIS, it's the same as its DtEntityIdentifier.

Implements DtReflectedObject.

virtual const DtBaseHashKey& DtReflectedDesignator::hashKey

(

)

const [inline, virtual]

Get a hash key for this object.

Implements DtReflectedObject.

virtual DtString DtReflectedDesignator::idString

(

)

const [inline, virtual]

Get a string identification of this object.

Implements DtReflectedObject.

virtual DtReflectedDesignator* DtReflectedDesignator::next

(

)

const [virtual]

Get the next remote designator.

Reimplemented from DtListedObj.

DtReflectedDesignator& DtReflectedDesignator::operator=

(

const DtReflectedDesignator &

)

[protected]

Assignment operator - not implemented.

virtual DtReflectedDesignator* DtReflectedDesignator::prev

(

)

const [virtual]

Get the previous remote designator.

Reimplemented from DtListedObj.

virtual void DtReflectedDesignator::processStateMessage

(

const DtStateMsg &

msg

)

[virtual]

Overrides the implementation of the base class.

Processes a Designator PDU.

Reimplemented from DtReflectedObject.

virtual void DtReflectedDesignator::removePostUpdateCallback	(	DtDesignatorCallbackFunction	cb,
		void *	userData
	)		[virtual]

static void DtReflectedDesignator::setStateRepCreator

(

DtStateRepCreator

creator

)

[static]

Give us a function to be used for creating SRs.

virtual DtStateRepository* DtReflectedDesignator::stateRep

(

)

const [inline, virtual]

Returns a pointer to the StateRepository through which you can inspect current state information.

Implementation for abstract base class.

Implements DtReflectedObject.

static DtStateRepCreator DtReflectedDesignator::stateRepCreator

(

void

)

[static]

virtual DtReflectedDesignator* DtReflectedDesignator::wrapNext

(

)

const [virtual]

Get the next remote designator.

If at the end, it will cycle back to the first remote designator.

Reimplemented from DtListedObj.

virtual DtReflectedDesignator* DtReflectedDesignator::wrapPrev

(

)

const [virtual]

Get the previous remote designator.

If at the beginning, it will cycle back to the last remote designator.

Reimplemented from DtListedObj.

---

Member Data Documentation

DtDesignatorDecoder DtReflectedDesignator::myDecoder [protected]

DtSystemHashKey DtReflectedDesignator::myHashKey [protected]

DtString DtReflectedDesignator::myIdString [protected]

DtDesignatorRepository* DtReflectedDesignator::myStateRepository [protected]

DtStateRepCreator DtReflectedDesignator::theStateRepCreator [static, protected]

---

The documentation for this class was generated from the following file:

• dReflDesigntr.h
