DtReflectedEmitterSystem Class Reference

Instances of DtReflectedEmitterSystem represent EmitterSystem object simulated by remote applications. More...

Inheritance diagram for DtReflectedEmitterSystem:

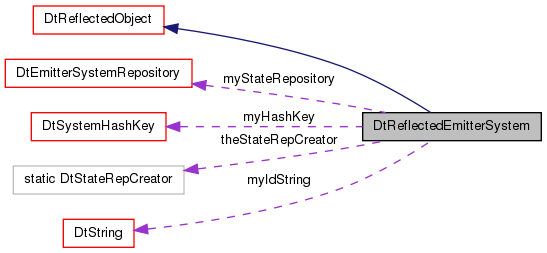

Collaboration diagram for DtReflectedEmitterSystem:

List of all members.

Public Types
typedef DtEmitterSystemRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtEmitterSystemRepositories.
Public Member Functions
	DtReflectedEmitterSystem (DtExerciseConn *conn, const DtGlobalObjectDesignator &emittingEntity, DtU8 systemNumber)
	Constructor.
virtual	~DtReflectedEmitterSystem ()
	destructor
virtual DtEmitterSystemRepository *	emitterSysRep () const
	Get the emitter system's state repository.
virtual DtEmitterSystemRepository *	esr () const
	Synonym for emitterSysRep().
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository - through which you can inspect current state information.
virtual void	processStateMessage (const DtStateMsg &msg)
	Process an electronic emissions PDU.
virtual DtReflectedEmitterSystem *	next () const
	Get the next remote emitterSystem.
virtual DtReflectedEmitterSystem *	prev () const
	Get the previous remote emitterSystem.
virtual DtReflectedEmitterSystem *	wrapNext () const
	Get the next remote emitterSystem.
virtual DtReflectedEmitterSystem *	wrapPrev () const
	Get the previous remote emitterSystem.
virtual void	addPostUpdateCallback (DtEmitterSystemCallbackFunction cb, void *userData)
	emitterSystem state callback registration/deregistration.
virtual void	removePostUpdateCallback (DtEmitterSystemCallbackFunction cb, void *userData)
virtual const DtBaseHashKey &	hashKey () const
	Get a hash key for this object.
virtual DtString	idString () const
	Get a string identification of this object.
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the GlobalId -.
Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	stateRepCreator (void)
Protected Member Functions
	DtReflectedEmitterSystem (const DtReflectedEmitterSystem &orig)
	copy constructor -- not implemented
DtReflectedEmitterSystem &	operator= (const DtReflectedEmitterSystem &orig)
	assignment operator -- not implemented
Protected Attributes
DtString	myIdString
DtEmitterSystemRepository *	myStateRepository
DtSystemHashKey	myHashKey
Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

---

Detailed Description

Instances of DtReflectedEmitterSystem represent EmitterSystem object simulated by remote applications.

State data can be viewed through its state repository.

---

Member Typedef Documentation

typedef DtEmitterSystemRepository*(* DtReflectedEmitterSystem::DtStateRepCreator)()

Function prototype for functions that create DtEmitterSystemRepositories.

---

Constructor & Destructor Documentation

DtReflectedEmitterSystem::DtReflectedEmitterSystem	(	DtExerciseConn *	conn,
		const DtGlobalObjectDesignator &	emittingEntity,
		DtU8	systemNumber
	)

Constructor.

virtual DtReflectedEmitterSystem::~DtReflectedEmitterSystem

(

)

[virtual]

destructor

DtReflectedEmitterSystem::DtReflectedEmitterSystem

(

const DtReflectedEmitterSystem &

orig

)

[protected]

copy constructor -- not implemented

---

Member Function Documentation

virtual void DtReflectedEmitterSystem::addPostUpdateCallback	(	DtEmitterSystemCallbackFunction	cb,
		void *	userData
	)		[virtual]

emitterSystem state callback registration/deregistration.

virtual DtEmitterSystemRepository* DtReflectedEmitterSystem::emitterSysRep

(

)

const [virtual]

Get the emitter system's state repository.

virtual DtEmitterSystemRepository* DtReflectedEmitterSystem::esr

(

)

const [virtual]

Synonym for emitterSysRep().

virtual const DtGlobalObjectDesignator& DtReflectedEmitterSystem::globalId

(

)

const [virtual]

Get the GlobalId -.

for DIS, it's the same as its DtEntityIdentifier.

Implements DtReflectedObject.

virtual const DtBaseHashKey& DtReflectedEmitterSystem::hashKey

(

)

const [virtual]

Get a hash key for this object.

Implements DtReflectedObject.

virtual DtString DtReflectedEmitterSystem::idString

(

)

const [virtual]

Get a string identification of this object.

Implements DtReflectedObject.

virtual DtReflectedEmitterSystem* DtReflectedEmitterSystem::next

(

)

const [virtual]

Get the next remote emitterSystem.

Reimplemented from DtListedObj.

DtReflectedEmitterSystem& DtReflectedEmitterSystem::operator=

(

const DtReflectedEmitterSystem &

orig

)

[protected]

assignment operator -- not implemented

virtual DtReflectedEmitterSystem* DtReflectedEmitterSystem::prev

(

)

const [virtual]

Get the previous remote emitterSystem.

Reimplemented from DtListedObj.

virtual void DtReflectedEmitterSystem::processStateMessage

(

const DtStateMsg &

msg

)

[virtual]

Process an electronic emissions PDU.

Implementation for abstract base class.

Reimplemented from DtReflectedObject.

virtual void DtReflectedEmitterSystem::removePostUpdateCallback	(	DtEmitterSystemCallbackFunction	cb,
		void *	userData
	)		[virtual]

static void DtReflectedEmitterSystem::setStateRepCreator

(

DtStateRepCreator

creator

)

[static]

Give us a function to be used for creating SRs.

virtual DtStateRepository* DtReflectedEmitterSystem::stateRep

(

)

const [virtual]

Returns a pointer to the StateRepository - through which you can inspect current state information.

Implementation for abstract base class. Calls esr().

Implements DtReflectedObject.

static DtStateRepCreator DtReflectedEmitterSystem::stateRepCreator

(

void

)

[static]

virtual DtReflectedEmitterSystem* DtReflectedEmitterSystem::wrapNext

(

)

const [virtual]

Get the next remote emitterSystem.

Will cycle back to the first remote emitterSystem.

Reimplemented from DtListedObj.

virtual DtReflectedEmitterSystem* DtReflectedEmitterSystem::wrapPrev

(

)

const [virtual]

Get the previous remote emitterSystem.

Will cycle back to the last remote emitterSystem.

Reimplemented from DtListedObj.

---

Member Data Documentation

DtSystemHashKey DtReflectedEmitterSystem::myHashKey [protected]

DtString DtReflectedEmitterSystem::myIdString [protected]

DtEmitterSystemRepository* DtReflectedEmitterSystem::myStateRepository [protected]

DtStateRepCreator DtReflectedEmitterSystem::theStateRepCreator [static, protected]

---

The documentation for this class was generated from the following file:

• dReflEmitrSys.h
