DtReflectedEnvironmentProcess Class Reference

The DtReflectedObject instance for an Environmental Process Object. More...

Inheritance diagram for DtReflectedEnvironmentProcess:

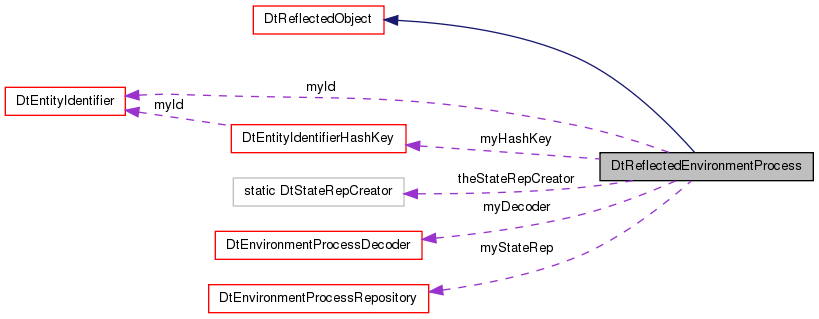

Collaboration diagram for DtReflectedEnvironmentProcess:

List of all members.

Public Types
typedef DtEnvironmentProcessRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtEnvironmentProcessRepositories.
Public Member Functions
	DtReflectedEnvironmentProcess (DtExerciseConn *conn, const DtEntityIdentifier &id, const DtEntityType &type)
	constructor
virtual	~DtReflectedEnvironmentProcess ()
	destructor
virtual DtEnvironmentProcessRepository *	environmentProcessStateRep () const
	Returns ptr to environmentProcessStateRepository -- through which you can inspect current state info.
virtual DtEnvironmentProcessRepository *	epsr () const
	Synonym for environmentStateRep.
virtual DtStateRepository *	stateRep () const
	Implementation for abstract base class. Calls epsr().
virtual DtEnvironmentProcessDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages into our EPSR.
virtual const DtEntityIdentifier &	entityId () const
	Returns the entity identifier.
virtual const DtObjectId &	id () const
	Get the environment process's id. (For DIS, DtObjectId is DtEntityIdentifier).
virtual const DtObjectId &	localId () const
	Get the environment process's local id. For DIS - same as id().
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the environment process's object's global object designator - for DIS, it's the same as its DtEntityIdentifier.
virtual void	processStateMessage (const DtStateMsg &msg)
	Process an environment process state PDU.
virtual DtReflectedEnvironmentProcess *	next () const
	Get the next and previous elements in the reflected environment process list.
virtual DtReflectedEnvironmentProcess *	prev () const
virtual DtReflectedEnvironmentProcess *	wrapNext () const
	Get the next and previous elements, wrap at the ends of the list.
virtual DtReflectedEnvironmentProcess *	wrapPrev () const
virtual void	addPostUpdateCallback (DtEnvironmentProcessCallbackFunction cb, void *userData)
	Environment Process callback registration/deregistration.
virtual void	removePostUpdateCallback (DtEnvironmentProcessCallbackFunction cb, void *userData)
virtual const DtBaseHashKey &	hashKey () const
	Get a hhash key for this object.
virtual DtString	idString () const
	Get a string identification of this object.
virtual void	processEnvironmentProcess (const DtEnvironmentalProcessPdu &pdu)
	Process an environmentalProcess PDU.
Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	stateRepCreator (void)
Protected Member Functions
	DtReflectedEnvironmentProcess (const DtReflectedEnvironmentProcess &orig)
	copy constructor -- not implemented
DtReflectedEnvironmentProcess &	operator= (const DtReflectedEnvironmentProcess &orig)
	assignment operator -- not implemented
Protected Attributes
DtEntityIdentifier	myId
DtEnvironmentProcessRepository *	myStateRep
DtEnvironmentProcessDecoder *	myDecoder
DtEntityIdentifierHashKey	myHashKey
Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

---

Detailed Description

The DtReflectedObject instance for an Environmental Process Object.

Examples: Environmental Process Example

---

Member Typedef Documentation

typedef DtEnvironmentProcessRepository*(* DtReflectedEnvironmentProcess::DtStateRepCreator)()

Function prototype for functions that create DtEnvironmentProcessRepositories.

---

Constructor & Destructor Documentation

DtReflectedEnvironmentProcess::DtReflectedEnvironmentProcess	(	DtExerciseConn *	conn,
		const DtEntityIdentifier &	id,
		const DtEntityType &	type
	)

constructor

virtual DtReflectedEnvironmentProcess::~DtReflectedEnvironmentProcess

(

)

[virtual]

destructor

DtReflectedEnvironmentProcess::DtReflectedEnvironmentProcess

(

const DtReflectedEnvironmentProcess &

orig

)

[protected]

copy constructor -- not implemented

---

Member Function Documentation

virtual void DtReflectedEnvironmentProcess::addPostUpdateCallback	(	DtEnvironmentProcessCallbackFunction	cb,
		void *	userData
	)		[virtual]

Environment Process callback registration/deregistration.

virtual DtEnvironmentProcessDecoder* DtReflectedEnvironmentProcess::decoder

(

)

[virtual]

Returns a pointer to the Decoder being used to decode state messages into our EPSR.

virtual const DtEntityIdentifier& DtReflectedEnvironmentProcess::entityId

(

)

const [virtual]

Returns the entity identifier.

virtual DtEnvironmentProcessRepository* DtReflectedEnvironmentProcess::environmentProcessStateRep

(

)

const [virtual]

Returns ptr to environmentProcessStateRepository -- through which you can inspect current state info.

virtual DtEnvironmentProcessRepository* DtReflectedEnvironmentProcess::epsr

(

)

const [virtual]

Synonym for environmentStateRep.

virtual const DtGlobalObjectDesignator& DtReflectedEnvironmentProcess::globalId

(

)

const [virtual]

Get the environment process's object's global object designator - for DIS, it's the same as its DtEntityIdentifier.

Implements DtReflectedObject.

virtual const DtBaseHashKey& DtReflectedEnvironmentProcess::hashKey

(

)

const [virtual]

Get a hhash key for this object.

Implements DtReflectedObject.

virtual const DtObjectId& DtReflectedEnvironmentProcess::id

(

)

const [virtual]

Get the environment process's id. (For DIS, DtObjectId is DtEntityIdentifier).

virtual DtString DtReflectedEnvironmentProcess::idString

(

)

const [virtual]

Get a string identification of this object.

Implements DtReflectedObject.

virtual const DtObjectId& DtReflectedEnvironmentProcess::localId

(

)

const [virtual]

Get the environment process's local id. For DIS - same as id().

virtual DtReflectedEnvironmentProcess* DtReflectedEnvironmentProcess::next

(

)

const [virtual]

Get the next and previous elements in the reflected environment process list.

Reimplemented from DtListedObj.

DtReflectedEnvironmentProcess& DtReflectedEnvironmentProcess::operator=

(

const DtReflectedEnvironmentProcess &

orig

)

[protected]

assignment operator -- not implemented

virtual DtReflectedEnvironmentProcess* DtReflectedEnvironmentProcess::prev

(

)

const [virtual]

Reimplemented from DtListedObj.

virtual void DtReflectedEnvironmentProcess::processEnvironmentProcess

(

const DtEnvironmentalProcessPdu &

pdu

)

[virtual]

Process an environmentalProcess PDU.

Also calls down to base class processStateMessage().

virtual void DtReflectedEnvironmentProcess::processStateMessage

(

const DtStateMsg &

msg

)

[virtual]

Process an environment process state PDU.

Calls processEnvironmentProcess().

Reimplemented from DtReflectedObject.

virtual void DtReflectedEnvironmentProcess::removePostUpdateCallback	(	DtEnvironmentProcessCallbackFunction	cb,
		void *	userData
	)		[virtual]

static void DtReflectedEnvironmentProcess::setStateRepCreator

(

DtStateRepCreator

creator

)

[static]

Give us a function to be used for creating SRs.

virtual DtStateRepository* DtReflectedEnvironmentProcess::stateRep

(

)

const [virtual]

Implementation for abstract base class. Calls epsr().

Implements DtReflectedObject.

static DtStateRepCreator DtReflectedEnvironmentProcess::stateRepCreator

(

void

)

[static]

virtual DtReflectedEnvironmentProcess* DtReflectedEnvironmentProcess::wrapNext

(

)

const [virtual]

Get the next and previous elements, wrap at the ends of the list.

Reimplemented from DtListedObj.

virtual DtReflectedEnvironmentProcess* DtReflectedEnvironmentProcess::wrapPrev

(

)

const [virtual]

Reimplemented from DtListedObj.

---

Member Data Documentation

DtEnvironmentProcessDecoder* DtReflectedEnvironmentProcess::myDecoder [protected]

DtEntityIdentifierHashKey DtReflectedEnvironmentProcess::myHashKey [protected]

DtEntityIdentifier DtReflectedEnvironmentProcess::myId [protected]

DtEnvironmentProcessRepository* DtReflectedEnvironmentProcess::myStateRep [protected]

DtStateRepCreator DtReflectedEnvironmentProcess::theStateRepCreator [static, protected]

---

The documentation for this class was generated from the following file:

• dReflEnvProc.h
