DtSilentEntityList Class Reference

DtSilentEntityList is a class which contains the information needed to describe a list of silent entities for the aggregate state PDU. More...

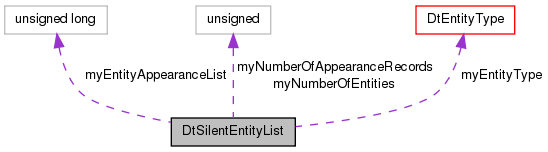

Collaboration diagram for DtSilentEntityList:

List of all members.

Public Member Functions
	DtSilentEntityList ()
	Constructors.
	DtSilentEntityList (const DtSilentEntityList &orig)
virtual	~DtSilentEntityList ()
	Destructor.
DtSilentEntityList &	operator= (const DtSilentEntityList &orig)
	Assignment operator.
DtSilentEntityList &	operator= (const DtNetSilentEntityList &orig)
int	operator== (const DtSilentEntityList &otherguy) const
	Comparison operators.
int	operator!= (const DtSilentEntityList &otherguy) const
virtual void	setNumberOfEntities (const DtU16 value)
	Set/Get the number of aggregates.
virtual DtU16	numberOfEntities () const
virtual void	setEntityType (const DtEntityType &type)
	Set/Get the entity type.
virtual const DtEntityType &	entityType () const
virtual bool	setNumberOfAppearanceRecords (const DtU16 value)
	Set/Get the number of appearance records.
virtual DtU16	numberOfAppearanceRecords () const
virtual bool	setAppearance (int index, DtU32 app)
	Set/Get the appearance of an entity (as a 32 bit integer).
virtual bool	getAppearance (int index, DtU32 &app) const
virtual bool	setAppearanceAttribute (int index, const DtAppearAttribute attr, const DtAppearAttrVal val)
	Set/Get appearance by attribute.
virtual bool	getAppearanceAttribute (int index, const DtAppearAttribute attr, DtAppearAttrVal &val) const
virtual void	printData () const
	Print the record.
virtual void	printDataToStream (std::ostream &stream) const
virtual void	unloadNetRecord (const DtNetSilentEntityList &record)
	Load/unload data from a packet record.
virtual void	unloadNetRecord (const DtNetSilentEntityList_RPR_20 &record)
virtual void	loadNetRecord (DtNetSilentEntityList &record) const
virtual void	loadNetRecord (DtNetSilentEntityList_RPR_20 &record) const
virtual int	networkByteLength (double rpr_version=1.0) const
	Get the network byte length of this record.
Static Public Member Functions
static int	byteLengthOfNetworkRecord (DtNetSilentEntityList *recPtr, double rprVersion=1.0)
	Get the length of the network representation of a record.
Protected Attributes
DtU16	myNumberOfEntities
	Data members:
DtEntityType	myEntityType
DtU16	myNumberOfAppearanceRecords
DtU32 *	myEntityAppearanceList

---

Detailed Description

DtSilentEntityList is a class which contains the information needed to describe a list of silent entities for the aggregate state PDU.

---

Constructor & Destructor Documentation

DtSilentEntityList::DtSilentEntityList

(

)

Constructors.

DtSilentEntityList::DtSilentEntityList

(

const DtSilentEntityList &

orig

)

virtual DtSilentEntityList::~DtSilentEntityList

(

)

[virtual]

Destructor.

---

Member Function Documentation

static int DtSilentEntityList::byteLengthOfNetworkRecord	(	DtNetSilentEntityList *	recPtr,
		double	rprVersion = 1.0
	)		[static]

Get the length of the network representation of a record.

If this is for the RPR FOM, specify the version

virtual const DtEntityType& DtSilentEntityList::entityType

(

)

const [virtual]

virtual bool DtSilentEntityList::getAppearance	(	int	index,
		DtU32 &	app
	)		const [virtual]

virtual bool DtSilentEntityList::getAppearanceAttribute	(	int	index,
		const DtAppearAttribute	attr,
		DtAppearAttrVal &	val
	)		const [virtual]

virtual void DtSilentEntityList::loadNetRecord

(

DtNetSilentEntityList &

record

)

const [virtual]

virtual void DtSilentEntityList::loadNetRecord

(

DtNetSilentEntityList_RPR_20 &

record

)

const [virtual]

virtual int DtSilentEntityList::networkByteLength

(

double

rpr_version = 1.0

)

const [virtual]

Get the network byte length of this record.

If this is for the RPR FOM, specify the version.

virtual DtU16 DtSilentEntityList::numberOfAppearanceRecords

(

)

const [virtual]

virtual DtU16 DtSilentEntityList::numberOfEntities

(

)

const [virtual]

int DtSilentEntityList::operator!=

(

const DtSilentEntityList &

otherguy

)

const

DtSilentEntityList& DtSilentEntityList::operator=

(

const DtSilentEntityList &

orig

)

Assignment operator.

DtSilentEntityList& DtSilentEntityList::operator=

(

const DtNetSilentEntityList &

orig

)

int DtSilentEntityList::operator==

(

const DtSilentEntityList &

otherguy

)

const

Comparison operators.

virtual void DtSilentEntityList::printData

(

)

const [virtual]

Print the record.

virtual void DtSilentEntityList::printDataToStream

(

std::ostream &

stream

)

const [virtual]

virtual bool DtSilentEntityList::setAppearance	(	int	index,
		DtU32	app
	)		[virtual]

Set/Get the appearance of an entity (as a 32 bit integer).

Returns false if the index is out of range. Set will erase all previous values.

virtual bool DtSilentEntityList::setAppearanceAttribute	(	int	index,
		const DtAppearAttribute	attr,
		const DtAppearAttrVal	val
	)		[virtual]

Set/Get appearance by attribute.

Returns false if the index is out of range.

virtual void DtSilentEntityList::setEntityType

(

const DtEntityType &

type

)

[virtual]

Set/Get the entity type.

virtual bool DtSilentEntityList::setNumberOfAppearanceRecords

(

const DtU16

value

)

[virtual]

Set/Get the number of appearance records.

Set returns false if the value is too large, old values are not retained when the number changes.

virtual void DtSilentEntityList::setNumberOfEntities

(

const DtU16

value

)

[virtual]

Set/Get the number of aggregates.

virtual void DtSilentEntityList::unloadNetRecord

(

const DtNetSilentEntityList &

record

)

[virtual]

Load/unload data from a packet record.

virtual void DtSilentEntityList::unloadNetRecord

(

const DtNetSilentEntityList_RPR_20 &

record

)

[virtual]

---

Member Data Documentation

DtU32* DtSilentEntityList::myEntityAppearanceList [protected]

DtEntityType DtSilentEntityList::myEntityType [protected]

DtU16 DtSilentEntityList::myNumberOfAppearanceRecords [protected]

DtU16 DtSilentEntityList::myNumberOfEntities [protected]

Data members:

---

The documentation for this class was generated from the following file:

• aggEntList.h
