DtAcknowledgeInteraction Class Reference

Instances of DtAcknowledgeInteraction are used to represent Acknowledge Interactions in the RPR ROM. More...

Inheritance diagram for DtAcknowledgeInteraction:

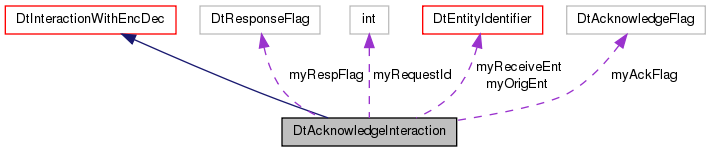

Collaboration diagram for DtAcknowledgeInteraction:

List of all members.

Public Member Functions
	DtAcknowledgeInteraction ()
	default constructor
virtual	~DtAcknowledgeInteraction ()
	destructor
	DtAcknowledgeInteraction (const DtAcknowledgeInteraction &orig)
	copy constructor
DtAcknowledgeInteraction &	operator= (const DtAcknowledgeInteraction &orig)
	assignment operator
virtual void	printData () const
	Print the interaction's data.
virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the specified stream.
virtual void	setSenderId (const DtEntityIdentifier &id)
	Set/Get sender ID.
virtual const DtEntityIdentifier &	senderId () const
virtual void	setReceiverId (const DtEntityIdentifier &id)
	Set/Get receiver ID.
virtual const DtEntityIdentifier &	receiverId () const
virtual void	setAcknowledgeFlag (DtAcknowledgeFlag flag)
	Set/Get acknowledge flag.
virtual DtAcknowledgeFlag	acknowledgeFlag () const
virtual void	setResponseFlag (DtResponseFlag flag)
	Set/Get response flag.
virtual DtResponseFlag	responseFlag () const
virtual void	setRequestId (int id)
	Set/Get request ID.
virtual int	requestId () const
virtual const char *	name () const
	Name of the interaction (Not necessarily the ClassName from the FOM).
Static Public Member Functions
static DtInteraction *	create ()
	Create a DtAcknowledgeInteraction.
static void	addCallback (DtExerciseConn *conn, DtAcknowledgeInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register)/Remove (deregister) function to be called when interaction occurs.
static void	removeCallback (DtExerciseConn *conn, DtAcknowledgeInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
Protected Attributes
DtEntityIdentifier	myOrigEnt
DtEntityIdentifier	myReceiveEnt
int	myRequestId
DtAcknowledgeFlag	myAckFlag
DtResponseFlag	myRespFlag

---

Detailed Description

Instances of DtAcknowledgeInteraction are used to represent Acknowledge Interactions in the RPR ROM.

---

Constructor & Destructor Documentation

DtAcknowledgeInteraction::DtAcknowledgeInteraction

(

)

default constructor

virtual DtAcknowledgeInteraction::~DtAcknowledgeInteraction

(

)

[virtual]

destructor

DtAcknowledgeInteraction::DtAcknowledgeInteraction

(

const DtAcknowledgeInteraction &

orig

)

copy constructor

---

Member Function Documentation

virtual DtAcknowledgeFlag DtAcknowledgeInteraction::acknowledgeFlag

(

)

const [virtual]

static void DtAcknowledgeInteraction::addCallback	(	DtExerciseConn *	conn,
		DtAcknowledgeInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

Add (register)/Remove (deregister) function to be called when interaction occurs.

static DtInteraction* DtAcknowledgeInteraction::create

(

)

[static]

Create a DtAcknowledgeInteraction.

Caller is responsible for deletion.

virtual const char* DtAcknowledgeInteraction::name

(

)

const [virtual]

Name of the interaction (Not necessarily the ClassName from the FOM).

Implements DtInteraction.

DtAcknowledgeInteraction& DtAcknowledgeInteraction::operator=

(

const DtAcknowledgeInteraction &

orig

)

assignment operator

virtual void DtAcknowledgeInteraction::printData

(

)

const [virtual]

Print the interaction's data.

Reimplemented from DtInteraction.

virtual void DtAcknowledgeInteraction::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Print the interaction's data to the specified stream.

Reimplemented from DtInteraction.

virtual const DtEntityIdentifier& DtAcknowledgeInteraction::receiverId

(

)

const [virtual]

static void DtAcknowledgeInteraction::removeCallback	(	DtExerciseConn *	conn,
		DtAcknowledgeInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

virtual int DtAcknowledgeInteraction::requestId

(

)

const [virtual]

virtual DtResponseFlag DtAcknowledgeInteraction::responseFlag

(

)

const [virtual]

virtual const DtEntityIdentifier& DtAcknowledgeInteraction::senderId

(

)

const [virtual]

virtual void DtAcknowledgeInteraction::setAcknowledgeFlag

(

DtAcknowledgeFlag

flag

)

[virtual]

Set/Get acknowledge flag.

virtual void DtAcknowledgeInteraction::setReceiverId

(

const DtEntityIdentifier &

id

)

[virtual]

Set/Get receiver ID.

virtual void DtAcknowledgeInteraction::setRequestId

(

int

id

)

[virtual]

Set/Get request ID.

virtual void DtAcknowledgeInteraction::setResponseFlag

(

DtResponseFlag

flag

)

[virtual]

Set/Get response flag.

virtual void DtAcknowledgeInteraction::setSenderId

(

const DtEntityIdentifier &

id

)

[virtual]

Set/Get sender ID.

---

Member Data Documentation

DtAcknowledgeFlag DtAcknowledgeInteraction::myAckFlag [protected]

DtEntityIdentifier DtAcknowledgeInteraction::myOrigEnt [protected]

DtEntityIdentifier DtAcknowledgeInteraction::myReceiveEnt [protected]

int DtAcknowledgeInteraction::myRequestId [protected]

DtResponseFlag DtAcknowledgeInteraction::myRespFlag [protected]

---

The documentation for this class was generated from the following file:

• hAckInter.h
