DtAggregateStateRepository Class Reference

A protocol independent representation of an aggregate. More...

Inheritance diagram for DtAggregateStateRepository:

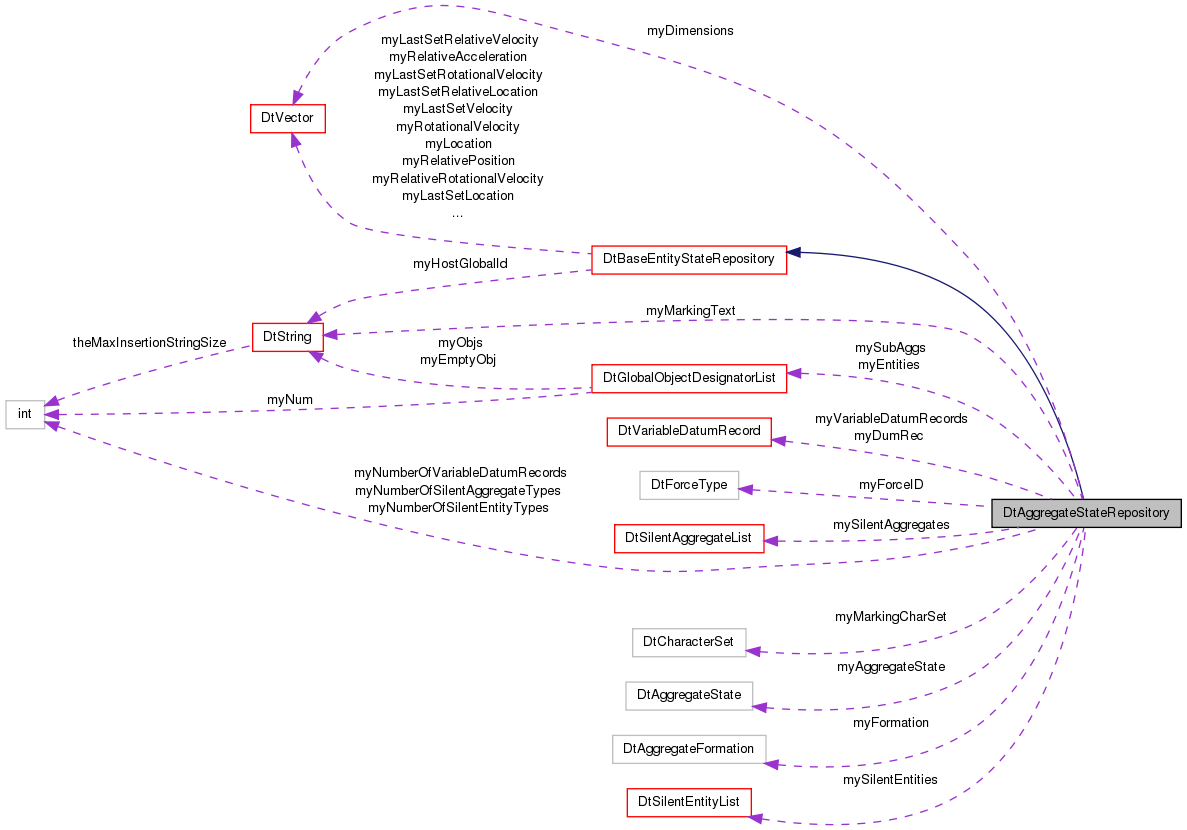

Collaboration diagram for DtAggregateStateRepository:

List of all members.

Public Types
enum	{ AGGREGATE_SR_MARKING_TEXT_LENGTH = 11 }
	Aggregate state PDU marking is 31 bytes long, RPR marking struct is 11. More...
Public Member Functions
	DtAggregateStateRepository ()
	default constructor
virtual	~DtAggregateStateRepository ()
	destructor
	DtAggregateStateRepository (const DtAggregateStateRepository &orig)
	copy constructor
DtAggregateStateRepository &	operator= (const DtAggregateStateRepository &orig)
	assignment operator
virtual DtStateRepository *	clone (bool copy=false) const
	Return a copy/empty object of the same type as this.
virtual void	setAggregateID (const DtEntityIdentifier &id)
	Set/Get the aggregate's identifier. Calls down to base class.
virtual const DtEntityIdentifier &	aggregateID () const
virtual void	setForceId (DtForceType force)
	Set/Get the force type.
virtual DtForceType	forceId () const
virtual void	setAggregateState (DtAggregateState value)
	Set/Get the aggregate state.
virtual DtAggregateState	aggregateState () const
virtual void	setAggregateType (const DtEntityType &type)
	Set/Get the aggregate type. Calls down to base class.
virtual const DtEntityType &	aggregateType () const
virtual void	setFormation (DtAggregateFormation value)
	Set/Get the formation.
virtual DtAggregateFormation	formation () const
virtual void	setMarkingCharacterSet (DtCharacterSet value)
	Set/Get marking character set.
virtual DtCharacterSet	markingCharacterSet () const
virtual void	setMarkingText (DtU8 *copyFrom)
	Set/Get marking text.
virtual void	setMarkingText (const DtString &text)
virtual void	getMarkingText (DtU8 *copyTo) const
virtual const char *	markingText () const
virtual void	setDimensions (const DtVector &dims)
	Set/Get the dimensions.
virtual const DtVector &	dimensions () const
const DtGlobalObjectDesignatorList &	entities () const
	Return the list of published entities in the aggregate.
DtGlobalObjectDesignatorList *	entities ()
DtGlobalObjectDesignatorList *	subAggregates ()
	Return the list of published subaggregates in the aggregate.
const DtGlobalObjectDesignatorList &	subAggregates () const
virtual bool	setNumberOfDIS_Subaggregates (int newNumberOfAggregates)
	Set/Get the number of DIS sub-aggregates.
virtual int	numberOfDIS_Subaggregates () const
virtual bool	setNumberOfDIS_Entities (int newNumberOfEntities)
	Set/Get the number of DIS entities.
virtual int	numberOfDIS_Entities () const
virtual bool	setNumberOfSilentSubaggregates (int newNumberOfAggregates)
	Set/Get the number of silent aggregates.
virtual int	numberOfSilentSubaggregates () const
virtual bool	setNumberOfSilentEntities (int newNumberOfEntities)
	Set/Get the number of silent entities.
virtual int	numberOfSilentEntities () const
	Returns the number of silent entity list items.
virtual bool	setSubaggregateID (int index, const DtGlobalObjectDesignator &aggID)
	Set/Get a DIS sub-aggregate ID.
virtual bool	getSubaggregateID (int index, DtGlobalObjectDesignator &aggID) const
virtual bool	setEntityID (int index, const DtGlobalObjectDesignator &entID)
	Set/Get a DIS entity ID.
virtual bool	getEntityID (int index, DtGlobalObjectDesignator &entID) const
virtual bool	setSilentAggregateList (int index, const DtSilentAggregateList &aggList)
	Set/Get a silent aggregate list.
virtual bool	getSilentAggregateList (int index, DtSilentAggregateList &aggList) const
virtual bool	setSilentEntityList (int index, const DtSilentEntityList &entList)
	Set/Get a silent entity list.
virtual bool	getSilentEntityList (int index, DtSilentEntityList &entList) const
virtual bool	setNumberOfDatumRecords (int newNumberOfRecords)
	Set the number of variable datum records.
virtual int	numberOfDatumRecords () const
	Get the number of variable datum records.
virtual bool	setVariableDatumRecord (int index, const DtVariableDatumRecord &rec)
	Set/Get a variable datum record.
virtual bool	getVariableDatumRecord (int index, DtVariableDatumRecord &rec) const
virtual DtVariableDatumRecord &	variableDatumRecordRef (int index)
	Get a reference to a variable datum record.
virtual const DtVariableDatumRecord &	variableDatumRecordConstRef (int index) const
	Get a constant reference to a variable datum record.
virtual void	printData () const
	Print the state data to the DtInfo Stream.
virtual void	printDataToStream (std::ostream &stream) const
	Prints the state data to the stream.
Static Public Member Functions
static DtAggregateStateRepository *	create ()
Protected Member Functions
DtAggregateStateRepository *	self () const
	Cast off const-ness for trivial internal change.
Protected Attributes
DtForceType	myForceID
DtAggregateState	myAggregateState
DtAggregateFormation	myFormation
DtCharacterSet	myMarkingCharSet
DtString	myMarkingText
DtVector	myDimensions
DtGlobalObjectDesignatorList	myEntities
DtGlobalObjectDesignatorList	mySubAggs
int	myNumberOfSilentAggregateTypes
DtSilentAggregateList *	mySilentAggregates
int	myNumberOfSilentEntityTypes
DtSilentEntityList *	mySilentEntities
int	myNumberOfVariableDatumRecords
DtVariableDatumRecord *	myVariableDatumRecords
DtVariableDatumRecord	myDumRec

---

Detailed Description

A protocol independent representation of an aggregate.

Instances of DtAggregateStateRepository are used to maintain the state of an aggregate. It provides an interface which covers the various features which define the state of an aggregate.

---

Member Enumeration Documentation

anonymous enum

Aggregate state PDU marking is 31 bytes long, RPR marking struct is 11.

Enumerator:

AGGREGATE_SR_MARKING_TEXT_LENGTH

---

Constructor & Destructor Documentation

DtAggregateStateRepository::DtAggregateStateRepository

(

)

default constructor

virtual DtAggregateStateRepository::~DtAggregateStateRepository

(

)

[virtual]

destructor

DtAggregateStateRepository::DtAggregateStateRepository

(

const DtAggregateStateRepository &

orig

)

copy constructor

---

Member Function Documentation

virtual const DtEntityIdentifier& DtAggregateStateRepository::aggregateID

(

)

const [virtual]

virtual DtAggregateState DtAggregateStateRepository::aggregateState

(

)

const [virtual]

virtual const DtEntityType& DtAggregateStateRepository::aggregateType

(

)

const [virtual]

virtual DtStateRepository* DtAggregateStateRepository::clone

(

bool

copy = false

)

const [virtual]

Return a copy/empty object of the same type as this.

Reimplemented from DtBaseEntityStateRepository.

static DtAggregateStateRepository* DtAggregateStateRepository::create

(

)

[static]

virtual const DtVector& DtAggregateStateRepository::dimensions

(

)

const [virtual]

const DtGlobalObjectDesignatorList& DtAggregateStateRepository::entities

(

)

const

Return the list of published entities in the aggregate.

DtGlobalObjectDesignatorList* DtAggregateStateRepository::entities

(

)

virtual DtForceType DtAggregateStateRepository::forceId

(

)

const [virtual]

virtual DtAggregateFormation DtAggregateStateRepository::formation

(

)

const [virtual]

virtual bool DtAggregateStateRepository::getEntityID	(	int	index,
		DtGlobalObjectDesignator &	entID
	)		const [virtual]

virtual void DtAggregateStateRepository::getMarkingText

(

DtU8 *

copyTo

)

const [virtual]

virtual bool DtAggregateStateRepository::getSilentAggregateList	(	int	index,
		DtSilentAggregateList &	aggList
	)		const [virtual]

virtual bool DtAggregateStateRepository::getSilentEntityList	(	int	index,
		DtSilentEntityList &	entList
	)		const [virtual]

virtual bool DtAggregateStateRepository::getSubaggregateID	(	int	index,
		DtGlobalObjectDesignator &	aggID
	)		const [virtual]

virtual bool DtAggregateStateRepository::getVariableDatumRecord	(	int	index,
		DtVariableDatumRecord &	rec
	)		const [virtual]

virtual DtCharacterSet DtAggregateStateRepository::markingCharacterSet

(

)

const [virtual]

virtual const char* DtAggregateStateRepository::markingText

(

)

const [virtual]

virtual int DtAggregateStateRepository::numberOfDatumRecords

(

)

const [virtual]

Get the number of variable datum records.

virtual int DtAggregateStateRepository::numberOfDIS_Entities

(

)

const [virtual]

virtual int DtAggregateStateRepository::numberOfDIS_Subaggregates

(

)

const [virtual]

virtual int DtAggregateStateRepository::numberOfSilentEntities

(

)

const [virtual]

Returns the number of silent entity list items.

virtual int DtAggregateStateRepository::numberOfSilentSubaggregates

(

)

const [virtual]

DtAggregateStateRepository& DtAggregateStateRepository::operator=

(

const DtAggregateStateRepository &

orig

)

assignment operator

virtual void DtAggregateStateRepository::printData

(

)

const [virtual]

Print the state data to the DtInfo Stream.

Reimplemented from DtBaseEntityStateRepository.

virtual void DtAggregateStateRepository::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Prints the state data to the stream.

Reimplemented from DtBaseEntityStateRepository.

DtAggregateStateRepository* DtAggregateStateRepository::self

(

)

const [protected]

Cast off const-ness for trivial internal change.

Non-virtual since can't override on return type.

Reimplemented from DtBaseEntityStateRepository.

virtual void DtAggregateStateRepository::setAggregateID

(

const DtEntityIdentifier &

id

)

[virtual]

Set/Get the aggregate's identifier. Calls down to base class.

virtual void DtAggregateStateRepository::setAggregateState

(

DtAggregateState

value

)

[virtual]

Set/Get the aggregate state.

virtual void DtAggregateStateRepository::setAggregateType

(

const DtEntityType &

type

)

[virtual]

Set/Get the aggregate type. Calls down to base class.

virtual void DtAggregateStateRepository::setDimensions

(

const DtVector &

dims

)

[virtual]

Set/Get the dimensions.

virtual bool DtAggregateStateRepository::setEntityID	(	int	index,
		const DtGlobalObjectDesignator &	entID
	)		[virtual]

Set/Get a DIS entity ID.

Returns false if the index is invalid. Can be done through entities() instead.

virtual void DtAggregateStateRepository::setForceId

(

DtForceType

force

)

[virtual]

Set/Get the force type.

virtual void DtAggregateStateRepository::setFormation

(

DtAggregateFormation

value

)

[virtual]

Set/Get the formation.

virtual void DtAggregateStateRepository::setMarkingCharacterSet

(

DtCharacterSet

value

)

[virtual]

Set/Get marking character set.

virtual void DtAggregateStateRepository::setMarkingText

(

DtU8 *

copyFrom

)

[virtual]

Set/Get marking text.

virtual void DtAggregateStateRepository::setMarkingText

(

const DtString &

text

)

[virtual]

virtual bool DtAggregateStateRepository::setNumberOfDatumRecords

(

int

newNumberOfRecords

)

[virtual]

Set the number of variable datum records.

Returns false if the number of records is too large. This will erase the contents of existing datum records.

virtual bool DtAggregateStateRepository::setNumberOfDIS_Entities

(

int

newNumberOfEntities

)

[virtual]

Set/Get the number of DIS entities.

Set returns false if the requested number is too large. Changing this number will erase all previous data. Can be done through entities() instead.

virtual bool DtAggregateStateRepository::setNumberOfDIS_Subaggregates

(

int

newNumberOfAggregates

)

[virtual]

Set/Get the number of DIS sub-aggregates.

Set returns false if the requested number is too large. Changing this number will erase all previous data. Can be done through subAggregates() instead.

virtual bool DtAggregateStateRepository::setNumberOfSilentEntities

(

int

newNumberOfEntities

)

[virtual]

Set/Get the number of silent entities.

Set returns false if the requested number is too large. Changing this number will erase all previous data.

virtual bool DtAggregateStateRepository::setNumberOfSilentSubaggregates

(

int

newNumberOfAggregates

)

[virtual]

Set/Get the number of silent aggregates.

Set returns false if the requested number is too large. Changing this number will erase all previous data.

virtual bool DtAggregateStateRepository::setSilentAggregateList	(	int	index,
		const DtSilentAggregateList &	aggList
	)		[virtual]

Set/Get a silent aggregate list.

Returns false if the index is invalid.

virtual bool DtAggregateStateRepository::setSilentEntityList	(	int	index,
		const DtSilentEntityList &	entList
	)		[virtual]

Set/Get a silent entity list.

Returns false if the index is invalid.

virtual bool DtAggregateStateRepository::setSubaggregateID	(	int	index,
		const DtGlobalObjectDesignator &	aggID
	)		[virtual]

Set/Get a DIS sub-aggregate ID.

Returns false if the index is invalid. Can be done through subAggregates() instead.

virtual bool DtAggregateStateRepository::setVariableDatumRecord	(	int	index,
		const DtVariableDatumRecord &	rec
	)		[virtual]

Set/Get a variable datum record.

Returns false if the index is invalid.

DtGlobalObjectDesignatorList* DtAggregateStateRepository::subAggregates

(

)

Return the list of published subaggregates in the aggregate.

const DtGlobalObjectDesignatorList& DtAggregateStateRepository::subAggregates

(

)

const

virtual const DtVariableDatumRecord& DtAggregateStateRepository::variableDatumRecordConstRef

(

int

index

)

const [virtual]

Get a constant reference to a variable datum record.

virtual DtVariableDatumRecord& DtAggregateStateRepository::variableDatumRecordRef

(

int

index

)

[virtual]

Get a reference to a variable datum record.

---

Member Data Documentation

DtAggregateState DtAggregateStateRepository::myAggregateState [protected]

DtVector DtAggregateStateRepository::myDimensions [protected]

DtVariableDatumRecord DtAggregateStateRepository::myDumRec [protected]

DtGlobalObjectDesignatorList DtAggregateStateRepository::myEntities [protected]

DtForceType DtAggregateStateRepository::myForceID [protected]

DtAggregateFormation DtAggregateStateRepository::myFormation [protected]

DtCharacterSet DtAggregateStateRepository::myMarkingCharSet [protected]

DtString DtAggregateStateRepository::myMarkingText [protected]

int DtAggregateStateRepository::myNumberOfSilentAggregateTypes [protected]

int DtAggregateStateRepository::myNumberOfSilentEntityTypes [protected]

int DtAggregateStateRepository::myNumberOfVariableDatumRecords [protected]

DtSilentAggregateList* DtAggregateStateRepository::mySilentAggregates [protected]

DtSilentEntityList* DtAggregateStateRepository::mySilentEntities [protected]

DtGlobalObjectDesignatorList DtAggregateStateRepository::mySubAggs [protected]

DtVariableDatumRecord* DtAggregateStateRepository::myVariableDatumRecords [protected]

---

The documentation for this class was generated from the following file:

• aggregateSR.h
