DtArealObjectTransaction Class Reference

class DtArealObjectTransaction: More...

Inheritance diagram for DtArealObjectTransaction:

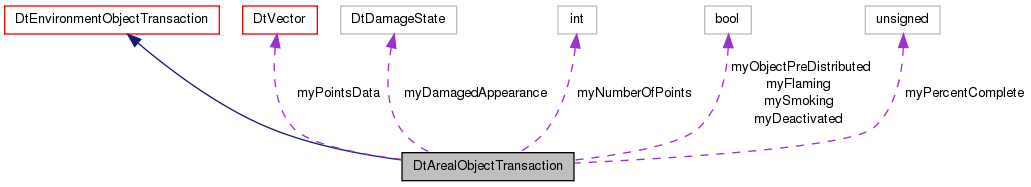

Collaboration diagram for DtArealObjectTransaction:

List of all members.

Public Member Functions
	DtArealObjectTransaction ()
	default constructor
virtual	~DtArealObjectTransaction ()
	destructor
	DtArealObjectTransaction (const DtArealObjectTransaction &orig)
	copy constructor
DtArealObjectTransaction &	operator= (const DtArealObjectTransaction &orig)
	assignment operator
virtual void	printData () const
	Print the interaction's data to DtInfo.
virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the specified stream.
virtual bool	setNumberOfPoints (int value)
	Set/Get Number of Points.
virtual int	numberOfPoints () const
virtual bool	setPointsData (int index, const DtVector &point)
	Set/Get Points Data.
virtual bool	pointsData (int index, DtVector &point) const
virtual void	setPercentComplete (const DtU32 value)
	Set/Get Percent Complete.
virtual DtU32	percentComplete () const
virtual void	setDamagedAppearance (const DtDamageState value)
	Set/Get Damaged Appearance.
virtual DtDamageState	damagedAppearance () const
virtual void	setObjectPreDistributed (bool onOff)
	Set/Get Object PreDistributed.
virtual bool	objectPreDistributed () const
virtual void	setDeactivated (bool onOff)
	Set/Get Deactivated.
virtual bool	deactivated () const
virtual void	setSmoking (bool onOff)
	Set/Get Smoking.
virtual bool	smoking () const
virtual void	setFlaming (bool onOff)
	Set/Get Flaming.
virtual bool	flaming () const
virtual const char *	name () const
	Name of the interaction. (Not necessarily the ClassName from the FOM.)
Static Public Member Functions
static DtInteraction *	create ()
	Create a DtEnvironmentObjectTransaction.
static void	addCallback (DtExerciseConn *conn, DtArealObjectTransactionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register)/Remove (deregister) function to be called when interaction occurs.
static void	removeCallback (DtExerciseConn *conn, DtArealObjectTransactionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
Protected Attributes
int	myNumberOfPoints
DtVector *	myPointsData
DtU32	myPercentComplete
DtDamageState	myDamagedAppearance
bool	myObjectPreDistributed
bool	myDeactivated
bool	mySmoking
bool	myFlaming

---

Detailed Description

class DtArealObjectTransaction:

Instances of DtArealObjectTransaction are used to represent Areal Object Transactions in the RPR FOM.

---

Constructor & Destructor Documentation

DtArealObjectTransaction::DtArealObjectTransaction

(

)

default constructor

virtual DtArealObjectTransaction::~DtArealObjectTransaction

(

)

[virtual]

destructor

DtArealObjectTransaction::DtArealObjectTransaction

(

const DtArealObjectTransaction &

orig

)

copy constructor

---

Member Function Documentation

static void DtArealObjectTransaction::addCallback	(	DtExerciseConn *	conn,
		DtArealObjectTransactionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

Add (register)/Remove (deregister) function to be called when interaction occurs.

static DtInteraction* DtArealObjectTransaction::create

(

)

[static]

Create a DtEnvironmentObjectTransaction.

Caller is responsible for deletion.

Reimplemented from DtEnvironmentObjectTransaction.

virtual DtDamageState DtArealObjectTransaction::damagedAppearance

(

)

const [virtual]

virtual bool DtArealObjectTransaction::deactivated

(

)

const [virtual]

virtual bool DtArealObjectTransaction::flaming

(

)

const [virtual]

virtual const char* DtArealObjectTransaction::name

(

)

const [virtual]

Name of the interaction. (Not necessarily the ClassName from the FOM.)

Reimplemented from DtEnvironmentObjectTransaction.

virtual int DtArealObjectTransaction::numberOfPoints

(

)

const [virtual]

virtual bool DtArealObjectTransaction::objectPreDistributed

(

)

const [virtual]

DtArealObjectTransaction& DtArealObjectTransaction::operator=

(

const DtArealObjectTransaction &

orig

)

assignment operator

virtual DtU32 DtArealObjectTransaction::percentComplete

(

)

const [virtual]

virtual bool DtArealObjectTransaction::pointsData	(	int	index,
		DtVector &	point
	)		const [virtual]

virtual void DtArealObjectTransaction::printData

(

)

const [virtual]

Print the interaction's data to DtInfo.

Reimplemented from DtEnvironmentObjectTransaction.

virtual void DtArealObjectTransaction::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Print the interaction's data to the specified stream.

Reimplemented from DtEnvironmentObjectTransaction.

static void DtArealObjectTransaction::removeCallback	(	DtExerciseConn *	conn,
		DtArealObjectTransactionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

virtual void DtArealObjectTransaction::setDamagedAppearance

(

const DtDamageState

value

)

[virtual]

Set/Get Damaged Appearance.

virtual void DtArealObjectTransaction::setDeactivated

(

bool

onOff

)

[virtual]

Set/Get Deactivated.

virtual void DtArealObjectTransaction::setFlaming

(

bool

onOff

)

[virtual]

Set/Get Flaming.

virtual bool DtArealObjectTransaction::setNumberOfPoints

(

int

value

)

[virtual]

Set/Get Number of Points.

virtual void DtArealObjectTransaction::setObjectPreDistributed

(

bool

onOff

)

[virtual]

Set/Get Object PreDistributed.

virtual void DtArealObjectTransaction::setPercentComplete

(

const DtU32

value

)

[virtual]

Set/Get Percent Complete.

virtual bool DtArealObjectTransaction::setPointsData	(	int	index,
		const DtVector &	point
	)		[virtual]

Set/Get Points Data.

virtual void DtArealObjectTransaction::setSmoking

(

bool

onOff

)

[virtual]

Set/Get Smoking.

virtual bool DtArealObjectTransaction::smoking

(

)

const [virtual]

---

Member Data Documentation

DtDamageState DtArealObjectTransaction::myDamagedAppearance [protected]

bool DtArealObjectTransaction::myDeactivated [protected]

bool DtArealObjectTransaction::myFlaming [protected]

int DtArealObjectTransaction::myNumberOfPoints [protected]

bool DtArealObjectTransaction::myObjectPreDistributed [protected]

DtU32 DtArealObjectTransaction::myPercentComplete [protected]

DtVector* DtArealObjectTransaction::myPointsData [protected]

bool DtArealObjectTransaction::mySmoking [protected]

---

The documentation for this class was generated from the following file:

• hArealObjTrans.h
