VR-Link API Documentation for HLA 1.3
|
|
VR-Link API Documentation for HLA 1.3
|
Used to set and maintain time in a simulation. More...

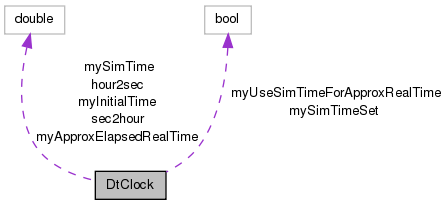

Collaboration diagram for DtClock:Public Member Functions | |
| DtClock () | |
| constructor calls init() | |
| DtClock (const DtClock &orig) | |
| copy constructor | |
| DtClock & | operator= (const DtClock &orig) |
| assignment operator | |
| virtual | ~DtClock () |
| destructor | |
| virtual void | init () |
| Initialize all VR-Link time object functionality. | |
| virtual DtTime | simTime () const |
| Get the current value of VR-Link's simulation time. | |
| virtual void | setSimTime (DtTime NewSimTime) |
| Set the current value of VR-Link simulation time. | |
| virtual bool | isSimTimeSet () const |
| Returns false if DtSetSimTime was never called and prints out warning message. | |
| virtual DtTime | elapsedRealTime () const |
| Return real seconds elapsed since DtTimeInit was called. | |
| virtual DtTime | approximateElapsedRealTime () const |
| Returns the value of getElapsedRealTime at the time that setSimTime was last invoked. | |
| virtual bool | useSimTimeForApproxRealTime () const |
| Check whether myUseSimTimeForApproxRealTime is set. | |
| virtual void | setUseSimTimeForApproxRealTime () |
| Set/Clear whether simTime should be used to approximate the real time for the method approximateElapsedRealTime(). | |
| virtual void | clearUseSimTimeForApproxRealTime () |
| virtual DtTime | absRealTime () const |
| Return current wall-clock time - seconds since Jan 1, 1970. | |
Static Public Attributes | |
| static const double | hour2sec |
| Clock constants used for time conversions. | |
| static const double | sec2hour |
Protected Attributes | |
| DtTime | myInitialTime |
| Save starting time to subtract from current to get elapsed. | |
| DtTime | mySimTime |
| This is the internal vr-link simulation clock. | |
| DtTime | myApproxElapsedRealTime |
| This is the Elapsed Real Time at the point that SetSimTime() is called. | |
| bool | mySimTimeSet |
| bool | myUseSimTimeForApproxRealTime |
| Flag to change meaning of approximate real time. | |
Used to set and maintain time in a simulation.
| DtClock::DtClock | ( | ) |
constructor calls init()
| DtClock::DtClock | ( | const DtClock & | orig | ) |
copy constructor
| virtual DtClock::~DtClock | ( | ) | [virtual] |
destructor
| virtual DtTime DtClock::absRealTime | ( | ) | const [virtual] |
Return current wall-clock time - seconds since Jan 1, 1970.
| virtual DtTime DtClock::approximateElapsedRealTime | ( | ) | const [virtual] |
Returns the value of getElapsedRealTime at the time that setSimTime was last invoked.
| virtual void DtClock::clearUseSimTimeForApproxRealTime | ( | ) | [virtual] |
| virtual DtTime DtClock::elapsedRealTime | ( | ) | const [virtual] |
Return real seconds elapsed since DtTimeInit was called.
| virtual void DtClock::init | ( | ) | [virtual] |
Initialize all VR-Link time object functionality.
This must be called before any other time-related functions.
| virtual bool DtClock::isSimTimeSet | ( | ) | const [virtual] |
Returns false if DtSetSimTime was never called and prints out warning message.
| virtual void DtClock::setSimTime | ( | DtTime | NewSimTime | ) | [virtual] |
Set the current value of VR-Link simulation time.
Should be called once per simulation frame to let VR-Link know the value of simulation time for the frame.
| virtual void DtClock::setUseSimTimeForApproxRealTime | ( | ) | [virtual] |
Set/Clear whether simTime should be used to approximate the real time for the method approximateElapsedRealTime().
| virtual DtTime DtClock::simTime | ( | ) | const [virtual] |
Get the current value of VR-Link's simulation time.
| virtual bool DtClock::useSimTimeForApproxRealTime | ( | ) | const [virtual] |
Check whether myUseSimTimeForApproxRealTime is set.
const double DtClock::hour2sec [static] |
Clock constants used for time conversions.
DtTime DtClock::myApproxElapsedRealTime [protected] |
This is the Elapsed Real Time at the point that SetSimTime() is called.
It is good enough for timeouts, and is a LOT cheaper than getting the exact real time, which is overkill.
DtTime DtClock::myInitialTime [protected] |
Save starting time to subtract from current to get elapsed.
DtTime DtClock::mySimTime [protected] |
This is the internal vr-link simulation clock.
bool DtClock::mySimTimeSet [protected] |
bool DtClock::myUseSimTimeForApproxRealTime [protected] |
Flag to change meaning of approximate real time.
const double DtClock::sec2hour [static] |
