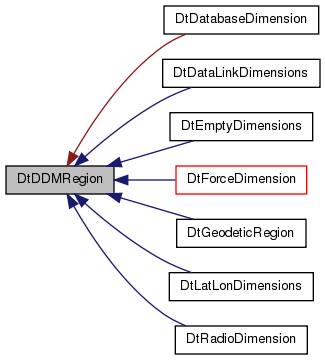

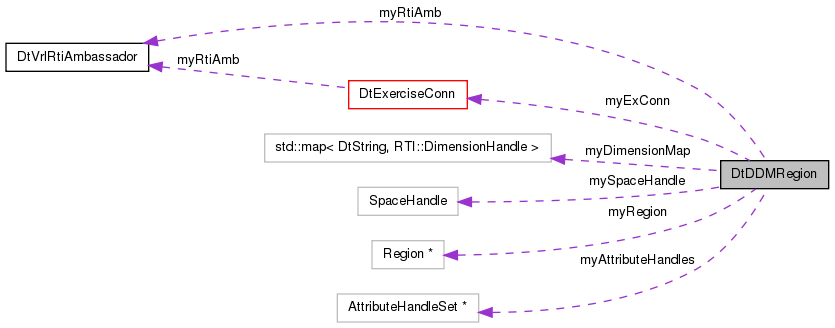

Inheritance diagram for DtDDMRegion: Collaboration diagram for DtDDMRegion:Public Member Functions | |
| DtDDMRegion (DtExerciseConn *exConn) | |
| Constructor that only takes the exConn. | |
| DtDDMRegion (DtExerciseConn *exConn, const DtString &spaceName, int numberOfExtents=1) | |
| Constructor with space specified. | |
| DtDDMRegion (DtExerciseConn *exConn, const DtString &spaceName, const std::vector< DtString > &dimensionNameVector, int numberOfExtents=1) | |
| Constructor with space and dimensions specified. | |
| DtDDMRegion (DtExerciseConn *exConn, const RTI::Region ®ion) | |
| Constructor that initializes VR-Link object from RTI 13 Region pointer. | |
| DtDDMRegion (const DtDDMRegion &orig) | |
| Copy constructor. | |
| virtual | ~DtDDMRegion () |
| Destructor. | |
| virtual void | initializeDimensions (const std::vector< DtString > &dimensionNameVector) |
| Sets up the region for the dimensions specified by name in dimensionNameList. | |
| virtual void | setUpperBound (const DtString &dimensionName, unsigned long upperBound, int extentIndex=0) |
| This method sets the upper bound of dimension, specified by dimensionName, to the normalized value specified by upperBound. | |
| virtual void | setLowerBound (const DtString &dimensionName, unsigned long lowerBound, int extentIndex=0) |
| This method sets the lower bound of the dimension, specified by dimensionName, to the normalized value specified by lowerBound. | |
| virtual void | setDimensionBounds (const DtString &dimensionName, unsigned long lowerBound, unsigned long upperBound, int extentIndex=0) |
| virtual void | notifyRtiOfUpdate () |
| void | init (const DtString &spaceName, const std::vector< DtString > &dimensionNameVector, int numberOfExtents=1) |
| Initialize the region with the name a dimensions specified. | |
| virtual const RTI::Region * | region () const |
| Returns the RTI region. | |
| virtual RTI::Region * | region () |
| virtual void | addAttributeHandle (RTI::AttributeHandle handle) |
| virtual void | addAttributeHandle (const DtString &objClassName, const DtString &attrName) |
| Add an attribute to the handle set by class name/attribute name. | |
| virtual int | attributeHandleCount () const |
| virtual const RTI::AttributeHandleSet & | attributeHandles () const |
| virtual bool | hasAttributeHandles () const |
| DtDDMRegion & | operator= (const DtDDMRegion &orig) |
| Assignment operator. | |
Protected Attributes | |
| RTI::Region * | myRegion |
| DtVrlRtiAmbassador * | myRtiAmb |
| std::map< DtString, RTI::DimensionHandle > | myDimensionMap |
| RTI::SpaceHandle | mySpaceHandle |
| DtExerciseConn * | myExConn |
| RTI::AttributeHandleSet * | myAttributeHandles |
| DtDDMRegion::DtDDMRegion | ( | DtExerciseConn * | exConn | ) |
Constructor that only takes the exConn.
Init must be called before using.
| DtDDMRegion::DtDDMRegion | ( | DtExerciseConn * | exConn, |
| const DtString & | spaceName, | ||
| int | numberOfExtents = 1 |
||
| ) |
Constructor with space specified.
Creates a region with space as specified. Note that initializeDimensions() must be called before setting bounds of the region if this constructor is used
| DtException | a region cannot be created |
| DtDDMRegion::DtDDMRegion | ( | DtExerciseConn * | exConn, |
| const DtString & | spaceName, | ||
| const std::vector< DtString > & | dimensionNameVector, | ||
| int | numberOfExtents = 1 |
||
| ) |
Constructor with space and dimensions specified.
Creates a region in the space specified and initializes the dimensions specified. Creates a region that is "ready to go," i.e. is ready to be modified.
| DtException | a region cannot be created or the dimension handles cannot be retrieved |
| DtDDMRegion::DtDDMRegion | ( | DtExerciseConn * | exConn, |
| const RTI::Region & | region | ||
| ) |
Constructor that initializes VR-Link object from RTI 13 Region pointer.
Prefer the other constructors.
| DtDDMRegion::DtDDMRegion | ( | const DtDDMRegion & | orig | ) |
Copy constructor.
| virtual DtDDMRegion::~DtDDMRegion | ( | ) | [virtual] |
Destructor.
| virtual void DtDDMRegion::addAttributeHandle | ( | RTI::AttributeHandle | handle | ) | [virtual] |
| virtual void DtDDMRegion::addAttributeHandle | ( | const DtString & | objClassName, |
| const DtString & | attrName | ||
| ) | [virtual] |
Add an attribute to the handle set by class name/attribute name.
| DtException | if objClassName or attrName doesn't exist in the FOM. |
| virtual int DtDDMRegion::attributeHandleCount | ( | ) | const [virtual] |
| virtual const RTI::AttributeHandleSet& DtDDMRegion::attributeHandles | ( | ) | const [virtual] |
| virtual bool DtDDMRegion::hasAttributeHandles | ( | ) | const [virtual] |
| void DtDDMRegion::init | ( | const DtString & | spaceName, |
| const std::vector< DtString > & | dimensionNameVector, | ||
| int | numberOfExtents = 1 |
||
| ) |
Initialize the region with the name a dimensions specified.
Not virtual as it may be called from a constructor.
| virtual void DtDDMRegion::initializeDimensions | ( | const std::vector< DtString > & | dimensionNameVector | ) | [virtual] |
Sets up the region for the dimensions specified by name in dimensionNameList.
| DtException | the dimension handle cannot be retrieved from the RTI (e.g. a name in the list is not in the FED file). |
| virtual void DtDDMRegion::notifyRtiOfUpdate | ( | ) | [virtual] |
| DtDDMRegion& DtDDMRegion::operator= | ( | const DtDDMRegion & | orig | ) |
Assignment operator.
| virtual const RTI::Region* DtDDMRegion::region | ( | ) | const [virtual] |
Returns the RTI region.
| virtual RTI::Region* DtDDMRegion::region | ( | ) | [virtual] |
| virtual void DtDDMRegion::setDimensionBounds | ( | const DtString & | dimensionName, |
| unsigned long | lowerBound, | ||
| unsigned long | upperBound, | ||
| int | extentIndex = 0 |
||
| ) | [virtual] |
| virtual void DtDDMRegion::setLowerBound | ( | const DtString & | dimensionName, |
| unsigned long | lowerBound, | ||
| int | extentIndex = 0 |
||
| ) | [virtual] |
This method sets the lower bound of the dimension, specified by dimensionName, to the normalized value specified by lowerBound.
Referenced by DtHyperspaceRegion< SubspaceType, DimensionType >::DtHyperspaceRegion().
| virtual void DtDDMRegion::setUpperBound | ( | const DtString & | dimensionName, |
| unsigned long | upperBound, | ||
| int | extentIndex = 0 |
||
| ) | [virtual] |
This method sets the upper bound of dimension, specified by dimensionName, to the normalized value specified by upperBound.
Referenced by DtHyperspaceRegion< SubspaceType, DimensionType >::DtHyperspaceRegion().
RTI::AttributeHandleSet* DtDDMRegion::myAttributeHandles [protected] |
std::map<DtString, RTI::DimensionHandle> DtDDMRegion::myDimensionMap [protected] |
DtExerciseConn* DtDDMRegion::myExConn [protected] |
RTI::Region* DtDDMRegion::myRegion [protected] |
DtVrlRtiAmbassador* DtDDMRegion::myRtiAmb [protected] |
RTI::SpaceHandle DtDDMRegion::mySpaceHandle [protected] |
