VR-Link API Documentation for HLA 1.3
|
|
VR-Link API Documentation for HLA 1.3
|
class DtEmitterBeamRepository: More...

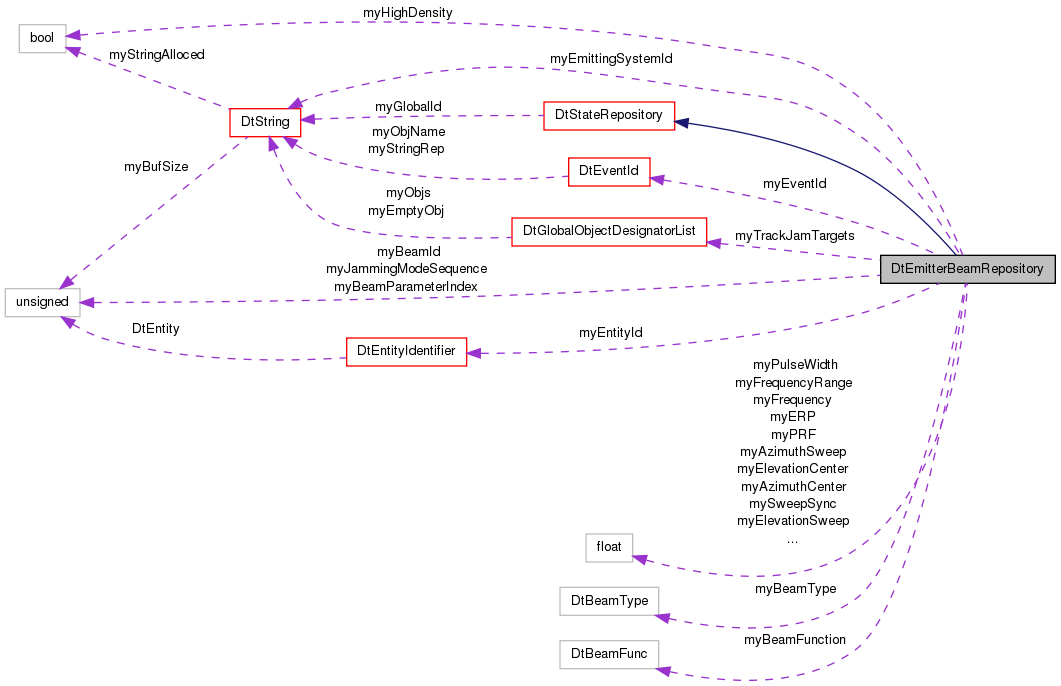

Inheritance diagram for DtEmitterBeamRepository: Collaboration diagram for DtEmitterBeamRepository:Public Member Functions | |
| DtEmitterBeamRepository () | |
| default constructor | |
| virtual | ~DtEmitterBeamRepository () |
| destructor | |
| DtEmitterBeamRepository (const DtEmitterBeamRepository &orig) | |
| copy constructor | |
| DtEmitterBeamRepository & | operator= (const DtEmitterBeamRepository &orig) |
| assignment operator | |
| virtual DtStateRepository * | clone (bool copy=false) const |
| Return a copy/empty object of the same type as this. | |
| virtual void | setAzimuthCenter (DtFloat32 center) |
| Set/Get Azimuth Center. | |
| virtual DtFloat32 | azimuthCenter () const |
| virtual void | setAzimuthSweep (DtFloat32 sweep) |
| Set/Get Azimuth Sweep. | |
| virtual DtFloat32 | azimuthSweep () const |
| virtual void | setBeamFunction (DtBeamFunc func) |
| Set/Get Beam Function. | |
| virtual DtBeamFunc | beamFunction () const |
| virtual void | setBeamId (DtU8 id) |
| Set/Get Beam Id. | |
| virtual DtU8 | beamId () const |
| virtual void | setBeamParameterIndex (DtU16 index) |
| Set/Get Beam Parameter Index. | |
| virtual DtU16 | beamParameterIndex () const |
| virtual void | setElevationCenter (DtFloat32 center) |
| Set/Get Elevation Center. | |
| virtual DtFloat32 | elevationCenter () const |
| virtual void | setElevationSweep (DtFloat32 sweep) |
| Set/Get Elevation Sweep. | |
| virtual DtFloat32 | elevationSweep () const |
| virtual void | setEmittingSystemId (const DtGlobalObjectDesignator &id) |
| Set/Get Emitting System Id. | |
| virtual const DtGlobalObjectDesignator & | emittingSystemId () const |
| virtual void | setERP (DtFloat32 erp) |
| Set/Get Effective Radiated Power (ERP) | |
| virtual DtFloat32 | ERP () const |
| virtual void | setEntityId (const DtEntityIdentifier &id) |
| Set/Get Entity Id RPR - not used after RPR 0.5. | |
| virtual const DtEntityIdentifier & | entityId () const |
| virtual void | setEventId (const DtEventId &id) |
| Set/Get Event Id - not used until RPR 0.7. | |
| virtual const DtEventId & | eventId () const |
| virtual void | setFrequency (DtFloat32 freq) |
| Set/Get Frequency. | |
| virtual DtFloat32 | frequency () const |
| virtual void | setFrequencyRange (DtFloat32 freq) |
| Set/Get Frequency Range. | |
| virtual DtFloat32 | frequencyRange () const |
| virtual void | setPRF (DtFloat32 prf) |
| Set/Get Pulse Repetition Frequency (PRF) | |
| virtual DtFloat32 | PRF () const |
| virtual void | setPulseWidth (DtFloat32 width) |
| Set/Get Pulse Width. | |
| virtual DtFloat32 | pulseWidth () const |
| virtual void | setSweepSync (DtFloat32 sync) |
| Set/Get Sweep Sync. | |
| virtual DtFloat32 | sweepSync () const |
| virtual void | setBeamType (DtBeamType flag) |
| Set/Get beam type - track, jam or neither. | |
| virtual DtBeamType | beamType () const |
| virtual void | setJammingModeSequence (DtU32 sequence) |
| The next two accessors should only be called if the beam type is DtTrackBeam or DtJamBeam. | |
| virtual DtU32 | jammingModeSequence () const |
| virtual const DtTrackJamDesignatorList & | trackJamTargets () const |
| Get set of track jam targets. | |
| virtual DtTrackJamDesignatorList * | trackJamTargets () |
| virtual void | setHighDensity (bool val) |
| Set/Get the high density track/jam flag. | |
| virtual bool | highDensity () const |
| virtual void | printData () const |
| Prints data to DtInfo stream. | |
| virtual void | printDataToStream (std::ostream &stream) const |
| Prints data to the specified stream. | |
Static Public Member Functions | |
| static DtEmitterBeamRepository * | create () |
| Creator Function. | |
Protected Member Functions | |
| virtual void | printTrackJam (std::ostream &stream) const |
| Prints track/jam target information. | |
Protected Attributes | |
| DtFloat32 | myAzimuthCenter |
| Common to emitter beams and track jam beams. | |
| DtFloat32 | myAzimuthSweep |
| DtBeamFunc | myBeamFunction |
| DtU8 | myBeamId |
| DtU16 | myBeamParameterIndex |
| DtFloat32 | myElevationCenter |
| DtFloat32 | myElevationSweep |
| DtGlobalObjectDesignator | myEmittingSystemId |
| DtFloat32 | myERP |
| DtEntityIdentifier | myEntityId |
| DtEventId | myEventId |
| DtFloat32 | myFrequency |
| DtFloat32 | myFrequencyRange |
| DtFloat32 | myPRF |
| DtFloat32 | myPulseWidth |
| DtFloat32 | mySweepSync |
| DtU32 | myJammingModeSequence |
| For Track Jam Beams. | |
| DtTrackJamDesignatorList | myTrackJamTargets |
| DtBeamType | myBeamType |
| bool | myHighDensity |
class DtEmitterBeamRepository:
Instances of DtEmitterBeamRepository are used to store state information for emitter beam objects in both HLA and DIS environments.
default constructor
| virtual DtEmitterBeamRepository::~DtEmitterBeamRepository | ( | ) | [virtual] |
destructor
copy constructor
| virtual DtFloat32 DtEmitterBeamRepository::azimuthCenter | ( | ) | const [virtual] |
| virtual DtFloat32 DtEmitterBeamRepository::azimuthSweep | ( | ) | const [virtual] |
| virtual DtBeamFunc DtEmitterBeamRepository::beamFunction | ( | ) | const [virtual] |
| virtual DtU8 DtEmitterBeamRepository::beamId | ( | ) | const [virtual] |
| virtual DtU16 DtEmitterBeamRepository::beamParameterIndex | ( | ) | const [virtual] |
| virtual DtBeamType DtEmitterBeamRepository::beamType | ( | ) | const [virtual] |
| virtual DtStateRepository* DtEmitterBeamRepository::clone | ( | bool | copy = false | ) | const [virtual] |
Return a copy/empty object of the same type as this.
Implements DtStateRepository.
| static DtEmitterBeamRepository* DtEmitterBeamRepository::create | ( | ) | [static] |
Creator Function.
| virtual DtFloat32 DtEmitterBeamRepository::elevationCenter | ( | ) | const [virtual] |
| virtual DtFloat32 DtEmitterBeamRepository::elevationSweep | ( | ) | const [virtual] |
| virtual const DtGlobalObjectDesignator& DtEmitterBeamRepository::emittingSystemId | ( | ) | const [virtual] |
| virtual const DtEntityIdentifier& DtEmitterBeamRepository::entityId | ( | ) | const [virtual] |
| virtual DtFloat32 DtEmitterBeamRepository::ERP | ( | ) | const [virtual] |
| virtual const DtEventId& DtEmitterBeamRepository::eventId | ( | ) | const [virtual] |
| virtual DtFloat32 DtEmitterBeamRepository::frequency | ( | ) | const [virtual] |
| virtual DtFloat32 DtEmitterBeamRepository::frequencyRange | ( | ) | const [virtual] |
| virtual bool DtEmitterBeamRepository::highDensity | ( | ) | const [virtual] |
| virtual DtU32 DtEmitterBeamRepository::jammingModeSequence | ( | ) | const [virtual] |
| DtEmitterBeamRepository& DtEmitterBeamRepository::operator= | ( | const DtEmitterBeamRepository & | orig | ) |
assignment operator
| virtual DtFloat32 DtEmitterBeamRepository::PRF | ( | ) | const [virtual] |
| virtual void DtEmitterBeamRepository::printData | ( | ) | const [virtual] |
Prints data to DtInfo stream.
Implements DtStateRepository.
| virtual void DtEmitterBeamRepository::printDataToStream | ( | std::ostream & | stream | ) | const [virtual] |
Prints data to the specified stream.
Reimplemented from DtStateRepository.
| virtual void DtEmitterBeamRepository::printTrackJam | ( | std::ostream & | stream | ) | const [protected, virtual] |
Prints track/jam target information.
| virtual DtFloat32 DtEmitterBeamRepository::pulseWidth | ( | ) | const [virtual] |
| virtual void DtEmitterBeamRepository::setAzimuthCenter | ( | DtFloat32 | center | ) | [virtual] |
Set/Get Azimuth Center.
| virtual void DtEmitterBeamRepository::setAzimuthSweep | ( | DtFloat32 | sweep | ) | [virtual] |
Set/Get Azimuth Sweep.
| virtual void DtEmitterBeamRepository::setBeamFunction | ( | DtBeamFunc | func | ) | [virtual] |
Set/Get Beam Function.
| virtual void DtEmitterBeamRepository::setBeamId | ( | DtU8 | id | ) | [virtual] |
Set/Get Beam Id.
| virtual void DtEmitterBeamRepository::setBeamParameterIndex | ( | DtU16 | index | ) | [virtual] |
Set/Get Beam Parameter Index.
| virtual void DtEmitterBeamRepository::setBeamType | ( | DtBeamType | flag | ) | [virtual] |
Set/Get beam type - track, jam or neither.
| virtual void DtEmitterBeamRepository::setElevationCenter | ( | DtFloat32 | center | ) | [virtual] |
Set/Get Elevation Center.
| virtual void DtEmitterBeamRepository::setElevationSweep | ( | DtFloat32 | sweep | ) | [virtual] |
Set/Get Elevation Sweep.
| virtual void DtEmitterBeamRepository::setEmittingSystemId | ( | const DtGlobalObjectDesignator & | id | ) | [virtual] |
Set/Get Emitting System Id.
| virtual void DtEmitterBeamRepository::setEntityId | ( | const DtEntityIdentifier & | id | ) | [virtual] |
Set/Get Entity Id RPR - not used after RPR 0.5.
DIS - This is filled in for receiving PDUS, but has no real point for published beams.
| virtual void DtEmitterBeamRepository::setERP | ( | DtFloat32 | erp | ) | [virtual] |
Set/Get Effective Radiated Power (ERP)
| virtual void DtEmitterBeamRepository::setEventId | ( | const DtEventId & | id | ) | [virtual] |
Set/Get Event Id - not used until RPR 0.7.
| virtual void DtEmitterBeamRepository::setFrequency | ( | DtFloat32 | freq | ) | [virtual] |
Set/Get Frequency.
| virtual void DtEmitterBeamRepository::setFrequencyRange | ( | DtFloat32 | freq | ) | [virtual] |
Set/Get Frequency Range.
| virtual void DtEmitterBeamRepository::setHighDensity | ( | bool | val | ) | [virtual] |
Set/Get the high density track/jam flag.
| virtual void DtEmitterBeamRepository::setJammingModeSequence | ( | DtU32 | sequence | ) | [virtual] |
The next two accessors should only be called if the beam type is DtTrackBeam or DtJamBeam.
Set/Get Jamming Mode Sequence.
| virtual void DtEmitterBeamRepository::setPRF | ( | DtFloat32 | prf | ) | [virtual] |
Set/Get Pulse Repetition Frequency (PRF)
| virtual void DtEmitterBeamRepository::setPulseWidth | ( | DtFloat32 | width | ) | [virtual] |
Set/Get Pulse Width.
| virtual void DtEmitterBeamRepository::setSweepSync | ( | DtFloat32 | sync | ) | [virtual] |
Set/Get Sweep Sync.
| virtual DtFloat32 DtEmitterBeamRepository::sweepSync | ( | ) | const [virtual] |
| virtual const DtTrackJamDesignatorList& DtEmitterBeamRepository::trackJamTargets | ( | ) | const [virtual] |
Get set of track jam targets.
Returns pointer to internal object. Do not delete. It will be deleted when the SR is deleted.
| virtual DtTrackJamDesignatorList* DtEmitterBeamRepository::trackJamTargets | ( | ) | [virtual] |
DtFloat32 DtEmitterBeamRepository::myAzimuthCenter [protected] |
Common to emitter beams and track jam beams.
DtFloat32 DtEmitterBeamRepository::myAzimuthSweep [protected] |
DtBeamFunc DtEmitterBeamRepository::myBeamFunction [protected] |
DtU8 DtEmitterBeamRepository::myBeamId [protected] |
DtU16 DtEmitterBeamRepository::myBeamParameterIndex [protected] |
DtBeamType DtEmitterBeamRepository::myBeamType [protected] |
DtFloat32 DtEmitterBeamRepository::myElevationCenter [protected] |
DtFloat32 DtEmitterBeamRepository::myElevationSweep [protected] |
DtFloat32 DtEmitterBeamRepository::myERP [protected] |
DtEventId DtEmitterBeamRepository::myEventId [protected] |
DtFloat32 DtEmitterBeamRepository::myFrequency [protected] |
DtFloat32 DtEmitterBeamRepository::myFrequencyRange [protected] |
bool DtEmitterBeamRepository::myHighDensity [protected] |
DtU32 DtEmitterBeamRepository::myJammingModeSequence [protected] |
For Track Jam Beams.
DtFloat32 DtEmitterBeamRepository::myPRF [protected] |
DtFloat32 DtEmitterBeamRepository::myPulseWidth [protected] |
DtFloat32 DtEmitterBeamRepository::mySweepSync [protected] |
