DtEnvironmentalEllipsoidRecord Class Reference

DtEnvironmentalEllipsoidRecord implements the Environmental geometry record type "Ellipsoid Record 1." See Enumerated Bit Values document, section 12.3.4.8. More...

Inheritance diagram for DtEnvironmentalEllipsoidRecord:

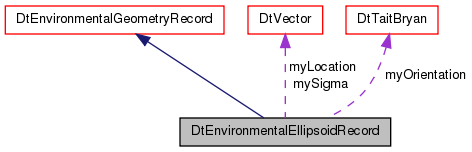

Collaboration diagram for DtEnvironmentalEllipsoidRecord:

List of all members.

Public Member Functions
	DtEnvironmentalEllipsoidRecord ()
	Constructor.
	DtEnvironmentalEllipsoidRecord (const DtEnvironmentalEllipsoidRecord &orig)
	Copy Constructor.
const DtEnvironmentalEllipsoidRecord &	operator= (const DtEnvironmentalEllipsoidRecord &orig)
	Assignment Operator.
virtual	~DtEnvironmentalEllipsoidRecord ()
	Destructor.
virtual DtEnvironmentalRecord *	clone () const
	Clone.
virtual void	setLocation (const DtVector &location)
	Set/ get location.
virtual const DtVector &	location () const
virtual void	setSigma (const DtVector &sigma)
	Set get sigma (x, y, z)
virtual const DtVector &	sigma () const
virtual void	setOrientation (const DtTaitBryan &sigma)
	Set/ get orientation.
virtual const DtTaitBryan &	orientation () const
virtual bool	createNetworkRepresentation ()
	Create the record's network representation.
const DtNetEnvironmentalEllipsoidRecord *	ellipsoidNetRep () const
	returns the network representation of the environmental record
DtNetEnvironmentalEllipsoidRecord *	ellipsoidNetRep ()
virtual void	setFromNet (const DtNetEnvironmentalRecord &buffer)
	used by the PDU class to fill in the network representation
virtual int	netRepSize () const
	returns the size of the net representation, in bytes.
Protected Member Functions
DtEnvironmentalEllipsoidRecord *	self () const
	Casts the 'this' pointer for changing elements in a const function.
Protected Attributes
DtVector	myLocation
DtVector	mySigma
DtTaitBryan	myOrientation

---

Detailed Description

DtEnvironmentalEllipsoidRecord implements the Environmental geometry record type "Ellipsoid Record 1." See Enumerated Bit Values document, section 12.3.4.8.

---

Constructor & Destructor Documentation

DtEnvironmentalEllipsoidRecord::DtEnvironmentalEllipsoidRecord

(

)

Constructor.

DtEnvironmentalEllipsoidRecord::DtEnvironmentalEllipsoidRecord

(

const DtEnvironmentalEllipsoidRecord &

orig

)

Copy Constructor.

virtual DtEnvironmentalEllipsoidRecord::~DtEnvironmentalEllipsoidRecord

(

)

[virtual]

Destructor.

---

Member Function Documentation

virtual DtEnvironmentalRecord* DtEnvironmentalEllipsoidRecord::clone

(

)

const [virtual]

Clone.

Reimplemented from DtEnvironmentalGeometryRecord.

virtual bool DtEnvironmentalEllipsoidRecord::createNetworkRepresentation

(

)

[virtual]

Create the record's network representation.

Reimplemented from DtEnvironmentalRecord.

const DtNetEnvironmentalEllipsoidRecord* DtEnvironmentalEllipsoidRecord::ellipsoidNetRep

(

)

const

returns the network representation of the environmental record

DtNetEnvironmentalEllipsoidRecord* DtEnvironmentalEllipsoidRecord::ellipsoidNetRep

(

)

virtual const DtVector& DtEnvironmentalEllipsoidRecord::location

(

)

const [virtual]

virtual int DtEnvironmentalEllipsoidRecord::netRepSize

(

)

const [virtual]

returns the size of the net representation, in bytes.

Reimplemented from DtEnvironmentalRecord.

const DtEnvironmentalEllipsoidRecord& DtEnvironmentalEllipsoidRecord::operator=

(

const DtEnvironmentalEllipsoidRecord &

orig

)

Assignment Operator.

virtual const DtTaitBryan& DtEnvironmentalEllipsoidRecord::orientation

(

)

const [virtual]

DtEnvironmentalEllipsoidRecord* DtEnvironmentalEllipsoidRecord::self

(

)

const [protected]

Casts the 'this' pointer for changing elements in a const function.

Reimplemented from DtEnvironmentalRecord.

virtual void DtEnvironmentalEllipsoidRecord::setFromNet

(

const DtNetEnvironmentalRecord &

buffer

)

[virtual]

used by the PDU class to fill in the network representation

Reimplemented from DtEnvironmentalRecord.

virtual void DtEnvironmentalEllipsoidRecord::setLocation

(

const DtVector &

location

)

[virtual]

Set/ get location.

virtual void DtEnvironmentalEllipsoidRecord::setOrientation

(

const DtTaitBryan &

sigma

)

[virtual]

Set/ get orientation.

virtual void DtEnvironmentalEllipsoidRecord::setSigma

(

const DtVector &

sigma

)

[virtual]

Set get sigma (x, y, z)

virtual const DtVector& DtEnvironmentalEllipsoidRecord::sigma

(

)

const [virtual]

---

Member Data Documentation

DtVector DtEnvironmentalEllipsoidRecord::myLocation [protected]

DtTaitBryan DtEnvironmentalEllipsoidRecord::myOrientation [protected]

DtVector DtEnvironmentalEllipsoidRecord::mySigma [protected]

---

The documentation for this class was generated from the following file:

• envEllipsoid.h
