VR-Link API Documentation for HLA 1.3
|
|
VR-Link API Documentation for HLA 1.3
|
Instances of DtFomMapper are used to provide FOM agility in VR-Link by mapping VR-Link classes and functionality to FOM classes, attributes and parameters. More...

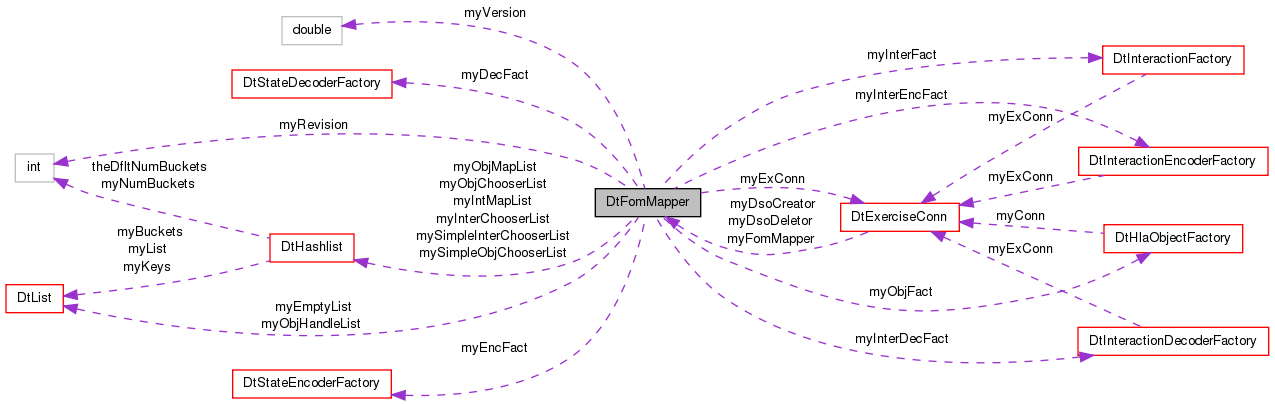

Inheritance diagram for DtFomMapper: Collaboration diagram for DtFomMapper:Public Types | |
| typedef char *(* | DtInteractionClassChooser )(DtExerciseConn *exConn, const DtInteraction &inter) |
| A function that chooses an interaction class from the FOM based on the contents of a derived DtInteraction object. | |
| typedef char *(* | DtObjectClassChooser )(const char *vrlinkClassName, DtExerciseConn *conn, void *usr) |
| A function that chooses an object class from the FOM based based on the name of a C++ class derived from DtObjectPublisher, and arbitrary user data (e.g. | |
Public Member Functions | |
| DtFomMapper () | |
| Default constructor. | |
| virtual | ~DtFomMapper () |
| destructor | |
| virtual DtStateDecoderFactory * | setStateDecoderFactory (DtStateDecoderFactory *fact) |
| Set/Get the current factory that can be used to create DtHlaStateDecoders. | |
| virtual DtStateDecoderFactory * | stateDecoderFactory () |
| virtual DtStateEncoderFactory * | setStateEncoderFactory (DtStateEncoderFactory *fact) |
| Set/Get the current factory that can be used to create DtHlaStateEncoders. | |
| virtual DtStateEncoderFactory * | stateEncoderFactory () |
| virtual DtInteractionDecoderFactory * | setInteractionDecoderFactory (DtInteractionDecoderFactory *fact) |
| Set/Get the current factory that can be used to create DtInteractionDecoders. | |
| virtual DtInteractionDecoderFactory * | interactionDecoderFactory () |
| virtual DtInteractionEncoderFactory * | setInteractionEncoderFactory (DtInteractionEncoderFactory *fact) |
| Set/Get the current factory that can be used to create DtInteractionEncoders. | |
| virtual DtInteractionEncoderFactory * | interactionEncoderFactory () |
| virtual DtHlaObjectFactory * | setHlaObjectFactory (DtHlaObjectFactory *fact) |
| Set/Get the current factory that can be used to create DtHlaObjects. | |
| virtual DtHlaObjectFactory * | hlaObjectFactory () |
| virtual DtInteractionFactory * | setInteractionFactory (DtInteractionFactory *fact) |
| Set/Get the current factory that can be used to create DtInteractions. | |
| virtual DtInteractionFactory * | interactionFactory () |
| virtual void | setObjectClassToChoose (const char *vrlinkClassName, const char *fomClassName) |
| Tell the FOM Mapper how to choose a FOM object class to use for objects being published by a particular kind of object publisher. | |
| virtual void | setObjectClassChooser (const char *vrlinkClassName, DtObjectClassChooser chooser) |
| virtual char * | chooseObjectClass (const char *vrlinkClassName, void *usr=NULL) const |
| Chooses an object class to represent an object managed by the C++ class named vrlinkClassName (which should be a class derived from DtObjectPublisher). | |
| virtual void | setInteractionClassToChoose (const char *vrlinkClassName, const char *fomClassName) |
| Tell the FOM Mapper how to choose a FOM interaction class to use for a particular kind of derived DtInteraction. | |
| virtual void | setInteractionClassChooser (const char *vrlinkClassName, DtInteractionClassChooser chooser) |
| virtual char * | chooseInteractionClass (const DtInteraction &inter) const |
| Chooses a FOM interaction class to be by a particular derived DtInteraction class named vrlinkClassName. | |
| virtual void | setInteractionClasses (const char *vrlinkClassName, const DtList &classes) |
| Set/Get a list of names (char*) of FOM classes that can be decoded into the derived DtInteraction class whose name is name. | |
| virtual DtList * | interactionClasses (const char *vrlinkClassName) |
| virtual void | setInteractionClass (const char *vrlinkClassName, const char *fomClassName) |
| When there is only a single FOM class to be associated with a VR-Link interaction class, then there is no need to create a DtList. | |
| virtual void | setObjectClassNames (const char *vrlinkClassName, const DtList &classes) |
| Set/Get a list of names (char*) of FOM object classes that should be subscribed to by a particular subclass of VR-Link's DtReflectedObjectList. | |
| virtual DtList * | objectClassNames (const char *vrlinkClassName) |
| virtual DtList * | objectClassHandles (const char *vrlinkClassName) |
| Similar to objectClassNames, but returns a DtList of ObjectClassHandles instead. | |
| virtual void | setObjectClass (const char *vrlinkClassName, const char *fomClassName) |
| When there is only a single FOM class to be associated with a VR-Link DtReflectedObjectList class, then there is no need to create a DtList. | |
| virtual void | init (DtExerciseConn *conn)=0 |
| Initialize the instance, once an exercise connection is available. | |
| virtual void | setVersion (double vers) |
| Returns the version number of the FOM, as passed to setVersion. | |
| virtual double | version () const |
| virtual void | setRevision (int val) |
| Sets the revision number of the FOM. | |
| virtual int | revision () const |
| Returns the revision number of the FOM. | |
| virtual DtObjectClassChooser | objectClassChooser (const char *vrlinkClassName) const |
| Return the FOM-class-chooser function, if any, that has been associated with the name of a C++ class derived from DtObjectPublisher using setObjectClassChooser. | |
| virtual DtInteractionClassChooser | interactionClassChooser (const char *vrlinkClassName) const |
| Return the FOM-class-chooser function, if any, that has been associated with the name of a C++ class derived from DtInteraction using setInteractionClassChooser. | |
Protected Member Functions | |
| DtFomMapper (const DtFomMapper &orig) | |
| copy constructor - not implemented. | |
| DtFomMapper & | operator= (const DtFomMapper &orig) |
| assignment operator - not implemented. | |
Protected Attributes | |
| DtExerciseConn * | myExConn |
| DtStateDecoderFactory * | myDecFact |
| Current factories and other objects. | |
| DtStateEncoderFactory * | myEncFact |
| DtInteractionDecoderFactory * | myInterDecFact |
| DtInteractionEncoderFactory * | myInterEncFact |
| DtHlaObjectFactory * | myObjFact |
| DtInteractionFactory * | myInterFact |
| DtHashlist | myIntMapList |
| Hash list that maps names of C++ classes derived from DtInteraction to lists of names of FOM classes. | |
| DtHashlist | myObjMapList |
| Hash list that maps names of C++ classes derived from DtReflectedObjectList to lists of names of FOM classes. | |
| DtHashlist | myObjChooserList |
| Hash list that maps names of C++ classes derived from DtObjectPublisher to DtObjectClassChoosers - functions that can choose an object class name from the FOM to use for the object. | |
| DtHashlist | mySimpleObjChooserList |
| Hash list that maps names of C++ classes derived from DtObjectPublisher to single FOM object class names. | |
| DtHashlist | myInterChooserList |
| Hash list that maps names of C++ classes derived from DtInteraction to DtInteractionClassChoosers - functions that can choose an interaction class name from the FOM to use for the interaction. | |
| DtHashlist | mySimpleInterChooserList |
| Hash list that maps names of C++ classes derived from DtInteraction to single FOM object class names. | |
| DtList | myObjHandleList |
| The object returned by objectClassHandles. | |
| DtList | myEmptyList |
| Just an empty list to return when no class list has been registered for a particular VR-Link class. | |
| double | myVersion |
| int | myRevision |
Instances of DtFomMapper are used to provide FOM agility in VR-Link by mapping VR-Link classes and functionality to FOM classes, attributes and parameters.
DtFomMapper is an abstract class. Most FOM Mappers (including DtRprFomMapper) are derived from DtEmptyFomMapper, and not directly from DtFomMapper.
| typedef char*(* DtFomMapper::DtInteractionClassChooser)(DtExerciseConn *exConn, const DtInteraction &inter) |
A function that chooses an interaction class from the FOM based on the contents of a derived DtInteraction object.
| typedef char*(* DtFomMapper::DtObjectClassChooser)(const char *vrlinkClassName, DtExerciseConn *conn, void *usr) |
A function that chooses an object class from the FOM based based on the name of a C++ class derived from DtObjectPublisher, and arbitrary user data (e.g.
entity type).
Default constructor.
Typically, most initialization takes place within init(), which is called by DtExerciseConn's constructor.
| virtual DtFomMapper::~DtFomMapper | ( | ) | [virtual] |
destructor
| DtFomMapper::DtFomMapper | ( | const DtFomMapper & | orig | ) | [protected] |
copy constructor - not implemented.
| virtual char* DtFomMapper::chooseInteractionClass | ( | const DtInteraction & | inter | ) | const [virtual] |
Chooses a FOM interaction class to be by a particular derived DtInteraction class named vrlinkClassName.
| virtual char* DtFomMapper::chooseObjectClass | ( | const char * | vrlinkClassName, |
| void * | usr = NULL |
||
| ) | const [virtual] |
Chooses an object class to represent an object managed by the C++ class named vrlinkClassName (which should be a class derived from DtObjectPublisher).
usr is additional user data that may be required to make the choice. It is passed as usr to a chooser function that has been registered with the FOM Mapper for this publisher type, if any.
| virtual DtHlaObjectFactory* DtFomMapper::hlaObjectFactory | ( | ) | [virtual] |
| virtual void DtFomMapper::init | ( | DtExerciseConn * | conn | ) | [pure virtual] |
Initialize the instance, once an exercise connection is available.
Must be overridden in subclasses.
Implemented in DtRprFomMapper, MyFomMapper, and DtEmptyFomMapper.
| virtual DtInteractionClassChooser DtFomMapper::interactionClassChooser | ( | const char * | vrlinkClassName | ) | const [virtual] |
Return the FOM-class-chooser function, if any, that has been associated with the name of a C++ class derived from DtInteraction using setInteractionClassChooser.
| virtual DtList* DtFomMapper::interactionClasses | ( | const char * | vrlinkClassName | ) | [virtual] |
| virtual DtInteractionDecoderFactory* DtFomMapper::interactionDecoderFactory | ( | ) | [virtual] |
| virtual DtInteractionEncoderFactory* DtFomMapper::interactionEncoderFactory | ( | ) | [virtual] |
| virtual DtInteractionFactory* DtFomMapper::interactionFactory | ( | ) | [virtual] |
| virtual DtObjectClassChooser DtFomMapper::objectClassChooser | ( | const char * | vrlinkClassName | ) | const [virtual] |
Return the FOM-class-chooser function, if any, that has been associated with the name of a C++ class derived from DtObjectPublisher using setObjectClassChooser.
| virtual DtList* DtFomMapper::objectClassHandles | ( | const char * | vrlinkClassName | ) | [virtual] |
Similar to objectClassNames, but returns a DtList of ObjectClassHandles instead.
The returned list is owned by the DtFomMapper, and should not be deleted. In addition, it is only valid until the next call to this function. If using HLA 1.3 the ObjectClassHandles are returned cast as void * in the list If using HLA 1516 the list contains pointers to a valid RTI::ObjectClassHandle
| virtual DtList* DtFomMapper::objectClassNames | ( | const char * | vrlinkClassName | ) | [virtual] |
| DtFomMapper& DtFomMapper::operator= | ( | const DtFomMapper & | orig | ) | [protected] |
assignment operator - not implemented.
| virtual int DtFomMapper::revision | ( | ) | const [virtual] |
Returns the revision number of the FOM.
| virtual DtHlaObjectFactory* DtFomMapper::setHlaObjectFactory | ( | DtHlaObjectFactory * | fact | ) | [virtual] |
Set/Get the current factory that can be used to create DtHlaObjects.
| virtual void DtFomMapper::setInteractionClass | ( | const char * | vrlinkClassName, |
| const char * | fomClassName | ||
| ) | [virtual] |
When there is only a single FOM class to be associated with a VR-Link interaction class, then there is no need to create a DtList.
Just use this:
| virtual void DtFomMapper::setInteractionClassChooser | ( | const char * | vrlinkClassName, |
| DtInteractionClassChooser | chooser | ||
| ) | [virtual] |
| virtual void DtFomMapper::setInteractionClasses | ( | const char * | vrlinkClassName, |
| const DtList & | classes | ||
| ) | [virtual] |
Set/Get a list of names (char*) of FOM classes that can be decoded into the derived DtInteraction class whose name is name.
These classes will be subscribed to, when you use a derived DtInteraction's addCallback function. The DtFomMapper copies the data in the list passed to setInteractionClasses, so the object can be deleted at the caller's leisure. The list returned by interactionClasses is owned by the DtFomMapper and shouldn't be deleted by the caller.
| virtual void DtFomMapper::setInteractionClassToChoose | ( | const char * | vrlinkClassName, |
| const char * | fomClassName | ||
| ) | [virtual] |
Tell the FOM Mapper how to choose a FOM interaction class to use for a particular kind of derived DtInteraction.
You can either associate a single FOM class name, or a FOM class choosing function with the name of a C++ class derived from DtInteraction.
| virtual DtInteractionDecoderFactory* DtFomMapper::setInteractionDecoderFactory | ( | DtInteractionDecoderFactory * | fact | ) | [virtual] |
Set/Get the current factory that can be used to create DtInteractionDecoders.
| virtual DtInteractionEncoderFactory* DtFomMapper::setInteractionEncoderFactory | ( | DtInteractionEncoderFactory * | fact | ) | [virtual] |
Set/Get the current factory that can be used to create DtInteractionEncoders.
| virtual DtInteractionFactory* DtFomMapper::setInteractionFactory | ( | DtInteractionFactory * | fact | ) | [virtual] |
Set/Get the current factory that can be used to create DtInteractions.
| virtual void DtFomMapper::setObjectClass | ( | const char * | vrlinkClassName, |
| const char * | fomClassName | ||
| ) | [virtual] |
When there is only a single FOM class to be associated with a VR-Link DtReflectedObjectList class, then there is no need to create a DtList.
Just use this:
| virtual void DtFomMapper::setObjectClassChooser | ( | const char * | vrlinkClassName, |
| DtObjectClassChooser | chooser | ||
| ) | [virtual] |
| virtual void DtFomMapper::setObjectClassNames | ( | const char * | vrlinkClassName, |
| const DtList & | classes | ||
| ) | [virtual] |
Set/Get a list of names (char*) of FOM object classes that should be subscribed to by a particular subclass of VR-Link's DtReflectedObjectList.
vrlinkClassName is the name of the DtReflectedObjectList subclass for which you are creating a mapping. The DtFomMapper copies the data in the list passed to setObjectClassNames, so the object can be deleted at the caller's leisure. The list returned by objectClassNames is owned by the DtFomMapper and shouldn't be deleted by the caller.
| virtual void DtFomMapper::setObjectClassToChoose | ( | const char * | vrlinkClassName, |
| const char * | fomClassName | ||
| ) | [virtual] |
Tell the FOM Mapper how to choose a FOM object class to use for objects being published by a particular kind of object publisher.
You can either associate a single FOM class name, or a FOM class choosing function with the name of a C++ class derived from DtObjectPublisher.
| virtual void DtFomMapper::setRevision | ( | int | val | ) | [virtual] |
Sets the revision number of the FOM.
| virtual DtStateDecoderFactory* DtFomMapper::setStateDecoderFactory | ( | DtStateDecoderFactory * | fact | ) | [virtual] |
Set/Get the current factory that can be used to create DtHlaStateDecoders.
| virtual DtStateEncoderFactory* DtFomMapper::setStateEncoderFactory | ( | DtStateEncoderFactory * | fact | ) | [virtual] |
Set/Get the current factory that can be used to create DtHlaStateEncoders.
| virtual void DtFomMapper::setVersion | ( | double | vers | ) | [virtual] |
Returns the version number of the FOM, as passed to setVersion.
| virtual DtStateDecoderFactory* DtFomMapper::stateDecoderFactory | ( | ) | [virtual] |
| virtual DtStateEncoderFactory* DtFomMapper::stateEncoderFactory | ( | ) | [virtual] |
| virtual double DtFomMapper::version | ( | ) | const [virtual] |
DtStateDecoderFactory* DtFomMapper::myDecFact [protected] |
Current factories and other objects.
DtList DtFomMapper::myEmptyList [protected] |
Just an empty list to return when no class list has been registered for a particular VR-Link class.
DtStateEncoderFactory* DtFomMapper::myEncFact [protected] |
DtExerciseConn* DtFomMapper::myExConn [protected] |
DtHashlist DtFomMapper::myInterChooserList [protected] |
Hash list that maps names of C++ classes derived from DtInteraction to DtInteractionClassChoosers - functions that can choose an interaction class name from the FOM to use for the interaction.
DtInteractionDecoderFactory* DtFomMapper::myInterDecFact [protected] |
DtInteractionEncoderFactory* DtFomMapper::myInterEncFact [protected] |
DtInteractionFactory* DtFomMapper::myInterFact [protected] |
DtHashlist DtFomMapper::myIntMapList [protected] |
Hash list that maps names of C++ classes derived from DtInteraction to lists of names of FOM classes.
Hash keys are DtStringHashKeys. Data are DtLists of char*'s that indicate FOM class names.
DtHashlist DtFomMapper::myObjChooserList [protected] |
Hash list that maps names of C++ classes derived from DtObjectPublisher to DtObjectClassChoosers - functions that can choose an object class name from the FOM to use for the object.
DtHlaObjectFactory* DtFomMapper::myObjFact [protected] |
DtList DtFomMapper::myObjHandleList [protected] |
The object returned by objectClassHandles.
It is reused and overwritten each call.
DtHashlist DtFomMapper::myObjMapList [protected] |
Hash list that maps names of C++ classes derived from DtReflectedObjectList to lists of names of FOM classes.
Hash keys are DtStringHashKeys. Data are DtLists of char*s that indicate FOM class names.
int DtFomMapper::myRevision [protected] |
DtHashlist DtFomMapper::mySimpleInterChooserList [protected] |
Hash list that maps names of C++ classes derived from DtInteraction to single FOM object class names.
DtHashlist DtFomMapper::mySimpleObjChooserList [protected] |
Hash list that maps names of C++ classes derived from DtObjectPublisher to single FOM object class names.
double DtFomMapper::myVersion [protected] |
