Instances of DtGriddedDataPdu are used to communicate environmental data defined on a grid. More...

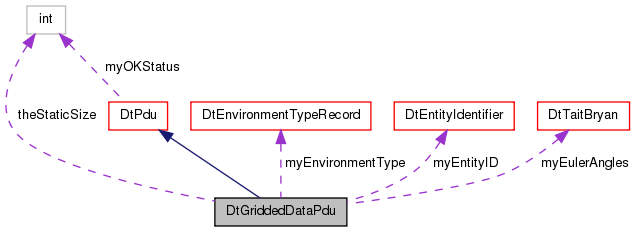

Inheritance diagram for DtGriddedDataPdu: Collaboration diagram for DtGriddedDataPdu:Public Member Functions | |
| DtGriddedDataPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER) | |
| Constructors. | |
| DtGriddedDataPdu (const DtNetGriddedDataPdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER) | |
| DtGriddedDataPdu (const DtGriddedDataPdu &orig) | |
| virtual | ~DtGriddedDataPdu () |
| destructor | |
| DtGriddedDataPdu & | operator= (const DtGriddedDataPdu &orig) |
| Assignment operator. | |
| virtual void | setEnvSimAppID (const DtEntityIdentifier &app) |
| Set/Get environmental simulation application identifier. | |
| virtual const DtEntityIdentifier & | envSimAppID () const |
| virtual void | setFieldNumber (DtU16 field) |
| Set/Get field number. | |
| virtual DtU16 | fieldNumber () const |
| virtual void | setPduNumber (DtU16 num) |
| Set/Get the PDU index number. | |
| virtual DtU16 | pduNumber () const |
| virtual void | setPduTotal (DtU16 total) |
| Set/Get total number of PDUs used to transmit the environmental data. | |
| virtual DtU16 | pduTotal () const |
| virtual void | setCoordSystem (DtU16 sys) |
| Set/Get coordinate system. | |
| virtual DtU16 | coordSystem () const |
| virtual bool | setNumGridAxes (DtU8 axes) |
| Set/Get number of grid axes. | |
| virtual DtU8 | numGridAxes () const |
| virtual void | setConstantGrid (DtU8 constant) |
| Set/Get constant grid indicator. | |
| virtual DtU8 | constantGrid () const |
| virtual void | setEnvironmentType (const DtEnvironmentTypeRecord &type) |
| Set/Get environment type. | |
| virtual const DtEnvironmentTypeRecord & | environmentType () const |
| virtual void | setOrientation (const DtTaitBryan &orientation) |
| Set/Get orientation. | |
| virtual const DtTaitBryan & | orientation () const |
| virtual void | setSampleTime (int index, DtU32 time) |
| Set/Get sample time. | |
| virtual DtU32 | sampleTime (int index) const |
| virtual void | setTotalValues (DtU32 total) |
| Set/Get total values. | |
| virtual DtU32 | totalValues () const |
| virtual bool | setVectorDim (DtU8 dim) |
| Set/Get vector dimension. | |
| virtual DtU8 | vectorDim () const |
| virtual DtGridAxisType | gridAxisRecordType (int index) const |
| Get the grid axes record type for a particular record. | |
| virtual bool | setGridAxisRecord (int index, const DtGridAxisRecordFixed &init) |
| Set/Get the grid axis record type and values of record index to values specified by the initializer in the second argument. | |
| virtual bool | getGridAxisRecord (int index, DtGridAxisRecordFixed &record) const |
| virtual bool | setGridAxisRecord (int index, const DtGridAxisRecordVariable &init) |
| virtual bool | getGridAxisRecord (int index, DtGridAxisRecordVariable &record) const |
| virtual DtGridDataRecType | gridDataRecordType (int index) const |
| Get the grid data record type for a particular record. | |
| virtual bool | setGridDataRecord (int index, const DtGridDataRecordType0 &init) |
| Set/Get the grid data record type and values of record index to values specified by the initializer in the second argument. | |
| virtual bool | getGridDataRecord (int index, DtGridDataRecordType0 &record) const |
| virtual bool | setGridDataRecord (int index, const DtGridDataRecordType1 &init) |
| virtual bool | getGridDataRecord (int index, DtGridDataRecordType1 &record) const |
| virtual bool | setGridDataRecord (int index, const DtGridDataRecordType2 &init) |
| virtual bool | getGridDataRecord (int index, DtGridDataRecordType2 &record) const |
| virtual void | printData () const |
| Print the data contained by this PDU to DtInfo. | |
| virtual void | printDataToStream (std::ostream &stream) const |
| Print the data contained by this PDU to the specified stream. | |
Static Public Member Functions | |
| static DtPdu * | create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER) |
| Create a DtGriddedDataPdu. | |
| static void | addCallback (DtExerciseConn *conn, DtGriddedDataPduCb cb, void *usr) |
| Add (register)/Remove (deregister) function to be called when pdu is received. | |
| static void | removeCallback (DtExerciseConn *conn, DtGriddedDataPduCb cb, void *usr) |
Protected Member Functions | |
| virtual DtPduKind | internalGetPduKind () const |
| Returns the internal PDU kind. | |
| virtual DtNetGriddedDataPdu * | netPduStruct () const |
| Casts the netPdu element to our network struct. | |
| virtual char * | var () const |
| Returns a pointer to the first byte of variable length data. | |
| DtGriddedDataPdu * | self () const |
| Casts the 'this' pointer for changing elements in a const function. | |
| virtual int | gridAxisRecordLength (DtNetGridAxisRecordFixed *rec) const |
| Returns the length of a given grid axis record. | |
| virtual int | gridDataRecordLength (DtNetGridDataRecord *rec) const |
| Returns the length of a given grid data record. | |
| virtual int | gridAxisRecordOffset (int recordIndex) const |
| Returns a buffer offset to the given grid axis record. | |
| virtual int | gridDataRecordOffset (int recordIndex) const |
| Returns a buffer offset to the given grid data record. | |
| virtual bool | resizeGridAxisRecord (DtNetGridAxisRecordFixed *rec, int newSize) |
| Resizes a grid axis record. | |
| virtual bool | resizeGridDataRecord (DtNetGridDataRecord *rec, int newSize) |
| Resizes a grid data record. | |
Protected Attributes | |
| DtEntityIdentifier | myEntityID |
| Temporary objects for reference returns. | |
| DtEnvironmentTypeRecord | myEnvironmentType |
| DtTaitBryan | myEulerAngles |
Static Protected Attributes | |
| static const int | theStaticSize |
| Size of PDU with zero parameter records. | |
Instances of DtGriddedDataPdu are used to communicate environmental data defined on a grid.
Constructors.
| DtGriddedDataPdu::DtGriddedDataPdu | ( | const DtNetGriddedDataPdu * | initial, |
| DtBufferPtr | buffer = DtUSE_INTERNAL_BUFFER |
||
| ) |
| DtGriddedDataPdu::DtGriddedDataPdu | ( | const DtGriddedDataPdu & | orig | ) |
| virtual DtGriddedDataPdu::~DtGriddedDataPdu | ( | ) | [virtual] |
destructor
| static void DtGriddedDataPdu::addCallback | ( | DtExerciseConn * | conn, |
| DtGriddedDataPduCb | cb, | ||
| void * | usr | ||
| ) | [static] |
Add (register)/Remove (deregister) function to be called when pdu is received.
| virtual DtU8 DtGriddedDataPdu::constantGrid | ( | ) | const [virtual] |
| virtual DtU16 DtGriddedDataPdu::coordSystem | ( | ) | const [virtual] |
| static DtPdu* DtGriddedDataPdu::create | ( | const DtNetPacket * | initial, |
| DtBufferPtr | buffer = DtUSE_INTERNAL_BUFFER |
||
| ) | [static] |
Create a DtGriddedDataPdu.
Caller is responsible for deletion.
| virtual const DtEnvironmentTypeRecord& DtGriddedDataPdu::environmentType | ( | ) | const [virtual] |
| virtual const DtEntityIdentifier& DtGriddedDataPdu::envSimAppID | ( | ) | const [virtual] |
| virtual DtU16 DtGriddedDataPdu::fieldNumber | ( | ) | const [virtual] |
| virtual bool DtGriddedDataPdu::getGridAxisRecord | ( | int | index, |
| DtGridAxisRecordFixed & | record | ||
| ) | const [virtual] |
| virtual bool DtGriddedDataPdu::getGridAxisRecord | ( | int | index, |
| DtGridAxisRecordVariable & | record | ||
| ) | const [virtual] |
| virtual bool DtGriddedDataPdu::getGridDataRecord | ( | int | index, |
| DtGridDataRecordType0 & | record | ||
| ) | const [virtual] |
| virtual bool DtGriddedDataPdu::getGridDataRecord | ( | int | index, |
| DtGridDataRecordType1 & | record | ||
| ) | const [virtual] |
| virtual bool DtGriddedDataPdu::getGridDataRecord | ( | int | index, |
| DtGridDataRecordType2 & | record | ||
| ) | const [virtual] |
| virtual int DtGriddedDataPdu::gridAxisRecordLength | ( | DtNetGridAxisRecordFixed * | rec | ) | const [protected, virtual] |
Returns the length of a given grid axis record.
| virtual int DtGriddedDataPdu::gridAxisRecordOffset | ( | int | recordIndex | ) | const [protected, virtual] |
Returns a buffer offset to the given grid axis record.
| virtual DtGridAxisType DtGriddedDataPdu::gridAxisRecordType | ( | int | index | ) | const [virtual] |
Get the grid axes record type for a particular record.
| virtual int DtGriddedDataPdu::gridDataRecordLength | ( | DtNetGridDataRecord * | rec | ) | const [protected, virtual] |
Returns the length of a given grid data record.
| virtual int DtGriddedDataPdu::gridDataRecordOffset | ( | int | recordIndex | ) | const [protected, virtual] |
Returns a buffer offset to the given grid data record.
| virtual DtGridDataRecType DtGriddedDataPdu::gridDataRecordType | ( | int | index | ) | const [virtual] |
Get the grid data record type for a particular record.
| virtual DtPduKind DtGriddedDataPdu::internalGetPduKind | ( | ) | const [protected, virtual] |
Returns the internal PDU kind.
Implements DtPdu.
| virtual DtNetGriddedDataPdu* DtGriddedDataPdu::netPduStruct | ( | ) | const [protected, virtual] |
Casts the netPdu element to our network struct.
| virtual DtU8 DtGriddedDataPdu::numGridAxes | ( | ) | const [virtual] |
| DtGriddedDataPdu& DtGriddedDataPdu::operator= | ( | const DtGriddedDataPdu & | orig | ) |
Assignment operator.
| virtual const DtTaitBryan& DtGriddedDataPdu::orientation | ( | ) | const [virtual] |
| virtual DtU16 DtGriddedDataPdu::pduNumber | ( | ) | const [virtual] |
| virtual DtU16 DtGriddedDataPdu::pduTotal | ( | ) | const [virtual] |
| virtual void DtGriddedDataPdu::printData | ( | ) | const [virtual] |
Print the data contained by this PDU to DtInfo.
Reimplemented from DtPdu.
| virtual void DtGriddedDataPdu::printDataToStream | ( | std::ostream & | stream | ) | const [virtual] |
Print the data contained by this PDU to the specified stream.
Reimplemented from DtPdu.
| static void DtGriddedDataPdu::removeCallback | ( | DtExerciseConn * | conn, |
| DtGriddedDataPduCb | cb, | ||
| void * | usr | ||
| ) | [static] |
| virtual bool DtGriddedDataPdu::resizeGridAxisRecord | ( | DtNetGridAxisRecordFixed * | rec, |
| int | newSize | ||
| ) | [protected, virtual] |
Resizes a grid axis record.
| virtual bool DtGriddedDataPdu::resizeGridDataRecord | ( | DtNetGridDataRecord * | rec, |
| int | newSize | ||
| ) | [protected, virtual] |
Resizes a grid data record.
| virtual DtU32 DtGriddedDataPdu::sampleTime | ( | int | index | ) | const [virtual] |
| DtGriddedDataPdu* DtGriddedDataPdu::self | ( | ) | const [protected] |
Casts the 'this' pointer for changing elements in a const function.
Non-virtual since you can't override based on return type.
| virtual void DtGriddedDataPdu::setConstantGrid | ( | DtU8 | constant | ) | [virtual] |
Set/Get constant grid indicator.
| virtual void DtGriddedDataPdu::setCoordSystem | ( | DtU16 | sys | ) | [virtual] |
Set/Get coordinate system.
| virtual void DtGriddedDataPdu::setEnvironmentType | ( | const DtEnvironmentTypeRecord & | type | ) | [virtual] |
Set/Get environment type.
| virtual void DtGriddedDataPdu::setEnvSimAppID | ( | const DtEntityIdentifier & | app | ) | [virtual] |
Set/Get environmental simulation application identifier.
| virtual void DtGriddedDataPdu::setFieldNumber | ( | DtU16 | field | ) | [virtual] |
Set/Get field number.
| virtual bool DtGriddedDataPdu::setGridAxisRecord | ( | int | index, |
| const DtGridAxisRecordFixed & | init | ||
| ) | [virtual] |
Set/Get the grid axis record type and values of record index to values specified by the initializer in the second argument.
If index is out of bounds, or if the record type at the specified index does not match the parameter record type (for a get), then false is returned. If the space would exceed the maximum space permitted for a PDU (for a set) then false may be returned.
| virtual bool DtGriddedDataPdu::setGridAxisRecord | ( | int | index, |
| const DtGridAxisRecordVariable & | init | ||
| ) | [virtual] |
| virtual bool DtGriddedDataPdu::setGridDataRecord | ( | int | index, |
| const DtGridDataRecordType0 & | init | ||
| ) | [virtual] |
Set/Get the grid data record type and values of record index to values specified by the initializer in the second argument.
If index is out of bounds, or if the record type at the specified index does not match the parameter record type (for a get), then false is returned. If the space would exceed the maximum space permitted for a PDU (for a set) then false may be returned.
| virtual bool DtGriddedDataPdu::setGridDataRecord | ( | int | index, |
| const DtGridDataRecordType1 & | init | ||
| ) | [virtual] |
| virtual bool DtGriddedDataPdu::setGridDataRecord | ( | int | index, |
| const DtGridDataRecordType2 & | init | ||
| ) | [virtual] |
| virtual bool DtGriddedDataPdu::setNumGridAxes | ( | DtU8 | axes | ) | [virtual] |
Set/Get number of grid axes.
| virtual void DtGriddedDataPdu::setOrientation | ( | const DtTaitBryan & | orientation | ) | [virtual] |
Set/Get orientation.
| virtual void DtGriddedDataPdu::setPduNumber | ( | DtU16 | num | ) | [virtual] |
Set/Get the PDU index number.
| virtual void DtGriddedDataPdu::setPduTotal | ( | DtU16 | total | ) | [virtual] |
Set/Get total number of PDUs used to transmit the environmental data.
| virtual void DtGriddedDataPdu::setSampleTime | ( | int | index, |
| DtU32 | time | ||
| ) | [virtual] |
Set/Get sample time.
This is a 64-bit quantity. The argument index selects between the most significant 32-bit word (0) and least significant 32-bit word (1) of the complete 64-bit value.
| virtual void DtGriddedDataPdu::setTotalValues | ( | DtU32 | total | ) | [virtual] |
Set/Get total values.
| virtual bool DtGriddedDataPdu::setVectorDim | ( | DtU8 | dim | ) | [virtual] |
Set/Get vector dimension.
setVectorDim may return false if the PDU size exceeds the maximum allowable size for a PDU.
| virtual DtU32 DtGriddedDataPdu::totalValues | ( | ) | const [virtual] |
| virtual char* DtGriddedDataPdu::var | ( | ) | const [protected, virtual] |
Returns a pointer to the first byte of variable length data.
| virtual DtU8 DtGriddedDataPdu::vectorDim | ( | ) | const [virtual] |
DtEntityIdentifier DtGriddedDataPdu::myEntityID [protected] |
Temporary objects for reference returns.
DtTaitBryan DtGriddedDataPdu::myEulerAngles [protected] |
const int DtGriddedDataPdu::theStaticSize [static, protected] |
Size of PDU with zero parameter records.
