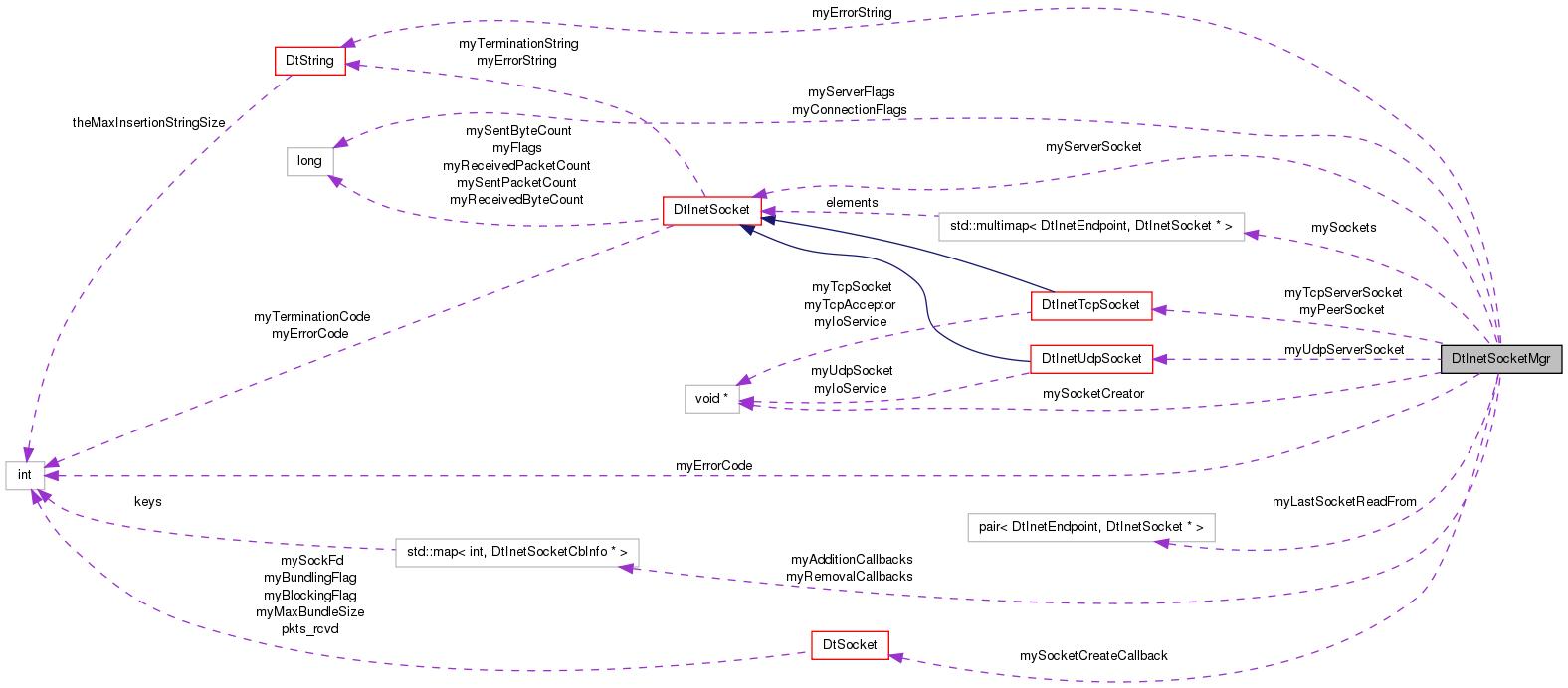

Collaboration diagram for DtInetSocketMgr:

Public Member Functions
	DtInetSocketMgr (DtU32 connectionFlags=DtDefaultSockOpts)
	Default Constructor.
	DtInetSocketMgr (DtInetEndpoint &serverEndpoint, DtInetDevice *hostIf=NULL, DtU32 serverFlags=(DtDefaultSockOpts\|DtSockOptNonBlocking), DtU32 connectionFlags=DtDefaultSockOpts, DtInetUtils::DtInetAddrFamily family=DtInetUtils::DtInetAddrFamily_IPv4)
	Server manager.
virtual	~DtInetSocketMgr ()
	Destructor.
virtual int	processConnections ()
	Check for incoming connection attempts.
virtual DtInetSocket *	serverSocket () const
	Returns a pointer to the server socket, whether it be a DtInetTcpSocket or a DtInetUdpSocket.
virtual const DtInetSocketList &	socketList () const
	Returns the list (actually a map) of sockets being managed.
virtual DtInetSocket *	peerSocket (const DtInetEndpoint &peer) const
	Returns a pointer to the socket object associated with the peer endpoint specified in the 'peer' argument.
virtual void	addSocketCreationCallback (DtSocketCreationCallback cb, void *socketCreator)
	Set a specialized socket creation callback to be invoked prior to accepting a new incoming connection.
Connection addition methods.
Initiate a connection (TCP) or add new peer (UDP) to the list of managed connections. The peer endpoint may be a unicast, broadcast, or multicast address. If the connection is UDP and the connectUdpSocket parameter is FALSE no new socket is created. Unconnected UDP links are handled by the UDP server socket. However if the UDP link is to be connected a new UDP socket is created. If the openImmediately parameter is FALSE the application is responsible for opening and connecting the returned socket. Returns a pointer to the new socket created or to the UDP socket handling all unconnected UDP links or NULL if an error occurs.
virtual DtInetSocket *	addConnection (const DtInetEndpoint &peerEp, DtU16 localPort=0, DtInetDevice *hostIf=NULL, bool openImmediately=true, bool connectUdpSocket=false)
	Add an established socket to the list of managed connections.
virtual DtInetSocket *	addConnection (const DtInetSocket *socket)
	Add an established socket to the list of managed connections.
Connection removal methods.
Remove a connection from the list of managed connections. Any socket removal callbacks registered by the application will be invoked. The application is responsible for closing sockets and releasing the memory allocated for sockets (even if it was allocated by the socket manager in addConnection()). This should be performed in a socket removal call- back. Returns TRUE if the connection was successfully closed. Returns FALSE if the connection was not found in the connection list, which could indicate it was closed by the peer.
virtual bool	removeConnection (const DtInetEndpoint &peerEndpoint)
virtual bool	removeConnection (const DtInetSocket *socket)
Send methods
Send a packet to one or more sockets. If the destination list is empty the packet is sent to all connections. If the manager detects that an error or a connection that has been closed by the peer during this operation it will automatically remove it from the connection list and invoke any socket removal callbacks. The manager will continue attempting to send to to the remaining active sockets. Returns number of bytes sent or -1 if any error occurs.
virtual int	sendTo (caddr_t buff, int buffSize, DtInetDestList &dest, DtU32 flags=0)
virtual int	sendTo (DtInetBufferChain packets, DtInetDestList &dest, DtU32 flags=0)
Receive methods
Receive a packet from one connection at a time. If the 'peer' argument address member is not an ANY address (INADDR_ANY or IN6ADDR_ANY) the manager will try to receive from that peer connection. Otherwise the manager will return the next available packet and fill in the 'peer' endpoint information to indicate which connection it was received from. The manager ensures fairness in checking for received packets from every connection in its connection list. If the manager detects that an error on a socket or detects a connection that has been closed by the peer during this method it will automatically remove it from the connection list and invoke any socket. If an error is detected the receive operation will be aborted immediately and an error indication returned. Otherwise the manager will attempt to receive from the remaining active sockets after handling the termination. Returns the number of bytes received or an error status indication if any error occurs.
virtual DtInetSockRcvStatus	recvFrom (caddr_t buff, size_t buffSize, DtInetEndpoint &peer, DtU32 flags=0)
virtual DtInetSockRcvStatus	recvToChainFrom (DtInetBufferChain &packets, DtInetEndpoint &peer, DtU32 flags=0)
Add / Delete Socket Addition Callbacks
Add/remove socket addition callback to be invoked when a new socket connection is accepted. The order in which these callbacks are invoked can be controlled by setting the 'order' when adding the callback. Callbacks are invoked in order from lowest to highest. If the order callbacks are invoked doesn't matter the 'order' parameter can be set to -1. This will cause it to be added to the current end of the list.
virtual void	addSocketAdditionCallback (DtInetSocketAdditionCallback cb, void *usr, int order)
virtual void	removeSocketAdditionCallback (DtInetSocketAdditionCallback cb, void *usr)
Add / Delete Socket Removal Callbacks
Add/remove socket removal callback to be invoked when a managed socket connection is removed. The order in which these callbacks are invoked can be controlled by setting the 'order' when adding the callback. Callbacks are invoked in order from lowest to highest. If the order callbacks are invoked doesn't matter the 'order' parameter can be set to -1. This will cause it to be added to the current end of the list.
virtual void	addSocketRemovalCallback (DtInetSocketRemovalCallback cb, void *usr, int order)
virtual void	removeSocketRemovalCallback (DtInetSocketRemovalCallback cb, void *usr)
Flags accessors
Get the server socket or connection flags
virtual DtU32	getServerFlags () const
virtual DtU32	getConnectionFlags () const
Error reporting
Retrieve or clear the last error code or description.
virtual int	getLastError ()
virtual DtString	getLastErrorString ()
virtual void	clearError ()
Protected Member Functions
	DtInetSocketMgr (const DtInetSocketMgr &)
	Copy CTOR Not Implemented.
DtInetSocketMgr &	operator= (const DtInetSocketMgr &)
	Assignment Operator Not Implemented.
virtual int	processNewTcpConnections ()
virtual int	processNewUdpConnections ()
virtual DtInetSocket *	removeByKey (const DtInetEndpoint &key, DtInetSocketList &list)
virtual bool	removeByItem (const DtInetSocket *item, DtInetSocketList &list)
Protected Attributes
DtInetSocket *	myServerSocket
DtInetTcpSocket *	myTcpServerSocket
DtInetUdpSocket *	myUdpServerSocket
DtInetSocketList	mySockets
std::pair< DtInetEndpoint, DtInetSocket * >	myLastSocketReadFrom
std::map< int, DtInetSocketCbInfo * >	myAdditionCallbacks
std::map< int, DtInetSocketCbInfo * >	myRemovalCallbacks
DtSocketCreationCallback	mySocketCreateCallback
void *	mySocketCreator
DtU32	myServerFlags
DtU32	myConnectionFlags
int	myErrorCode
DtString	myErrorString
DtInetTcpSocket *	myPeerSocket
	The next peer socket to be returned.

Constructor & Destructor Documentation

DtInetSocketMgr::DtInetSocketMgr ( DtU32 connectionFlags = DtDefaultSockOpts )

Default Constructor.

Creates a generic socket manager without a server socket. Incoming connections cannot be accepted.

DtInetSocketMgr::DtInetSocketMgr	(	DtInetEndpoint &	serverEndpoint,
		DtInetDevice *	hostIf = `NULL`,
		DtU32	serverFlags = `(DtDefaultSockOpts\|DtSockOptNonBlocking)`,
		DtU32	connectionFlags = `DtDefaultSockOpts`,
		DtInetUtils::DtInetAddrFamily	family = `DtInetUtils::DtInetAddrFamily_IPv4`
	)

Server manager.

Creates a socket manager which opens a server socket using the protocol, address, and port specified in the serverEndpoint argument. If the server endpoint address is INADDR_ANY (or IN6ADDR_ANY) the server will bind to the interface specified by the hostIf parameter. If a specific interface is not identified the server will accept connections on all interfaces. If a specific port is not identified (port == 0) an ephemeral port will be chosen. The serverFlags argument specifies the operating characteristics of the server socket only. The connectionFlags argument specifies the default flags that will be applied to any automatically accepted connections. The individual connection socket flags can be altered within a socket addition callback. A TCP server manager will create a TCP socket to listen for and accept incoming connections but which cannot be used for sending and receiving packets. A UDP server manager will create a UDP socket which can keep track of known sources for incoming packets and signal, via socket addition callbacks, when a previously unknown source is recognized. This UDP server socket can send and receive data to or from all other UDP peers in 'unconnected' mode, including multicast groups, but cannot send or receive broadcast communications. The application is responsible for joining the UDP server socket to a multicast group. The family parameter is only used for TCP socket managers, as only a port is needed for a TCP server socket. This way, users can specify what type of address to use.

virtual DtInetSocketMgr::~DtInetSocketMgr ( ) [virtual]

Destructor.

DtInetSocketMgr::DtInetSocketMgr ( const DtInetSocketMgr & ) [protected]

Copy CTOR Not Implemented.

Member Function Documentation

virtual DtInetSocket* DtInetSocketMgr::addConnection	(	const DtInetEndpoint &	peerEp,
		DtU16	localPort = `0`,
		DtInetDevice *	hostIf = `NULL`,
		bool	openImmediately = `true`,
		bool	connectUdpSocket = `false`
	)		`[virtual]`

Add an established socket to the list of managed connections.

The socket should be open (and, if it's a TCP socket, connected) by the application prior to putting it under control of the socket manager. Returns a pointer to the socket or NULL if an error occurs.

virtual DtInetSocket* DtInetSocketMgr::addConnection ( const DtInetSocket * socket ) [virtual]

Add an established socket to the list of managed connections.

The socket should be open (and, if it's a TCP socket, connected) by the application prior to putting it under control of the socket manager. Returns a pointer to the socket or NULL if an error occurs.

virtual void DtInetSocketMgr::addSocketAdditionCallback	(	DtInetSocketAdditionCallback	cb,
		void *	usr,
		int	order
	)		`[virtual]`

virtual void DtInetSocketMgr::addSocketCreationCallback	(	DtSocketCreationCallback	cb,
		void *	socketCreator
	)		`[virtual]`

Set a specialized socket creation callback to be invoked prior to accepting a new incoming connection.

If no socket creation callback is registered a socket of the same type as the server socket accepting the connection (DtInetTcpSocket or DtInetUdpSocket) is used.

virtual void DtInetSocketMgr::addSocketRemovalCallback	(	DtInetSocketRemovalCallback	cb,
		void *	usr,
		int	order
	)		`[virtual]`

virtual void DtInetSocketMgr::clearError ( ) [virtual]

virtual DtU32 DtInetSocketMgr::getConnectionFlags ( ) const [virtual]

virtual int DtInetSocketMgr::getLastError ( ) [virtual]

virtual DtString DtInetSocketMgr::getLastErrorString ( ) [virtual]

virtual DtU32 DtInetSocketMgr::getServerFlags ( ) const [virtual]

DtInetSocketMgr& DtInetSocketMgr::operator= ( const DtInetSocketMgr & ) [protected]

Assignment Operator Not Implemented.

virtual DtInetSocket* DtInetSocketMgr::peerSocket ( const DtInetEndpoint & peer ) const [virtual]

Returns a pointer to the socket object associated with the peer endpoint specified in the 'peer' argument.

Returns NULL if the peer endpoint does not appear in the connection list. Note that it's possible that the connection list contains more than one connection to a single endpoint (such as if an application must maintain multiple connections to a single server socket on another host) so any application that needs to identify a single socket out of many connected to a single endpoint should retrieve the complete socket list to search for the desired socket.

virtual int DtInetSocketMgr::processConnections ( ) [virtual]

Check for incoming connection attempts.

Any socket addition callbacks registered by the application will be invoked. The new connections will be automatically added to the list of managed connections if all socket addition callbacks return true. Returns the number of new connections added or -1 if a manager error occurs and -2 if a socket error occurs during establishment of a connection.

virtual int DtInetSocketMgr::processNewTcpConnections ( ) [protected, virtual]

virtual int DtInetSocketMgr::processNewUdpConnections ( ) [protected, virtual]

virtual DtInetSockRcvStatus DtInetSocketMgr::recvFrom	(	caddr_t	buff,
		size_t	buffSize,
		DtInetEndpoint &	peer,
		DtU32	flags = `0`
	)		`[virtual]`

virtual DtInetSockRcvStatus DtInetSocketMgr::recvToChainFrom	(	DtInetBufferChain &	packets,
		DtInetEndpoint &	peer,
		DtU32	flags = `0`
	)		`[virtual]`

virtual bool DtInetSocketMgr::removeByItem	(	const DtInetSocket *	item,
		DtInetSocketList &	list
	)		`[protected, virtual]`

virtual DtInetSocket* DtInetSocketMgr::removeByKey	(	const DtInetEndpoint &	key,
		DtInetSocketList &	list
	)		`[protected, virtual]`

virtual bool DtInetSocketMgr::removeConnection ( const DtInetEndpoint & peerEndpoint ) [virtual]

virtual bool DtInetSocketMgr::removeConnection ( const DtInetSocket * socket ) [virtual]

virtual void DtInetSocketMgr::removeSocketAdditionCallback	(	DtInetSocketAdditionCallback	cb,
		void *	usr
	)		`[virtual]`

virtual void DtInetSocketMgr::removeSocketRemovalCallback	(	DtInetSocketRemovalCallback	cb,
		void *	usr
	)		`[virtual]`

virtual int DtInetSocketMgr::sendTo	(	caddr_t	buff,
		int	buffSize,
		DtInetDestList &	dest,
		DtU32	flags = `0`
	)		`[virtual]`

virtual int DtInetSocketMgr::sendTo	(	DtInetBufferChain	packets,
		DtInetDestList &	dest,
		DtU32	flags = `0`
	)		`[virtual]`

virtual DtInetSocket* DtInetSocketMgr::serverSocket ( ) const [virtual]

Returns a pointer to the server socket, whether it be a DtInetTcpSocket or a DtInetUdpSocket.

virtual const DtInetSocketList& DtInetSocketMgr::socketList ( ) const [virtual]

Returns the list (actually a map) of sockets being managed.

If the socket manager is handling unconnected UDP sockets the UDP 'server' socket is included in this list. The TCP server socket is never included in this list.
