DtLinearObjectRepository Class Reference

class DtLinearObjectRepository More...

Inheritance diagram for DtLinearObjectRepository:

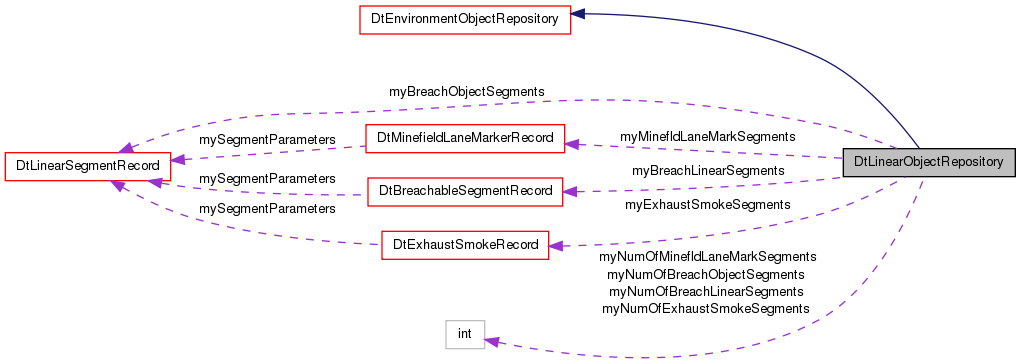

Collaboration diagram for DtLinearObjectRepository:

List of all members.

Public Member Functions
	DtLinearObjectRepository ()
virtual	~DtLinearObjectRepository ()
	DtLinearObjectRepository (const DtLinearObjectRepository &orig)
DtLinearObjectRepository &	operator= (const DtLinearObjectRepository &orig)
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this.
virtual bool	setNumOfBreachLinearSegments (int newNumber)
	Set/Get the number of BreachableLinearObject Segment Records.
virtual int	numOfBreachLinearSegments () const
virtual bool	setBreachLinearSegment (int index, const DtBreachableSegmentRecord &record)
virtual bool	breachLinearSegment (int index, DtBreachableSegmentRecord &record) const
virtual bool	setNumOfBreachObjectSegments (int newNumber)
	Set/Get the number of BreachObject Segment Records.
virtual int	numOfBreachObjectSegments () const
virtual bool	setBreachObjectSegment (int index, const DtLinearSegmentRecord &record)
virtual bool	breachObjectSegment (int index, DtLinearSegmentRecord &record) const
virtual bool	setNumOfExhaustSmokeSegments (int newNumber)
	Set/Get the number of ExhaustSmokeObject Segment Records.
virtual int	numOfExhaustSmokeSegments () const
virtual bool	setExhaustSmokeSegment (int index, const DtExhaustSmokeRecord &record)
virtual bool	exhaustSmokeSegment (int index, DtExhaustSmokeRecord &record) const
virtual bool	setNumOfMinefldLaneMarkSegments (int newNumber)
	Set/Get the number of MinefieldLaneMarker Segment Records.
virtual int	numOfMinefldLaneMarkSegments () const
virtual bool	setMinefldLaneMarkSegment (int index, const DtMinefieldLaneMarkerRecord &record)
virtual bool	minefldLaneMarkSegment (int index, DtMinefieldLaneMarkerRecord &record) const
virtual void	printData () const
	Prints data to DtInfo.
virtual void	printDataToStream (std::ostream &stream) const
	Prints data to the specified stream.
Static Public Member Functions
static DtLinearObjectRepository *	create ()
Protected Attributes
int	myNumOfBreachLinearSegments
DtBreachableSegmentRecord *	myBreachLinearSegments
int	myNumOfBreachObjectSegments
DtLinearSegmentRecord *	myBreachObjectSegments
int	myNumOfExhaustSmokeSegments
DtExhaustSmokeRecord *	myExhaustSmokeSegments
int	myNumOfMinefldLaneMarkSegments
DtMinefieldLaneMarkerRecord *	myMinefldLaneMarkSegments

---

Detailed Description

class DtLinearObjectRepository

Instances of DtLinearObjectRepository are used to maintain state information needed by linear object entities

The states of BreachableLinearObjects, BreachObjects, ExhaustSmokeObjects, and MinefieldLaneMarkerObjects are all maintained within this class. In order to publish a specific type of object, the object type needs to be set to that of the object to be published. That specific object will then be published and updated.

One Object Repository is used for all types of linear objects, since there is one PDU that is used for all types of linear object

The type of Linear Object published depends on the object type Object type: Exhaust Smoke -- Domain = 0 (other), Kind = 5 (tactical smoke) Category = 1 Minefield Lane Marker -- Domain = 1 (land), Kind = 6 (obstacle), Category = 1 Breach Object -- Domain = 1 (land), Kind = 7 (obstacle breach), Category = 1 Breachable Linear Object -- Couldn't figure out Object type... currently not implemented in the mapper Any object types not specified will be published as OtherLinearObjects

---

Constructor & Destructor Documentation

DtLinearObjectRepository::DtLinearObjectRepository

(

)

virtual DtLinearObjectRepository::~DtLinearObjectRepository

(

)

[virtual]

DtLinearObjectRepository::DtLinearObjectRepository

(

const DtLinearObjectRepository &

orig

)

---

Member Function Documentation

virtual bool DtLinearObjectRepository::breachLinearSegment	(	int	index,
		DtBreachableSegmentRecord &	record
	)		const [virtual]

virtual bool DtLinearObjectRepository::breachObjectSegment	(	int	index,
		DtLinearSegmentRecord &	record
	)		const [virtual]

virtual DtStateRepository* DtLinearObjectRepository::clone

(

bool

copy

)

const [virtual]

Return a copy/empty object of the same type as this.

Reimplemented from DtEnvironmentObjectRepository.

static DtLinearObjectRepository* DtLinearObjectRepository::create

(

)

[static]

Reimplemented from DtEnvironmentObjectRepository.

virtual bool DtLinearObjectRepository::exhaustSmokeSegment	(	int	index,
		DtExhaustSmokeRecord &	record
	)		const [virtual]

virtual bool DtLinearObjectRepository::minefldLaneMarkSegment	(	int	index,
		DtMinefieldLaneMarkerRecord &	record
	)		const [virtual]

virtual int DtLinearObjectRepository::numOfBreachLinearSegments

(

)

const [virtual]

virtual int DtLinearObjectRepository::numOfBreachObjectSegments

(

)

const [virtual]

virtual int DtLinearObjectRepository::numOfExhaustSmokeSegments

(

)

const [virtual]

virtual int DtLinearObjectRepository::numOfMinefldLaneMarkSegments

(

)

const [virtual]

DtLinearObjectRepository& DtLinearObjectRepository::operator=

(

const DtLinearObjectRepository &

orig

)

virtual void DtLinearObjectRepository::printData

(

)

const [virtual]

Prints data to DtInfo.

Reimplemented from DtEnvironmentObjectRepository.

virtual void DtLinearObjectRepository::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Prints data to the specified stream.

Reimplemented from DtEnvironmentObjectRepository.

virtual bool DtLinearObjectRepository::setBreachLinearSegment	(	int	index,
		const DtBreachableSegmentRecord &	record
	)		[virtual]

virtual bool DtLinearObjectRepository::setBreachObjectSegment	(	int	index,
		const DtLinearSegmentRecord &	record
	)		[virtual]

virtual bool DtLinearObjectRepository::setExhaustSmokeSegment	(	int	index,
		const DtExhaustSmokeRecord &	record
	)		[virtual]

virtual bool DtLinearObjectRepository::setMinefldLaneMarkSegment	(	int	index,
		const DtMinefieldLaneMarkerRecord &	record
	)		[virtual]

virtual bool DtLinearObjectRepository::setNumOfBreachLinearSegments

(

int

newNumber

)

[virtual]

Set/Get the number of BreachableLinearObject Segment Records.

Set returns false if the requested number is too large. Changing this number will erase all previous data.

virtual bool DtLinearObjectRepository::setNumOfBreachObjectSegments

(

int

newNumber

)

[virtual]

Set/Get the number of BreachObject Segment Records.

Set returns false if the request number is too large. Changing this number will erase all previous data.

virtual bool DtLinearObjectRepository::setNumOfExhaustSmokeSegments

(

int

newNumber

)

[virtual]

Set/Get the number of ExhaustSmokeObject Segment Records.

Set returns false if the requested number is too large. Changing this number will erase all previous data.

virtual bool DtLinearObjectRepository::setNumOfMinefldLaneMarkSegments

(

int

newNumber

)

[virtual]

Set/Get the number of MinefieldLaneMarker Segment Records.

Set returns false if the request number is too large. Changing this number will erase all previous data.

---

Member Data Documentation

DtBreachableSegmentRecord* DtLinearObjectRepository::myBreachLinearSegments [protected]

DtLinearSegmentRecord* DtLinearObjectRepository::myBreachObjectSegments [protected]

DtExhaustSmokeRecord* DtLinearObjectRepository::myExhaustSmokeSegments [protected]

DtMinefieldLaneMarkerRecord* DtLinearObjectRepository::myMinefldLaneMarkSegments [protected]

int DtLinearObjectRepository::myNumOfBreachLinearSegments [protected]

int DtLinearObjectRepository::myNumOfBreachObjectSegments [protected]

int DtLinearObjectRepository::myNumOfExhaustSmokeSegments [protected]

int DtLinearObjectRepository::myNumOfMinefldLaneMarkSegments [protected]

---

The documentation for this class was generated from the following file:

• linearObjSR.h
