The DtLink16Signal class is a helper class that is used to assist the user in setting Link16 data as defined by the SISO-STD-002-2006 document. More...

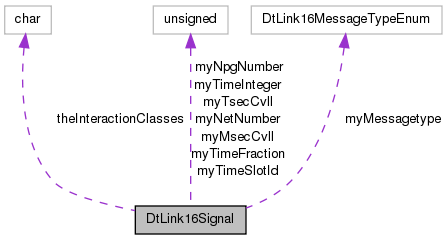

Collaboration diagram for DtLink16Signal:

Classes
struct	DtNetLink16SignalFields
	This is the net structure that's used to encode the Link16 fields in the data section of the signal PDU/interaction. More...
Public Member Functions
	DtLink16Signal ()
	Default constructor.
	DtLink16Signal (const DtSignalInteraction *signal)
	Constructor that takes a signal interaction.
virtual	~DtLink16Signal ()
	Destructor.
virtual void	encode (DtSignalInteraction inter, int numJWords, const void data, int sizeOfData)
	Encodes the Link 16 data contained in this class into the interaction passed in.
virtual void *	decode (const DtSignalInteraction *inter)
	Decodes the interaction passed in, into this class.

virtual void	setNpgNumber (DtU16 npg)
	Set/Get the NPG Number.
virtual DtU16	npgNumber () const
	Set/Get the NPG Number.

virtual void	setNetNumber (DtU8 net)
	Set/Get the Net Number.
virtual DtU8	netNumber () const
	Set/Get the Net Number.

virtual void	setTsecCvll (DtU8 val)
	Set/Get the TSEC CVLL.
virtual DtU8	tsecCvll () const
	Set/Get the TSEC CVLL.

virtual void	setMsecCvll (DtU8 val)
	Set/Get the MSEC CVLL.
virtual DtU8	msecCvll () const
	Set/Get the MSEC CVLL.

virtual void	setLink16MessageType (DtLink16MessageTypeEnum val)
	Set/Get the Message Type.
virtual DtLink16MessageTypeEnum	link16MessageType () const
	Set/Get the Message Type.

virtual void	setTimeIdSlotNumber (DtU32 val)
	Set/Get the Time Slot ID Slot Number.
virtual DtU32	timeIdSlotNumber () const
	Set/Get the Time Slot ID Slot Number.

virtual void	setTimeIdEpochNumber (DtU8 val)
	Set/Get the Time Slot ID Epoch Number.
virtual DtU8	timeIdEpochNumber () const
	Set/Get the Time Slot ID Epoch Number.

virtual void	setPerceivedTransmitTimeInteger (DtU32 val)
	Set/Get the perceived transmit time (integer portion).
virtual DtU32	perceivedTransmitTimeInteger () const
	Set/Get the perceived transmit time (integer portion).

virtual void	setPerceivedTransmitTimeFraction (DtU32 val)
	Set/Get the perceived transmit time (fraction portion).
virtual DtU32	perceivedTransmitTimeFraction () const
	Set/Get the perceived transmit time (fraction portion).
Static Public Member Functions
static char *	link16SignalClassChooser (DtExerciseConn *exConn, const DtInteraction &inter)
	The Link-16 chooser class.
static void	setInteractionClasses (DtExerciseConn *exConn)
	Tells the exConn's FOM Mapper to subscribe to all the Link 16 interactions.
static void	setUpRprFomMapper (DtExerciseConn *exConn)
	Sets up the exConn's RPR FOM Mapper to subscribe to/send all of the Link 16 messages.
Protected Attributes
DtU16	myNpgNumber
DtU8	myNetNumber
DtU8	myTsecCvll
DtU8	myMsecCvll
DtLink16MessageTypeEnum	myMessagetype
DtU32	myTimeSlotId
DtU32	myTimeInteger
DtU32	myTimeFraction
Static Protected Attributes
static const char *	theInteractionClasses [8]

Detailed Description

The DtLink16Signal class is a helper class that is used to assist the user in setting Link16 data as defined by the SISO-STD-002-2006 document.

The user is responsible for setting the data for the actual Link16 message, and passes the message data into the encode method, which will place it after the Link 16 fields in the data section of the interaction/PDU.

Constructor & Destructor Documentation

DtLink16Signal::DtLink16Signal ( )

Default constructor.

DtLink16Signal::DtLink16Signal ( const DtSignalInteraction * signal )

Constructor that takes a signal interaction.

Calls decode, passing in the signal.

virtual DtLink16Signal::~DtLink16Signal ( ) [virtual]

Destructor.

Member Function Documentation

virtual void* DtLink16Signal::decode ( const DtSignalInteraction * inter ) [virtual]

Decodes the interaction passed in, into this class.

Returns the data section of the interaction, after the Link-16 fields. The size of this data can be determined by the DtSignalInteraction's numDataBytes() method minus 20 (the size of the Link 16 data).

virtual void DtLink16Signal::encode	(	DtSignalInteraction *	inter,
		int	numJWords,
		const void *	data,
		int	sizeOfData
	)		`[virtual]`

Encodes the Link 16 data contained in this class into the interaction passed in.

The number of J-Words needs to be specified, along with the data (Link-16 message), and the size of that data, in bytes.

virtual DtLink16MessageTypeEnum DtLink16Signal::link16MessageType ( ) const [virtual]

Set/Get the Message Type.

In HLA, this is used to determine what type of Link 16 Signal interaction is sent.

static char* DtLink16Signal::link16SignalClassChooser	(	DtExerciseConn *	exConn,
		const DtInteraction &	inter
	)		`[static]`

The Link-16 chooser class.

This function is used with a FOM Mapper to choose the correct FOM type to send, when sending a Link 16 signal interaction. This is done based on the Link 16 message type.

virtual DtU8 DtLink16Signal::msecCvll ( ) const [virtual]

Set/Get the MSEC CVLL.

virtual DtU8 DtLink16Signal::netNumber ( ) const [virtual]

Set/Get the Net Number.

virtual DtU16 DtLink16Signal::npgNumber ( ) const [virtual]

Set/Get the NPG Number.

virtual DtU32 DtLink16Signal::perceivedTransmitTimeFraction ( ) const [virtual]

Set/Get the perceived transmit time (fraction portion).

virtual DtU32 DtLink16Signal::perceivedTransmitTimeInteger ( ) const [virtual]

Set/Get the perceived transmit time (integer portion).

static void DtLink16Signal::setInteractionClasses ( DtExerciseConn * exConn ) [static]

Tells the exConn's FOM Mapper to subscribe to all the Link 16 interactions.

virtual void DtLink16Signal::setLink16MessageType ( DtLink16MessageTypeEnum val ) [virtual]

Set/Get the Message Type.

In HLA, this is used to determine what type of Link 16 Signal interaction is sent.

virtual void DtLink16Signal::setMsecCvll ( DtU8 val ) [virtual]

Set/Get the MSEC CVLL.

virtual void DtLink16Signal::setNetNumber ( DtU8 net ) [virtual]

Set/Get the Net Number.

virtual void DtLink16Signal::setNpgNumber ( DtU16 npg ) [virtual]

Set/Get the NPG Number.

virtual void DtLink16Signal::setPerceivedTransmitTimeFraction ( DtU32 val ) [virtual]

Set/Get the perceived transmit time (fraction portion).

virtual void DtLink16Signal::setPerceivedTransmitTimeInteger ( DtU32 val ) [virtual]

Set/Get the perceived transmit time (integer portion).

virtual void DtLink16Signal::setTimeIdEpochNumber ( DtU8 val ) [virtual]

Set/Get the Time Slot ID Epoch Number.

virtual void DtLink16Signal::setTimeIdSlotNumber ( DtU32 val ) [virtual]

Set/Get the Time Slot ID Slot Number.

virtual void DtLink16Signal::setTsecCvll ( DtU8 val ) [virtual]

Set/Get the TSEC CVLL.

static void DtLink16Signal::setUpRprFomMapper ( DtExerciseConn * exConn ) [static]

Sets up the exConn's RPR FOM Mapper to subscribe to/send all of the Link 16 messages.

Only this method needs to be called after exercise connection instantiation to use the Link 16 signal interactions, provided they are in the FOM, derived from the RawBinaryRadioSignal interaction class.

virtual DtU8 DtLink16Signal::timeIdEpochNumber ( ) const [virtual]

Set/Get the Time Slot ID Epoch Number.

virtual DtU32 DtLink16Signal::timeIdSlotNumber ( ) const [virtual]

Set/Get the Time Slot ID Slot Number.

virtual DtU8 DtLink16Signal::tsecCvll ( ) const [virtual]

Set/Get the TSEC CVLL.
