class DtRemoveObjectRequestInter: More...

Inheritance diagram for DtRemoveObjectRequestInter:

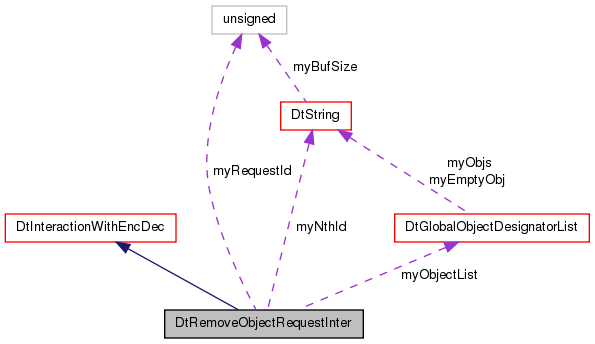

Collaboration diagram for DtRemoveObjectRequestInter:

Public Member Functions
	DtRemoveObjectRequestInter ()
	default constructor
virtual	~DtRemoveObjectRequestInter ()
	destructor
	DtRemoveObjectRequestInter (const DtRemoveObjectRequestInter &orig)
	copy constructor
DtRemoveObjectRequestInter &	operator= (const DtRemoveObjectRequestInter &orig)
	assignment operator
virtual void	printData () const
	Print the interaction's data to DtInfo.
virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the specified stream.
virtual const DtGlobalObjectDesignatorList &	objectIDs () const
	Return the Object ID list.
virtual DtGlobalObjectDesignatorList *	objectIDs ()
virtual void	setNumIds (DtU8 numIds)
	Set/Get number of IDs.
virtual DtU8	numIds () const
virtual void	setNthObjectId (DtInt32 idIndex, const DtGlobalObjectDesignator &id)
	Set/Get the nth ObjectId.
virtual const DtGlobalObjectDesignator &	nthObjectId (DtInt32 idIndex) const
virtual void	setRequestId (DtU32 id)
	Set/Get request ID.
virtual DtU32	requestId () const
virtual const char *	name () const
	Name of the interaction. (Not necessarily the ClassName from the FOM.)
Static Public Member Functions
static DtInteraction *	create ()
	Create a DtRemoveObjectRequestInter.
static void	addCallback (DtExerciseConn conn, DtRemoveObjectRequestInterCb cb, void usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register)/Remove (deregister) function to be called when interaction occurs.
static void	removeCallback (DtExerciseConn conn, DtRemoveObjectRequestInterCb cb, void usr, DtDDMRegionSP region=DtDDMRegionSP())
Protected Attributes
DtGlobalObjectDesignatorList	myObjectList
DtGlobalObjectDesignator	myNthId
DtU32	myRequestId

Detailed Description

class DtRemoveObjectRequestInter:

Instances of DtRemoveObjectRequestInter are used to represent RemoveObjectRequest Interactions in the RPR FOM.

Constructor & Destructor Documentation

DtRemoveObjectRequestInter::DtRemoveObjectRequestInter ( )

default constructor

virtual DtRemoveObjectRequestInter::~DtRemoveObjectRequestInter ( ) [virtual]

destructor

DtRemoveObjectRequestInter::DtRemoveObjectRequestInter ( const DtRemoveObjectRequestInter & orig )

copy constructor

Member Function Documentation

static void DtRemoveObjectRequestInter::addCallback	(	DtExerciseConn *	conn,
		DtRemoveObjectRequestInterCb	cb,
		void *	usr,
		DtDDMRegionSP	region = `DtDDMRegionSP()`
	)		`[static]`

Add (register)/Remove (deregister) function to be called when interaction occurs.

static DtInteraction* DtRemoveObjectRequestInter::create ( ) [static]

Create a DtRemoveObjectRequestInter.

Caller is responsible for deletion.

const char * DtRemoveObjectRequestInter::name ( ) const [inline, virtual]

Name of the interaction. (Not necessarily the ClassName from the FOM.)

Implements DtInteraction.

virtual const DtGlobalObjectDesignator& DtRemoveObjectRequestInter::nthObjectId ( DtInt32 idIndex ) const [virtual]

virtual DtU8 DtRemoveObjectRequestInter::numIds ( ) const [virtual]

virtual const DtGlobalObjectDesignatorList& DtRemoveObjectRequestInter::objectIDs ( ) const [virtual]

Return the Object ID list.

virtual DtGlobalObjectDesignatorList* DtRemoveObjectRequestInter::objectIDs ( ) [virtual]

DtRemoveObjectRequestInter& DtRemoveObjectRequestInter::operator= ( const DtRemoveObjectRequestInter & orig )

assignment operator

virtual void DtRemoveObjectRequestInter::printData ( ) const [virtual]

Print the interaction's data to DtInfo.

Reimplemented from DtInteraction.

virtual void DtRemoveObjectRequestInter::printDataToStream ( std::ostream & stream ) const [virtual]

Print the interaction's data to the specified stream.

Reimplemented from DtInteraction.

static void DtRemoveObjectRequestInter::removeCallback	(	DtExerciseConn *	conn,
		DtRemoveObjectRequestInterCb	cb,
		void *	usr,
		DtDDMRegionSP	region = `DtDDMRegionSP()`
	)		`[static]`
