DtAttributeChangeResInter Class Reference

Instances of DtAttributeChangeResInter are used to represent AttributeChangeResult Interactions in the RPR FOM. More...

Inheritance diagram for DtAttributeChangeResInter:

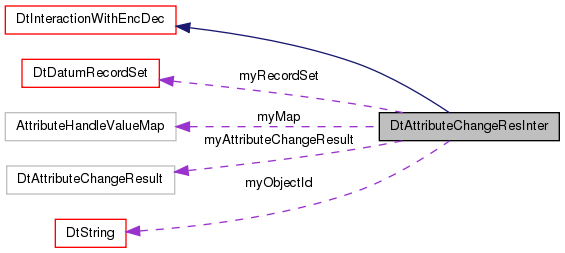

Collaboration diagram for DtAttributeChangeResInter:

List of all members.

Public Member Functions
	DtAttributeChangeResInter ()
	default constructor
virtual	~DtAttributeChangeResInter ()
	destructor
	DtAttributeChangeResInter (const DtAttributeChangeResInter &orig)
	copy constructor
DtAttributeChangeResInter &	operator= (const DtAttributeChangeResInter &orig)
	assignment operator
virtual void	printData () const
	Print the interaction's data to DtInfo.
virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the specified stream.
virtual void	setObjectId (const DtGlobalObjectDesignator &id)
	Set/Get the objectID.
virtual const DtGlobalObjectDesignator &	objectId () const
virtual void	setNumPairs (DtU32 pairs)
	Set/Get the number of attribute/value pairs.
virtual DtU32	numPairs () const
virtual void	setAvMap (const RTI::AttributeHandleValueMap &atts)
virtual const RTI::AttributeHandleValueMap &	avMap () const
virtual void	setAttributeHandle (DtU32 index, RTI::AttributeHandle handle)
	Set/Get the attribute handle given an index.
virtual RTI::AttributeHandle	attributeHandle (DtU32 index) const
virtual void	setAttributeValueLength (DtU32 index, DtU32 length)
	Set/Get the attribute value length given and index.
virtual DtU32	attributeValueLength (DtU32 index) const
virtual void	setAttributeValue (DtU32 index, const char *usr)
virtual const char *	attributeValue (DtU32 index) const
virtual DtDatumRecordSet *	datumRecSet ()
	Return the DtDatumRecordSet which an InteractionWithData uses to store its fixed and var records.
virtual const DtDatumRecordSet *	datumRecSet () const
virtual void	setAttributeChangeResult (DtAttributeChangeResult result)
	Set/Get the AttributeChangeResult type.
virtual DtAttributeChangeResult	attributeChangeResult () const
virtual const char *	name () const
	Name of the interaction. (Not necessarily the ClassName from the FOM.)
Static Public Member Functions
static DtInteraction *	create ()
	Create a DtAttributeChangeResInter.
static void	addCallback (DtExerciseConn *conn, DtAttributeChangeResInterCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register)/Remove (deregister) function to be called when interaction occurs.
static void	removeCallback (DtExerciseConn *conn, DtAttributeChangeResInterCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
Protected Attributes
DtGlobalObjectDesignator	myObjectId
DtDatumRecordSet	myRecordSet
DtAttributeChangeResult	myAttributeChangeResult
RTI::AttributeHandleValueMap	myMap

---

Detailed Description

Instances of DtAttributeChangeResInter are used to represent AttributeChangeResult Interactions in the RPR FOM.

---

Constructor & Destructor Documentation

DtAttributeChangeResInter::DtAttributeChangeResInter

(

)

default constructor

virtual DtAttributeChangeResInter::~DtAttributeChangeResInter

(

)

[virtual]

destructor

DtAttributeChangeResInter::DtAttributeChangeResInter

(

const DtAttributeChangeResInter &

orig

)

copy constructor

---

Member Function Documentation

static void DtAttributeChangeResInter::addCallback	(	DtExerciseConn *	conn,
		DtAttributeChangeResInterCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

Add (register)/Remove (deregister) function to be called when interaction occurs.

virtual DtAttributeChangeResult DtAttributeChangeResInter::attributeChangeResult

(

)

const [virtual]

virtual RTI::AttributeHandle DtAttributeChangeResInter::attributeHandle

(

DtU32

index

)

const [virtual]

virtual const char* DtAttributeChangeResInter::attributeValue

(

DtU32

index

)

const [virtual]

virtual DtU32 DtAttributeChangeResInter::attributeValueLength

(

DtU32

index

)

const [virtual]

virtual const RTI::AttributeHandleValueMap& DtAttributeChangeResInter::avMap

(

)

const [virtual]

static DtInteraction* DtAttributeChangeResInter::create

(

)

[static]

Create a DtAttributeChangeResInter.

Caller is responsible for deletion.

virtual DtDatumRecordSet* DtAttributeChangeResInter::datumRecSet

(

)

[virtual]

Return the DtDatumRecordSet which an InteractionWithData uses to store its fixed and var records.

In general, the wrapper functions above should be used rather than going directly through the DtDatumRecordSet, which is necessary only when doing encoding and decoding of network representations.

virtual const DtDatumRecordSet* DtAttributeChangeResInter::datumRecSet

(

)

const [virtual]

const char * DtAttributeChangeResInter::name

(

)

const [inline, virtual]

Name of the interaction. (Not necessarily the ClassName from the FOM.)

Implements DtInteraction.

virtual DtU32 DtAttributeChangeResInter::numPairs

(

)

const [virtual]

virtual const DtGlobalObjectDesignator& DtAttributeChangeResInter::objectId

(

)

const [virtual]

DtAttributeChangeResInter& DtAttributeChangeResInter::operator=

(

const DtAttributeChangeResInter &

orig

)

assignment operator

virtual void DtAttributeChangeResInter::printData

(

)

const [virtual]

Print the interaction's data to DtInfo.

Reimplemented from DtInteraction.

virtual void DtAttributeChangeResInter::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Print the interaction's data to the specified stream.

Reimplemented from DtInteraction.

static void DtAttributeChangeResInter::removeCallback	(	DtExerciseConn *	conn,
		DtAttributeChangeResInterCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

virtual void DtAttributeChangeResInter::setAttributeChangeResult

(

DtAttributeChangeResult

result

)

[virtual]

Set/Get the AttributeChangeResult type.

virtual void DtAttributeChangeResInter::setAttributeHandle	(	DtU32	index,
		RTI::AttributeHandle	handle
	)		[virtual]

Set/Get the attribute handle given an index.

virtual void DtAttributeChangeResInter::setAttributeValue	(	DtU32	index,
		const char *	usr
	)		[virtual]

virtual void DtAttributeChangeResInter::setAttributeValueLength	(	DtU32	index,
		DtU32	length
	)		[virtual]

Set/Get the attribute value length given and index.

virtual void DtAttributeChangeResInter::setAvMap

(

const RTI::AttributeHandleValueMap &

atts

)

[virtual]

virtual void DtAttributeChangeResInter::setNumPairs

(

DtU32

pairs

)

[virtual]

Set/Get the number of attribute/value pairs.

virtual void DtAttributeChangeResInter::setObjectId

(

const DtGlobalObjectDesignator &

id

)

[virtual]

Set/Get the objectID.

---

Member Data Documentation

DtAttributeChangeResult DtAttributeChangeResInter::myAttributeChangeResult [protected]

RTI::AttributeHandleValueMap DtAttributeChangeResInter::myMap [mutable, protected]

DtGlobalObjectDesignator DtAttributeChangeResInter::myObjectId [protected]

DtDatumRecordSet DtAttributeChangeResInter::myRecordSet [protected]

---

The documentation for this class was generated from the following file:

• hAttChgResInt.h
