DtInteraction is an abstract base class for representing HLA interactions (or events) (as opposed to HLA objects). More...

Inheritance diagram for DtInteraction:

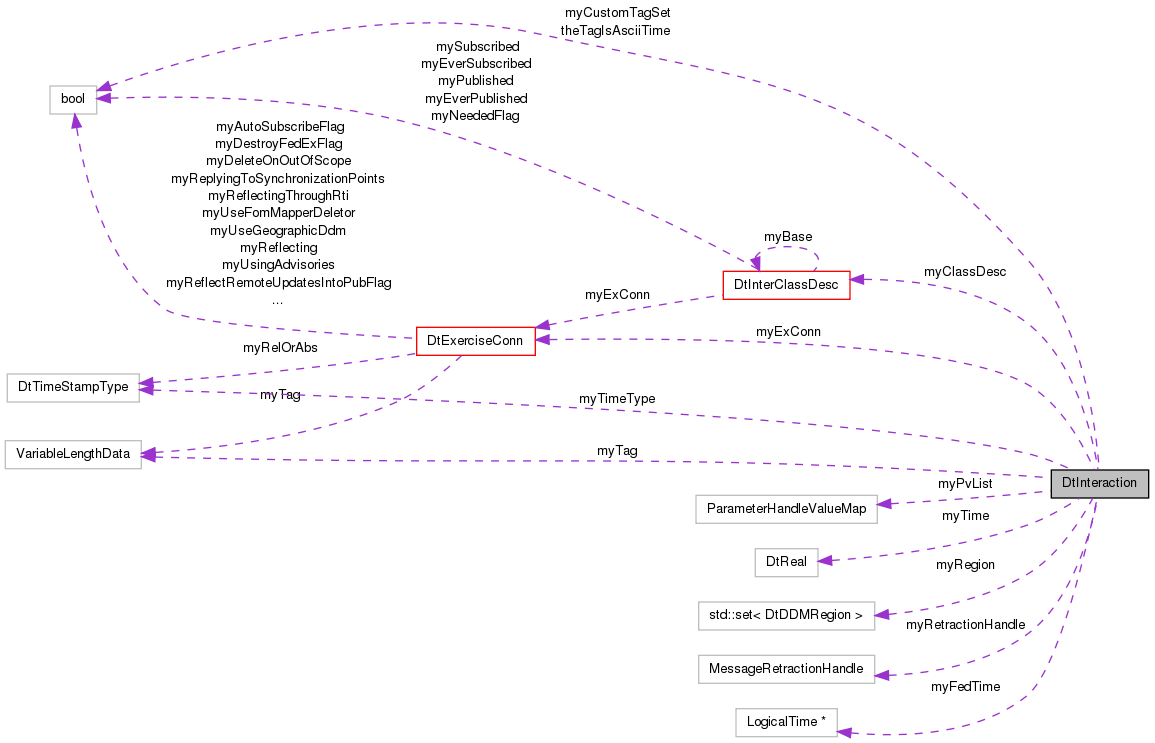

Collaboration diagram for DtInteraction:

List of all members.

Public Member Functions
	DtInteraction ()
	default constructor
virtual	~DtInteraction ()
	destructor
	DtInteraction (const DtInteraction &orig)
	copy constructor
DtInteraction &	operator= (const DtInteraction &orig)
	assignment operator
virtual const RTI::ParameterHandleValueMap &	phvm () const =0
	Get the parameter handle value pair set for the interaction.
virtual void	setFromPhvm (const RTI::ParameterHandleValueMap &pvList)=0
	Set contents from a parameter handle value pair set.
virtual void	setExConn (DtExerciseConn exConn, DtInterClassDesc classDesc=0)
	Sets the interaction's ExerciseConn and class descriptor.
virtual RTI::InteractionClassHandle	interactionClassHandle () const
	Get the interaction class handle. Returns 0 if no classDesc.
virtual char *	interactionClassName () const
	Get the interaction class name. Returns NULL if no classDesc.
virtual int	numParameters () const
	Get the number of parameters. Returns 0 if no classDesc.
virtual bool	neededByFederation () const
	Returns true if the interaction class is needed by the federation false otherwise.
virtual void	print () const
	Print the interaction's host rep data, including header.
virtual void	printToStream (std::ostream &stream) const
	Print the interaction to a stream.
virtual void	printHeader () const
	Print the header info.
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the header info to a stream.
virtual void	printData () const
	Print the interaction's data to DtInfo.
virtual void	printDataToString (DtString &buff) const
	Print the interaction's data to the string provided.
virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the stream.
virtual void	printParams (bool withHex) const
	Print the header followed by the interaction's parameters.
virtual void	printParamsToStream (std::ostream &stream, bool withHex) const
	Print the header followed by the interaction's parameters to a stream.
virtual const char *	name () const =0
	Name of the interaction. (Not necessarily the ClassName from the FOM.)
virtual DtExerciseConn *	exerciseConn () const
	Get the current exercise connection.
virtual DtInterClassDesc *	classDesc () const
	Get the current class descriptor we're using for this interaction.
virtual bool	customTagSet () const
	Get whether a custom tag has been set on the interaction or not.
virtual void	setCustomTag (const RTI::VariableLengthData &a_tag)
	Set the user-defined tag.
virtual void	setTag (const RTI::VariableLengthData &tag)
	Set the user-defined tag.
virtual const RTI::VariableLengthData &	tag () const
	Get the user-defined tag.
virtual const std::set < DtDDMRegion > *	region () const
virtual void	setRegion (const std::set< DtDDMRegion > &region)
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the time of validity of the message, and whether this represents relative or absolute time.
virtual DtTime	timeStamp () const
	Return the time of validity of the message (in seconds past an hour) as set by setTimeStamp.
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp.
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.
virtual void	setFedTime (const RTI::LogicalTime &ft)
	This is used for TSO interactions.
virtual const RTI::LogicalTime *	fedTime () const
	When the interaction is received, if the federate sending the interaction had TSO set then the fedTime will be set.
virtual void	setMessageRetractionHandle (const RTI::MessageRetractionHandle &handle)
	Get/Set the MessageRetractionHandle.
virtual RTI::MessageRetractionHandle	messageRetractionHandle () const
	Get the message retraction handle. For more info see setMessageRetractionHandle.
Static Public Member Functions
static void	setTagIsAsciiTime (bool val)
	Set/Get flag that tells us whether we're using the RPR FOM convention that the UserDefinedTag in updates and interactions represents a DIS-style timestamp.
static bool	tagIsAsciiTime ()
static void	addCallback (DtExerciseConn conn, const DtList classes, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Register/Deregister callback function cb with conn, on all interaction class name (char*) contained in classes.
static void	removeCallback (DtExerciseConn conn, const DtList classes, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
static void	addCallback (DtExerciseConn conn, const char className, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Can be used instead of above for a single class.
static void	removeCallback (DtExerciseConn conn, const char className, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
Protected Member Functions
virtual char *	interactionClassToUse (DtExerciseConn *exConn) const
	Returns the FOM interaction class name to use.
virtual RTI::ParameterHandleValueMap &	privPvList () const
	Returns a pointer to a private pvList that can be used as a return value by phvps.
DtInteraction *	self () const
	Get rid of const-ness on the "this" pointer in order to access non-const functions from const member functions (such as simple accessors).
Protected Attributes
DtInterClassDesc *	myClassDesc
DtExerciseConn *	myExConn
DtTime	myTime
DtTimeStampType	myTimeType
RTI::LogicalTime *	myFedTime
RTI::ParameterHandleValueMap	myPvList
RTI::MessageRetractionHandle	myRetractionHandle
RTI::VariableLengthData	myTag
std::set< DtDDMRegion > *	myRegion
bool	myCustomTagSet
Static Protected Attributes
static bool	theTagIsAsciiTime

Detailed Description

DtInteraction is an abstract base class for representing HLA interactions (or events) (as opposed to HLA objects).

Examples

Listen
Talk

Constructor & Destructor Documentation

DtInteraction::DtInteraction ( )

default constructor

virtual DtInteraction::~DtInteraction ( ) [virtual]

destructor

DtInteraction::DtInteraction ( const DtInteraction & orig )

copy constructor

Member Function Documentation

static void DtInteraction::addCallback	(	DtExerciseConn *	conn,
		const DtList *	classes,
		DtReceiveInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = `DtDDMRegionSP()`
	)		`[static]`

Register/Deregister callback function cb with conn, on all interaction class name (char*) contained in classes.

static void DtInteraction::addCallback	(	DtExerciseConn *	conn,
		const char *	className,
		DtReceiveInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = `DtDDMRegionSP()`
	)		`[static]`

Can be used instead of above for a single class.

DtInterClassDesc * DtInteraction::classDesc ( ) const [inline, virtual]

Get the current class descriptor we're using for this interaction.

References myClassDesc.

virtual bool DtInteraction::customTagSet ( ) const [virtual]

Get whether a custom tag has been set on the interaction or not.

DtExerciseConn * DtInteraction::exerciseConn ( ) const [inline, virtual]

Get the current exercise connection.

References myExConn.

virtual const RTI::LogicalTime* DtInteraction::fedTime ( ) const [virtual]

When the interaction is received, if the federate sending the interaction had TSO set then the fedTime will be set.

If not you can compute time sent using timeStamp()

virtual DtTime DtInteraction::guessTimeValid ( DtTime referenceTime ) const [virtual]

Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.

RTI::InteractionClassHandle DtInteraction::interactionClassHandle ( ) const [inline, virtual]

Get the interaction class handle. Returns 0 if no classDesc.

References DtInterClassDesc::handle(), and myClassDesc.

char * DtInteraction::interactionClassName ( ) const [inline, virtual]

Get the interaction class name. Returns NULL if no classDesc.

References myClassDesc, and DtInterClassDesc::name().

virtual char* DtInteraction::interactionClassToUse ( DtExerciseConn * exConn ) const [protected, virtual]

Returns the FOM interaction class name to use.

Default implementation is to ask the fomMapper.

Reimplemented in TestSimpleInteraction, DtL16RadioSignalInteraction, TestInteraction, DtJtidsLetRadioSignalInteraction, DtJtidsMessageRadioSignalInteraction, DtVmfRadioSignalInteraction, DtJtidsVoiceCvsdRadioSignalInteraction, DtJtidsVoiceLpc10RadioSignalInteraction, DtJtidsVoiceLpc12RadioSignalInteraction, DtRttabRadioSignalInteraction, and DtRttReplyRadioSignalInteraction.

RTI::MessageRetractionHandle DtInteraction::messageRetractionHandle ( ) const [inline, virtual]

Get the message retraction handle. For more info see setMessageRetractionHandle.

References myRetractionHandle.

virtual const char* DtInteraction::name ( ) const [pure virtual]

Name of the interaction. (Not necessarily the ClassName from the FOM.)

virtual bool DtInteraction::neededByFederation ( ) const [virtual]

Returns true if the interaction class is needed by the federation false otherwise.

Returns false if no classDesc.

int DtInteraction::numParameters ( ) const [inline, virtual]

Get the number of parameters. Returns 0 if no classDesc.

References myClassDesc, and DtInterClassDesc::numParameters().

DtInteraction& DtInteraction::operator= ( const DtInteraction & orig )

assignment operator

virtual const RTI::ParameterHandleValueMap& DtInteraction::phvm ( ) const [pure virtual]

Get the parameter handle value pair set for the interaction.

Implemented in TestSimpleInteraction, DtUnknownInteraction, and DtInteractionWithEncDec.

virtual void DtInteraction::print ( ) const [virtual]

Print the interaction's host rep data, including header.

void DtInteraction::printData ( ) const [inline, virtual]

Print the interaction's data to DtInfo.

Reimplemented in TestSimpleInteraction, DtUnknownInteraction, DtLinearObjectTransaction, TestInteraction, DtResupplyOfferInteraction, DtDetonationInteraction, DtServiceRequestInteraction, DtSignalInteraction, DtResupplyRecInteraction, DtDataInteraction, DtEventReportInteraction, DtCommentInteraction, DtRemoveObjectRequestInter, DtActionRequestToObjInter, DtActionResponseInteraction, DtAttributeChangeReqInter, DtDataQueryInteraction, DtRemoveObjectResultInter, DtRepairCompleteInteraction, DtRepairResponseInteraction, DtResupplyCancelInteraction, DtSetDataInteraction, DtActionRequestInteraction, DtArealObjectTransaction, DtCreateObjectResultInter, DtPointObjectTransaction, DtRemoveEntityInteraction, DtStartResumeInteraction, DtStopFreezeInteraction, DtAttributeChangeResInter, DtCollisionInteraction, DtCreateEntityInteraction, DtFireInteraction, DtAcknowledgeInteraction, DtActionResponseFromObjInter, DtEnvironmentObjectTransaction, DtRecordRInteraction, DtCreateObjReqInter, DtTransferControlInteraction, DtInteractionWithData, DtSetRecordInteraction, and MyFireInteraction.

void DtInteraction::printDataToStream ( std::ostream & stream ) const [inline, virtual]

Print the interaction's data to the stream.

void DtInteraction::printDataToString ( DtString & buff ) const [inline, virtual]

Print the interaction's data to the string provided.

Reimplemented in DtDetonationInteraction, and DtFireInteraction.

virtual void DtInteraction::printHeader ( ) const [virtual]

Print the header info.

virtual void DtInteraction::printHeaderToStream ( std::ostream & stream ) const [virtual]

Print the header info to a stream.

virtual void DtInteraction::printParams ( bool withHex ) const [virtual]

Print the header followed by the interaction's parameters.

virtual void DtInteraction::printParamsToStream	(	std::ostream &	stream,
		bool	withHex
	)		const `[virtual]`

Print the header followed by the interaction's parameters to a stream.

virtual void DtInteraction::printToStream ( std::ostream & stream ) const [virtual]

Print the interaction to a stream.

virtual RTI::ParameterHandleValueMap& DtInteraction::privPvList ( ) const [protected, virtual]

Returns a pointer to a private pvList that can be used as a return value by phvps.

It's guaranteed to be able to fit at least numParameters() parameters.

virtual const std::set<DtDDMRegion>* DtInteraction::region ( ) const [virtual]

static void DtInteraction::removeCallback	(	DtExerciseConn *	conn,
		const DtList *	classes,
		DtReceiveInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = `DtDDMRegionSP()`
	)		`[static]`

static void DtInteraction::removeCallback	(	DtExerciseConn *	conn,
		const char *	className,
		DtReceiveInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = `DtDDMRegionSP()`
	)		`[static]`

DtInteraction * DtInteraction::self ( ) const [inline, protected]

Get rid of const-ness on the "this" pointer in order to access non-const functions from const member functions (such as simple accessors).

This should be used sparingly since it bypasses the const protection. Note: This is essentially like an operator and is non-virtual since can't override based on return type. Allows derived classes to also define this member.

virtual void DtInteraction::setCustomTag ( const RTI::VariableLengthData & a_tag ) [virtual]

Set the user-defined tag.

virtual void DtInteraction::setExConn	(	DtExerciseConn *	exConn,
		DtInterClassDesc *	classDesc = `0`
	)		`[virtual]`

Sets the interaction's ExerciseConn and class descriptor.

If classDesc is NULL, derived class's versions choose a reasonable default. Without being told what ExConn or class descriptor to use, many of the HLA-specific functions won't work properly. However, it is usually not necessary for application code to call this function, since it is called by DtExerciseConn::send on the outgoing side, and by the DtInteractionFactory on the incoming side.

Reimplemented in DtUnknownInteraction, and DtInteractionWithEncDec.

virtual void DtInteraction::setFedTime ( const RTI::LogicalTime & ft ) [virtual]

This is used for TSO interactions.

It is set with the value of clock()->simTime() before the interaction is sent. When an interaction is received, If its received with a FedTime this will be set.

virtual void DtInteraction::setFromPhvm ( const RTI::ParameterHandleValueMap & pvList ) [pure virtual]

Set contents from a parameter handle value pair set.

Implemented in TestSimpleInteraction, DtUnknownInteraction, and DtInteractionWithEncDec.

void DtInteraction::setMessageRetractionHandle ( const RTI::MessageRetractionHandle & handle ) [inline, virtual]

Get/Set the MessageRetractionHandle.

This value is set if the interaction is sent with TSO. If not, this value is undefined.

References myRetractionHandle.

virtual void DtInteraction::setRegion ( const std::set< DtDDMRegion > & region ) [virtual]

virtual void DtInteraction::setTag ( const RTI::VariableLengthData & tag ) [virtual]

Set the user-defined tag.

static void DtInteraction::setTagIsAsciiTime ( bool val ) [static]

Set/Get flag that tells us whether we're using the RPR FOM convention that the UserDefinedTag in updates and interactions represents a DIS-style timestamp.
