DtCollisionInteraction Class Reference

Instances of DtCollisionInteraction are used to represent Collision Interactions in the RPR FOM. More...

Inheritance diagram for DtCollisionInteraction:

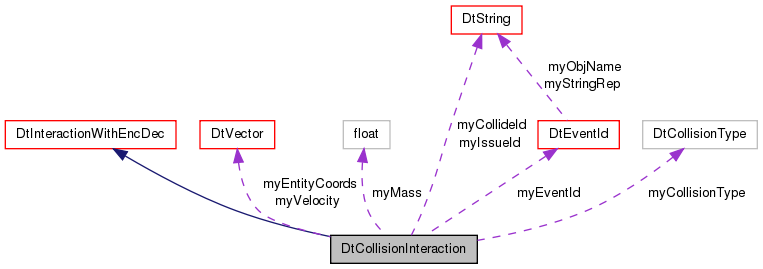

Collaboration diagram for DtCollisionInteraction:

List of all members.

Public Member Functions
	DtCollisionInteraction ()
	default constructor
virtual	~DtCollisionInteraction ()
	destructor
	DtCollisionInteraction (const DtCollisionInteraction &orig)
	copy constructor
DtCollisionInteraction &	operator= (const DtCollisionInteraction &orig)
	assignment operator
virtual void	printData () const
	Print the interaction's data to DtInfo.
virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the specified stream.
virtual void	setIssueId (const DtGlobalObjectDesignator &id)
	Set/Get the issuer identifier.
virtual const DtGlobalObjectDesignator &	issueId () const
virtual void	setCollideId (const DtGlobalObjectDesignator &id)
	Set/Get the collide identifier.
virtual const DtGlobalObjectDesignator &	collideId () const
virtual void	setEventId (const DtEventID &id)
	Set/Get the collision event id.
virtual const DtEventID &	eventId () const
virtual void	setCollisionType (DtCollisionType t)
	Set/Get the collision type.
virtual DtCollisionType	collisionType () const
virtual void	setVelocity (const DtVector &veloc)
	Set/Get the velocity.
virtual const DtVector &	velocity () const
virtual void	setMass (DtFloat32 mass)
	Set/Get the mass involved.
virtual DtFloat32	mass () const
virtual void	setEntityCoords (const DtVector &coords)
	Set/Get the entity coordinates.
virtual const DtVector &	entityCoords () const
virtual const char *	name () const
	Name of the interaction. (Not necessarily the ClassName from the FOM.)
Static Public Member Functions
static DtInteraction *	create ()
	Create a DtCollisionInteraction.
static void	addCallback (DtExerciseConn *conn, DtCollisionInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register)/Remove (deregister) function to be called when interaction occurs.
static void	removeCallback (DtExerciseConn *conn, DtCollisionInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
Protected Attributes
DtGlobalObjectDesignator	myIssueId
DtGlobalObjectDesignator	myCollideId
DtEventID	myEventId
DtCollisionType	myCollisionType
DtVector	myVelocity
DtFloat32	myMass
DtVector	myEntityCoords

---

Detailed Description

Instances of DtCollisionInteraction are used to represent Collision Interactions in the RPR FOM.

---

Constructor & Destructor Documentation

DtCollisionInteraction::DtCollisionInteraction

(

)

default constructor

virtual DtCollisionInteraction::~DtCollisionInteraction

(

)

[virtual]

destructor

DtCollisionInteraction::DtCollisionInteraction

(

const DtCollisionInteraction &

orig

)

copy constructor

---

Member Function Documentation

static void DtCollisionInteraction::addCallback	(	DtExerciseConn *	conn,
		DtCollisionInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

Add (register)/Remove (deregister) function to be called when interaction occurs.

virtual const DtGlobalObjectDesignator& DtCollisionInteraction::collideId

(

)

const [virtual]

virtual DtCollisionType DtCollisionInteraction::collisionType

(

)

const [virtual]

static DtInteraction* DtCollisionInteraction::create

(

)

[static]

Create a DtCollisionInteraction.

Caller is responsible for deletion.

virtual const DtVector& DtCollisionInteraction::entityCoords

(

)

const [virtual]

virtual const DtEventID& DtCollisionInteraction::eventId

(

)

const [virtual]

virtual const DtGlobalObjectDesignator& DtCollisionInteraction::issueId

(

)

const [virtual]

virtual DtFloat32 DtCollisionInteraction::mass

(

)

const [virtual]

virtual const char* DtCollisionInteraction::name

(

)

const [virtual]

Name of the interaction. (Not necessarily the ClassName from the FOM.)

Implements DtInteraction.

DtCollisionInteraction& DtCollisionInteraction::operator=

(

const DtCollisionInteraction &

orig

)

assignment operator

virtual void DtCollisionInteraction::printData

(

)

const [virtual]

Print the interaction's data to DtInfo.

Reimplemented from DtInteraction.

virtual void DtCollisionInteraction::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Print the interaction's data to the specified stream.

Reimplemented from DtInteraction.

static void DtCollisionInteraction::removeCallback	(	DtExerciseConn *	conn,
		DtCollisionInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

virtual void DtCollisionInteraction::setCollideId

(

const DtGlobalObjectDesignator &

id

)

[virtual]

Set/Get the collide identifier.

virtual void DtCollisionInteraction::setCollisionType

(

DtCollisionType

t

)

[virtual]

Set/Get the collision type.

virtual void DtCollisionInteraction::setEntityCoords

(

const DtVector &

coords

)

[virtual]

Set/Get the entity coordinates.

virtual void DtCollisionInteraction::setEventId

(

const DtEventID &

id

)

[virtual]

Set/Get the collision event id.

virtual void DtCollisionInteraction::setIssueId

(

const DtGlobalObjectDesignator &

id

)

[virtual]

Set/Get the issuer identifier.

virtual void DtCollisionInteraction::setMass

(

DtFloat32

mass

)

[virtual]

Set/Get the mass involved.

virtual void DtCollisionInteraction::setVelocity

(

const DtVector &

veloc

)

[virtual]

Set/Get the velocity.

virtual const DtVector& DtCollisionInteraction::velocity

(

)

const [virtual]

---

Member Data Documentation

DtGlobalObjectDesignator DtCollisionInteraction::myCollideId [protected]

DtCollisionType DtCollisionInteraction::myCollisionType [protected]

DtVector DtCollisionInteraction::myEntityCoords [protected]

DtEventID DtCollisionInteraction::myEventId [protected]

DtGlobalObjectDesignator DtCollisionInteraction::myIssueId [protected]

DtFloat32 DtCollisionInteraction::myMass [protected]

DtVector DtCollisionInteraction::myVelocity [protected]

---

The documentation for this class was generated from the following file:

• hCollideInter.h
